FR 2000Y Yatar Milli Freze Makinasi — NETMAK FR 2000Y Tilting Spindle Moulder

NETMAK

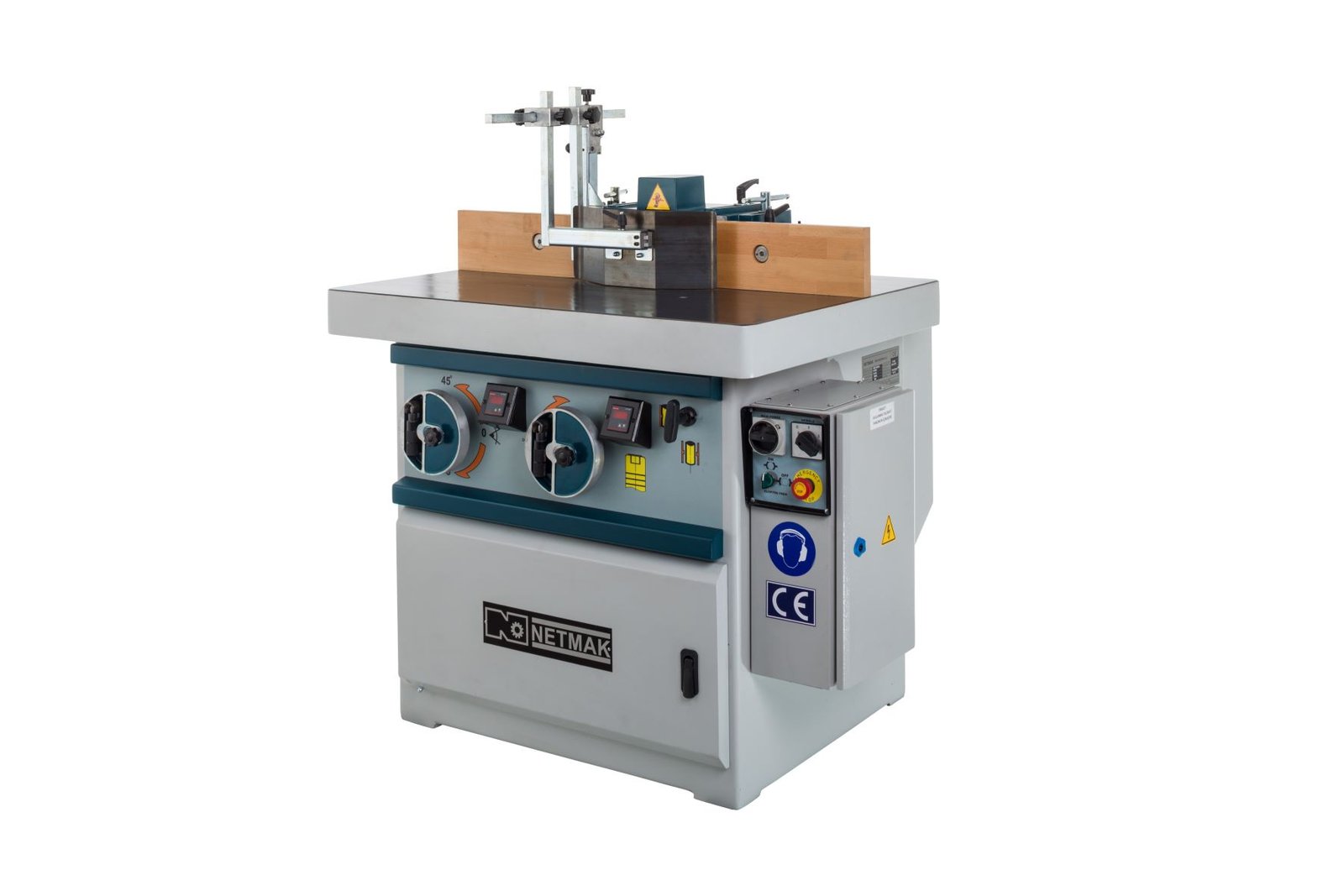

NETMAK FR 2000Y Tilting Spindle Moulder

FR 2000Y Yatar Milli Freze Makinasi

Only the NETMAK FR 2000Y tilts: the spindle swings from -5 to +45 degrees for angled, bevelled and undercut profiles that the fixed-vertical FR moulders cannot reach. The FR 2000Y offers four speeds of 3200, 4200, 6000 and 8000 rpm on 5.5 kW, takes cutters to 300 mm and weighs 490 kg.

ფასი მოთხოვნით

Price for the FR 2000Y is driven mainly by the tooling specified - large-diameter heads up to the 300 mm limit cost far more than small cutters - together with any additional table flange rings, a power feeder and extraction, and delivery with commissioning.

ფასის მოთხოვნა

What the FR 2000Y does

The NETMAK FR 2000Y cuts moulded profiles, rebates, tenons and panel raises with the added freedom of a spindle that tilts from -5 to +45 degrees. Tilting the spindle rather than the workpiece means a single straight cutter can produce a whole family of angled profiles, and awkward bevelled sections stay flat on the table instead of being propped on a jig. Four spindle speeds of 3200, 4200, 6000 and 8000 rpm let the FR 2000Y match cutter diameter to rim speed, which matters because the machine accepts cutters up to 300 mm across.

Who the FR 2000Y suits

The FR 2000Y suits door and window makers, stair builders and furniture workshops producing raised panels, angled glazing beads and shaped mouldings. The table measures 1050 x 800 mm at a 900 mm working height, and the spindle has 170 mm of vertical travel with a usable spindle height of 140-150 mm, so tall profiles can be cut in one pass. Digital height and angle indication is standard equipment, which turns tilt setting from a trial-and-error exercise into a recorded number that can be repeated on the next batch. A guard for curved work is included for shaped components run against a ring fence.

How the FR 2000Y differs from a fixed spindle moulder

A conventional fixed-spindle moulder cuts only what the cutter profile itself describes. The FR 2000Y adds a 50 degree tilt range, so the same tooling investment covers straight, undercut and bevelled work, and the digital angle display makes each setting recoverable. The trade-off is that the FR 2000Y is a 490 kg machine with a 1050 x 1200 x 1400 mm footprint driven by a single 7.5 HP / 5.5 kW motor, lighter than the heaviest fixed moulders and best used with a power feed unit for consistent results on long runs.

What is included with the FR 2000Y

The FR 2000Y is supplied with a monoblock steel body, a cover protection circuit, an electromechanical brake, the -5 to +45 degree tilt mechanism, a guard for curved parts and digital height and angle indication. Table flange diameters of 115, 170, 220, 270 and 345 mm are covered by the machine’s ring inserts. Cutters, a power feed unit, extraction and the electrical connection are not included with the FR 2000Y.

ძირითადი მახასიათებლები

  • Spindle tilts from -5 to +45 degrees for angled and undercut profiles
  • Four spindle speeds: 3200, 4200, 6000 and 8000 rpm
  • 7.5 HP / 5.5 kW motor accepting cutters up to 300 mm diameter
  • 1050 x 800 mm table at a 900 mm working height
  • 170 mm of spindle travel with 140-150 mm usable spindle height
  • Table ring inserts of 115, 170, 220, 270 and 345 mm diameter
  • Digital height and angle readout plus electromechanical brake as standard
  • 490 kg monoblock steel body, 1050 x 1200 x 1400 mm overall

ტექნიკური მახასიათებლები

Product code
FR 2000Y
Table size
1050 x 800 mm
Table height
900 mm
Spindle height
140 mm - 150 mm
Spindle travel
170 mm
Spindle tilt angle
-5 to +45 degrees
Spindle speeds
3200 / 4200 / 6000 / 8000 rpm
Table flange (ring) diameters
115 / 170 / 220 / 270 / 345 mm
Max. cutter diameter
300 mm
Motor power
7.5 HP / 5.5 kW
Overall dimensions
1050 x 1200 x 1400 mm
Net weight
490 kg
Standard equipment
Monoblock steel body, cover protection circuit, electromechanical brake, -5 to +45 degree spindle tilt, guard for curved parts, digital height and angle indicator

უპირატესობები

  • 50 degree tilt range multiplies the profiles available from existing tooling
  • Digital height and angle display makes settings recordable and repeatable
  • Four spindle speeds allow correct rim speed for cutters up to 300 mm

გასათვალისწინებელი

  • At 490 kg it is lighter than heavy fixed moulders, so deep cuts need care
  • Power feed unit, cutters and extraction are all separate purchases
  • Manual setting and feeding; no programmable positioning

ხშირად დასმული კითხვები

How far does the spindle on the NETMAK FR 2000Y tilt?
The FR 2000Y spindle tilts from -5 to +45 degrees, a 50 degree range, and the angle is set against a digital indicator supplied as standard. That tilt lets the FR 2000Y cut bevelled and undercut profiles with straight tooling instead of buying a dedicated angled cutter.
What size cutters does the FR 2000Y take?
The FR 2000Y accepts cutters up to 300 mm in diameter and offers four spindle speeds of 3200, 4200, 6000 and 8000 rpm so rim speed can be matched to the tool. The FR 2000Y table takes ring inserts of 115, 170, 220, 270 and 345 mm to close the gap around the cutter in use.
Does the FR 2000Y come with a power feeder?
No, a power feed unit is not included with the FR 2000Y and is bought separately. Long straight runs on the FR 2000Y are far safer and more consistent with a feeder fitted, and most workshops budget one with the machine.
What is the working height and footprint of the FR 2000Y?
The FR 2000Y has a 1050 x 800 mm table at 900 mm above the floor, an overall size of 1050 x 1200 x 1400 mm and a net weight of 490 kg. Allow clear space around the FR 2000Y on the infeed and outfeed sides for the full length of moulding being run.
Can the FR 2000Y machine curved components?
The FR 2000Y includes a protective attachment for curved parts as standard equipment, so shaped work can be run against a ring fence and template. The operator still supplies the guiding, since the FR 2000Y is a manually fed machine with no programmed axes.
How much spindle height is available on the FR 2000Y?
The FR 2000Y offers 170 mm of spindle travel with a spindle height of 140-150 mm, which sets the tallest profile that can be cut in a single setting. Taller components on the FR 2000Y must be machined in two passes with the workpiece reversed.
How much does the NETMAK FR 2000Y cost?
The NETMAK FR 2000Y is supplied on quotation rather than at a fixed price. What determines the figure for an FR 2000Y is the cutter package specified, since heads approaching the 300 mm maximum diameter carry most of the cost, plus any extra table flange rings, a power feeder, extraction, and delivery with commissioning. Send the angled profiles to be produced and the FR 2000Y can be quoted with matching tooling.
How long does delivery of an FR 2000Y take?
The FR 2000Y is a build-to-order machine from NETMAK rather than a stock item, so delivery follows the current production slot and any tooling ordered with it. The confirmed lead time for an FR 2000Y is set out on the written quotation.
What does installing an FR 2000Y involve?
Installing an FR 2000Y means positioning 490 kg on a level floor with room to work at a 900 mm table height and clearance around the tilt arc, then levelling, three-phase connection by a qualified electrician and extraction connected to the hood. Because the tilt and angle readout are the reason for buying the FR 2000Y, commissioning normally includes checking the angle setting against a test cut; installation is quoted separately from the machine.
What tooling and consumables should be budgeted for the FR 2000Y?
The FR 2000Y is delivered with the guard for curved parts, the digital height and angle indicator and a set of table flange rings of 115, 170, 220, 270 and 345 mm, but no cutters. Budget for angled and raised-panel heads suited to tilted work, spare knives and profile grinding, a power feeder, and extraction sized for cutters up to 300 mm on the FR 2000Y.
