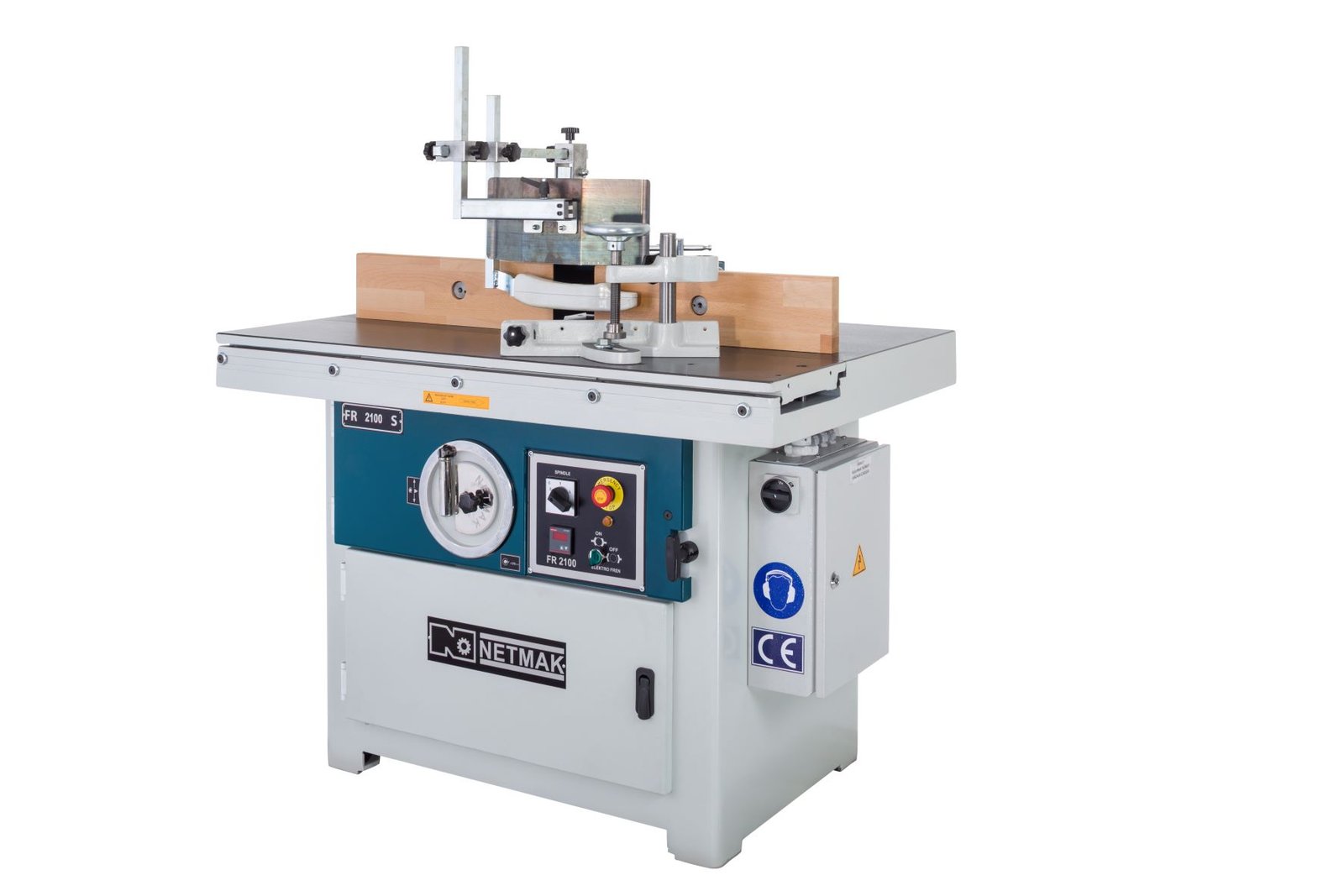

FR 2100 S Arabalı Freze Makinası — NETMAK FR 2100 S Sliding Table Spindle Moulder

NETMAK

NETMAK FR 2100 S Sliding Table Spindle Moulder

FR 2100 S Arabalı Freze Makinası

The NETMAK FR 2100 S sets a sliding carriage beneath the 1200 x 800 mm table that the FR 2100 leaves fixed, trading 60 kg of extra mass at 680 kg for supported tenoning and cross-cutting. Power on the FR 2100 S stays at 7.5 kW (10 HP), three speeds of 4000, 6000 and 8000 rpm, 30-35 mm spindle.

ფასი მოთხოვნით

Price for the FR 2100 S is driven by the spindle bore chosen (30 mm or 35 mm), whether the standard carriage here or the reinforced carriage of the FR 2100 SA is specified, the tooling and tenoning clamps ordered, any power feeder and extraction, and delivery with rigging.

ფასის მოთხოვნა

What the FR 2100 S does

The FR 2100 S combines the 7.5 kW drivetrain of the FR 2100 range with a sliding carriage, which makes it the general-purpose machine of the family. Straight profiling runs along the fence exactly as on the fixed-table FR 2100, but the carriage on the FR 2100 S also lets a workpiece be clamped and carried square across the cutter — the way tenons and cross-grain cuts on frame components have to be made. With a 30-35 mm spindle, 150 mm of vertical travel and three speeds of 4000, 6000 and 8000 rpm, the FR 2100 S is set up for large bore-mounted heads rather than small high-speed cutters.

Who the FR 2100 S suits

The FR 2100 S is the right machine for a joinery or door manufacturer that wants one moulder to do several jobs. Profiling stiles, cutting tenons on rails, running glazing bars and shaping curved parts against a template are all within reach of the FR 2100 S, and the 1200 x 800 mm table gives enough bearing area for cabinet-sized frame components. At 680 kg the FR 2100 S is a serious industrial machine, not a bench-top substitute.

How the FR 2100 S compares with its siblings

The FR 2100 S sits between the fixed-table FR 2100 and the reinforced FR 2100 SA. Adding the carriage to the FR 2100 raises weight from 620 kg to 680 kg and overall height from 1300 mm to 1400 mm on the same 900 x 1250 mm plan. The FR 2100 SA then adds reinforcement, taking weight to 695 kg. Compared with the FR 2000 S, the FR 2100 S is the heavier, more powerful option — 7.5 kW against 5.5 kW and a 1200 x 800 mm table against 1000 x 750 mm — but its spindle tops out at 8000 rpm rather than 10,000 rpm.

What is supplied with the FR 2100 S

The FR 2100 S includes the sliding carriage, a curved-workpiece jig, an electromechanical spindle brake, a guard-cover safety interlock circuit and a digital spindle height indicator, all on a monobloc steel body. Cutter heads, knives, a power feeder and extraction equipment are supplied separately.

ძირითადი მახასიათებლები

  • Supplied with the sliding carriage (Arabalı) that the İ.T. additional-table version does not carry
  • 7.5 kW / 10 HP motor with three spindle speeds: 4000, 6000 and 8000 rpm
  • Sliding carriage under a 1200 x 800 mm table for square cross-grain and tenon cuts
  • Spindle available in 30 mm or 35 mm diameter with 150 mm vertical stroke
  • 14 mm collet for router-type cutters plus a Morse No. 5 (5 MK) spindle taper
  • 850 mm table height and 900 x 1250 x 1400 mm overall dimensions
  • 680 kg monobloc steel construction — 60 kg heavier than the fixed-table FR 2100
  • Electromechanical spindle brake and guard-cover interlock safety circuit
  • Digital height indicator and curved-workpiece jig included as standard

ტექნიკური მახასიათებლები

Product code
FR 2100 S
Machine type
Sliding carriage spindle moulder (Arabalı Freze Makinası)
Table size
1200 x 800 mm
Table type
Sliding carriage
Table height
850 mm
Spindle diameter
30-35 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
10 HP / 7.5 kW
Spindle speeds
4000-6000-8000 rpm
Overall dimensions
900 x 1250 x 1400 mm
Net weight
680 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • One machine covers straight profiling, tenoning and template shaping thanks to the sliding carriage
  • 7.5 kW and a 30-35 mm spindle carry large bore-mounted heads through deep cuts
  • 1200 x 800 mm table and 680 kg mass give a stable platform for frame-sized components

გასათვალისწინებელი

  • Top speed of 8000 rpm is lower than the FR 2000 range, limiting very small-diameter tooling
  • Spindle height is adjusted manually; the digital indicator only displays the setting
  • Tooling, power feeder and dust extraction are all separate purchases, and supply voltage is not published

ხშირად დასმული კითხვები

What power supply does the FR 2100 S need?
The FR 2100 S runs a 7.5 kW / 10 HP three-speed spindle motor. Supply voltage, phase and frequency are not published on the NETMAK specification sheet for the FR 2100 S, so plan for an industrial three-phase connection and confirm the exact voltage and breaker size with us before the FR 2100 S is delivered.
Can the FR 2100 S cut tenons?
Yes. The sliding carriage on the FR 2100 S is what makes tenoning possible: the workpiece is clamped to the carriage and carried square past the cutter instead of being pushed along a fence. The FR 2100 S does not include tenoning cutter heads, which are ordered to the joint size you need.
How large a workpiece does the FR 2100 S handle?
The FR 2100 S offers a 1200 x 800 mm table, which suits cabinet and frame components up to roughly that length in a supported pass. For full-length door rails around two metres, the FR 2100 I.T. with its 2200 x 840 mm extension table replaces the FR 2100 S.
What is the difference between the FR 2100 S and the FR 2100 SA?
The FR 2100 S and the FR 2100 SA share the same 1200 x 800 mm table, 30-35 mm spindle and 7.5 kW three-speed motor. The FR 2100 SA has a reinforced carriage, which raises net weight from 680 kg to 695 kg and overall width from 900 mm to 970 mm for steadier support under heavy stock.
How much floor space does the FR 2100 S require?
The FR 2100 S occupies 900 x 1250 x 1400 mm and weighs 680 kg. Allow free space either side of the FR 2100 S for the carriage travel and the length of your components, plus rear access for extraction ducting and the electrical supply, and check the slab will take a 680 kg load.
Does the FR 2100 S include cutters or extraction?
No. The FR 2100 S is supplied without cutter heads, knives, a power feeder or a dust extractor, and extraction port sizes are not stated in the published FR 2100 S specification. Budget for tooling and an extraction unit alongside the machine.
How much does the NETMAK FR 2100 S cost?
The NETMAK FR 2100 S is quoted per specification rather than sold at a list price. What sets the figure for an FR 2100 S is the spindle bore chosen (30 mm or 35 mm), the profile heads and tenoning clamps ordered with it, whether a power feeder and extraction are included, and delivery with commissioning. Ask for the FR 2100 S and the reinforced-carriage FR 2100 SA on one quotation to see the carriage difference priced.
How quickly can an FR 2100 S be supplied?
The FR 2100 S is built to order by NETMAK, so supply follows the factory production slot rather than a stock list, and the spindle and tooling specified affect the schedule. The lead time applying to an FR 2100 S is confirmed in writing on the quotation.
What does commissioning an FR 2100 S involve?
Commissioning an FR 2100 S covers positioning 680 kg on a solid floor with clearance for the carriage to travel, levelling so the sliding carriage and the 1200 x 800 mm table remain coplanar, three-phase connection by a qualified electrician, extraction connected to the hood and a first supervised run. Installation of the FR 2100 S is a separate quotation line from the machine itself.
What should be budgeted separately alongside an FR 2100 S?
An FR 2100 S includes the curved-workpiece jig and a 14 mm collet but no cutters, so budget profile heads matched to the 30 or 35 mm spindle, spare knives and sharpening. Workshops using the FR 2100 S for tenoning should also budget carriage clamps and stops, and most add a power feeder plus extraction ducting for repetitive straight runs.
