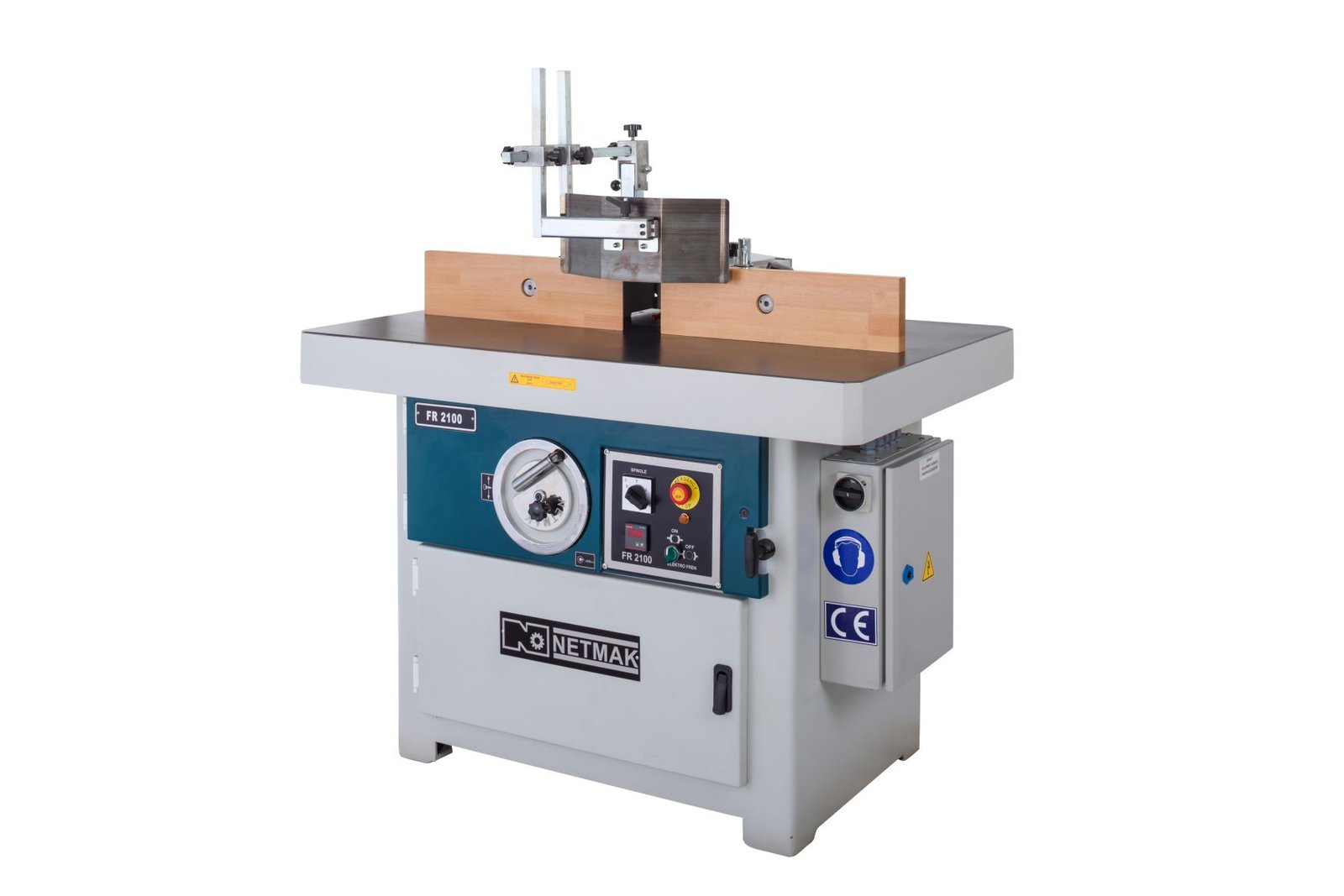

NETMAK FR 2100 Spindle Moulder
FR 2100 Freze Makinası
Where the FR 2000 uses 5.5 kW, the NETMAK FR 2100 fixed flat-table moulder puts 7.5 kW (10 HP) behind a 30-35 mm spindle at three speeds of 4000, 6000 and 8000 rpm. The FR 2100 carries a 1200 x 800 mm table at 850 mm height, weighs 620 kg and stands 900 x 1250 x 1300 mm overall.
The main price variables on an FR 2100 are which spindle diameter is fitted (30 mm or 35 mm, since the bore decides which tooling can ever be used), the profile-head package bought with the machine, a power feeder and extraction if taken, and delivery with commissioning.
ფასის მოთხოვნაWhat the FR 2100 does
The FR 2100 is the entry point into NETMAK’s larger moulder range and the only member of the FR 2100 family with a fixed flat table rather than a carriage. Work is fed by hand or by power feeder along the 1200 x 800 mm table against the fence, past a cutter on a spindle available in 30 mm or 35 mm. The step up to 7.5 kW / 10 HP is what defines the FR 2100: it is a machine specified for deeper cuts and larger-diameter heads, and the three speeds — 4000, 6000 and 8000 rpm — are pitched at that heavier tooling rather than at high-speed router bits. Spindle travel is 150 mm, set against a digital height indicator.
Who the FR 2100 suits
The FR 2100 fits a workshop that profiles straight stock in volume and does not need a carriage. Running a power feeder along the fence, the FR 2100 will produce long straight mouldings, door and window sections and glazing bars consistently, at a lower purchase price than the carriage models in the same range. Where the work involves cross-grain tenoning or free-form curved parts on a carriage, the FR 2100 S is the more suitable machine.
How the FR 2100 compares with its siblings
Against the FR 2000 range, the FR 2100 offers more motor and more spindle — 7.5 kW versus 5.5 kW, a 30-35 mm spindle versus a fixed 30 mm — but a lower top speed of 8000 rpm against 10,000 rpm, and a bigger 1200 x 800 mm table against 1000 x 750 mm. Against the FR 2100 S, SA and I.T., the FR 2100 is the lightest and shallowest of the four at 620 kg and 900 x 1250 x 1300 mm, because it carries no carriage or extension table.
What is supplied with the FR 2100
The FR 2100 is supplied with a monobloc steel body, an electromechanical spindle brake, a guard-cover safety interlock circuit, a curved-workpiece jig and a digital spindle height indicator. Cutter heads, knives, limiters, a power feeder and dust extraction are separate items and are not part of the published FR 2100 specification.
ძირითადი მახასიათებლები
- 7.5 kW / 10 HP spindle motor with three selectable speeds: 4000, 6000 and 8000 rpm
- Spindle available in 30 mm or 35 mm diameter with 150 mm vertical stroke
- 1200 x 800 mm fixed flat table at an 850 mm working height
- 14 mm collet for router-type cutters alongside bore-mounted profile heads
- Morse No. 5 (5 MK) spindle taper
- 620 kg monobloc steel body with a compact 900 x 1250 x 1300 mm footprint
- Electromechanical spindle brake and guard-cover interlock safety circuit
- Digital height indicator and curved-workpiece jig supplied as standard
ტექნიკური მახასიათებლები
- Product code
- FR 2100
- Machine type
- Flat table spindle moulder (Düz Tablalı Freze Makinası)
- Table size
- 1200 x 800 mm
- Table type
- Flat (fixed) table
- Table height
- 850 mm
- Spindle diameter
- 30-35 mm
- Collet
- 14 mm
- Spindle stroke
- 150 mm
- Spindle taper
- 5 MK (Morse No. 5)
- Motor power
- 10 HP / 7.5 kW
- Spindle speeds
- 4000-6000-8000 rpm
- Overall dimensions
- 900 x 1250 x 1300 mm
- Net weight
- 620 kg
- Body
- Monobloc steel
- Braking
- Electromechanical brake system
- Safety
- Guard cover interlock circuit
- Height display
- Digital height indicator
- Included jig
- Curved workpiece attachment
უპირატესობები
- 7.5 kW motor and a 30-35 mm spindle handle larger, heavier profile heads than the FR 2000 range
- 1200 x 800 mm table gives more bearing surface than the 1000 x 750 mm FR 2000 models
- Most compact and lowest-cost route into the FR 2100 family at 620 kg and 1300 mm overall height
გასათვალისწინებელი
- Fixed flat table only — no sliding carriage, so cross-grain tenoning needs a different model
- Top spindle speed of 8000 rpm, lower than the 10,000 rpm available on the FR 2000 range
- Hand feeding a 7.5 kW moulder is demanding; a separate power feeder is effectively required and is not included
