FRS 900 Sakuli Freze Makinasi — NETMAK FRS 900 Vertical Spindle Router (Sakuli Freze)

NETMAK

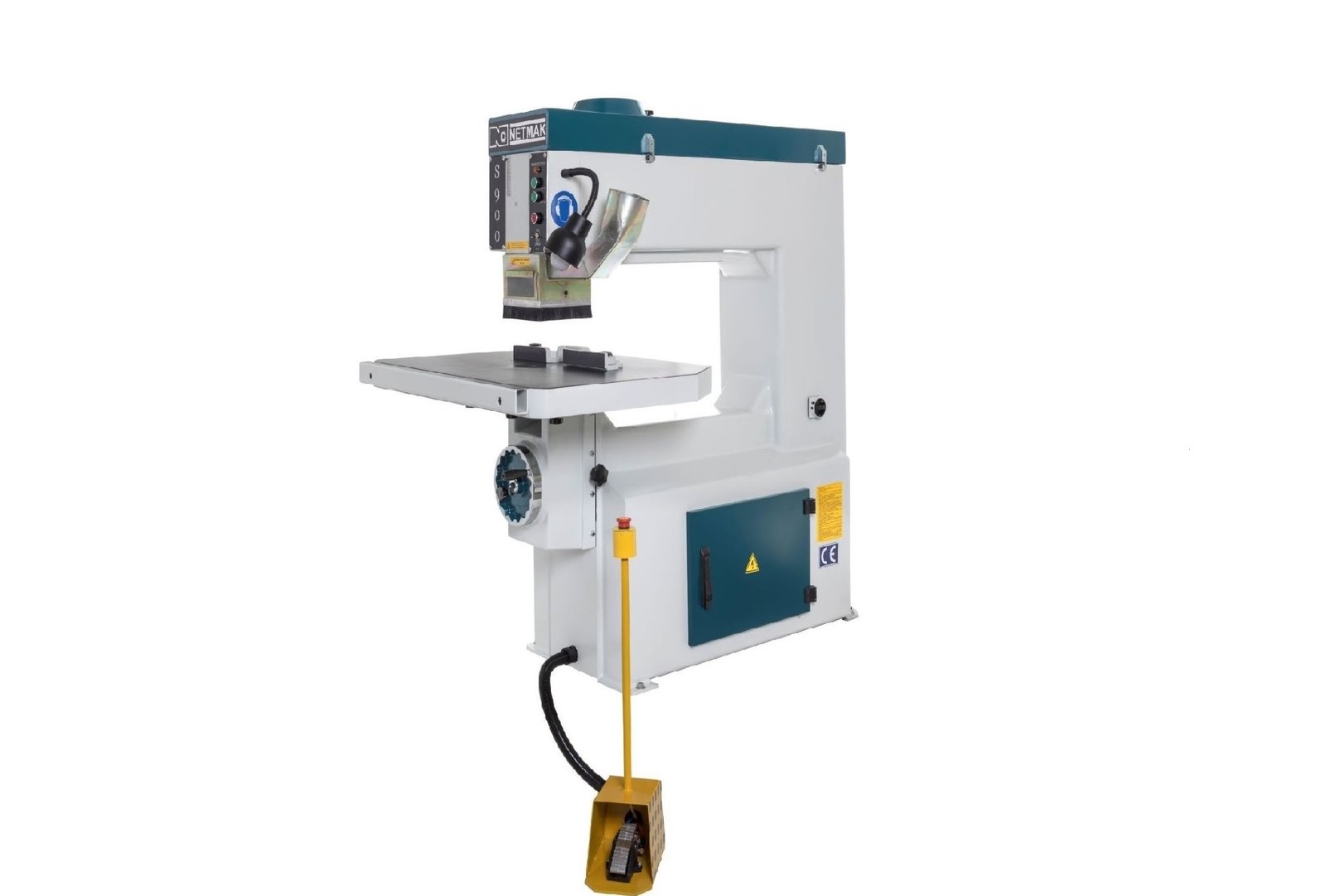

NETMAK FRS 900 Vertical Spindle Router (Sakuli Freze)

FRS 900 Sakuli Freze Makinasi

Reach is what separates the two NETMAK overhead routers, and the FRS 900 offers 910 mm between cutter and column over a 790 x 970 mm table in a 630 kg frame. The FRS 900 turns a 12-14 mm collet at 9000-18000 rpm on a 3.2-4 HP motor, with pneumatic head raise and five preset depth steps.

ფასი მოთხოვნით

The FRS 900 price is driven by the reach specified - the 910 mm FRS 900 against the 1250 mm FRS 1250 - together with the cutter, collet and template package added to the bare machine, air preparation equipment, and delivery and installation.

ფასის მოთხოვნა

What the FRS 900 does

The NETMAK FRS 900 performs template-guided routing, recessing and profiling from above the workpiece, with the cutter descending onto the part instead of the part being pushed into a fixed spindle. Pneumatic raising and lowering of the head keeps the operator’s hands away from the cutter and makes plunge depth repeatable across a batch. The spindle turns at 9000 to 18000 rpm driven by a 3.2-4 HP motor, holds cutters in a 12-14 mm collet, and offers five preset height steps so a multi-depth job can be run without re-measuring between stages.

Who the FRS 900 suits

The FRS 900 belongs in door and furniture workshops that cut hinge recesses, lock mortices, handle pockets, sign lettering and decorative panel work in repeated batches. Clearance from cutter to column is 910 mm, which sets the deepest point on a panel the FRS 900 can reach in from an edge. The 790 x 970 mm table travels 200 mm, and the spindle itself has 80 mm of travel with a maximum spindle-to-table gap of 260 mm, so reasonably thick components and jig fixtures still fit under the head. A 24 volt lighting system over the work area and a combined blade and hand guard are standard, both of which matter on a machine where the operator watches a template follower closely.

FRS 900 against the FRS 1250

The FRS 900 and the FRS 1250 are the same machine on two frame sizes. Spindle speed range (9000-18000 rpm), motor (3.2-4 HP), collet (12-14 mm), table travel (200 mm), spindle travel (80 mm), five depth steps and 260 mm maximum spindle-to-table clearance are shared. What differs is reach and mass: the FRS 900 gives 910 mm of column clearance on a 790 x 970 mm table at 630 kg and 1700 x 1000 x 1650 mm overall, while the FRS 1250 gives 1250 mm on a 960 x 1220 mm table at 850 kg. Choose the FRS 900 for cabinet doors, drawer fronts and smaller panels; the FRS 1250 is for full-height door leaves.

What is included with the FRS 900

The FRS 900 ships with a monoblock steel body, the pneumatic head raise and lower system, stepped depth adjustment on the spindle, 24 volt work lighting and the blade and hand guard. Cutters, collets beyond the fitted size, templates, hold-down clamps, the compressed air supply and chip extraction are not included with the FRS 900 and are specified according to the work.

ძირითადი მახასიათებლები

  • 910 mm clearance between cutter and column - the shorter reach of the two FRS routers, on a 1700 mm wide frame
  • 790 x 970 mm work table with 200 mm of table travel
  • Spindle speed variable from 9000 to 18000 rpm
  • 3.2-4 HP motor with a 12-14 mm collet
  • Pneumatic head raise and lower with 80 mm of spindle travel
  • Five preset height steps for repeatable multi-depth routing
  • 260 mm maximum clearance between spindle and table
  • 24 volt work lighting, blade and hand guard, 630 kg monoblock steel body

ტექნიკური მახასიათებლები

Product code
FRS 900
Table size
790 x 970 mm
Table travel
200 mm
Cutter to column clearance
910 mm
Spindle travel
80 mm
Preset height steps
5
Max. spindle to table clearance
260 mm
Spindle speed
9000-18000 rpm
Motor power
3.2-4 HP
Collet
12-14 mm
Overall dimensions
1700 x 1000 x 1650 mm
Net weight
630 kg
Standard equipment
Monoblock steel body, pneumatic raise and lower, stepped depth adjustment on the spindle, 24 volt lighting system, blade and hand guard

უპირატესობები

  • Pneumatic head keeps plunge depth repeatable across a batch
  • Five preset depth steps remove re-measuring between operations
  • 24 volt work lighting and standard guarding on a 630 kg steel frame

გასათვალისწინებელი

  • Requires a workshop compressed air supply that is not included
  • Manual, template-guided operation only; no programmable axes
  • 910 mm column clearance limits reach on full-size door leaves

ხშირად დასმული კითხვები

What cutters does the NETMAK FRS 900 take?
The FRS 900 holds cutters in a 12-14 mm collet and turns them at 9000 to 18000 rpm. Router cutters are not supplied with the FRS 900, so the shank sizes required for hinge recessing, lock mortising or profiling should be matched to the collet when the machine is ordered.
Does the FRS 900 need a compressed air supply?
Yes. The FRS 900 raises and lowers the head pneumatically, so the FRS 900 must be connected to a workshop compressed air supply. The compressor, air line and filter-regulator unit are not part of the machine package.
How far in from the edge of a panel can the FRS 900 work?
The FRS 900 has 910 mm of clearance between the cutter and the column, which sets how far in from a panel edge the cutter can reach. Work needing deeper reach, such as full-height door leaves, is better matched to the FRS 1250 with its 1250 mm clearance.
How thick a workpiece fits under the FRS 900 head?
The FRS 900 allows a maximum of 260 mm between spindle and table, with 80 mm of spindle travel and 200 mm of table travel. Remember to subtract the height of any jig or template fixture when checking whether a part fits under the FRS 900.
Is the FRS 900 a CNC machine?
No, the FRS 900 is a manually operated overhead router guided by templates and stops, not a CNC machine, and the FRS 900 has no programmable axes or tool changer. Shops needing programmed door and panel machining should look at a CNC router such as the NETMAK CNC 2411.
What space does the FRS 900 occupy?
The FRS 900 measures 1700 x 1000 x 1650 mm and weighs 630 kg. Allow working room on the operator side of the FRS 900 for handling panels, plus access to the air connection and an extraction take-off.
How much does the NETMAK FRS 900 cost?
The NETMAK FRS 900 overhead router is supplied on quotation rather than at a published price. An FRS 900 quotation reflects the reach specified - 910 mm on the FRS 900 against 1250 mm on the FRS 1250 - plus the cutter and template package specified with the machine, compressed air preparation for the pneumatic head, and delivery and installation of a 630 kg machine in Georgia. Tell us the largest panel you need to reach into and the FRS 900 can be quoted against the FRS 1250.
How long does delivery of a NETMAK FRS 900 take?
The NETMAK FRS 900 is built to order, so the FRS 900 lead time is confirmed at quotation rather than fixed in advance. Availability of the FRS 900 and of the longer-reach FRS 1250 is worth checking together, since the two share their spindle, motor and travels and differ mainly in reach and table size. Request current FRS 900 availability with your enquiry.
What does installing an FRS 900 require?
Installing an FRS 900 requires a level floor for 630 kg on a 1700 x 1000 mm footprint with clear space around the table for panel handling, machine levelling, a three-phase electrical connection made by a qualified electrician, a clean dry compressed air supply for the pneumatic head raise and lower, and chip extraction connected to the guard. NETMAK does not publish the FRS 900's supply voltage, phase or required air pressure, so all three are confirmed at quotation; delivery and commissioning can be quoted with the machine.
What tooling should be budgeted alongside an FRS 900?
The FRS 900 is quoted as a machine, so budget separately for router cutters suited to the 12-14 mm collet and the 9000-18000 rpm speed range, templates and hold-down jigs for the parts being produced, an air preparation set (filter, regulator, lubricator) for the pneumatic head, and a chip extractor. Cutters and templates are the largest ongoing cost of running an FRS 900 and are the items most often underestimated.
