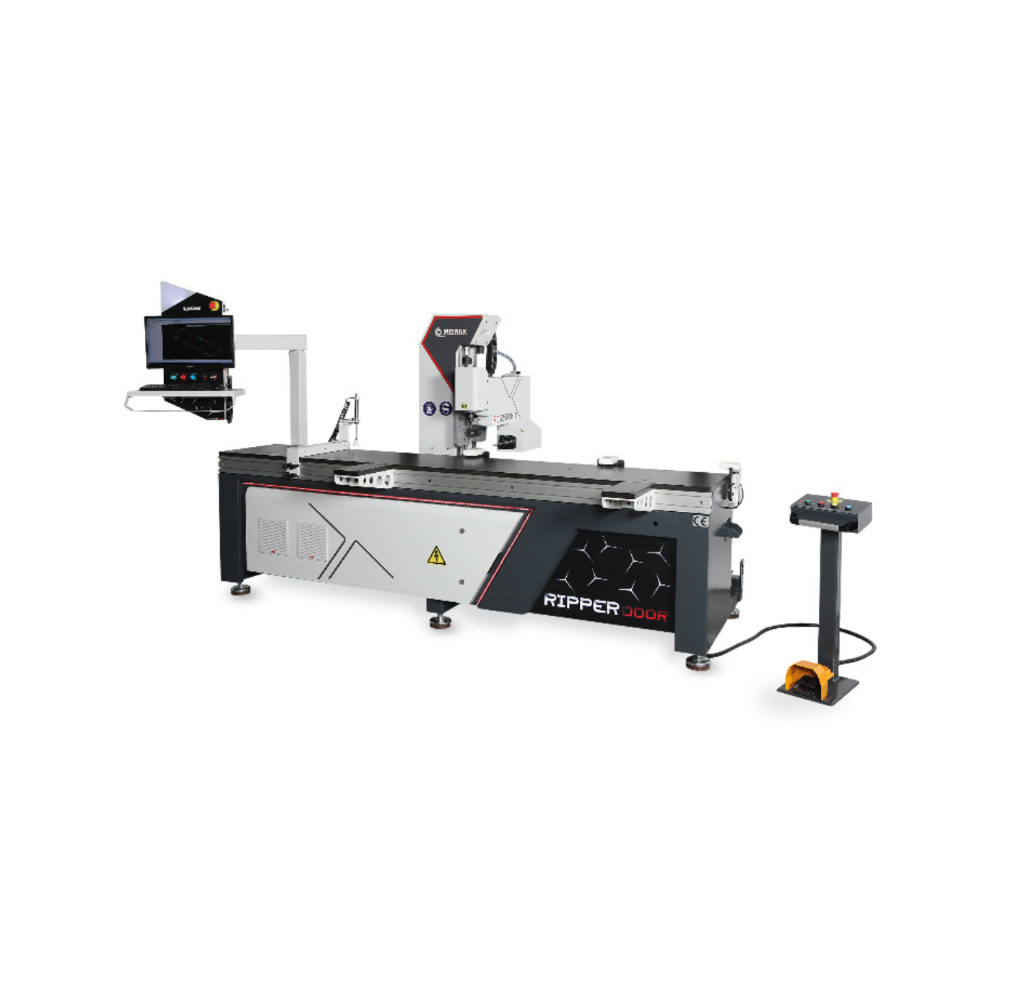

RIPPER CNC KKM — Ripper CNC KKM Door Machining Centre 1 / 3

MIZRAK

Ripper CNC KKM Door Machining Centre

RIPPER CNC KKM

The Ripper CNC KKM is the PC-controlled member of the RIPPER range: machining positions run from a program instead of mechanical stops, on 750 W X, Y and Z servo motors, 1.5 kW and 2.2 kW spindle motors and a 2000 mm blade machining capacity. A remote connection for diagnostics is included.

ფასი მოთხოვნით

The price of the Ripper CNC KKM is moved by the cutter package specified for your lock, handle and hinge layouts, the number of programs set up at commissioning, and delivery, installation and training in Georgia.

ფასის მოთხოვნა

What the Ripper CNC KKM does

The Ripper CNC KKM machines door components under numerical control on three servo-driven axes rather than by manual stop settings. Servo motors of 750 W drive the X, Y and Z axes, and two spindle motors rated 1.5 kW and 2.2 kW carry the cutting tools, so roughing and finishing passes can use different power levels without a tool change on a single spindle. The stated blade machining capacity of the Ripper CNC KKM is 2000 mm, which sets the working length available to the tool along the workpiece.

Who the Ripper CNC KKM suits

The Ripper CNC KKM suits door manufacturers who already run a sizing machine and now want repeatable, program-driven machining of lock, handle and hinge positions instead of jig-and-template work. Because the Ripper CNC KKM is driven from a PC control unit, position data is entered as a program and recalled per door type, which pays off when a workshop switches between several standard hardware layouts in a week. A shop making a handful of doors a month to varying one-off dimensions will not recover the cost of programming.

Remote connection and support

The Ripper CNC KKM includes a remote connection, meaning the control PC can be reached by the supplier for diagnostics and program assistance rather than requiring a technician on site for every software question. For a buyer in Georgia this matters more than it does close to the factory: a fault that can be diagnosed over the connection avoids a service trip. The remote connection on the Ripper CNC KKM does not replace mechanical service, only software and setup support.

How it sits in the range

The Ripper CNC KKM is the CNC-controlled option in Mizrak’s door lock and machining group. Compared with the mechanically set MZK Kapi Kilit machines, the Ripper CNC KKM replaces fixed stops with programmed axis positions. Compared with the full MZK CNC Ripper Double, the Ripper CNC KKM is a machining unit rather than a complete sizing-plus-routing line, so it does not size the door leaf itself.

ძირითადი მახასიათებლები

  • PC control unit for program-driven machining rather than manual stop settings
  • 750 W servo motors on each of the X, Y and Z axes
  • 1.5 kW and 2.2 kW spindle motors for roughing and finishing tools
  • 2000 mm blade machining capacity along the workpiece
  • Remote connection allowing supplier diagnostics and program support

ტექნიკური მახასიათებლები

Control Unit
PC control unit
X, Y and Z Axis Servo Motors
750 W
Spindle Motors
1.5 kW and 2.2 kW
Blade Machining Capacity
2000 mm
Remote Connection
Included

უპირატესობები

  • PC control with 750 W servos on all three axes gives repeatable positions across a batch
  • Two spindle motors of 1.5 kW and 2.2 kW cover different tools without a spindle change
  • Remote connection lets the supplier assist with software and setup without a site visit

გასათვალისწინებელი

  • Mizrak publishes no technical table for this model, so power, footprint and weight must be requested
  • PC-controlled operation requires an operator comfortable with programming, not just machine setting
  • Machines door components only; door leaves still need a separate sizing machine

ხშირად დასმული კითხვები

What control system does the Ripper CNC KKM use?
The Ripper CNC KKM is driven by a PC control unit, with 750 W servo motors positioning the X, Y and Z axes. Machining positions on the Ripper CNC KKM are entered as a program on the PC rather than set with mechanical stops.
What is the machining capacity of the Ripper CNC KKM?
The Ripper CNC KKM is specified with a 2000 mm blade machining capacity. Mizrak does not publish a separate maximum workpiece width or thickness for the Ripper CNC KKM, so confirm those limits against your door sizes before ordering.
What spindle power does the Ripper CNC KKM have?
The Ripper CNC KKM carries two spindle motors rated 1.5 kW and 2.2 kW. Tooling for the Ripper CNC KKM must be selected to suit those two power ratings and the machine's spindle interface, which the supplier confirms per order.
Does the Ripper CNC KKM size the door leaf?
No, the Ripper CNC KKM is a machining unit for lock, handle and hinge work and is not described by the supplier as a door sizing machine. Doors should be cut to final length and width on a sizing machine such as the MZK NC Ripper series before they reach the Ripper CNC KKM.
What is the electrical supply and footprint of the Ripper CNC KKM?
Mizrak does not publish a voltage rating, total power figure, footprint or weight for the Ripper CNC KKM in its product data. Request the electrical schedule and installation drawing for the Ripper CNC KKM from the dealer before preparing the workshop bay.
How is the Ripper CNC KKM delivered and installed in Georgia?
Delivery, positioning, commissioning and operator training for the Ripper CNC KKM are arranged per order through the Georgian dealer and quoted separately from the machine. Confirm what is included in the Ripper CNC KKM quotation, particularly rigging and three-phase connection, before signing.
How much does the Ripper CNC KKM cost?
The Ripper CNC KKM is supplied on quotation rather than at a list price. The cost of the Ripper CNC KKM depends on the cutter package specified for the lock, handle and hinge layouts you machine, the number of programs prepared at commissioning, and delivery, installation and operator training in Georgia. Send your hardware drawings to receive a written quotation.
What is the lead time for a Ripper CNC KKM?
The Ripper CNC KKM is built to order at the Mizrak factory, so the lead time for the Ripper CNC KKM is confirmed at quotation rather than offered from stock. Ask for the current build slot and the transport and customs schedule into Georgia when the quotation is prepared.
What has to be confirmed before the Ripper CNC KKM can be installed?
Because Mizrak publishes no voltage, power rating, footprint or weight for the Ripper CNC KKM, the electrical schedule and installation drawing must be requested before workshop preparation begins. Installation of the Ripper CNC KKM then covers positioning and levelling, the three-phase connection sized to the supplier's confirmed figures, compressed air and extraction ducting, and is quoted separately.
What tooling and running costs should be budgeted with the Ripper CNC KKM?
Budget separately for the router cutters used on the 1.5 kW and 2.2 kW spindles of the Ripper CNC KKM, spares for the 750 W axis servo drives, and dust extraction. The spindle interface and cutter shank sizes for the Ripper CNC KKM are not published by Mizrak and are confirmed per order, so agree the tooling list in writing with the quotation.
