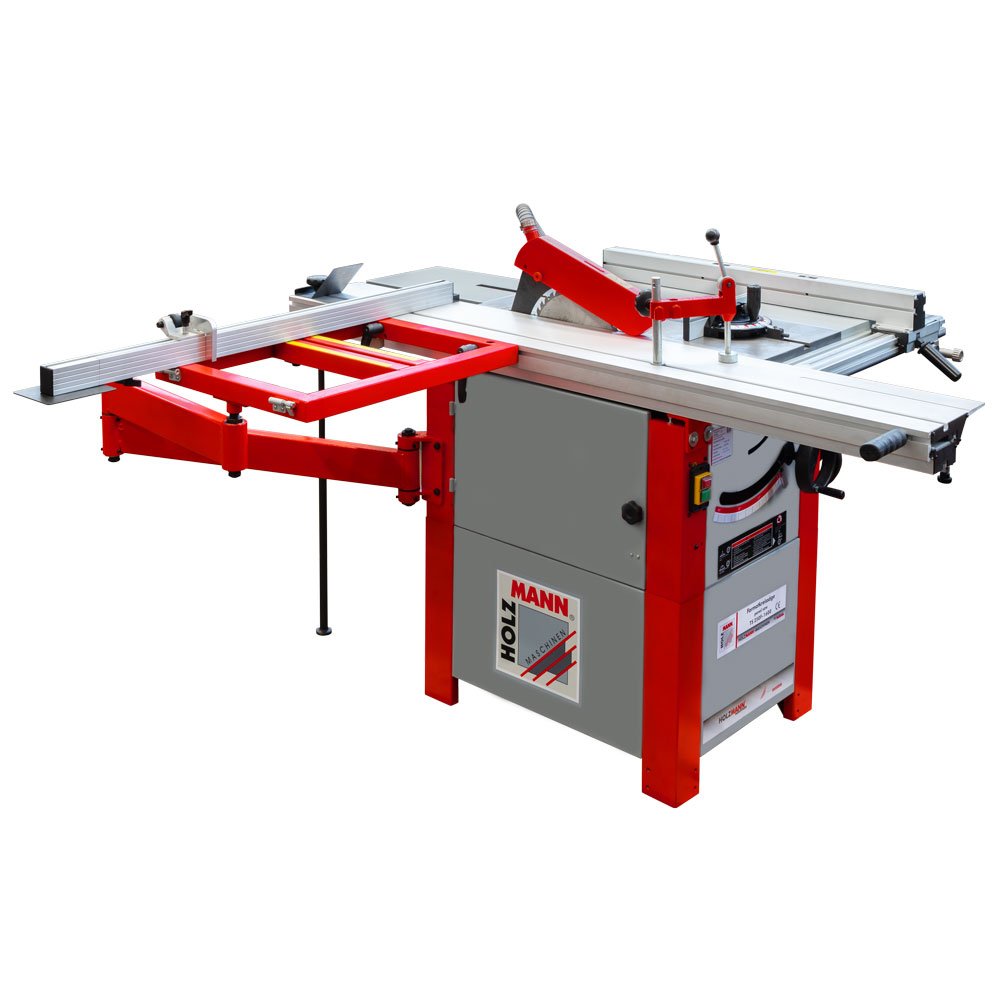

HOLZMANN TS250F1600 Panel Saw
TS250F1600
The HOLZMANN TS250F1600 is a 250 mm sliding-table saw with a 1600 x 238 mm aluminium sliding table, 1400 mm maximum trimming length and a 3100 W S6 / 2200 W S1 motor. The HOLZMANN TS250F1600 cuts 80 mm at 90° and 60 mm at 45°, rips 590 mm at the parallel fence, and comes in 230 V and 400 V variants.
The delivered price of the TS250F1600 is moved by the voltage variant (230 V or 400 V), the saw blade package specified, the chip extractor and ducting for the 100 mm port, transport and offloading of a 176 kg gross machine within Georgia, and whether siting, levelling and operator hand-over are included.
ფასის მოთხოვნაWhat the HOLZMANN TS250F1600 does
The HOLZMANN TS250F1600 is a 250 mm sliding-table saw for a joinery that needs accurate crosscutting of panels and solid timber without stepping up to a 315 mm machine. TS250F1600 carries a 1600 x 238 mm aluminium sliding table with 1400 mm of trimming length, cuts 80 mm deep at 90 degrees and 60 mm at 45 degrees, and runs a 250 mm blade at 3600 rpm from a 3100 W S6 / 2200 W S1 motor.
Table, fences and the real capacity limit
The TS250F1600 is built around a 760 x 350 mm grey cast iron table at 865 mm working height, with table widening of 300 x 760 mm and 280 x 400 mm on the right hand side and at the rear. Rip capacity at the parallel fence is 590 mm, and that is the honest constraint on this machine: the TS250F1600 will crosscut a 1400 mm panel comfortably but will not rip a full sheet lengthways at the fence. The extractable mitre at the rip fence has a workpiece end stop for repeat lengths, and the outrigger table carries a support roller for panel handling.
No scoring unit, and what that means for faced board
The TS250F1600 specification does not include a scoring unit, unlike the larger TS315VF2000 and TS315VF3200. In practice the TS250F1600 cuts solid timber, plywood and MDF cleanly, but melamine-faced chipboard will need a suitable negative-hook blade and careful technique to keep the underside edge clean. A workshop whose main output is faced carcass panels should be quoted a saw with a scoring unit instead.
Size, weight and installation
At 150 kg net the TS250F1600 is a permanent installation rather than a machine to wheel around, and it should be levelled on a solid floor with clear room for the 1600 mm slider to travel through its full stroke. Extraction connects through a 100 mm port. The TS250F1600 is offered in 230 V and 400 V variants, so a workshop without a three-phase supply is not excluded.
ძირითადი მახასიათებლები
- 1600 x 238 mm aluminium sliding table giving 1400 mm maximum trimming length
- 250 mm saw blade at 3600 rpm cutting 80 mm at 90° and 60 mm at 45°
- 3100 W S6 / 2200 W S1 motor, available as 230 V or 400 V variant
- 760 x 350 mm grey cast iron table at 865 mm working height
- Table widening of 300 x 760 mm and 280 x 400 mm on the right and at the rear
- 590 mm maximum cutting width at the parallel fence
- Extractable mitre at the rip fence with workpiece end stop, and an outrigger table with support roller
- 100 mm extraction port; 150 kg net weight
ტექნიკური მახასიათებლები
- Motor power S6
- 3100 W
- Motor power S1
- 2200 W
- Voltage
- 230 V (TS250F1600_230V) / 400 V (TS250F1600_400V)
- Table size
- 760 x 350 mm
- Table height
- 865 mm
- Table widening
- 300 x 760 mm / 280 x 400 mm
- Dust collector port
- 100 mm
- Sliding table
- 1600 x 238 mm
- Max. cutting height at 90°
- 80 mm
- Max. cutting height at 45°
- 60 mm
- Max. trimming length
- 1400 mm
- Max. cutting width at parallel fence
- 590 mm
- Saw blade diameter
- 250 mm
- Saw blade speed
- 3600 min-1
- Net weight
- 150 kg
- Gross weight
- 176 kg
- Packaging height
- 620 mm
- Packaging width
- 690 mm
- Packaging length
- 790 mm
- EAN code
- 9120058371899 (230 V variant)
უპირატესობები
- 1400 mm of trimming length from a 150 kg machine that fits a normal joinery bay
- 3100 W S6 motor is generous for a 250 mm blade, so the saw does not bog down in thick hardwood
- Table widening on both the right hand side and the rear supports panels without extra roller stands
გასათვალისწინებელი
- No scoring unit, so melamine-faced chipboard needs a suitable blade and careful technique
- 590 mm rip capacity at the parallel fence is modest - full-sheet lengthways ripping is out
- 80 mm maximum cutting height at 90° limits thick solid timber work compared with the 100 mm of the TS315 models
