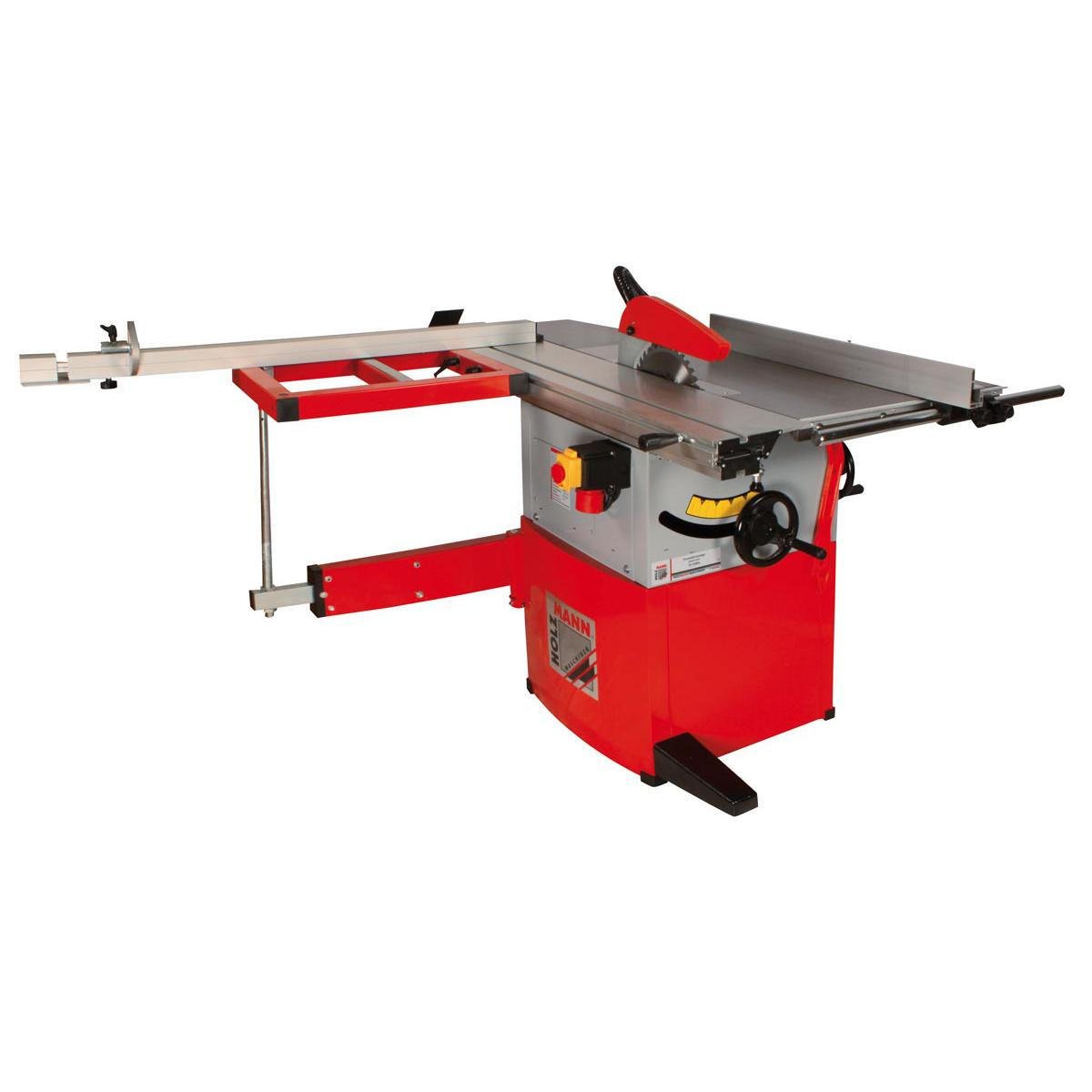

TS250FL — HOLZMANN TS250FL Panel Saw

HOLZMANN

HOLZMANN TS250FL Panel Saw

TS250FL

The HOLZMANN TS250FL is an entry-level sliding-table panel saw with a 1320 x 238 mm aluminium slider, a 250 mm blade at 4000 rpm and a 2200 W S6 / 1500 W S1 motor. The HOLZMANN TS250FL cuts 80 mm at 90° and 59 mm at 45°, rips 600 mm at a micro-adjustable parallel fence, and is available in 230 V and 400 V variants.

ფასი მოთხოვნით

The delivered price of the TS250FL is moved by the voltage variant (230 V or 400 V), the saw blade package specified, the chip extractor and hose for the 100 mm port, transport and offloading of a 162.5 kg gross machine within Georgia, and whether siting, levelling and operator hand-over are included.

ფასის მოთხოვნა

The HOLZMANN TS250FL as an entry-level sliding table saw

The HOLZMANN TS250FL is HOLZMANN’s entry point into sliding-table sawing, positioned on price-performance rather than on capacity. TS250FL pairs a 1320 x 238 mm aluminium sliding table with a 250 mm blade at 4000 rpm and a 2200 W S6 / 1500 W S1 motor, cutting 80 mm at 90 degrees and 59 mm at 45 degrees. For a small joinery moving up from a portable site saw, that is a large step in accuracy and rigidity.

Table, fence and adjustment

The TS250FL works from a very stable grey cast iron table of 800 x 350 mm at 850 mm working height with a 250 mm widening. Blade height and swivel from 0 to 45 degrees are set by handwheel, smoothly and repeatably, and the parallel fence on the TS250FL has micro-adjustment for setting rip width precisely. Rip capacity at the fence is 600 mm. Overall dimensions run from 1320 to 2580 mm by 2100 to 3140 mm depending on how far the tables and the slider are extended, and that spread is the figure to check against a shop floor plan.

TS250FL against the TS250F

The honest comparison inside the range is with the TS250F. The TS250FL has a shorter 1320 mm slider against 1650 mm, a smaller 2200 W S6 motor against 2900 W, and 153.5 kg net against 192 kg. The TS250F specification also lists a 595 x 460 mm outrigger table and an extendable cross-cut fence, neither of which the TS250FL carries. Where a workshop crosscuts long panels regularly, the TS250F earns the difference; where the saw mainly rips and crosscuts shorter components, the TS250FL is the more economical specification to quote.

Power supply and installation

The TS250FL is available in 230 V and 400 V variants, so a workshop without three-phase can still run the machine, though the 400 V version is preferable where the supply exists. Extraction connects to a 100 mm port. At 153.5 kg net the TS250FL is delivered on a pallet and should be levelled on a solid floor before the slider is aligned and the first test cut is taken.

ძირითადი მახასიათებლები

  • 1320 x 238 mm aluminium sliding table on an entry-level sliding-table saw
  • 250 mm blade at 4000 rpm cutting 80 mm at 90° and 59 mm at 45°
  • 2200 W S6 / 1500 W S1 motor, available as 230 V or 400 V variant
  • Very stable grey cast iron table 800 x 350 mm at 850 mm working height with 250 mm widening
  • 600 mm maximum cutting width at a parallel fence with micro-adjustment
  • Handwheel-driven blade height and 0-45° tilt adjustment
  • 100 mm extraction port; 153.5 kg net / 162.5 kg gross

ტექნიკური მახასიათებლები

Motor power S6
2200 W
Motor power S1
1500 W
Voltage
230 V (TS250FL_230V) / 400 V (TS250FL_400V)
Total dimensions
1320-2580 x 2100-3140 mm
Table size
800 x 350 mm
Table height
850 mm
Table widening
250 mm
Dust collector port
100 mm
Sliding table
1320 x 238 mm
Max. cutting height at 90°
80 mm
Max. cutting height at 45°
59 mm
Max. cutting width at parallel fence
600 mm
Saw blade diameter
250 mm
Saw blade speed
4000 min-1
Net weight
153.50 kg
Gross weight
162.50 kg
Packaging height
580 mm
Packaging width
640 mm
Packaging length
860 mm
EAN code
9120039903477 (230 V variant)

უპირატესობები

  • Lowest-cost route into a cast-iron sliding-table saw, with a genuinely stable 800 x 350 mm table
  • Micro-adjustable parallel fence gives repeatable rip settings up to 600 mm
  • Available in both 230 V and 400 V, so single-phase workshops are not excluded

გასათვალისწინებელი

  • 1320 mm slider is the shortest in this HOLZMANN panel saw group, and no maximum trimming length is published
  • No outrigger table and no extendable cross-cut fence in the specification, unlike the TS250F
  • 2200 W S6 / 1500 W S1 is the smallest motor of these panel saws, so continuous ripping in dense hardwood is asking a lot

ხშირად დასმული კითხვები

How much does the HOLZMANN TS250FL cost?
The HOLZMANN TS250FL is supplied on quotation rather than at a published price. The price of a TS250FL is moved by the voltage variant chosen (230 V or 400 V), the 250 mm saw blade package specified, the chip extractor and hose sized for the 100 mm port, delivery and offloading of a 162.5 kg gross machine within Georgia, and whether siting, levelling and an operator hand-over are included in the offer.
What is the cutting capacity of the TS250FL?
The HOLZMANN TS250FL cuts 80 mm at 90° and 59 mm at 45° with a 250 mm blade turning at 4000 rpm, and rips up to 600 mm at the parallel fence. The sliding table on the TS250FL is 1320 x 238 mm; HOLZMANN publishes no maximum trimming length figure for this model, so confirm the crosscut length you need before ordering.
What is the difference between the TS250FL and the TS250F?
The HOLZMANN TS250FL is the entry-level model: a 1320 mm slider, a 2200 W S6 motor and 153.5 kg net. The TS250F steps up to a 1650 mm slider with 1250 mm trimming length, a 2900 W S6 motor, 192 kg net, a 595 x 460 mm outrigger table and an extendable cross-cut fence, and it is supplied with a TCT blade and accessory kit. Choose the TS250FL for ripping and short crosscuts on a budget; choose the TS250F for accurate squaring of long stock.
Should the TS250FL be ordered in 230 V or 400 V?
The HOLZMANN TS250FL is available as a 230 V single-phase variant and a 400 V three-phase variant. The 400 V version of the TS250FL is preferable wherever three-phase exists because a 2200 W S6 motor works hard in continuous ripping; the 230 V variant is there for Georgian workshops and rented units with single-phase supply only. Confirm your supply with the enquiry and the correct EAN is quoted.
What is the lead time for a HOLZMANN TS250FL?
The HOLZMANN TS250FL is supplied to order through HOLZMANN Austria, so lead time depends on factory and warehouse stock when the order is placed. The current lead time for the TS250FL is confirmed on your quotation rather than promised in advance.
What does installing the TS250FL involve?
Installing the HOLZMANN TS250FL means offloading a 162.5 kg gross machine from its pallet, siting it with room for overall dimensions of 1320-2580 x 2100-3140 mm when the tables and slider are extended, levelling it on a solid floor, making the electrical connection for the variant ordered, and connecting the 100 mm port to a chip extractor. Slider alignment and fence squaring finish commissioning of the TS250FL.
What tooling and consumables should be budgeted separately for the TS250FL?
Budget separately for 250 mm saw blades for the TS250FL in the tooth counts your materials need, blade sharpening, a chip extractor with hose and filters for the 100 mm port, and roller stands or supports if you handle long stock, since the TS250FL specification does not list an outrigger table.
