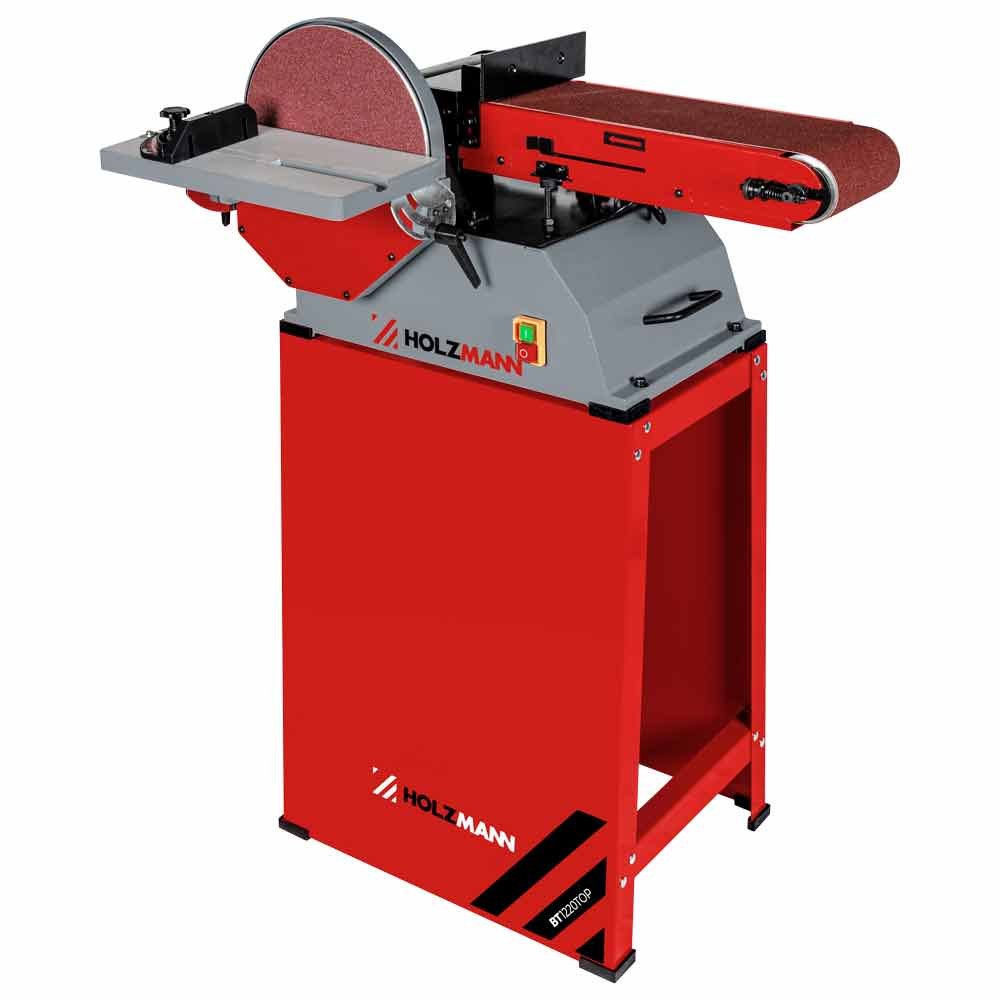

HOLZMANN BT1220TOP Belt and Disc Sander

BT1220TOP

The HOLZMANN BT1220TOP is a belt and disc sander that pairs a 1219 x 150 mm sanding belt running at 8 m/s with a 254 mm grinding disc, driven by a 750 W S1 motor at 2980 min-1 on 230 V / 50 Hz. On the BT1220TOP the belt unit tilts from 0-90° horizontally and vertically and the aluminium table pivots up to 45°.

ფასი მოთხოვნით

The BT1220TOP price moves with the quantity ordered, the pack of 1219 x 150 mm belts and 254 mm discs added to the order, the extraction hardware chosen for the 50 mm port, and the delivery and installation terms agreed for the Georgian site.

ფასის მოთხოვნა

What the HOLZMANN BT1220TOP belt and disc sander is for

The HOLZMANN BT1220TOP covers longitudinal and front edges, round and mitre sanding and plane faces on a single frame, which is why the BT1220TOP suits joinery shops that would otherwise buy two machines. The BT1220TOP combines a 1219 x 150 mm sanding belt at 8 m/s with a 254 mm grinding disc, both driven by a 750 W S1 motor turning at 2980 min-1 from a 230 V / 50 Hz supply.

Angle work: tilting belt unit and pivoting table

Angled sanding is where the BT1220TOP separates itself from a fixed-head machine. The sanding belt unit of the BT1220TOP is tiltable from 0-90° both horizontally and vertically, the aluminium table pivots up to 45°, and a mitre fence is fitted for precise angle sanding. Working table size on the BT1220TOP is 332 x 170 mm.

Belt changing and dust extraction

Grit changes stay quick on the BT1220TOP because a quick clamping device handles belt changes without dismantling the unit. Extraction on the BT1220TOP is taken from a 50 mm dust collector port, which needs a workshop extractor or a shop vacuum with a matching hose to keep sanding dust off the disc face.

Footprint, mounting and noise

The BT1220TOP can be operated on the supplied stand or on a suitable worktop, so a small shop can decide between a free-standing column and a bench position. Total dimensions of the BT1220TOP are 740 x 540 x 1470 mm at 39.50 kg net and 42.50 kg gross, with a 1.8 m cable. Declared noise for the BT1220TOP is 93.3 dB(A) sound power and 80.3 dB(A) sound pressure, so hearing protection belongs with the machine.

Where the BT1220TOP sits in the HOLZMANN BT ladder

Within the BT range the BT1220TOP is the large-disc model: the BT1220TOP carries a 254 mm grinding disc against 228 mm on the BT1220, while the BT150-914 and BT203-914 work from a shorter 914 x 100 mm belt and the BT75 from a 25 x 760 mm belt. Georgian buyers comparing the BT1220TOP against those siblings are effectively choosing sanding surface per pass.

ძირითადი მახასიათებლები

1219 x 150 mm sanding belt running at a belt speed of 8 m/s
254 mm grinding disc working alongside the belt on the same frame
750 W S1 motor at 2980 min-1 on a 230 V / 50 Hz single-phase supply
Sanding belt unit tiltable from 0-90° horizontally and vertically
Pivoting aluminium table adjustable up to 45°, table size 332 x 170 mm
Mitre fence supplied for precise angle sanding
Quick clamping device for fast belt changes
50 mm dust collector port for connection to workshop extraction

ტექნიკური მახასიათებლები

Motor power S1: 750 W
Voltage: 230 V / 50 Hz
Speed: 2980 min-1
Cable length: 1.8 m
Table size: 332 x 170 mm
Dust collector port: 50 mm
Total dimensions: 740 x 540 x 1470 mm
Belt dimensions: 1219 x 150 mm
Belt speed: 8 m/s
Grinding disc diameter: 254 mm
Sound power level: 93.3 dB(A)
Sound pressure level: 80.3 dB(A)
Net weight: 39.50 kg
Gross weight: 42.50 kg
EAN code: 9120058376979

უპირატესობები

254 mm grinding disc plus a 1219 x 150 mm belt gives the largest sanding surface of the two 1220-class BT models
Belt unit tiltable 0-90° and an aluminium table pivoting to 45° cover angle, round and mitre work without extra jigs
Quick clamping device makes grit changes on the 1219 x 150 mm belt a short job

გასათვალისწინებელი

Rated 750 W S1 only, so the BT1220TOP is a workshop machine rather than a continuous production sander
Declared 93.3 dB(A) sound power means hearing protection is mandatory in an enclosed workshop
The single 50 mm dust port is narrow for disc sanding and demands a properly sized extractor to stay clean

ხშირად დასმული კითხვები

How much does the HOLZMANN BT1220TOP belt and disc sander cost?

The HOLZMANN BT1220TOP is sold by quotation rather than at a fixed list price, and the figure quoted moves with the quantity ordered, the consumables specified with the machine (1219 x 150 mm belts and 254 mm discs in the required grits), the extraction hardware selected for the 50 mm dust port, and the agreed delivery and installation terms into Georgia. Send the working details and a written price for the BT1220TOP is issued.

Does the HOLZMANN BT1220TOP need 230 V single phase or 400 V three phase?

The HOLZMANN BT1220TOP is specified at 230 V / 50 Hz with a 750 W S1 motor, so the BT1220TOP runs from an ordinary single-phase workshop socket and no 400 V three-phase supply is required. The HOLZMANN specification lists no 400 V version of the BT1220TOP, so a shop with only single-phase power can install the machine as delivered, while a shop already wired for three phase simply uses one of its single-phase circuits.

What is the lead time for a HOLZMANN BT1220TOP?

Lead time for the HOLZMANN BT1220TOP is set by current HOLZMANN factory availability in Austria and by the transport route selected into Georgia, so no delivery window is promised before the order is priced. The quotation for the BT1220TOP states the delivery date being committed to, and that date is confirmed again when the order is placed.

What does installing a HOLZMANN BT1220TOP involve?

Installing the HOLZMANN BT1220TOP means clearing floor or bench space for a 740 x 540 x 1470 mm machine weighing 39.50 kg net, deciding between the supplied stand and a suitable worktop, levelling the base, connecting the 1.8 m cable to a 230 V / 50 Hz socket and running an extraction hose to the 50 mm dust collector port. What the dealer carries out on site for the BT1220TOP is written into the quotation.

What tooling and consumables should be budgeted separately for the BT1220TOP?

Budget separately for BT1220TOP consumables: 1219 x 150 mm sanding belts and 254 mm grinding discs in every grit the shop sands to, since belts and discs are wear items consumed at the rate the workshop runs them. Extraction for the 50 mm port of the BT1220TOP - hose, clamp and a collector or shop vacuum - and hearing protection for the declared 93.3 dB(A) sound power are also separate line items.

How is the BT1220TOP different from the HOLZMANN BT1220?

The HOLZMANN BT1220TOP carries a 254 mm grinding disc against the 228 mm disc of the BT1220, and the BT1220TOP belt unit is tiltable from 0-90° horizontally and vertically with an aluminium table pivoting to 45°. The BT1220 answers with a heavier 51 kg net build on a solid stand, a graphite-coated contact surface and an S6 rating of 1125 W, so the choice is disc size and angle flexibility against mass and duty rating.
