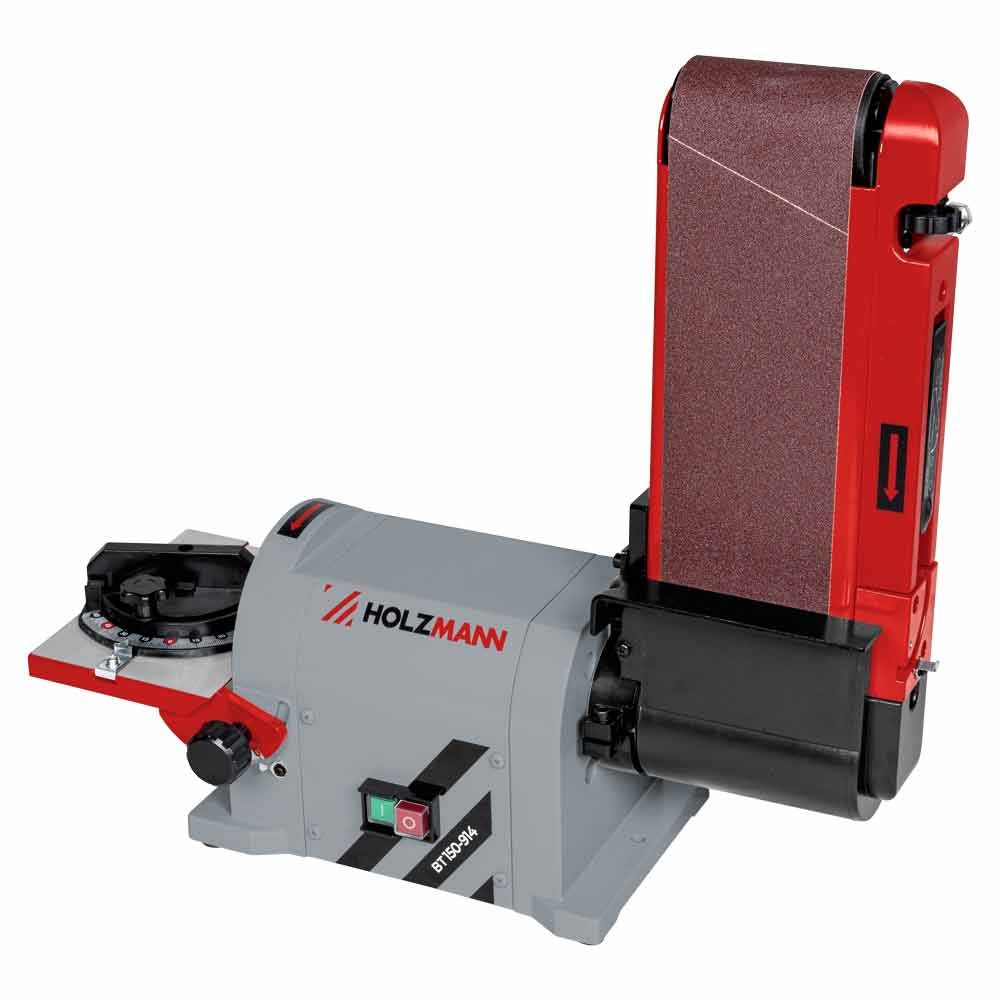

HOLZMANN BT150-914 Belt and Disc Sander

BT150-914

The HOLZMANN BT150-914 is a compact benchtop belt and disc sander pairing a 914 x 100 mm belt at 9.2 m/s with a Ø150 mm sanding disc, driven by a 450 W S1 motor at 2850 min-1. The BT150-914 has a 195 x 136 mm pivoting aluminium table adjustable to 45°, a mitre fence and a belt unit tiltable through 0-90°.

ფასი მოთხოვნით

The price of the BT150-914 moves with the HOLZMANN Austria factory list at the time of order, the exchange rate and freight from Austria to Georgia, Georgian customs and VAT handling, and whether 914 x 100 mm belts, Ø150 mm disc sheets, a stand or an extraction unit are ordered with the machine.

ფასის მოთხოვნა

What the HOLZMANN BT150-914 does

The HOLZMANN BT150-914 puts belt sanding and disc sanding on one compact bench footprint. The BT150-914 runs a 914 x 100 mm sanding belt and a Ø150 mm sanding disc from a single 450 W S1 motor at 2850 min-1, which suits a small joinery shop, a school workshop or a repair bench where longitudinal edges, front edges, round work, mitres and plane faces all have to be finished in the same corner.

Belt station

The belt station is where the BT150-914 does most of its stock removal. The sanding belt unit on the BT150-914 tilts through 0-90° horizontally and vertically, so the 914 x 100 mm belt can be worked flat along a long edge or stood upright for end grain, at a belt speed of 9.2 m/s. A quick clamping device makes the belt change on the BT150-914 a hand operation, so switching from a coarse to a fine grit is not a reason to stop work.

Disc and table

The Ø150 mm disc is the specification that places the BT150-914 one step below the BT203-914 in the HOLZMANN belt-and-disc range. The BT150-914 carries a single 195 x 136 mm pivoting aluminium table that adjusts up to 45°, together with a mitre fence for precise angle sanding, which covers the everyday bevels and mitres of furniture and joinery parts.

Extraction, weight and noise

Dust is drawn off the BT150-914 through a 36.5 mm dust collector port, sized for a workshop vacuum or a small chip extractor. At 14 kg net and 15.20 kg gross the BT150-914 is the lightest machine in this belt-and-disc group and is easily lifted onto a bench or moved between rooms; the supply cable on the BT150-914 measures 1.8 m, so a socket close to the bench is worth planning. HOLZMANN declares 95.5 dB(A) sound power and 89 dB(A) sound pressure for the BT150-914.

Power supply and quotation

The BT150-914 is a 230 V / 50 Hz single-phase machine, so a standard Georgian workshop socket is enough and no three-phase installation is required. Supply of the HOLZMANN BT150-914 is arranged by written quotation rather than online ordering, with abrasives and extraction specified at the same time.

ძირითადი მახასიათებლები

  • Ø150 mm sanding disc and 914 x 100 mm sanding belt driven by one 450 W S1 motor at 2850 min-1
  • Belt speed of 9.2 m/s on the 914 x 100 mm belt
  • Sanding belt unit tiltable through 0-90° horizontally and vertically for edges, end grain and curved work
  • 195 x 136 mm pivoting aluminium table adjustable up to 45°
  • Mitre fence included for precise angle sanding
  • Quick clamping device for tool-free sanding belt changes
  • 36.5 mm dust collector port and a 1.8 m supply cable
  • 14 kg net / 15.20 kg gross on 230 V / 50 Hz single-phase supply

ტექნიკური მახასიათებლები

Motor power S1
450 W
Voltage
230 V / 50 Hz
Speed
2850 min-1
Cable length
1.8 m
Table size
195 x 136 mm
Dust collector port
36.5 mm
Sanding belt dimensions
914 x 100 mm
Belt speed
9.2 m/s
Sanding disc diameter
150 mm
Sound power level
95.5 dB(A)
Sound pressure level
89 dB(A)
Net weight
14 kg
Gross weight
15.20 kg
EAN code
9120058376955

უპირატესობები

  • A full-length 914 x 100 mm belt at 9.2 m/s plus a Ø150 mm disc from one 450 W motor, on the smallest footprint in the HOLZMANN belt-and-disc range.
  • The belt unit tilts 0-90° and the 195 x 136 mm aluminium table pivots to 45° with a mitre fence, so angled and upright work needs no extra jig.
  • At 14 kg net the BT150-914 is easy for one person to lift onto a bench, store away or move between rooms.

გასათვალისწინებელი

  • The Ø150 mm disc gives noticeably less usable abrasive area than the Ø203 mm disc of the BT203-914, so larger faces take longer.
  • 450 W is the lowest motor rating in this belt-and-disc group, which makes heavy stock removal on the BT150-914 slow.
  • The 1.8 m supply cable and the 36.5 mm dust collector port limit where the BT150-914 can stand and rule out a ducted central extraction connection.

ხშირად დასმული კითხვები

What does the HOLZMANN BT150-914 belt and disc sander cost?
The HOLZMANN BT150-914 is quoted, not sold at a shelf price. The price of the BT150-914 is set by the HOLZMANN Austria factory list current at the time of order, the exchange rate on that day, freight from Austria to Georgia, Georgian customs and VAT handling, and whether 914 x 100 mm sanding belts, Ø150 mm disc sheets or an extraction unit are included in the same order. Send a request naming the BT150-914 and the quantity to receive a written figure.
How long is the lead time on the HOLZMANN BT150-914?
Lead time on the HOLZMANN BT150-914 depends on HOLZMANN Austria's dispatch scheduling and the transport and customs clearance route into Georgia at the moment the order is confirmed. The delivery window for the BT150-914 is written into the quotation, and no earlier date is committed for the BT150-914 outside that written confirmation.
How is the HOLZMANN BT150-914 installed in a workshop?
Installation of the HOLZMANN BT150-914 is straightforward: place the 14 kg machine on a level bench or stand, plug into a 230 V / 50 Hz single-phase socket and connect a hose to the 36.5 mm dust collector port. Note that the supply cable of the BT150-914 is 1.8 m, so the socket should be close to the bench, and setup then amounts to checking belt tracking and squaring the table to the disc.
What consumables and tooling should be budgeted separately for the HOLZMANN BT150-914?
Abrasives are the recurring cost on the HOLZMANN BT150-914 and sit outside the machine price: 914 x 100 mm sanding belts and Ø150 mm disc sheets in at least a coarse and a fine grit. Where the shop has no extraction, a hose and a workshop vacuum or small mobile chip extractor matched to the 36.5 mm dust collector port of the BT150-914 should be budgeted, along with a stable bench or stand at working height.
Does the HOLZMANN BT150-914 come in 400 V three-phase, or only 230 V single phase?
The HOLZMANN BT150-914 is listed only as a 230 V / 50 Hz single-phase machine, EAN 9120058376955, and the HOLZMANN data shows no 400 V three-phase variant of the BT150-914. In practice that suits most Georgian workshops, because the BT150-914 plugs into an ordinary domestic or workshop socket with no three-phase installation and no electrician required. A workshop that specifically needs 400 V three-phase should be quoted a larger HOLZMANN sanding machine instead of the BT150-914.
What is the difference between the HOLZMANN BT150-914 and the BT203-914?
The difference between the HOLZMANN BT150-914 and the BT203-914 is the disc and the motor: the BT150-914 has a Ø150 mm sanding disc and a 450 W motor, while the BT203-914 has a Ø203 mm disc and a 550 W motor. Both machines use the same 914 x 100 mm belt at 9.2 m/s, so the BT150-914 is chosen where bench space and budget are tight and parts are small, and the BT203-914 where a larger disc face is wanted.
