BT203-914 — HOLZMANN BT203-914 Belt and Disc Sander 1 / 4

HOLZMANN

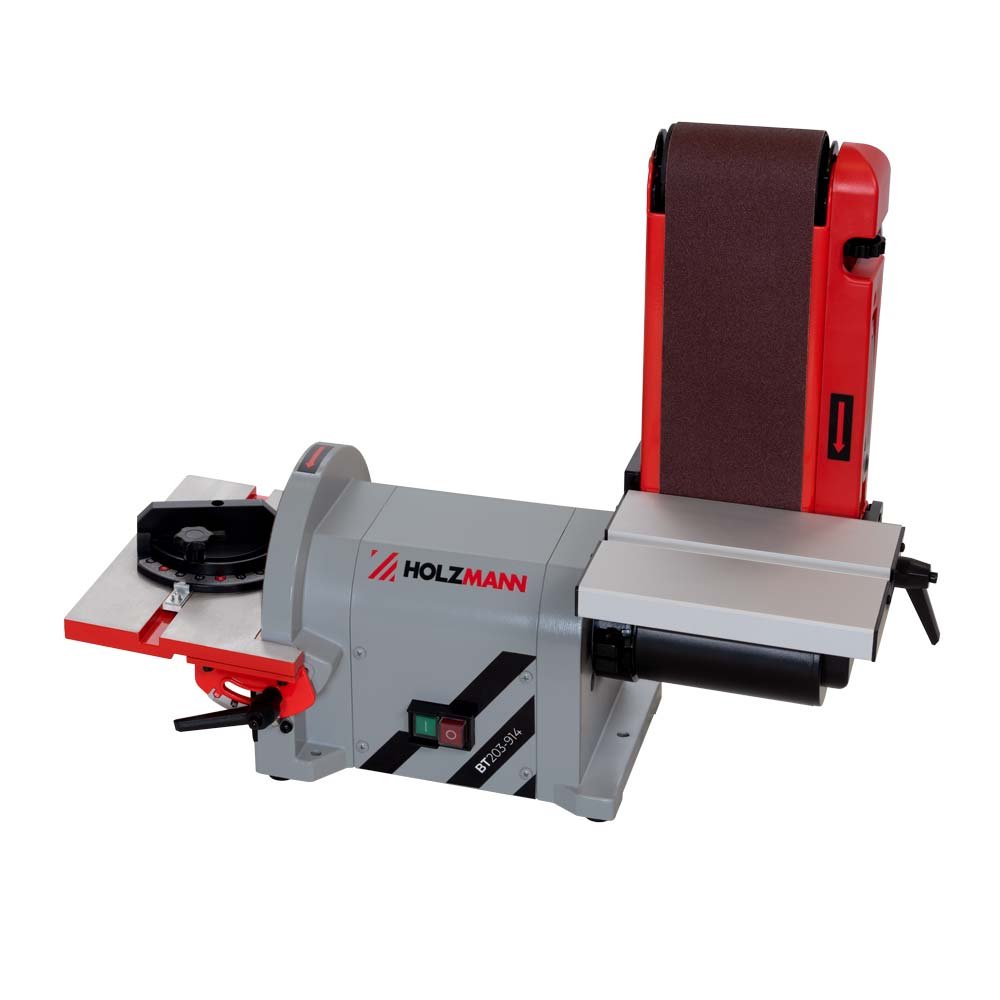

HOLZMANN BT203-914 Belt and Disc Sander

BT203-914

The HOLZMANN BT203-914 is a benchtop belt and disc sander that combines a 914 x 100 mm sanding belt running at 9.2 m/s with a Ø203 mm sanding disc on a single 550 W S1 motor. The BT203-914 carries a pivoting aluminium table adjustable to 45°, a mitre fence and a sanding belt unit tiltable through 0-90°.

ფასი მოთხოვნით

The price of the BT203-914 is driven by the HOLZMANN Austria factory list at the time of order, the exchange rate and freight from Austria to Georgia, Georgian customs and VAT handling, and whether 914 x 100 mm belts, Ø203 mm disc sheets, a stand or an extraction unit are added to the same order.

ფასის მოთხოვნა

What the HOLZMANN BT203-914 does

The HOLZMANN BT203-914 lets one benchtop machine cover edge, face, round and mitre sanding. The BT203-914 pairs a 914 x 100 mm sanding belt with a Ø203 mm sanding disc, both driven by one 550 W S1 motor turning at 2850 min-1, so a joiner can rough a long edge on the belt and clean up an end grain face on the disc without moving the workpiece to a second machine.

Belt unit and belt changing

The belt station of the BT203-914 covers work a fixed-angle sander cannot reach, because the sanding belt unit tilts through 0-90° both horizontally and vertically. The same 914 x 100 mm belt therefore runs flat for long edges and upright for end grain and shaped parts, at a belt speed of 9.2 m/s. Belt changing on the BT203-914 is done with a quick clamping device rather than tools, which matters in a shop that switches grit several times a day.

Disc, table and mitre fence

The Ø203 mm disc is the feature that separates the BT203-914 from the smaller BT150-914 in the same HOLZMANN ladder. Supporting that disc, the BT203-914 has a pivoting aluminium table that swings up to 45° and a mitre fence for precise angle sanding; the table measures 264 x 150 mm at the disc station and 190 x 159 mm at the belt station.

Extraction, weight and noise

Dust on the BT203-914 leaves through a 36.5 mm dust collector port, a size that suits a workshop vacuum or a small mobile chip extractor rather than a ducted central system. The BT203-914 weighs 15 kg net and 17 kg gross, so the machine is carried to a bench by one person. HOLZMANN declares a sound power level of 95.5 dB(A) and a sound pressure level of 89 dB(A) for the BT203-914, so hearing protection belongs on the operator.

Power supply and how the BT203-914 is supplied

The HOLZMANN BT203-914 runs on 230 V / 50 Hz single phase, the ordinary socket in a Georgian workshop or garage, so no three-phase connection is needed. The BT203-914 is supplied by quotation: send the intended workpiece sizes and the grits in use, and a written offer for the BT203-914 follows.

ძირითადი მახასიათებლები

  • Ø203 mm sanding disc and a 914 x 100 mm sanding belt driven by one 550 W S1 motor at 2850 min-1
  • Belt speed of 9.2 m/s across the full 914 x 100 mm belt length
  • Sanding belt unit tiltable through 0-90° horizontally and vertically for edges, end grain and shaped parts
  • Pivoting aluminium table adjustable up to 45°, 264 x 150 mm at the disc and 190 x 159 mm at the belt
  • Mitre fence supplied for precise angle sanding on both stations
  • Quick clamping device for fast, tool-free sanding belt changes
  • 36.5 mm dust collector port for a workshop vacuum or mobile chip extractor
  • 15 kg net / 17 kg gross benchtop format on 230 V / 50 Hz single-phase supply

ტექნიკური მახასიათებლები

Motor power S1
550 W
Voltage
230 V / 50 Hz
Speed
2850 min-1
Table size
264 x 150 mm (disc) / 190 x 159 mm (belt)
Dust collector port
36.5 mm
Sanding belt dimensions
914 x 100 mm
Belt speed
9.2 m/s
Sanding disc diameter
203 mm
Sound power level
95.5 dB(A)
Sound pressure level
89 dB(A)
Net weight
15 kg
Gross weight
17 kg
EAN code
9120058376962

უპირატესობები

  • Two sanding stations on one 550 W motor: a 914 x 100 mm belt running at 9.2 m/s and a Ø203 mm disc, so edge work and end grain work stay on the same bench.
  • The sanding belt unit tilts through 0-90° horizontally and vertically, and the aluminium table pivots to 45° with a mitre fence, so angled work needs no jig.
  • A quick clamping device makes belt changes tool-free, which keeps grit changes from interrupting the job.

გასათვალისწინებელი

  • The 36.5 mm dust collector port suits a workshop vacuum or a small mobile extractor only, not a ducted central extraction system.
  • 550 W and a 15 kg benchtop frame place the BT203-914 in the light finishing class, not in continuous production sanding.
  • HOLZMANN declares 95.5 dB(A) sound power for the BT203-914, so hearing protection is required whenever the machine runs.

ხშირად დასმული კითხვები

How much does the HOLZMANN BT203-914 belt and disc sander cost in Georgia?
The HOLZMANN BT203-914 is sold by quotation rather than at a fixed shelf price. The price of the BT203-914 is moved by the current HOLZMANN Austria factory list, the exchange rate on the day of order, freight from Austria to Georgia, Georgian customs and VAT handling, and whether 914 x 100 mm sanding belts, Ø203 mm disc sheets, a bench stand or an extraction unit are quoted alongside the machine. Send the quantity required and a written figure for the BT203-914 follows.
How long does delivery of the HOLZMANN BT203-914 take?
Delivery of the HOLZMANN BT203-914 depends on HOLZMANN Austria's production and dispatch schedule and on the freight consolidation into Georgia at the time the order is placed. A confirmed delivery window for the BT203-914 is stated in writing on the quotation, and no date for the BT203-914 is promised before that written confirmation.
What does installing the HOLZMANN BT203-914 involve?
Installing the HOLZMANN BT203-914 means setting the machine on a level bench or stand, plugging into a 230 V / 50 Hz single-phase socket and connecting a hose to the 36.5 mm dust collector port. Because the BT203-914 weighs 15 kg net, no lifting gear, no foundation and no three-phase electrical work are involved, and commissioning is a matter of checking belt tracking and squaring the table to the disc.
What tooling should be budgeted separately for the HOLZMANN BT203-914?
Abrasives are the running cost of the HOLZMANN BT203-914 and are budgeted separately from the machine: 914 x 100 mm sanding belts and Ø203 mm disc sheets in the grits the work demands, usually a coarse and a fine set of each. A hose and a workshop vacuum or mobile chip extractor to suit the 36.5 mm dust collector port on the BT203-914 should also be priced where the workshop has no extraction, together with a bench or stand to mount the machine at working height.
Is the HOLZMANN BT203-914 available as a 400 V three-phase machine or only 230 V?
The HOLZMANN BT203-914 is listed with a single 230 V / 50 Hz single-phase variant, EAN 9120058376962, and no 400 V three-phase version of the BT203-914 appears in the HOLZMANN data. For a Georgian workshop that is usually an advantage: the BT203-914 runs from an ordinary single-phase socket with no electrician's three-phase connection and no phase-rotation check. Where a 400 V three-phase sanding machine is genuinely required, a larger HOLZMANN model should be quoted instead of the BT203-914.
What kind of work is the HOLZMANN BT203-914 suitable for?
HOLZMANN specifies the BT203-914 for longitudinal and front edges, round and mitre sanding and plane faces. The 0-90° tiltable belt unit and the 45° pivoting aluminium table with mitre fence let the BT203-914 handle flat and angled work on the same setup, while the 550 W motor and 15 kg benchtop frame place the BT203-914 as a finishing machine for small and medium components rather than a production sander.
