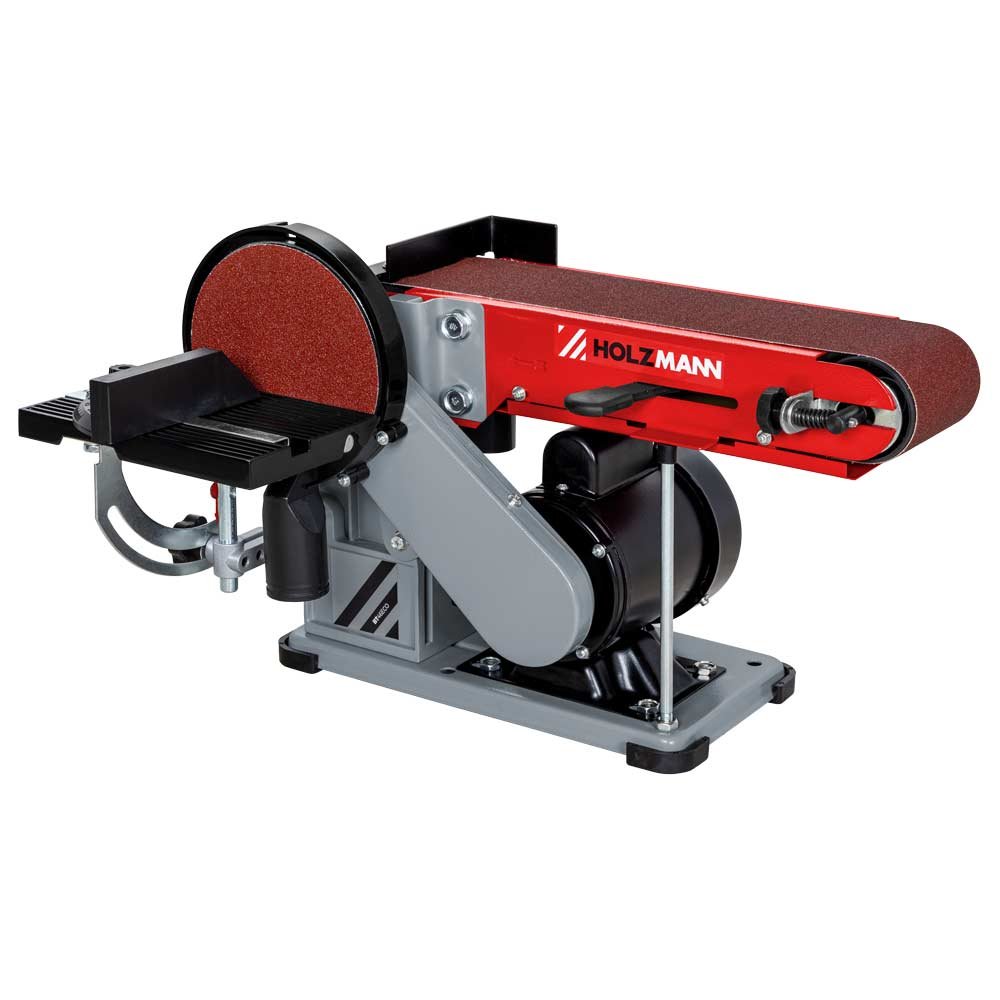

HOLZMANN BT46ECO Belt and Disc Sander
BT46ECO
The HOLZMANN BT46ECO is a 350 W bench-top belt and disc sander running a 100 x 914 mm sanding belt at 292 m/min alongside a 150 mm sanding disc turning at 1450 min-1. Weighing 12.5 kg net, the BT46ECO carries a light alloy table of 190 x 125 mm with a mitre gauge and a velcro fastener for disc changes.
The BT46ECO price is driven by the HOLZMANN factory price and the EUR/GEL rate, freight and customs clearance into Georgia, the order quantity, and the abrasive package taken with the machine.
ფასის მოთხოვნაA light bench sander with a 350 W motor
The HOLZMANN BT46ECO gives a small workshop belt sanding and disc sanding in one 12.5 kg bench machine, which makes the BT46ECO an entry point into the HOLZMANN BT ladder rather than a production sander. A 350 W S1 motor drives a 100 x 914 mm sanding belt at 292 m/min and a 150 mm sanding disc at 1450 min-1, both from a 230 V single-phase supply.
Table, mitre gauge and disc changes
Light alloy table of 190 x 125 mm
Support is provided where the work happens, because the BT46ECO light alloy table can be fixed either to the belt station or to the disc station as the job requires. The 190 x 125 mm table of the BT46ECO takes a mitre gauge for precise angle sanding, which keeps repeated mitres and chamfers consistent instead of hand-held.
Velcro fastener for the sanding disc
Grit changes on the disc are a pull-and-press job: the BT46ECO uses a velcro fastener for quick and easy sanding disc exchange, so a 150 mm disc can go from coarse to fine between two parts of the same job. Belt and disc abrasives in these sizes are ordinary shop consumables and should be stocked in several grits.
Stability and bench mounting
Vibration is kept down by rubber feet, which HOLZMANN lists as giving the BT46ECO ideal stability on a bench. A net weight of 12.5 kg, 13.5 kg gross, means the BT46ECO is easily carried and stored, but a light machine also needs a solid, level bench under it before heavy stock removal is attempted.
Buying the HOLZMANN BT46ECO in Georgia
The BT46ECO is supplied by quotation as an imported HOLZMANN machine, EAN 9120058371622, in the 230 V single-phase version. A quotation for the BT46ECO confirms the scope of supply, the delivery and customs position to your address in Georgia, and the abrasive grits worth ordering with the machine. Where the work involves tilting the belt unit through 0-90 degrees, the heavier BT46 in the same range should be quoted alongside the BT46ECO.
ძირითადი მახასიათებლები
- 350 W S1 motor on a 230 V single-phase supply
- 100 x 914 mm sanding belt running at a belt speed of 292 m/min
- 150 mm sanding disc turning at 1450 min-1
- Light alloy table measuring 190 x 125 mm for the disc sander
- Table that can be fixed for belt sanding or for disc sanding as the job requires
- Mitre gauge for precise angle sanding of chamfers and mitres
- Velcro fastener for quick and easy sanding disc exchange
- Rubber feet for stability and a net weight of only 12.5 kg
ტექნიკური მახასიათებლები
- Motor power (S1)
- 350 W
- Voltage
- 230 V
- Table size
- 190 x 125 mm
- Sanding disc diameter
- 150 mm
- Sanding belt dimensions
- 100 x 914 mm
- Belt speed
- 292 m/min
- Sanding disc speed
- 1450 min-1
- Net weight
- 12.5 kg
- Gross weight
- 13.5 kg
- EAN code
- 9120058371622
უპირატესობები
- The BT46ECO carries a 350 W S1 motor, 100 W more than the heavier BT46, driving the 150 mm disc at 1450 min-1.
- The velcro fastener on the BT46ECO disc makes grit changes a hand operation, which suits a shop that switches between coarse and fine work on the same part.
- At 12.5 kg net the BT46ECO is the lightest way into belt and disc sanding in the HOLZMANN BT range and can be lifted, stored and re-sited by one person.
გასათვალისწინებელი
- HOLZMANN lists no tilting belt unit for the BT46ECO: the table can be fixed for belt or for disc work, so the angle flexibility of the BT46 is not available.
- The 190 x 125 mm table of the BT46ECO is small, which limits workpiece support to short frame parts and offcuts rather than panels.
- The BT46ECO stands on rubber feet at only 12.5 kg, so a firm, level bench is essential and heavy stock removal will move a machine that is not secured; no dust extraction connection is stated in HOLZMANN's data.
