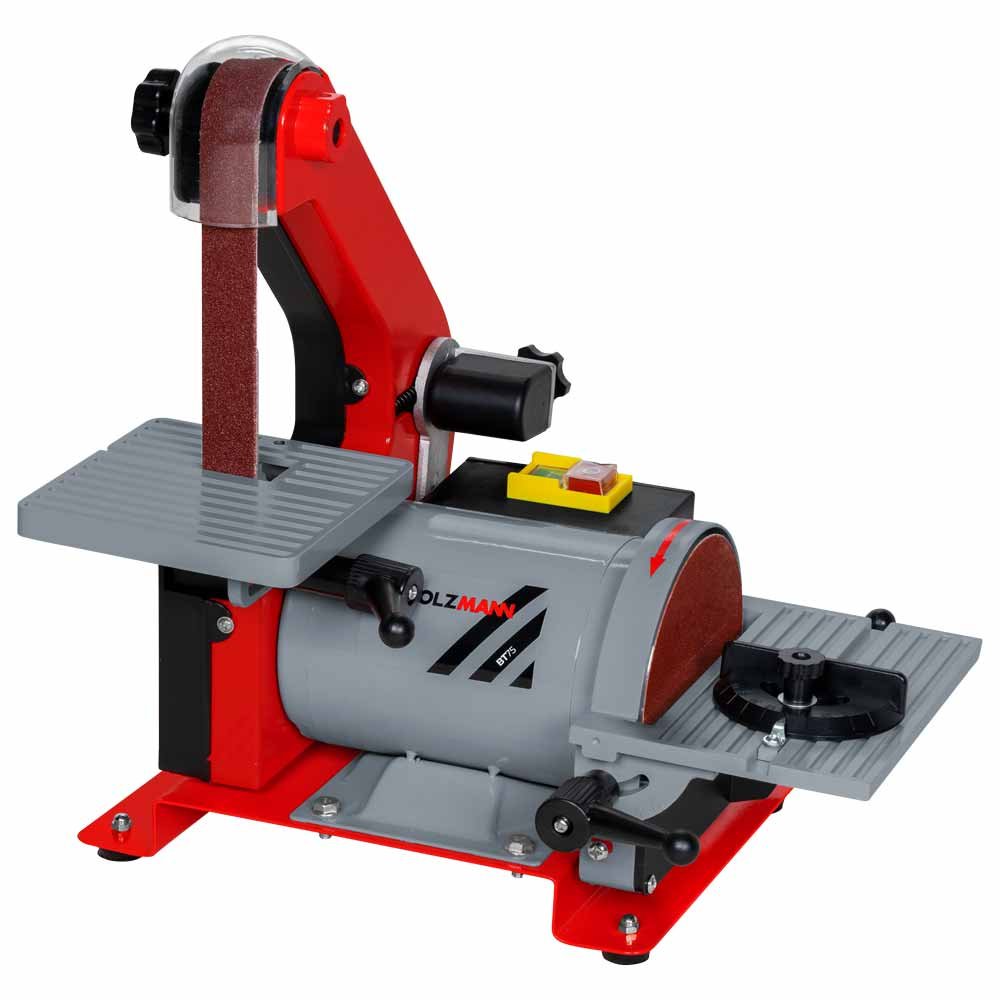

HOLZMANN BT75 Belt and Disc Sander

BT75

The HOLZMANN BT75 is a compact belt and disc sander combining a 25 x 760 mm sanding belt running at 914 m/min with a Ø125 mm grinding disc turning at 2950 min-1, powered by a 250 W induction motor on 230 V / 50 Hz. At 7.50 kg net and 350 x 380 x 300 mm, the BT75 is the bench-top model of the HOLZMANN BT range.

ფასი მოთხოვნით

The BT75 price moves with the quantity ordered, whether the optional velcro sanding disc kit is added, the pack of 25 x 760 mm belts and Ø125 mm discs specified with the machine, and the delivery terms agreed for the Georgian site.

ფასის მოთხოვნა

What the HOLZMANN BT75 belt and disc sander is for

The HOLZMANN BT75 is the small-parts machine of the BT family, sized for model work, repairs, tool rooms and hobby joinery rather than for full-sheet edges. The BT75 runs a narrow 25 x 760 mm sanding belt at 914 m/min next to a Ø125 mm grinding disc turning at 2950 min-1, driven by a 250 W induction motor on 230 V / 50 Hz.

Narrow belt for detail work

The narrow belt is the point of the BT75. A 25 x 760 mm belt reaches into curves, slots and small radii that a 150 mm wide belt cannot follow, and HOLZMANN notes that the sanding belt of the BT75 is characterised by its constant speed – useful when a light workpiece is being taken to a line by hand. The sanding belt table of the BT75 measures 128 x 128 mm.

Disc side and angle sanding

Disc work on the BT75 is handled by the Ø125 mm plate at 2950 min-1 with a 190 x 125 mm table, and the grinding table swivels for different sanding angles. The BT75 leaves the factory with an adhesive sanding disc fitted, and HOLZMANN lists a kit for velcro sanding discs as optional accessory – relevant for shops that change grits often and would rather not peel and clean the plate each time.

Motor, size and noise

An induction motor drives the BT75, which HOLZMANN describes as powerful for the class and which runs quieter and with less brush maintenance than a universal motor. The BT75 measures 350 x 380 x 300 mm and weighs 7.50 kg net, 8.40 kg gross, so a single person can set the machine on a bench and store it away afterwards. Declared noise for the BT75 is 93 dB(A) sound power and 82 dB(A) sound pressure.

The BT75 against larger BT models

The BT75 is the entry point of the ladder: the BT46ECO and BT46 step up to a 100 mm wide belt with a 150 mm disc, the BT150-914 and BT203-914 to a 914 x 100 mm belt, and the BT1220 and BT1220TOP to 1220 x 150 mm belts with 228 mm and 254 mm discs. Shops sanding cabinet doors should look up the ladder; shops sanding small components buy the BT75.

ძირითადი მახასიათებლები

25 x 760 mm sanding belt running at a belt speed of 914 m/min
Ø125 mm grinding disc turning at 2950 min-1
250 W induction motor on a 230 V / 50 Hz single-phase supply
Swivelling grinding table for different sanding angles, table size 190 x 125 mm
Dedicated sanding belt table measuring 128 x 128 mm
Supplied ex factory with an adhesive sanding disc; a kit for velcro sanding discs is listed as optional accessory
Compact 350 x 380 x 300 mm footprint at 7.50 kg net for bench mounting

ტექნიკური მახასიათებლები

Motor power S1: 250 W
Voltage: 230 V / 50 Hz
Total dimensions: 350 x 380 x 300 mm
Table size: 190 x 125 mm
Sanding belt table size: 128 x 128 mm
Belt dimensions: 25 x 760 mm
Belt speed: 914 m/min
Grinding disc diameter: Ø125 mm
Grinding disc speed: 2950 min-1
Sound power level: 93 dB(A)
Sound pressure level: 82 dB(A)
Net weight: 7.50 kg
Gross weight: 8.40 kg
EAN code: 9120058372834

უპირატესობები

The 25 x 760 mm narrow belt reaches curves and small radii that the 100 mm and 150 mm wide BT belts cannot follow
7.50 kg net and a 350 x 380 x 300 mm footprint let one person bench-mount and store the BT75
Induction motor drive rather than a universal motor, with the belt held at constant speed

გასათვალისწინებელი

At 250 W the BT75 is the least powerful machine in the BT range and is not intended for continuous production sanding
The Ø125 mm disc and 190 x 125 mm table limit the BT75 to small components
The HOLZMANN specification for the BT75 states no dust collector port, and the velcro sanding disc kit is an optional extra rather than standard

ხშირად დასმული კითხვები

How much does the HOLZMANN BT75 belt and disc sander cost?

The HOLZMANN BT75 is supplied by quotation rather than at a fixed price, and the figure depends on the quantity ordered, whether the optional velcro sanding disc kit is included, the pack of 25 x 760 mm belts and Ø125 mm sanding discs specified with the machine, and the delivery terms agreed for the site in Georgia. Send the quantity and accessory choice and a written price for the BT75 is issued.

Does the HOLZMANN BT75 run on 230 V single phase or 400 V three phase?

The HOLZMANN BT75 is specified at 230 V / 50 Hz with a 250 W induction motor, so the BT75 runs from any ordinary single-phase socket and no 400 V three-phase supply is needed. The HOLZMANN specification lists no 400 V version of the BT75, which makes the machine straightforward to install in a Georgian workshop, a school workshop or a home shop that has only single-phase power available.

What is the lead time for a HOLZMANN BT75?

Lead time for the HOLZMANN BT75 is determined by current HOLZMANN factory availability in Austria and the transport route selected into Georgia, so no delivery window is stated before the order is priced. The quotation for the BT75 names the delivery date being committed to, and that date is reconfirmed at order.

What does installing a HOLZMANN BT75 involve?

Installing the HOLZMANN BT75 involves little more than a stable bench: the machine measures 350 x 380 x 300 mm, weighs 7.50 kg net and connects to a 230 V / 50 Hz socket, so the BT75 needs no foundation, no three-phase connection and no lifting equipment. Fixing the BT75 down to the bench is still worth doing so that the 2950 min-1 disc does not move the machine under hand pressure.

Which consumables and accessories should be budgeted separately for the BT75?

Budget separately for BT75 consumables: 25 x 760 mm sanding belts and Ø125 mm sanding discs in the grits the work requires. The BT75 leaves the factory with an adhesive sanding disc fitted, so the kit for velcro sanding discs is an optional accessory to be priced with the order, and dust control plus hearing protection for the declared 93 dB(A) sound power should be planned as well.

How does the BT75 differ from the larger HOLZMANN BT sanders?

The HOLZMANN BT75 is the smallest of the belt-and-disc ladder, with a 25 x 760 mm belt and a Ø125 mm disc at 250 W and 7.50 kg. The BT46ECO and BT46 move up to a 100 mm wide belt with a 150 mm disc, the BT150-914 and BT203-914 to a 914 x 100 mm belt, and the BT1220 and BT1220TOP to 1220 x 150 mm belts with 228 mm and 254 mm discs, so the BT75 is chosen for small and curved components rather than for long edges.
