HOLZMANN KOS2260C Oscillating Belt Sanding Machine (2260 x 150 mm)
KOS2260C

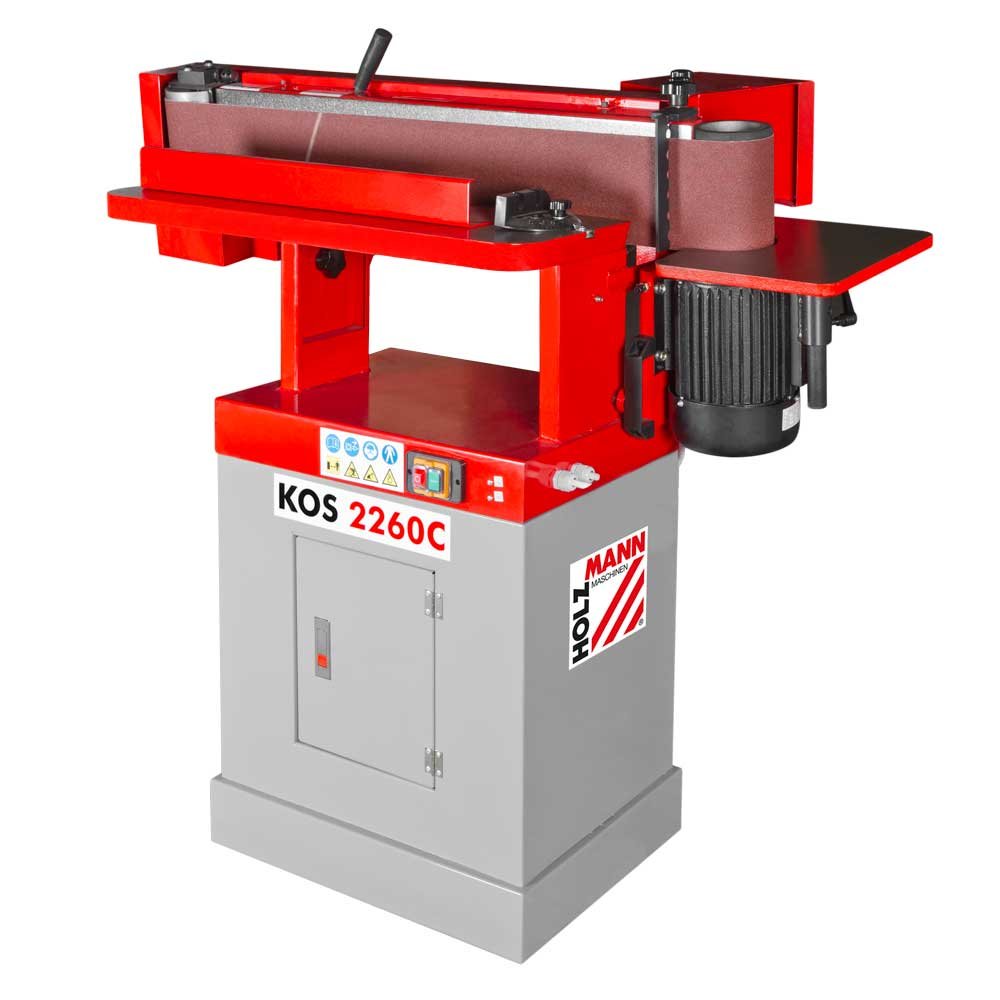

The HOLZMANN KOS2260C is a compact oscillating belt sanding machine with a 2260 x 150 mm abrasive belt running at a constant 16 m/s, a steplessly height-adjustable cast iron table and a sanding unit that tilts up to 90°. At 99 kg net the KOS2260C is the lightest oscillating sander in the Holzmann KOS range and is offered in both 400 V and 230 V versions.
The KOS2260C price is driven by the voltage version, the abrasive belt stock quoted with it, whether extraction equipment and hose are included, and delivery in Georgia - installation cost is low because the machine is only 99 kg net.
ფასის მოთხოვნაThe entry point into oscillating belt sanding
The HOLZMANN KOS2260C exists for workshops that want oscillation without the floor space or the budget of an industrial machine. The KOS2260C runs a 2260 x 150 mm belt at a constant 16 m/s from a motor rated 1100 W on S1 continuous duty and 1500 W on S6 intermittent duty, and at 99 kg net it is roughly half the weight of the KOS2740C – a machine a small joinery shop can actually site and, if necessary, relocate.
What oscillation buys at this size
Oscillation is not a luxury on a small machine, it is the reason to buy this one. On the KOS2260C the oscillating belt produces an even scratch pattern that finishes cleanly under stain and lacquer, and it spreads wear over the whole 150 mm belt width, which maximises abrasive belt utilisation. For a shop buying belts one box at a time, that utilisation is a direct running cost saving. A quick-change mechanism lets the operator swap belts between grits fast, so the KOS2260C is not left running one compromise grit all day.
Table, tilt and workpiece handling
Workpiece control on the KOS2260C comes from a cast iron table with stepless height adjustment, so the working band on the belt can be moved as the belt wears rather than always cutting on the same line. The sanding unit tilts up to 90° for face and angled work, and the dust collection hood folds away so that long workpieces can be passed straight through the machine instead of stopping at the guard.
Build, power supply and siting
The KOS2260C stands on a stable sheet steel cabinet with an integrated tool cupboard, which keeps belts and the mitre gauge at the machine rather than across the shop. Two versions cover both supplies: KOS2260C_400V at 400 V / 3 phase / 50 Hz and KOS2260C_230V for single-phase workshops. At 99 kg net and 126 kg gross the KOS2260C is delivered in a compact crate of 1280 x 570 x 540 mm.
KOS2260C or KOS2740C
Choose the KOS2260C where space and budget are the constraint and edges are the main job. Step up to the KOS2740C for a 2740 x 150 mm belt, 2200 W S1 power and the 38/50/76 mm round-sanding roller set for curved work.
ძირითადი მახასიათებლები
- 2260 x 150 mm abrasive belt at a constant 16 m/s
- Belt oscillation for an even finish and maximum abrasive belt utilisation
- Cast iron table with stepless height adjustment
- Sanding unit tilts up to 90° for angled and face sanding
- Quick-change mechanism for fast abrasive belt and grit changes
- Stable sheet steel stand with an integrated tool cabinet
- Dust collection hood folds away so long workpieces can pass through
- 1100 W (S1) / 1500 W (S6) motor in 400 V / 3 / 50 Hz or 230 V versions; 99 kg net
ტექნიკური მახასიათებლები
- Motor power (S1, continuous)
- 1100 W
- Motor power (S6, intermittent)
- 1500 W
- Voltage
- 400 V / 3 / 50 Hz (KOS2260C_400V) or 230 V (KOS2260C_230V)
- Belt dimensions
- 2260 x 150 mm
- Belt speed
- 16 m/s
- Net weight
- 99 kg
- Gross weight
- 126 kg
- Packaging length
- 1280 mm
- Packaging width
- 570 mm
- Packaging height
- 540 mm
- EAN code (400 V)
- 9120058375873
- EAN code (230 V)
- 9120058375880
უპირატესობები
- 99 kg net and a 1280 x 570 x 540 mm crate: the easiest oscillating belt sander in the Holzmann KOS range to get into a small workshop
- Cast iron table with stepless height adjustment plus a foldaway dust hood lets long workpieces pass straight through
- Available in 230 V as well as 400 V, so a single-phase shop gets true oscillating sanding
გასათვალისწინებელი
- 1100 W S1 is modest - the KOS2260C is not the machine for continuous heavy stock removal, which is where the KOS2740C or KOS2600C belong
- No round-sanding rollers are listed for the KOS2260C, so curved work is limited compared with the KOS2740C
- Holzmann publishes no table size or dust port diameter for the KOS2260C in this data, so extraction connection details must be confirmed before ducting is ordered
