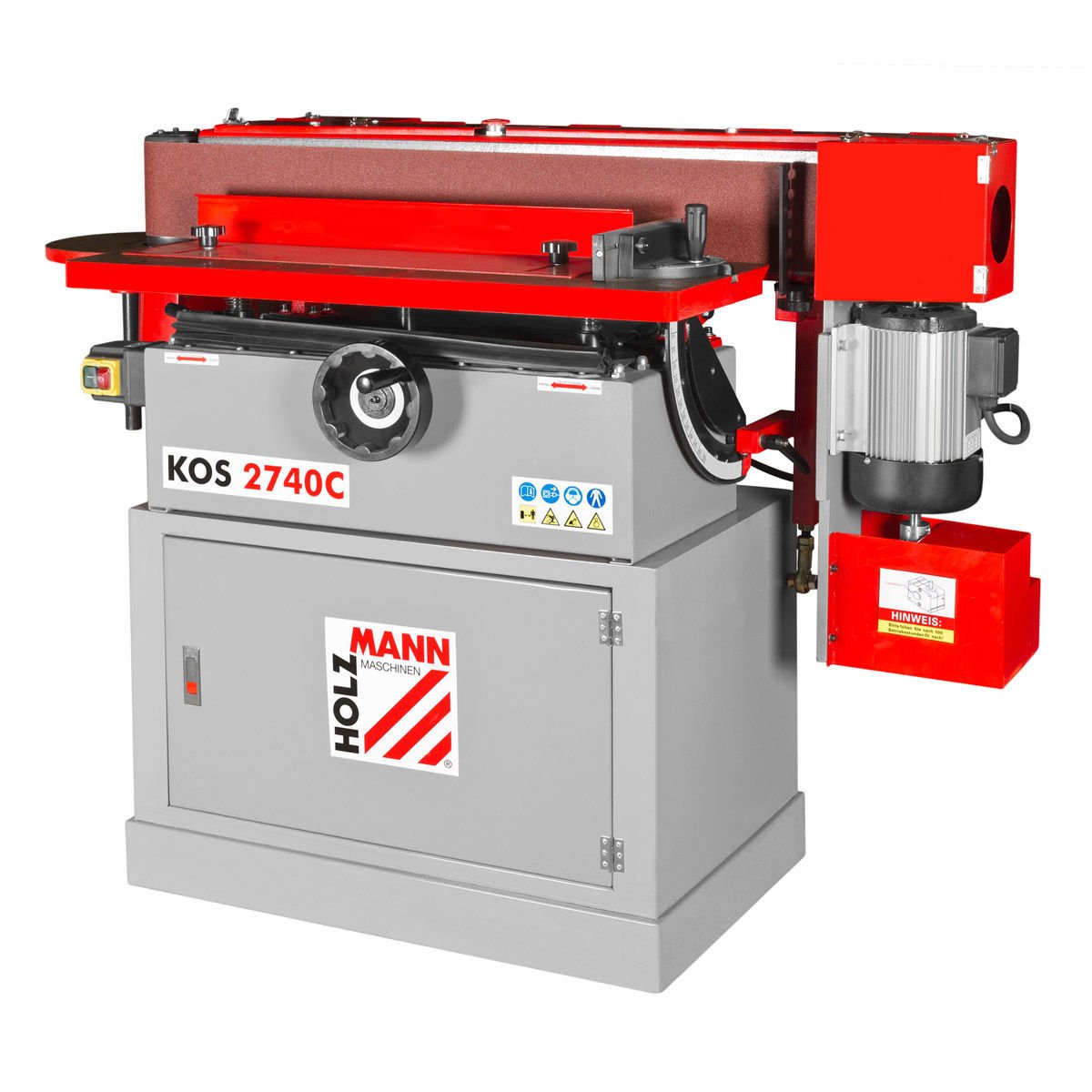

HOLZMANN KOS2740C Oscillating Edge Belt Sander (2740 x 150 mm)

KOS2740C

The HOLZMANN KOS2740C is an oscillating edge belt sander running a 2740 x 150 mm abrasive belt at a constant 16 m/s, with a sanding unit that swivels up to 90° and three round-sanding rollers of 38, 50 and 76 mm diameter fitted on the deflection pulley end.

ფასი მოთხოვნით

The KOS2740C price is driven by the voltage version, the abrasive belt stock quoted with the machine, extraction equipment and ducting if included, delivery and unloading in Georgia, and any commissioning or training added.

ფასის მოთხოვნა

What the HOLZMANN KOS2740C is designed for

The HOLZMANN KOS2740C is an edge sander first: a long, narrow abrasive path for cleaning up sawn and moulded edges on doors, frames, worktops and cabinet parts. The KOS2740C runs a 2740 x 150 mm belt at a constant 16 m/s, and constant belt speed matters more on edge work than raw power, because a belt that slows under load burns hardwood edges and leaves a shiny band that will not take stain evenly.

Round sanding without a second machine

Curved work is where the KOS2740C differs from a plain edge sander. Three round-sanding rollers of 38 mm, 50 mm and 76 mm diameter are provided at the deflection pulley end, and an additional table for round sanding is included, so internal radii, cut-outs and shaped edges are sanded against a roller matched to the radius rather than forced against a flat platen. A mitre plate is also included for setting repeatable angles against the belt.

Oscillation and belt utilisation

Oscillation on the KOS2740C serves two purposes at once. The oscillating belt gives a cleaner, more even scratch pattern because no grain follows the same track, and it spreads wear across the full 150 mm belt width instead of cutting a groove in one zone. Over a production year that changes how many 2740 x 150 mm belts the workshop buys. The KOS2740C also runs with a settled belt at constant speed, which keeps the finish consistent from the first workpiece to the last.

Voltage choice, weight and siting

The KOS2740C is offered in two versions and the choice is a real one for a Georgian workshop: KOS2740C_230V at 230 V / 50 Hz for shops on single-phase, and KOS2740C_400V for three-phase. Both are rated 2200 W on S1 continuous duty and 3000 W on S6 intermittent duty. The KOS2740C weighs 184 kg net, 246 kg gross crated, and its sanding unit swivels up to 90°, so allow clearance around the machine rather than pushing it against a wall.

KOS2740C or KOS2260C

Choose the KOS2740C for a longer 2740 mm belt, 2200 W S1 power and the round-sanding roller set. The lighter KOS2260C uses a 2260 x 150 mm belt at 1100 W S1 and weighs 99 kg, which suits a smaller shop and a smaller budget.

ძირითადი მახასიათებლები

2740 x 150 mm abrasive belt running at a constant 16 m/s
Belt oscillation for an even scratch pattern and full use of the whole belt width
Sanding unit swivels up to 90° for edge and face work
Three round-sanding rollers of 38, 50 and 76 mm diameter on the deflection pulley for curved work
Mitre plate included for repeatable angle sanding
Additional table included for round sanding
2200 W (S1) / 3000 W (S6) motor, available in 230 V / 50 Hz and 400 V versions
184 kg net weight for stability under hand pressure

ტექნიკური მახასიათებლები

Motor power (S1, continuous): 2200 W
Motor power (S6, intermittent): 3000 W
Voltage: 230 V / 50 Hz (KOS2740C_230V) or 400 V (KOS2740C_400V)
Belt dimensions: 2740 x 150 mm
Belt speed: 16 m/s
Round sanding roller diameters: 38, 50 and 76 mm
Net weight: 184 kg
Gross weight: 246 kg
Packaging length: 1470 mm
Packaging width: 810 mm
Packaging height: 1120 mm
EAN code (230 V): 9120058375859
EAN code (400 V): 9120058375866

უპირატესობები

Three round-sanding rollers (38, 50, 76 mm) plus a dedicated round-sanding table make curved work practical on the same machine as straight edges
Offered in 230 V and 400 V versions, so single-phase workshops are not excluded
Constant 16 m/s belt speed and oscillation give an even finish and noticeably better abrasive belt utilisation

გასათვალისწინებელი

Holzmann publishes no table size or dust port diameter for the KOS2740C in this data, so extraction sizing must be confirmed before the ducting is bought
184 kg net means mechanical unloading and a permanent floor position with clearance for the 90° swivel
2740 x 150 mm is a less common belt size than 2260 x 150 mm, so a spare belt stock should be ordered with the machine rather than sourced locally

ხშირად დასმული კითხვები

How much does the HOLZMANN KOS2740C cost?

The HOLZMANN KOS2740C is sold on quotation rather than at a published price. The KOS2740C price is driven by the voltage version selected (230 V or 400 V), the stock of 2740 x 150 mm abrasive belts quoted with the machine, whether dust extraction and ducting are included, delivery and unloading of a 246 kg gross crate in Georgia, and whether commissioning and operator familiarisation are added. Ask for a quote with your voltage and typical workpieces and the KOS2740C will be priced for them.

Is the HOLZMANN KOS2740C available in single-phase?

Yes. The HOLZMANN KOS2740C is offered as KOS2740C_230V at 230 V / 50 Hz single-phase and as KOS2740C_400V for a 400 V three-phase supply, both rated 2200 W S1 and 3000 W S6 with identical sanding specifications. Where three-phase power exists, the 400 V version of the KOS2740C is generally preferable for continuous production because the load is shared across three phases; where it does not, the 230 V version removes the need for a supply upgrade.

What is the lead time for the HOLZMANN KOS2740C?

The HOLZMANN KOS2740C is ordered from Holzmann Austria and shipped to Georgia. Holzmann currently lists this model as unavailable on its own webshop, so the KOS2740C is quoted against a live factory confirmation rather than an assumed date; request the current lead time with your quotation and it will be confirmed in writing before the order.

Does the HOLZMANN KOS2740C need installation?

The HOLZMANN KOS2740C needs unloading of a 246 kg gross crate, siting and levelling on a solid floor with enough clearance for the sanding unit to swivel through 90°, and connection to dust extraction. Electrically, the 230 V version of the KOS2740C connects to a suitably rated single-phase circuit; the 400 V version needs a three-phase connection made by a qualified electrician with the direction of rotation checked.

What consumables should be budgeted separately for the HOLZMANN KOS2740C?

Budget for abrasive belts and extraction around the HOLZMANN KOS2740C. The recurring consumable is the 2740 x 150 mm abrasive belt, and a working stock across coarse, medium and finishing grits should be ordered with the machine because this is not a size commonly held locally. Also budget extraction hose, clamps and, if the workshop has no spare capacity, a dust collector - the KOS2740C should never be run without extraction.

Can the HOLZMANN KOS2740C sand curved and round parts?

Yes. The HOLZMANN KOS2740C is supplied with three round-sanding rollers of 38, 50 and 76 mm diameter on the deflection pulley end plus an additional table for round sanding, so internal curves, cut-outs and shaped edges are sanded against a roller matched to the radius. A mitre plate is also included on the KOS2740C for repeatable angled edges.
