OBS100A — HOLZMANN OBS100A Oscillating 2-in-1 Belt and Spindle Sander 1 / 4

HOLZMANN

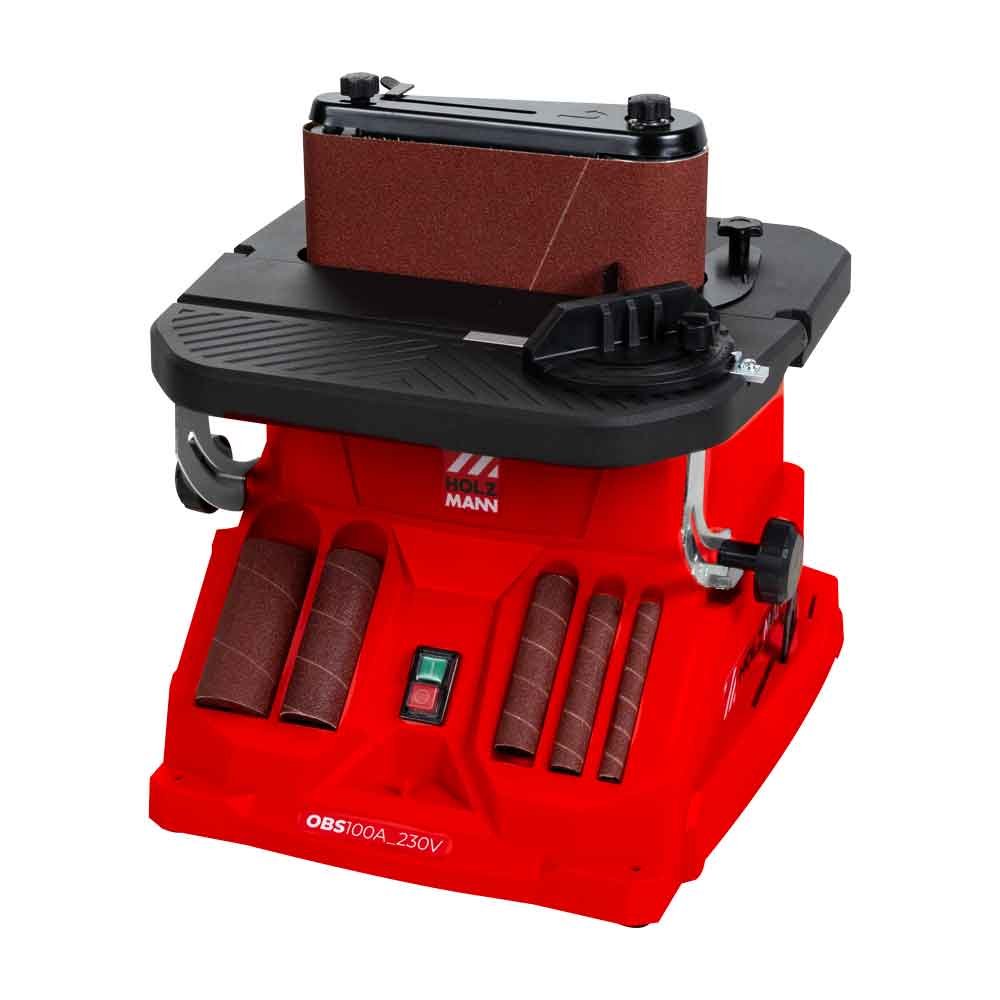

HOLZMANN OBS100A Oscillating 2-in-1 Belt and Spindle Sander

OBS100A

Straight edges are what the HOLZMANN OBS100A adds to a spindle sander: a 610 x 100 mm belt at 8 m/s and an oscillating spindle share one 450 W motor at 2000 min-1. Its 400 x 407 mm table swivels 0 to 45 degrees for bevels, supplied sleeves run 15 to 53 mm, and the whole 12.5 kg machine sits on a bench.

ფასი მოთხოვნით

What moves the OBS100A price is the quantity ordered, the replacement 610 x 100 mm belts and K80 sleeve sets added to the delivery, whether a workshop vacuum for the 39 mm port is included, and the transport arrangement for a 14.2 kg gross package.

ფასის მოთხოვნა

What the HOLZMANN OBS100A does

The HOLZMANN OBS100A is an oscillating bench sander that holds two machines in one frame: a belt sander for straight edges and a spindle sander for curves and detail work. Changing the OBS100A from one mode to the other takes a few simple steps and no second machine. A single 450 W motor at 2000 rpm drives both modes, moving a 610 x 100 mm belt at 8 m/s or oscillating the spindle for shaped work.

Which workshops the OBS100A suits

The HOLZMANN OBS100A suits small joineries, furniture makers and school or hobby workshops that need both edge and curve sanding but have neither the floor space nor the budget for two stationary machines. The table of the OBS100A measures 400 x 407 mm and swivels from 0 to 45 degrees for bevelled edges. At 12.5 kg net and 440 x 470 x 500 mm, the OBS100A is carried to the bench when needed and stored on a shelf afterwards, and the machine keeps its own sanding sleeves and table inserts in on-board storage.

OBS100A or OSS75A

The HOLZMANN OBS100A and the HOLZMANN OSS75A use the same 450 W motor at 2000 rpm and the same 39 mm extraction port. The OBS100A adds the 610 x 100 mm sanding belt and the swivelling table, and comes with five sanding sleeves from 15 to 53 mm diameter. The OSS75A is spindle only, comes with six sleeves up to 78 mm diameter and weighs 9 kg. Take the OBS100A if straight edges are sanded as often as curves; take the OSS75A if the work is curves and the largest sleeve matters.

Delivery

The HOLZMANN OBS100A is delivered with one K80 sanding belt, five K80 sanding sleeves of 15, 21, 28, 40 and 53 mm diameter, four matching rubber sanding rollers, five table inserts, four spindle discs and the setting tool.

ძირითადი მახასიათებლები

  • Sanding belt of 610 x 100 mm running at 8 m/s for straight edges
  • Belt mode and oscillating spindle mode in one machine, changed in a few steps
  • Table of 400 x 407 mm with a published swivel range of 0 to 45 degrees
  • One 450 W motor at 2000 min-1 drives both modes, 230 V / 50 Hz
  • Five K80 sleeves of 15, 21, 28, 40 and 53 mm with four rubber rollers
  • One K80 sanding belt, five table inserts, four spindle discs and tool supplied
  • Sound power level 85.9 dB(A), sound pressure level 72.9 dB(A)
  • 12.5 kg net, 440 x 470 x 500 mm bench footprint, 39 mm dust port

ტექნიკური მახასიათებლები

Motor power S1
450 W
Voltage
230 V / 50 Hz
Speed
2000 min-1
Table size
400 x 407 mm
Swivel range
0 - 45°
Dust collector port
39 mm
Total dimensions
440 x 470 x 500 mm
Belt dimensions
610 x 100 mm
Belt speed
8 m/s
Sound power level
85.9 dB(A)
Sound pressure level
72.9 dB(A)
Net weight
12.50 kg
Gross weight
14.20 kg
EAN code
9120058379307

უპირატესობები

  • Belt sander and oscillating spindle sander in one 12.5 kg machine
  • Wide accessory set included: belt, five sleeves, rollers, table inserts and spindle discs
  • Table swivels 0 to 45 degrees for bevelled edges

გასათვალისწინებელი

  • The 39 mm dust port takes a shop vacuum, not a 100 mm workshop extraction hose
  • Supplied sleeves stop at 53 mm diameter, while the OSS75A includes a 78 mm sleeve
  • 450 W and a 400 x 407 mm table make the OBS100A a bench machine, not a production sander

ხშირად დასმული კითხვები

Does the HOLZMANN OBS100A need 400 V three-phase power?
No. The HOLZMANN OBS100A has a 450 W motor on 230 V / 50 Hz supply, so the OBS100A runs from any normal single-phase socket in a workshop or a home shop. There is no 400 V version of the OBS100A; three-phase supply only becomes relevant with a stationary machine such as the HOLZMANN OSS200.
How does the HOLZMANN OBS100A change between belt and spindle mode?
The HOLZMANN OBS100A is converted between belt sanding and spindle sanding with a few simple modifications, and both modes are driven by the same 450 W motor. That is what makes the OBS100A a 2-in-1 machine: straight edges are sanded on the 610 x 100 mm belt and curves on the oscillating spindle without moving the workpiece to a second machine.
What does the HOLZMANN OBS100A not do?
The HOLZMANN OBS100A does not sand wide panels to thickness, since the OBS100A has a 400 x 407 mm table and no conveyor feed - that is wide belt sander work, such as the HOLZMANN ZS560FU. The OBS100A is a bench machine for edges and shaped parts, not a production sander. On sleeve sizes, HOLZMANN publishes only the five supplied K80 sleeves of 15, 21, 28, 40 and 53 mm for the OBS100A and no maximum sleeve diameter, so if you need the 78 mm sleeve, order the HOLZMANN OSS75A, which is supplied with it.
What extraction does the HOLZMANN OBS100A need?
The HOLZMANN OBS100A has a dust extraction port of 39 mm diameter, which suits a workshop vacuum rather than a 100 mm extraction hose. Connecting a vacuum to the OBS100A keeps the sanding table and the marked line visible, and no extractor is included in the delivery.
What is included with the HOLZMANN OBS100A?
The HOLZMANN OBS100A is delivered with one K80 sanding belt, five K80 sanding sleeves of 15, 21, 28, 40 and 53 mm diameter, four matching rubber sanding rollers, five table inserts, four spindle discs and a tool. The OBS100A also has on-board storage for the supplied sleeves and inserts.
Can the table of the HOLZMANN OBS100A be tilted for bevels?
Yes. The table of the HOLZMANN OBS100A measures 400 x 407 mm and swivels through a range of 0 to 45 degrees, so bevelled edges are sanded at a set angle on the belt or on the spindle.
What does a HOLZMANN OBS100A cost?
The HOLZMANN OBS100A is quoted rather than listed at a shelf price. What moves the figure on an OBS100A quotation is the number of units ordered, the replacement 610 x 100 mm belts and spare K80 sleeve sets you add, whether a workshop vacuum for the 39 mm port goes on the same order, and delivery of a 14.2 kg gross package. Ask us for a quotation covering the OBS100A and its consumables together.
How long is the wait for a HOLZMANN OBS100A?
The HOLZMANN OBS100A is supplied to order and the current lead time for the OBS100A is confirmed on the quotation. Because the OBS100A is a 12.5 kg bench machine rather than a stationary installation, there is no site preparation to run in parallel - confirm the lead time with us and the machine can be working the day it lands on the bench.
Does a HOLZMANN OBS100A need installation or commissioning?
The HOLZMANN OBS100A needs no commissioning in the way a stationary machine does. Set the 440 x 470 x 500 mm machine on a bench solid enough for 12.5 kg, plug it into a 230 V / 50 Hz socket, and connect a workshop vacuum to the 39 mm port. There is no levelling to specification and no three-phase connection involved in installing an OBS100A.
What consumables should be budgeted alongside a HOLZMANN OBS100A?
Budget consumables separately for the HOLZMANN OBS100A: 610 x 100 mm sanding belts and K80 sleeves in the 15, 21, 28, 40 and 53 mm sizes are wearing parts, and the set supplied with the machine is a starting stock rather than a year's supply. A workshop vacuum for the 39 mm port is also not included with the OBS100A.
