ZS560FU — HOLZMANN ZS560FU Mini Wide Belt Sander (560 mm, frequency controlled) 1 / 4

HOLZMANN

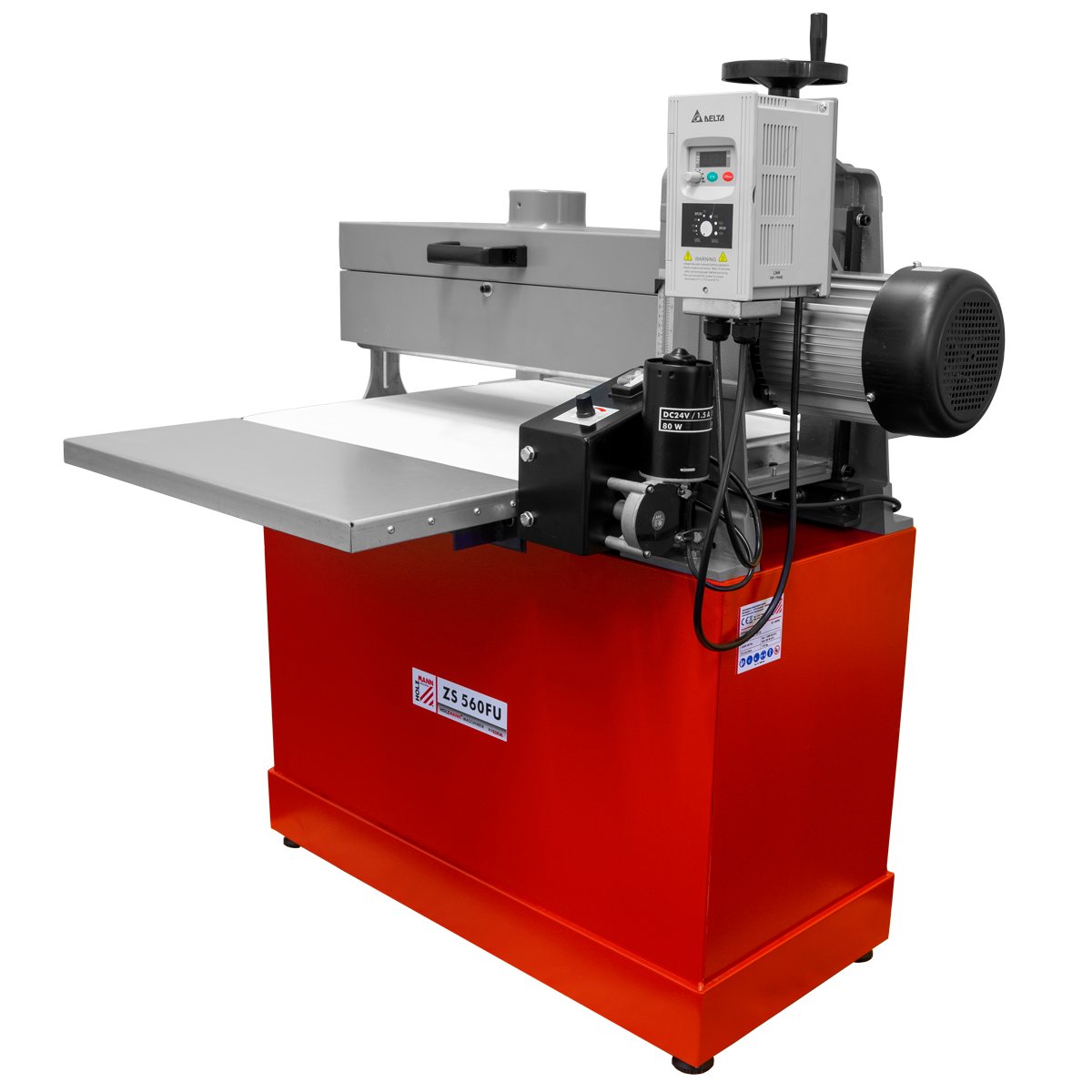

HOLZMANN ZS560FU Mini Wide Belt Sander (560 mm, frequency controlled)

ZS560FU

Drum speed is what the HOLZMANN ZS560FU adds: its frequency-controlled 132 x 565 mm drum is set anywhere from 0 to 1800 min-1, where the ZS635NEO runs fixed. A potentiometer sets the conveyor from 0 to 3 m/min, the 1500 W 230 V machine sands 560 mm wide, and it brushes with the ZS560FU_DSW roller.

ფასი მოთხოვნით

What moves the ZS560FU price is the set of optional sanding drums and the ZS560FU_DSW brushing roller ordered with it, the 3280 x 78 mm belt grits stocked at handover, the extractor chosen for the 100 mm port, and delivery of a 118 kg machine.

ფასის მოთხოვნა

What the HOLZMANN ZS560FU does

The HOLZMANN ZS560FU is a mini wide belt sander with a maximum sanding width of 560 mm, built for workshops that want control over the sanding process rather than one fixed setting. The sanding drum of the ZS560FU is frequency controlled from 0 to 1800 rpm, so the speed can be matched to the drum or roller in use, and the conveyor feed is set steplessly from 0 to 3 m/min on a potentiometer. The 1500 W motor runs on 230 V single-phase supply.

Build and working range

The HOLZMANN ZS560FU carries the sanding unit in a cast iron construction and works a drum of 132 x 565 mm with 3280 x 78 mm belts, which are commercially available sizes rather than a proprietary belt. Conveyor tension on the ZS560FU is set through a spring system. The table measures 592 x 505 mm and is extended front and rear by 582 x 245 mm wings, which is what makes long panels stable on a machine of this size. Workpieces from 5 to 80 mm thick pass through, and extraction is taken from a 100 mm port.

ZS560FU or ZS635NEO

Choose the HOLZMANN ZS560FU where variable drum speed and brushing matter more than raw capacity: with the matching roller the ZS560FU also runs as a brushing machine. Choose the HOLZMANN ZS635NEO where panels are wider or thicker, since the ZS635NEO sands 630 mm wide and takes stock up to 125 mm thick over two drums. At 118 kg net against 206 kg, the ZS560FU is the machine that fits a smaller Georgian joinery.

Delivery

HOLZMANN publishes no accessory list for the ZS560FU, so belt grits, optional sanding drums and the brushing roller should be confirmed at the time of order.

ძირითადი მახასიათებლები

  • Frequency-controlled sanding drum, set anywhere from 0 to 1800 min-1
  • Stepless conveyor feed from 0 to 3 m/min on a potentiometer
  • One sanding drum of 132 x 565 mm in a cast iron sanding unit
  • Belt tension adjusted by spring system
  • 1500 W motor, published only in a 230 V / 50 Hz single-phase version
  • Maximum sanding width 560 mm; workpiece thickness from 5 mm to 80 mm
  • Commercially available 3280 x 78 mm sanding belts can be fitted
  • Table 592 x 505 mm with front and rear extensions of 582 x 245 mm; 118 kg net

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230 V / 50 Hz
Table size
592 x 505 mm
Table extension
582 x 245 mm
Dust collector port
100 mm
Min. workpiece thickness
5 mm
Max. workpiece thickness
80 mm
Belt dimensions
3280 x 78 mm
Feeding
0-3 m/min
Max. sanding width
560 mm
Drum diameter
132 x 565 mm
Drum speed
0-1800 min-1
Sound power level
96 dB(A)
Sound pressure level
87 dB(A)
Net weight
118 kg
Gross weight
154 kg
EAN code
9120058377525

უპირატესობები

  • Frequency-controlled drum from 0 to 1800 rpm plus 0-3 m/min feed give full process control
  • Cast iron sanding unit and standard 3280 x 78 mm belts keep accuracy and consumable cost sensible
  • Front and rear table extensions support long panels on a compact 118 kg machine

გასათვალისწინებელი

  • Maximum workpiece thickness of 80 mm, against 125 mm on the ZS635NEO
  • 230 V single-phase only, with no 400 V version for a three-phase workshop
  • HOLZMANN lists no accessories in delivery, so belts, optional drums and the brushing roller are extra

ხშირად დასმული კითხვები

Does the HOLZMANN ZS560FU need a 400 V three-phase connection?
No. The HOLZMANN ZS560FU is supplied as a 230 V / 50 Hz machine with a 1500 W motor, so the ZS560FU works from a single-phase workshop supply and no 400 V installation is required. A workshop that already has three-phase power and needs more capacity should look at the HOLZMANN ZS635NEO, which is offered in a 400 V version as well.
What does frequency control give on the HOLZMANN ZS560FU?
Frequency control on the HOLZMANN ZS560FU allows the sanding drum to be set anywhere from 0 to 1800 rpm, so the speed can be adjusted to the type of drum or roller fitted. Together with the 0 to 3 m/min stepless feed, that lets the ZS560FU be tuned to the species and the finish instead of running one fixed combination.
What does the HOLZMANN ZS560FU not do?
The HOLZMANN ZS560FU does not plane rough stock to thickness, so timber must be planed before sanding, and the ZS560FU does not take workpieces wider than 560 mm or thicker than 80 mm. The ZS560FU also does not sand curved edges, which is the job of a spindle sander such as the HOLZMANN OSS75A.
Can the HOLZMANN ZS560FU be used for brushing?
Yes. The HOLZMANN ZS560FU has a brushing function with a suitable roller (ZS560FU_DSW), and the frequency-controlled drum lets the speed be matched to the roller fitted. Brushing rollers and optional sanding drums for the ZS560FU are ordered separately.
What sanding belts does the HOLZMANN ZS560FU use?
The HOLZMANN ZS560FU uses sanding belts of 3280 x 78 mm, and HOLZMANN states that commercially available belts can be used on the machine. That keeps the running cost of the ZS560FU low, since consumables are not tied to a single supplier.
How much space does the HOLZMANN ZS560FU need?
The HOLZMANN ZS560FU has a 592 x 505 mm table with front and rear extensions of 582 x 245 mm each, and weighs 118 kg net, 154 kg gross. Space must also be allowed in front of and behind the ZS560FU for panels up to 560 mm wide to run through.
What does a HOLZMANN ZS560FU cost?
The HOLZMANN ZS560FU is quoted rather than sold at a listed price. What moves the figure on a ZS560FU quotation is the optional sanding drums and the ZS560FU_DSW brushing roller you add, the range of 3280 x 78 mm belt grits you want stocked from the start, the extractor for the 100 mm port, and delivery of 118 kg net. Tell us which rollers you need and we will price the ZS560FU as a working set-up.
How long does a HOLZMANN ZS560FU take to arrive?
The HOLZMANN ZS560FU is built to order and its current lead time is confirmed on the quotation, not stated in advance. The HOLZMANN listing for the ZS560FU was showing as unavailable when this page was written, so ask us to confirm the position for the ZS560FU before committing to an installation date.
What is needed to install a HOLZMANN ZS560FU?
Installing the HOLZMANN ZS560FU is straightforward compared with a three-phase machine: it runs from a 230 V single-phase supply, so no 400 V board is required. The work is siting the 118 kg machine on a level floor, levelling the 582 x 245 mm front and rear extensions in line with the 592 x 505 mm table, and connecting the 100 mm port to an extractor before the ZS560FU is run.
What tooling should be budgeted separately for a HOLZMANN ZS560FU?
Budget separately for the ZS560FU's consumables and optional rollers: commercially available 3280 x 78 mm sanding belts in the grits your work needs, the ZS560FU_DSW roller if you want the brushing function, any of the optional sanding drums HOLZMANN offers for the machine, and a dust extractor for the 100 mm port. None of these is confirmed as part of the ZS560FU delivery.
