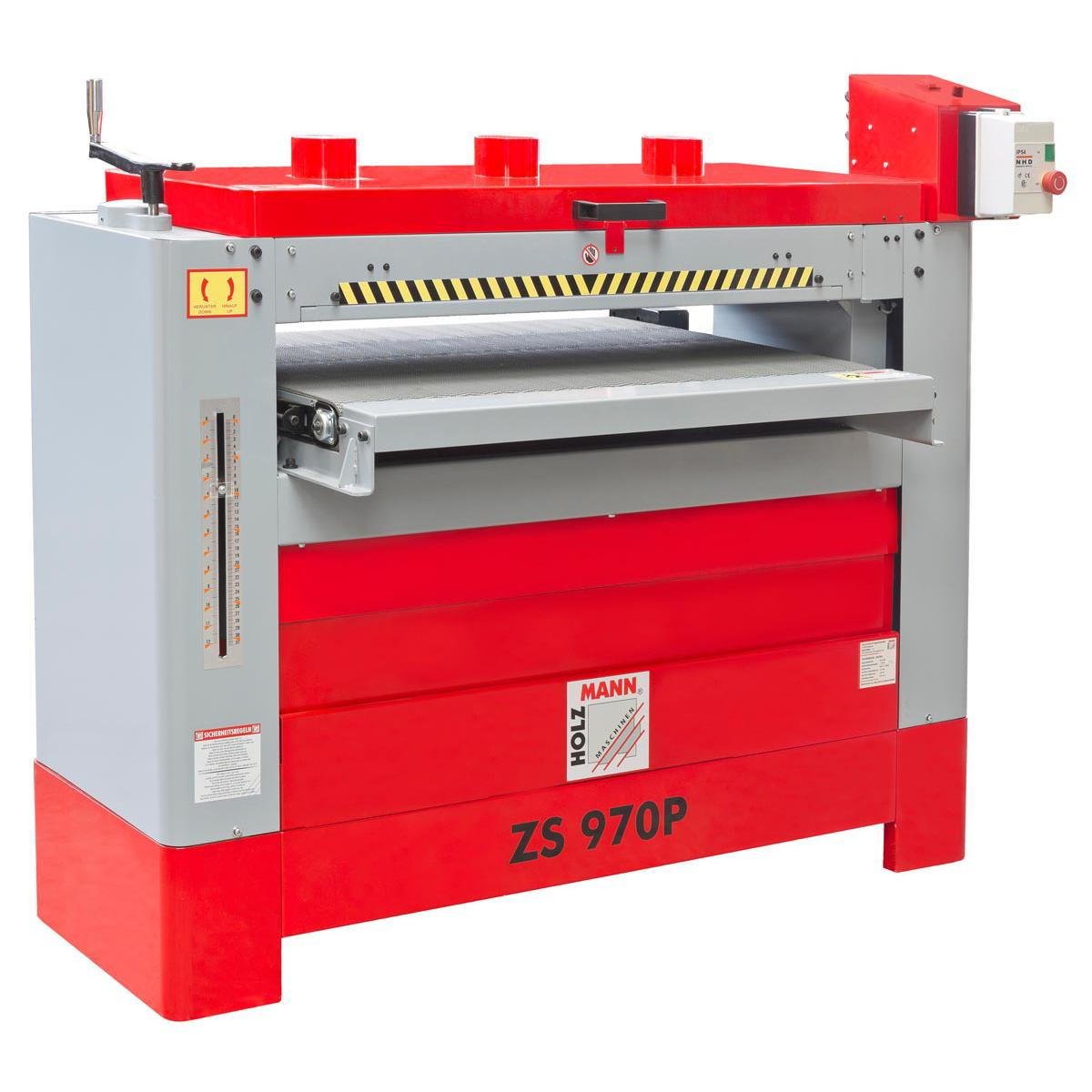

HOLZMANN ZS970P Twin-Drum Sander – 970 mm Sanding Width

ZS970P

The HOLZMANN ZS970P is a 970 mm twin-drum sander whose two dynamically balanced 127 mm drums at 1600 rpm carry coarse and fine abrasive so both grits are worked in a single feed. The ZS970P handles workpieces from 7 to 304 mm thick at a stepless feed of 1.9 to 9.1 m/min, is rated 3700 W S1 / 5200 W S6, and is available in 230 V and 400 V versions.

ფასი მოთხოვნით

The ZS970P price is driven by the voltage version, the abrasive belt package for two drums, extraction equipment and ducting if quoted, freight, customs and mechanical unloading of a 390 kg crate in Georgia, and any commissioning or training included.

ფასის მოთხოვნა

Why two drums change the economics

The HOLZMANN ZS970P earns its place by halving passes. Two sanding drums are mounted in line on the ZS970P, so a coarse belt and a fine belt work the same panel in one feed instead of the operator running the panel twice and changing abrasive in between. On a shop producing panels continuously that is the difference between a sander that keeps up with the assembly bench and one that becomes the bottleneck.

Capacity of the ZS970P

Capacity is where the ZS970P separates from every smaller Holzmann drum sander. The ZS970P takes 970 mm of width per pass and workpieces from 7 mm up to 304 mm thick, so deep glued-up components – bench tops, laminated beams, stair components on edge – go through the machine rather than being hand sanded. Both drums are 127 mm in diameter, dynamically balanced and turning at 1600 rpm for a smooth, chatter-free cut, and the conveyor feed is steplessly adjustable from 1.9 to 9.1 m/min so feed rate can be matched to timber hardness and grit.

Controls and conveyor

Control on the ZS970P is deliberately separated: a magnetic switch runs the sanding drum drive and a key switch runs the conveyor belt, so the feed can be stopped independently of the drums. The conveyor belt is specified for long service life and is designed to be adjusted parallel quickly, and abrasive belt changes on the ZS970P are made without dismantling the machine. The ZS970P is stated as suitable for all types of soft and hard wood.

Power and installation planning

The ZS970P is a serious electrical and mechanical install. The motor is rated 3700 W on S1 continuous duty and 5200 W on S6 intermittent duty, with ZS970P_230V and ZS970P_400V article codes covering single-phase and three-phase supplies; at this power a 400 V three-phase supply is the sensible choice where it exists. Overall dimensions are 1473 x 1219 x 889 mm and net weight is 300 kg, 390 kg gross crated.

ZS970P or ZS640P

Choose the ZS970P for 970 mm panels, 304 mm thickness capacity and two-grit single-pass work. The single-drum ZS640P covers 640 mm width, 127 mm thickness and 195 kg, and costs less to install and to feed with abrasive.

ძირითადი მახასიათებლები

970 mm maximum sanding width in a single pass
Two dynamically balanced 127 mm sanding drums at 1600 rpm - coarse and fine sanding in one feed
Workpiece thickness capacity from 7 mm to 304 mm
Steplessly adjustable conveyor feed from 1.9 to 9.1 m/min
3700 W (S1) / 5200 W (S6) motor, offered in 230 V and 400 V versions
Magnetic switch for the drum drive and separate key switch for the conveyor belt
Long-life conveyor belt with quick parallel adjustment
Supplied with 2 sanding belts, one P80 and one P120; 300 kg net

ტექნიკური მახასიათებლები

Motor power (S1, continuous): 3700 W
Motor power (S6, intermittent): 5200 W
Voltage: 230 V (ZS970P_230V) or 400 V (ZS970P_400V)
Feed speed: 1.9-9.1 m/min
Total dimensions (L x W x H): 1473 x 1219 x 889 mm
Max. workpiece thickness: 304 mm
Min. workpiece thickness: 7 mm
Drum speed: 1600 min-1
Drum diameter: 127 mm
Max. sanding width: 970 mm
Net weight: 300 kg
Gross weight: 390 kg
Packaging length: 1610 mm
Packaging width: 910 mm
Packaging height: 1320 mm
EAN code (230 V): 9120039905020
EAN code (400 V): 9120039905044

უპირატესობები

Two drums mean coarse and fine grit in one pass, which roughly halves handling time against a single-drum sander
304 mm thickness capacity and 970 mm width take work that most workshop sanders simply cannot accept
Offered in both 230 V and 400 V versions, so the machine is not automatically ruled out by a single-phase supply

გასათვალისწინებელი

5200 W S6 on a 230 V single-phase supply is demanding - the 400 V three-phase version is the realistic choice for continuous production
300 kg net, 390 kg gross and a 1473 x 1219 mm footprint plus infeed and outfeed clearance: this is a permanent installation needing mechanical handling
Two drums mean two abrasive belts consumed per pass, so the running abrasive cost of the ZS970P is higher than a single-drum machine

ხშირად დასმული კითხვები

How much does the HOLZMANN ZS970P cost?

The HOLZMANN ZS970P is a capital machine quoted rather than price-listed. The ZS970P price is driven by the voltage version (230 V or 400 V), the abrasive belt package quoted with it - remember the ZS970P consumes two belts per pass - whether a dust collector and ducting are included, freight and customs for a 390 kg gross crate into Georgia, mechanical unloading, and whether commissioning and training are added. Give us your panel width, thickness and daily volume and the ZS970P will be quoted to suit.

Should I choose the 230 V or 400 V HOLZMANN ZS970P?

For the HOLZMANN ZS970P the 400 V three-phase version is the better choice wherever three-phase power exists. The ZS970P is rated 3700 W S1 and 5200 W S6; on a single-phase 230 V supply that is a heavy load requiring an adequately rated circuit, whereas ZS970P_400V spreads the load across three phases and starts more comfortably under a full-width cut. Choose ZS970P_230V only where a three-phase connection genuinely is not available.

What is the lead time and availability of the HOLZMANN ZS970P?

The HOLZMANN ZS970P is ordered from Holzmann in Austria against the current factory position. Holzmann currently lists this model as unavailable on its own webshop, so availability for the ZS970P is confirmed with the factory at the time of enquiry and the agreed lead time is written into the quotation before any order is placed.

What is involved in installing and commissioning the HOLZMANN ZS970P?

Installing the HOLZMANN ZS970P means forklift or pallet-truck unloading of a 390 kg gross crate, siting the 1473 x 1219 x 889 mm machine on a level floor with clear infeed and outfeed runs, connecting dust extraction sized for a 970 mm twin-drum machine, and an electrical connection made by a qualified electrician for the 400 V version with rotation direction checked. Drum height, conveyor tracking and parallelism on the ZS970P are set before the first production panel.

What tooling and consumables should be budgeted separately for the HOLZMANN ZS970P?

The HOLZMANN ZS970P ships with two sanding belts, one P80 and one P120 - enough to set the machine up, not to run it. Budget separately for a working stock of abrasive belts in matched pairs for the two drums, extraction hose and clamps, and dust collector capacity if none is spare. Because the ZS970P uses two belts per pass, abrasive is the main ongoing cost of ownership.

Can the HOLZMANN ZS970P replace a thicknesser?

No. The HOLZMANN ZS970P is a calibrating and finishing sander, not a chip-removing machine: stock should arrive already thicknessed, and the ZS970P then takes it to final thickness and surface. Using the ZS970P for heavy stock removal loads the drums, burns abrasive belts and slows production - dimension the timber on a thicknesser first, then calibrate on the ZS970P.
