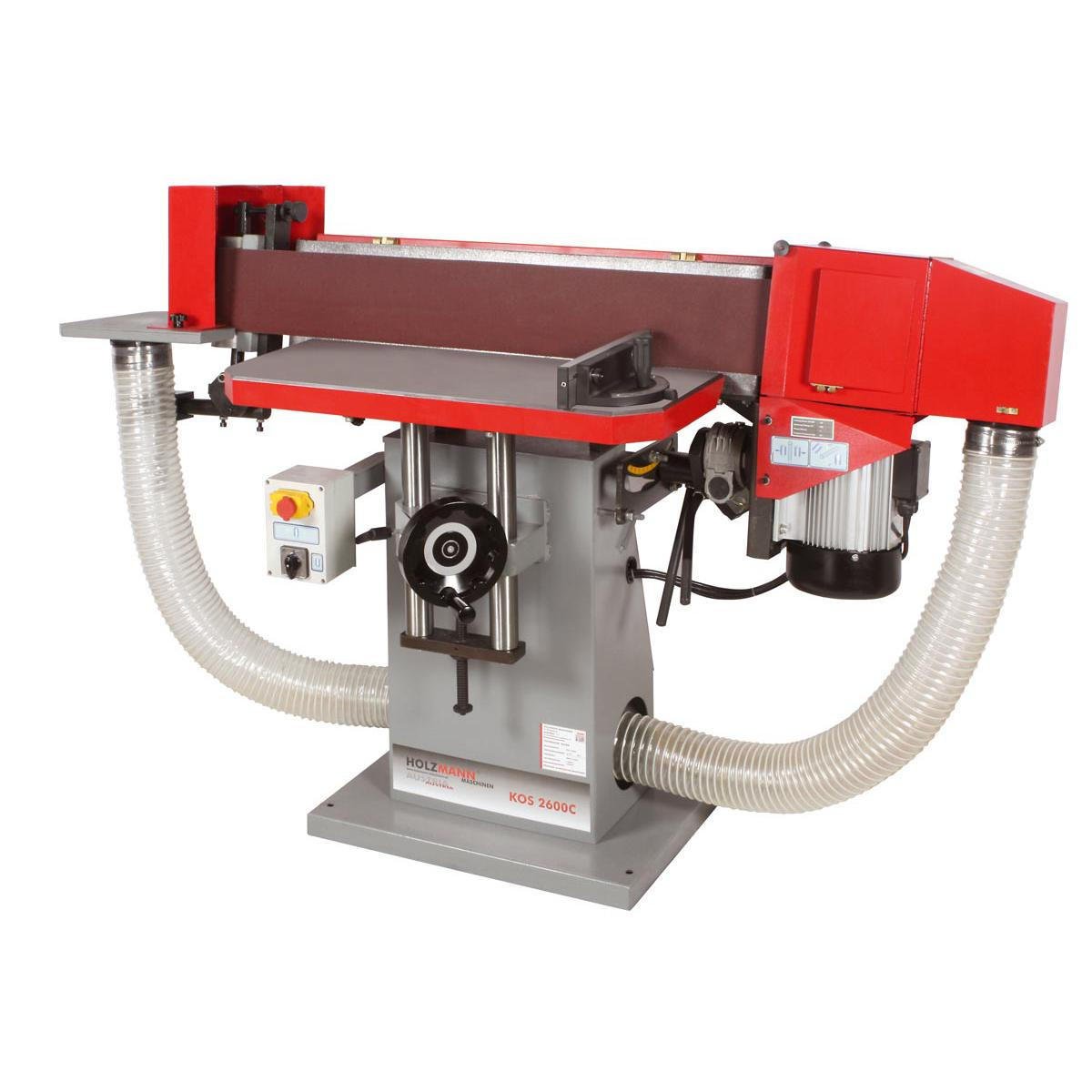

HOLZMANN KOS2600C Oscillating Belt Sanding Machine (2600 x 150 mm)

KOS2600C

The HOLZMANN KOS2600C is a 400 V oscillating belt sanding machine with a 2600 x 150 mm belt running at 20 m/s, a 4200 W S6 / 3000 W S1 motor and a sanding unit that tilts steplessly from 90 to 45°. An independent oscillation motor and a graphite-coated contact surface equip the 180 kg KOS2600C for continuous edge work.

ფასი მოთხოვნით

Price moves with the KOS2600C machine configuration on 400 V, freight and customs clearance for a 230 kg gross shipment into Georgia, and the extras added - 2600 x 150 mm abrasive belt sets, a dust extractor for the 100 mm port, mechanical handling on delivery and on-site commissioning.

ფასის მოთხოვნა

Why the HOLZMANN KOS2600C is the heavier oscillating sander

Sustained production is the brief the KOS2600C answers. A 4200 W S6 / 3000 W S1 motor on 400 V drives a 2600 x 150 mm belt at 20 m/s, which is the combination that holds belt speed when an operator leans a hardwood edge into the contact surface for a full shift rather than a few parts.

Oscillation on its own motor

Oscillation costs nothing in belt drive on this machine. An independent gear-driven motor generates the sideways stroke, so the sanding belt keeps its speed while oscillating and the scratch pattern stays even across the work.

Stepless tilt from 90 to 45°

Bevels are set on the machine instead of in a jig. The sanding unit tilts steplessly from 90 to 45°, which covers chamfers and angled edges directly, and a round sanding table with separate dust collection handles curved edges precisely.

Belt life and tracking

Consumable cost per part is the quiet advantage of the KOS2600C. A graphite-coated contact surface reduces friction between belt and platen and extends belt life, spring-mounted belt tension neutralises belt length variation between one abrasive and the next, and precision-guided rollers hold tracking so belts run centred instead of walking off the drums.

Installation planning

Three-phase power and material handling decide the site. The KOS2600C is a 400 V machine only, works over a 750 x 300 mm table, extracts through a 100 mm dust collector port, and arrives at 180 kg net and 230 kg gross in a crate of 1480 x 760 x 1160 mm, so a forklift or pallet truck and a prepared floor position are needed on delivery.

Requesting a quote for the KOS2600C

Pricing for the KOS2600C follows the machine configuration, freight and customs into Georgia for a 230 kg gross shipment, and the belts, extraction and installation added to the order. Send the edge profiles and daily volumes worked in your shop, and the KOS2600C will be quoted against that duty.

ძირითადი მახასიათებლები

2600 x 150 mm abrasive belt running at 20 m/s, the longest and fastest belt of the two KOS oscillating sanders
4200 W S6 / 3000 W S1 motor on a 400 V three-phase supply, sized for continuous edge sanding
Independent gear-driven oscillation motor, so the sideways stroke never draws power from the belt drive
Sanding unit tiltable steplessly from 90 to 45° for chamfers and angled edges without jigs
Graphite-coated contact surface, cutting belt friction and extending abrasive life
Spring-mounted belt tension that neutralises belt length variation, with precision-guided rollers holding tracking
Round sanding table with separate dust collection for precise sanding of curved edges
750 x 300 mm table and a 100 mm dust collector port on a 180 kg net machine

ტექნიკური მახასიათებლები

Motor power (S6): 4200 W
Motor power (S1): 3000 W
Voltage: 400 V
Abrasive belt dimensions: 2600 x 150 mm
Belt speed: 20 m/s
Table size: 750 x 300 mm
Sanding unit tilt: 90 to 45° (stepless)
Dust collector port: 100 mm
Net weight: 180 kg
Gross weight: 230 kg
Packaging length: 1480 mm
Packaging width: 760 mm
Packaging height: 1160 mm
EAN code: 9120039901268

უპირატესობები

4200 W S6 / 3000 W S1 with a 2600 x 150 mm belt at 20 m/s gives the KOS2600C the stock removal and duty rating the 1500 W KOS2510N cannot match
A separate gear-driven oscillation motor keeps belt speed unaffected by the oscillating stroke, which matters over a full production shift
Graphite-coated contact surface, spring-mounted belt tension and precision-guided rollers extend belt life and keep tracking stable between grit changes

გასათვალისწინებელი

The KOS2600C is a 400 V three-phase machine only, so a workshop without three-phase distribution has to install it or move to the 230 V KOS2510N
The 750 x 300 mm table is shorter than the 840 x 300 mm table of the KOS2510N, so very long edges get less support on the bigger machine
At 180 kg net and 230 kg gross in a 1480 x 760 x 1160 mm crate, the KOS2600C needs a forklift or pallet truck and a dedicated floor position, and extraction and belts are separate purchases

ხშირად დასმული კითხვები

How much does the HOLZMANN KOS2600C cost?

The HOLZMANN KOS2600C is quoted rather than shelf-priced, because the price is assembled from the machine configuration on 400 V, freight and customs clearance into Georgia for a 230 kg gross shipment, and the items added to the order - 2600 x 150 mm abrasive belt sets, a dust extractor for the 100 mm port, delivery with mechanical handling and on-site commissioning. Send your daily volume and edge profiles for a written quotation on the KOS2600C.

Is the KOS2600C available in 230 V?

No - the HOLZMANN KOS2600C is listed only as a 400 V three-phase machine, rated 4200 W in S6 duty and 3000 W in S1 duty, and that power level is the reason there is no 230 V variant. Workshops without a three-phase connection should look at the KOS2510N, which is offered in both 230 V and 400 V, or plan a 400 V installation before the KOS2600C arrives.

What is the lead time for a HOLZMANN KOS2600C?

Lead time for the HOLZMANN KOS2600C depends on HOLZMANN factory availability in Austria and the shipping route into Georgia for a 230 kg gross crate. A firm delivery date for the KOS2600C is confirmed in writing on the quotation rather than estimated in advance.

What installation does the KOS2600C need?

Installation of the KOS2600C covers moving a 230 kg gross crate into position with a forklift or pallet truck, setting the 180 kg machine on a level floor with clearance for long workpieces, connecting the 400 V three-phase supply and a hose to the 100 mm dust collector port, checking belt tension, tracking and the 90-45° tilt, and a first test pass. Site work for the KOS2600C in Georgia is quoted separately from the machine.

Which consumables should be budgeted separately from the KOS2600C?

Alongside the KOS2600C, budget 2600 x 150 mm abrasive belts in the grits you run, a dust extractor and hose for the 100 mm port, hearing and eye protection, and the handling equipment needed for a 230 kg gross crate. None of these is assumed to be part of the KOS2600C unless it appears on the quotation.

How does the KOS2600C differ from the KOS2510N?

The KOS2600C runs a 2600 x 150 mm belt at 20 m/s behind a 4200 W S6 / 3000 W S1 motor on 400 V, with a separate oscillation motor, a graphite-coated contact surface and a stepless 90-45° tilt. The KOS2510N runs a shorter 2510 x 150 mm belt at 16 m/s on a 1500 W S1 motor available in 230 V or 400 V, over a longer 840 x 300 mm table. Choose the KOS2600C for production duty and bevel work, the KOS2510N for lighter use or a single-phase shop.
