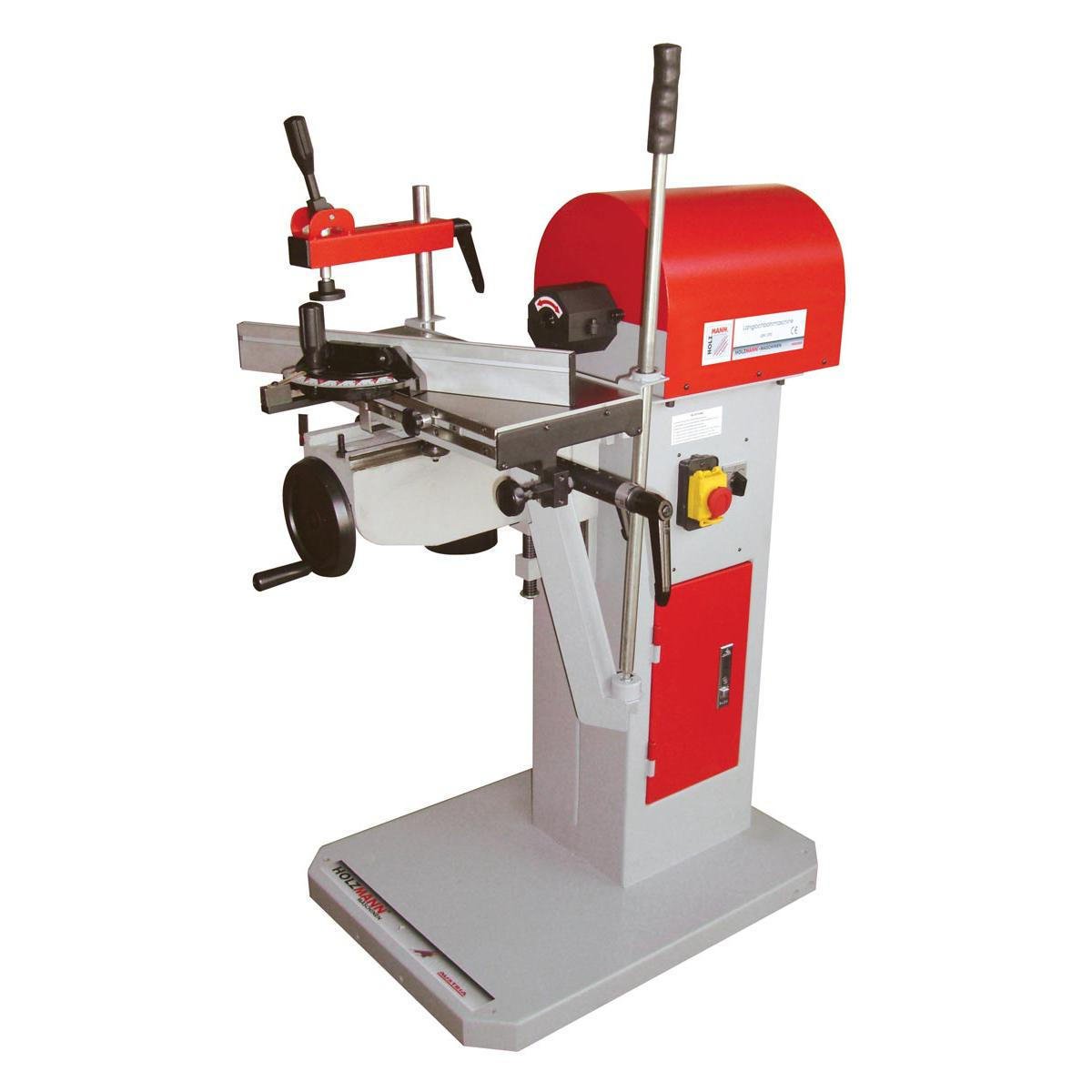

HOLZMANN LBM290 Slot Mortising Machine with Pattern Bar
LBM290
The HOLZMANN LBM290 is a slot mortising machine with pattern bar giving 290 mm drilling width and 140 mm drilling depth from a 3100 W (S6) head, on a 500 x 210 mm table with 140 mm of stroke. Offered in both 230 V single-phase and 400 V three-phase versions and weighing 97 kg, the LBM290 is the entry point into HOLZMANN's floor-standing mortiser range.
LBM290 pricing moves with the voltage version chosen, the mortise bit and chisel tooling package, freight for a 117 kg crate plus customs and VAT into Georgia, delivery and positioning, and any workpiece support accessories added.
ფასის მოთხოვნაThe LBM290 is the practical starting point
The HOLZMANN LBM290 is the mortiser to buy first. At 97 kg net the LBM290 is the lightest of HOLZMANN’s floor-standing slot mortisers, yet it keeps the full 290 mm drilling width of the far heavier LBM290K, so a small joinery shop gets production-class reach without a 205 kg machine on the floor. The LBM290 is available as LBM290_230V for single-phase workshops and LBM290_400V for three-phase, which makes it the flexible choice for Georgian premises where the supply is not guaranteed.
Table travel that does the work for you
Feel is where the LBM290 justifies itself over a drill press with a mortising attachment. Table travel on the LBM290 is precise and easy-gliding, operated by a multi-bedded lever, and table height is adjusted through a dove tail guidance that runs smoothly and locks at individual defined positions. That combination lets an operator cut a slot in controlled passes rather than forcing the bit, which is what keeps a 140 mm deep mortise straight.
Capacity in context
The LBM290 works within a clearly defined envelope. Maximum drilling width on the LBM290 is 290 mm and maximum depth is 140 mm, the table measures 500 x 210 mm and the table stroke is 140 mm, all driven by a 3100 W (S6) / 2200 W (S1) motor. For window frames, cabinet rails, bed frames and standard door components this is ample; for through-mortises in heavy gate stock the deeper LBM250C is the correct machine.
Storage and setup
The LBM290 is designed to be lived with. A machine base cabinet holds toolings so bits and chisels stay at the machine rather than in a drawer across the shop, the pin drilling device offers four defined dowel positions, and a mitre fence with left-right run is fitted for angled and serial work.
Choosing between the LBM290 and the LBM290K
Both machines reach 290 mm wide, so the decision is about duty rather than capacity. The LBM290K adds a 5300 W (S6) two-speed head, 155 mm of depth and optional extension tables reaching a 2600 mm envelope, at 140 kg. The LBM290 gives the same width at 97 kg and 3100 W (S6) single speed, for shops mortising in batches rather than continuously. If door leaves and long frames pass through your shop daily, specify the LBM290K; if they do not, the LBM290 is the machine that fits.
ძირითადი მახასიათებლები
- 290 mm maximum drilling width - the same reach as the heavier LBM290K
- 3100 W (S6) / 2200 W (S1) motor with maximum drilling depth 140 mm
- Available as LBM290_230V single-phase or LBM290_400V three-phase
- 500 x 210 mm table with 140 mm of table stroke
- Precise, easy-gliding table travel on a multi-bedded lever, with dove tail height guidance locking at individual defined positions
- Machine base cabinet for storing mortise bits and chisels at the machine
- Pin drilling device with four defined positions, plus mitre fence and left-right run
- 97 kg net weight - the lightest floor-standing mortiser in the HOLZMANN LBM range
ტექნიკური მახასიათებლები
- Motor power (S6)
- 3100 W
- Motor power (S1)
- 2200 W
- Voltage
- 230 V (LBM290_230V) / 400 V (LBM290_400V)
- Table stroke
- 140 mm
- Table size
- 500 x 210 mm
- Maximum drilling width
- 290 mm
- Maximum drilling depth
- 140 mm
- Pin point distances
- 16 / 22 / 25 / 32 mm
- Net weight
- 97 kg
- Gross weight
- 117 kg
- Packaging width
- 550 mm
- Packaging length
- 1060 mm
- Packaging height
- 550 mm
- EAN code
- 9120039903965 (230 V) / 9120039903958 (400 V)
უპირატესობები
- Full 290 mm drilling width at only 97 kg, the lightest floor-standing mortiser in the range
- Genuine single-phase version (LBM290_230V) removes any need for a supply upgrade
- Base cabinet keeps mortise bits and chisels at the machine, which speeds up setup
გასათვალისწინებელი
- Drilling depth of 140 mm is the shallowest in the LBM range - deep through-mortises need the LBM250C
- Single-speed head, unlike the two-speed 1400/2800 min-1 LBM290K
- The 500 x 210 mm table is small, so long workpieces need external support
