NKM 240 CNC Kapi Kasasi Birlestirme Makinasi — NETMAK NKM 240 CNC Door Frame Assembly Machine

NETMAK

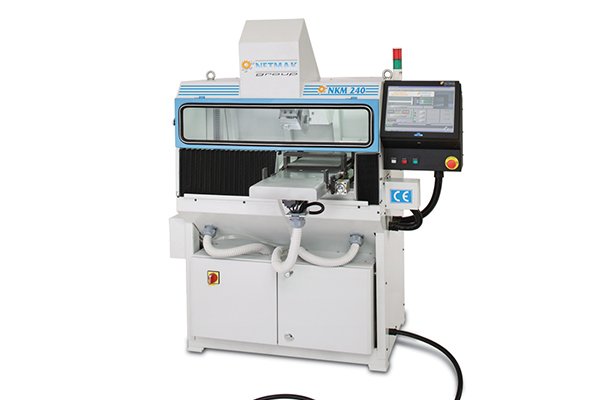

NETMAK NKM 240 CNC Door Frame Assembly Machine

NKM 240 CNC Kapi Kasasi Birlestirme Makinasi

A single door frame leaves the NETMAK NKM 240 CNC every 20 seconds and a double frame every 28, for a rated 150 frames per 8-hour shift. The NKM 240 CNC saws and mills frame stock 100 to 320 mm wide and up to 50 mm thick with a 3 kW milling spindle at 6000 rpm and a 2.2 kW saw at 4000 rpm.

ფასი მოთხოვნით

Price of the NKM 240 CNC is driven by the CNC control and language configuration, whether the 220 mm cutter and 200 mm saw blade are included, extraction and compressed air preparation, and delivery, rigging and commissioning of a 420 kg machine in Georgia.

ფასის მოთხოვნა

What the NKM 240 CNC does

The NKM 240 CNC turns cut frame stock into finished door frame components in one automated cycle, replacing a separate saw station and a separate notching jig. A 3 kW milling motor turning at 6000 rpm drives a 220 mm cutter that machines the assembly channel, while a 2.2 kW motor at 4000 rpm spins a 200 mm saw blade for the trim cut. Because the NKM 240 CNC is fully CNC controlled, the operator enters only three measurements and the control derives the remaining settings, producing a single frame in 20 seconds or a paired frame in 28 seconds.

Who the NKM 240 CNC is built for

Door manufacturers running repeat frame batches recover the investment fastest on the NKM 240 CNC. The published rating of 150 door frames per 8-hour shift is a production-line figure rather than a workshop figure, so a joinery fitting a handful of frames a week will never load the machine enough to justify it. Frame capacity runs from 100 mm to 320 mm wide and up to 50 mm thick, which covers ordinary interior jambs, entrance frames, and the wider wall reveals common in Georgian block construction and renovation work.

How the NKM 240 CNC differs from a manual set-up

Setting time, not cutting time, is where the NKM 240 CNC separates from cheaper equipment. Manual mitre-and-clamp frame stations need shims and trial cuts every time frame width or board thickness changes. The NKM 240 CNC instead carries automatic adjustment for joint tightness, saw blade diameter and groove milling dimensions, so a width change becomes a keypad entry rather than a re-setup. Compared with buying a dedicated crosscut saw plus a separate groover, the NKM 240 CNC puts both operations inside a single 1400 x 1550 x 1550 mm floor footprint.

What is documented and what to confirm before ordering

Netmak publishes the mechanical and CNC data for the NKM 240 CNC in full: both capacities, both motor ratings, both tool diameters, the machine footprint and a 420 kg net weight. The published sheet does not state supply voltage, phase, compressed-air demand, or whether tooling and an extraction hood are supplied. Confirm those four points in writing with Danadgarebi before ordering, along with rigging access, because 420 kg requires a pallet truck and a level, load-bearing floor.

ძირითადი მახასიათებლები

  • 3 kW milling motor running at 6000 rpm driving a 220 mm cutter for the assembly channel
  • 2.2 kW saw motor running at 4000 rpm driving a 200 mm saw blade
  • Frame width capacity from a 100 mm minimum to a 320 mm maximum
  • Maximum frame thickness of 50 mm
  • Cycle time of 20 seconds for a single frame and 28 seconds for a double frame
  • Rated output of 150 door frames within an 8-hour shift
  • Automatic adjustment for joint tightness, saw blade diameter and channel milling dimensions
  • 420 kg net weight on a 1400 x 1550 x 1550 mm machine footprint

ტექნიკური მახასიათებლები

Product code
NKM 240 CNC
Machine type
Door frame assembly machine (Kapi Kasasi Birlestirme Makinasi)
Max. frame thickness
50 mm
Max. frame width
320 mm
Min. frame width
100 mm
Milling motor power
3 kW, 6000 rpm
Milling cutter diameter
220 mm
Saw motor power
2.2 kW, 4000 rpm
Saw blade diameter
200 mm
Machine footprint dimensions
1400 x 1550 x 1550 mm
Net weight
420 kg
Control
Fully CNC controlled
Cycle time, single frame
20 seconds
Cycle time, double frame
28 seconds
Rated output
150 door frames per 8 hours
Automatic adjustment
Joint tightness, saw blade diameter, channel milling dimensions
Operator input to start
3 measurements

უპირატესობები

  • Fully CNC controlled with automatic settings for joint tightness, saw diameter and groove dimensions, so width changes do not require shimming or trial cuts
  • Combines a 3 kW milling spindle and a 2.2 kW sawing spindle in one 1400 x 1550 x 1550 mm footprint instead of two separate stations
  • Published 20-second single-frame cycle and 150-frame shift rating give a concrete basis for costing a production run

გასათვალისწინებელი

  • Netmak does not publish supply voltage, phase or compressed-air demand for the NKM 240 CNC, so the site services have to be confirmed separately before installation
  • At 420 kg the machine needs a level, load-bearing floor and mechanical handling to position, which rules out upper-floor workshops without a goods lift
  • Dust extraction and the tooling package are not listed in the published specification and are likely to be additional line items

ხშირად დასმული კითხვები

What power supply does the NKM 240 CNC need?
Netmak does not publish a voltage or phase rating for the NKM 240 CNC. The machine carries a 3 kW milling motor and a 2.2 kW saw motor, a combined 5.2 kW of drive that in practice calls for an industrial three-phase supply, but that figure is not printed on the manufacturer's data sheet. Ask Danadgarebi to confirm the exact electrical and compressed-air requirement in writing before the order is placed.
What size door frames can the NKM 240 CNC handle?
The NKM 240 CNC handles door frame stock from 100 mm to 320 mm wide and up to 50 mm thick. Frames narrower than 100 mm or thicker than 50 mm fall outside the published capacity of the NKM 240 CNC.
How many door frames can the NKM 240 CNC produce in one shift?
The NKM 240 CNC is rated by Netmak at 150 door frames within 8 hours, based on cycle times of 20 seconds for a single frame and 28 seconds for a double frame. Real output from the NKM 240 CNC depends on how quickly the operator loads and unloads stock and how often frame sizes change during the shift.
How much floor space does the NKM 240 CNC need?
The NKM 240 CNC occupies 1400 x 1550 x 1550 mm and weighs 420 kg net. Beyond that footprint, allow clear infeed and outfeed space along the length of the longest frame component being run, plus operator access to the control side of the NKM 240 CNC.
What tooling does the NKM 240 CNC use?
The NKM 240 CNC uses a 220 mm milling cutter and a 200 mm saw blade. Netmak's published specification does not state whether that tooling is supplied with the machine, so confirm the tooling package with Danadgarebi as part of the quotation.
What does the NKM 240 CNC not do?
The NKM 240 CNC saws and mills frame components and machines the assembly joint; it does not rip raw board to width, does not cut hinge or lock recesses, and does not sand, prime or finish the frame. Those operations need separate machines alongside the NKM 240 CNC.
How much does the NKM 240 CNC cost?
The NKM 240 CNC is supplied on quotation, not at a published price. The quoted figure for the NKM 240 CNC depends on the CNC control and language configuration, whether the 220 mm milling cutter and 200 mm saw blade are included, extraction and air preparation, and delivery, rigging and commissioning of a 420 kg machine in Georgia. Send the frame widths and thicknesses to be run, within the 100-320 mm and 50 mm limits, and a written quotation follows.
What is the lead time for the NKM 240 CNC?
The NKM 240 CNC is built to order by Netmak, so the lead time is confirmed at quotation rather than published. Ask for the current build slot for the NKM 240 CNC at enquiry, and allow additional time for transport to Georgia and for rigging a 420 kg machine into position.
What does installing and commissioning the NKM 240 CNC involve?
Installing the NKM 240 CNC means placing 1400 x 1550 mm of machine at 420 kg on a level load-bearing floor with mechanical handling, allowing clear infeed and outfeed for full-length frame components, and connecting three-phase power and extraction at the milling and saw heads. Netmak does not publish the supply voltage, phase or compressed-air demand for the NKM 240 CNC, so confirm those in writing before site services are prepared; commissioning and training are quoted separately.
What tooling and consumables should be budgeted alongside the NKM 240 CNC?
Budget for the 220 mm milling cutter and the 200 mm saw blade with their resharpening, and for dust extraction, since Netmak's specification does not state that any of these ships with the NKM 240 CNC. A second set of tooling is worth costing where the NKM 240 CNC runs at its rated 150 frames per shift, so cutter changes do not stop production.
