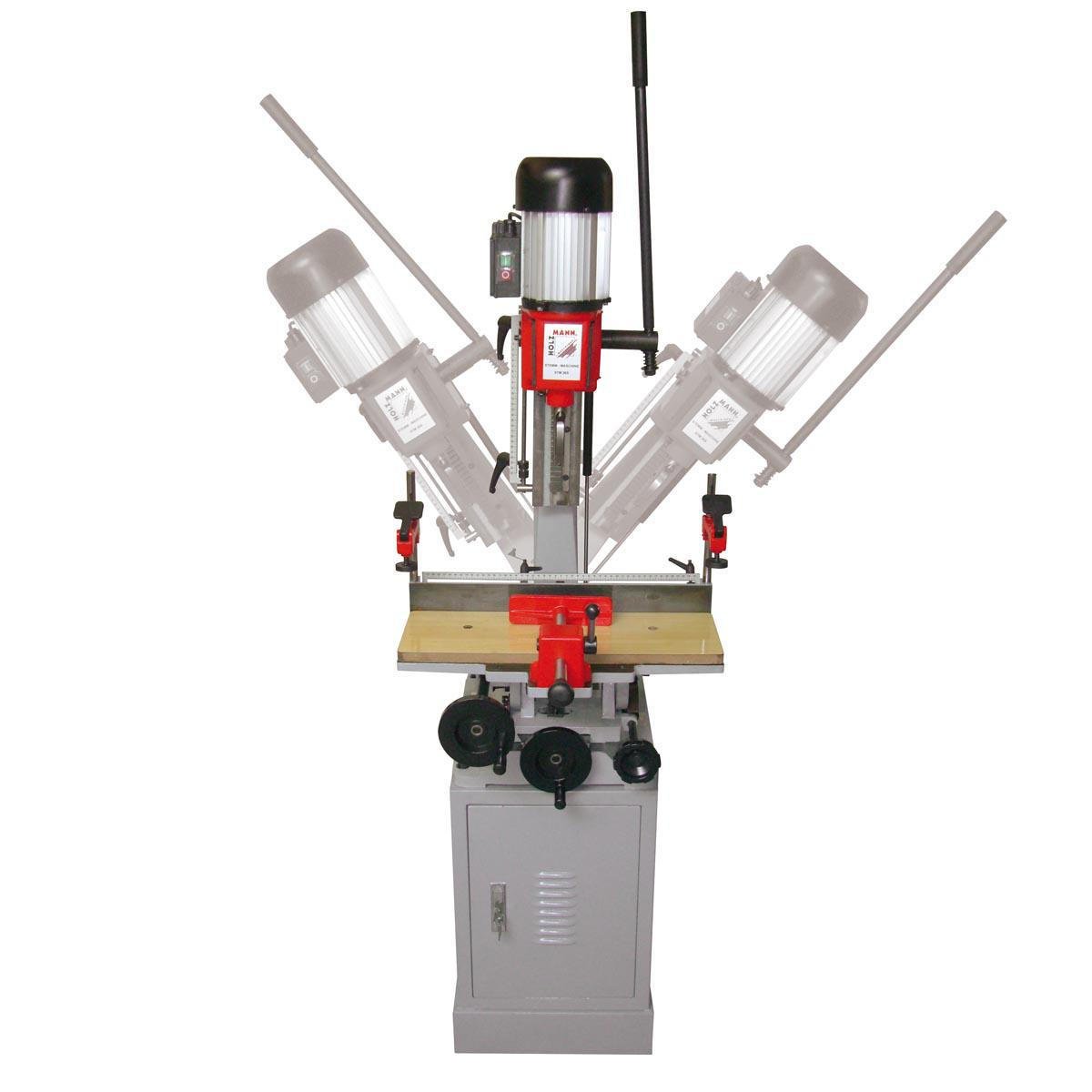

HOLZMANN STM26S Boring and Chisel Mortising Machine

STM26S

The HOLZMANN STM26S is a cast iron boring and chisel mortising machine with a large 540 x 230 mm table, taking hollow chisels from 6 to 26 mm and cutting to 76 mm depth in stock up to 210 mm thick. Driven by a 1050 W (S6) motor at 1400 min-1 from a 230 V single-phase supply, the STM26S weighs 111 kg and stands 1870 mm tall.

ფასი მოთხოვნით

STM26S pricing moves with the hollow chisel and auger set specified, freight for a 130 kg crate plus customs and VAT into Georgia, delivery and positioning, roller stands or supports added, and any extended warranty.

ფასის მოთხოვნა

The STM26S is the long-workpiece mortiser

The HOLZMANN STM26S solves the problem that makes small mortisers frustrating: workpiece support. The STM26S carries a 540 x 230 mm table, 35 percent longer and 53 percent deeper than the 400 x 150 mm table of the standard STM26, and that extra area is what keeps a door stile or a window jamb sitting flat and square while the chisel works. For shops mortising long components rather than short rails, the STM26S is the version to specify.

Mass and height

The STM26S is also the steadier of the two machines. At 111 kg net against 86 kg, the STM26S has 25 kg more cast iron resisting the side load a hollow chisel generates, and the taller 1870 mm frame gives more room under the head. Both figures matter when a chisel is being driven through 210 mm of hardwood.

The mortising head

Cutting performance on the STM26S is identical to its smaller sibling, and that is deliberate. The STM26S runs a 1050 W (S6) / 750 W (S1) motor at 1400 min-1 from a 230 V single-phase supply, takes hollow chisels from 6 to 26 mm and cuts to a maximum depth of 76 mm. Because the STM26S needs no three-phase connection, a workshop can install it on an ordinary socket.

Guides, stops and effort

The STM26S is built to be worked all day. Adjustable dovetail guides on the STM26S keep the chisel square and can be re-set as they wear, a gas pressure cylinder supports the plunge so one-hand operation is genuinely one-handed, and large hand wheels make table adjustment quick. Adjustable depth stops give high repeating accuracy, and two quick-adjust workpiece down-holders stop the stock lifting when the chisel withdraws. The STM26S is supplied on a stand with a lockable tool cabinet and rubber feet.

Deciding between the STM26S and the STM26

Buy on table size, not on power. The STM26S and STM26 have the same motor, the same 1400 min-1 spindle, the same 6-26 mm chisel range and the same 76 mm depth, so the only real questions are how long your workpieces are and how much floor space you have. If you mortise door and window components, the STM26S table repays its extra 25 kg and 150 mm of height; if you mortise short furniture rails in a cramped shop, the STM26 is sufficient.

ძირითადი მახასიათებლები

Large 540 x 230 mm table - significantly more support than the 400 x 150 mm STM26 table
Hollow chisel capacity 6-26 mm with maximum drilling depth 76 mm
Maximum workpiece thickness 210 mm
1050 W (S6) / 750 W (S1) motor at 1400 min-1 on a 230 V single-phase supply
111 kg of bending-resistant cast iron for stability under chisel side load
1870 mm overall height giving generous clearance under the mortising head
Adjustable dovetail guides, adjustable depth stops, gas cylinder plunge assistance and two quick-adjust down-holders
Stand with lockable tool cabinet and rubber feet included

ტექნიკური მახასიათებლები

Motor power (S6): 1050 W
Motor power (S1): 750 W
Voltage: 230 V
Drilling spindle speed: 1400 min-1
Chisel dimensions min/max: 6-26 mm
Maximum drilling depth: 76 mm
Maximum workpiece thickness: 210 mm
Table size: 540 x 230 mm
Maximum machine height: 1870 mm
Net weight: 111 kg
Gross weight: 130 kg
Packaging width: 565 mm
Packaging length: 620 mm
Packaging height: 960 mm
EAN code: 9120039905280

უპირატესობები

540 x 230 mm table supports door and window components that overhang a small mortiser
25 kg heavier than the STM26 for noticeably better stability in hardwood
230 V single-phase supply means no electrical upgrade is needed

გასათვალისწინებელი

111 kg and 1870 mm tall - a bigger footprint and a permanent position in the workshop
Cutting capacity is identical to the cheaper STM26, so the extra cost buys support, not performance
Hollow chisels and augers are not included and require periodic sharpening

ხშირად დასმული კითხვები

How much does the HOLZMANN STM26S cost?

The HOLZMANN STM26S is supplied on quotation rather than at a published price. STM26S pricing is driven by the hollow chisel and auger set specified across the 6 to 26 mm range, freight for a 130 kg crate and customs clearance into Georgia, delivery and positioning of a 1870 mm tall machine, any roller stands or supports added, and any extended warranty. Tell us your component sizes and chisel requirements and a written STM26S quotation will follow.

What is the lead time for the HOLZMANN STM26S?

The HOLZMANN STM26S is ordered from the factory in Austria once the quotation is accepted, so the STM26S lead time depends on factory stock and the freight schedule into Georgia. HOLZMANN currently lists the STM26S as unavailable in its own catalogue, so the current STM26S lead time should be confirmed at enquiry.

What installation does the HOLZMANN STM26S need?

The HOLZMANN STM26S needs siting rather than installation. The STM26S arrives on its own stand with rubber feet, weighs 111 kg net and stands 1870 mm tall, so it needs a firm level floor, adequate ceiling height and two people or a pallet truck to position it. Electrically the STM26S plugs into a standard 230 V single-phase socket, with no three-phase connection required.

What tooling and consumables should be budgeted for with the STM26S?

The STM26S is supplied without cutting tools, so hollow chisels and matching augers must be bought separately. Budget for chisels in the sizes actually used within the 6 to 26 mm range, spare augers for the most-used sizes, a chisel sharpening cone because hollow chisels dull steadily, and roller stands for components longer than the 540 x 230 mm table of the STM26S.

Is the STM26S worth the extra cost over the STM26?

The STM26S is worth the difference only if your workpieces are long. The STM26S and STM26 have identical motors, spindle speeds, chisel ranges and 76 mm cutting depth, so the STM26S buys a 540 x 230 mm table instead of 400 x 150 mm, 111 kg instead of 86 kg, and 1870 mm of height instead of 1720 mm. For door and window stiles the STM26S support is decisive; for short rails it is not.

How thick a workpiece can the HOLZMANN STM26S mortise?

The HOLZMANN STM26S accepts workpieces up to 210 mm thick and cuts to a maximum drilling depth of 76 mm. That means the STM26S will pass thick stock under the head, but a through-mortise in material deeper than 76 mm must be cut from both faces with the workpiece turned over.
