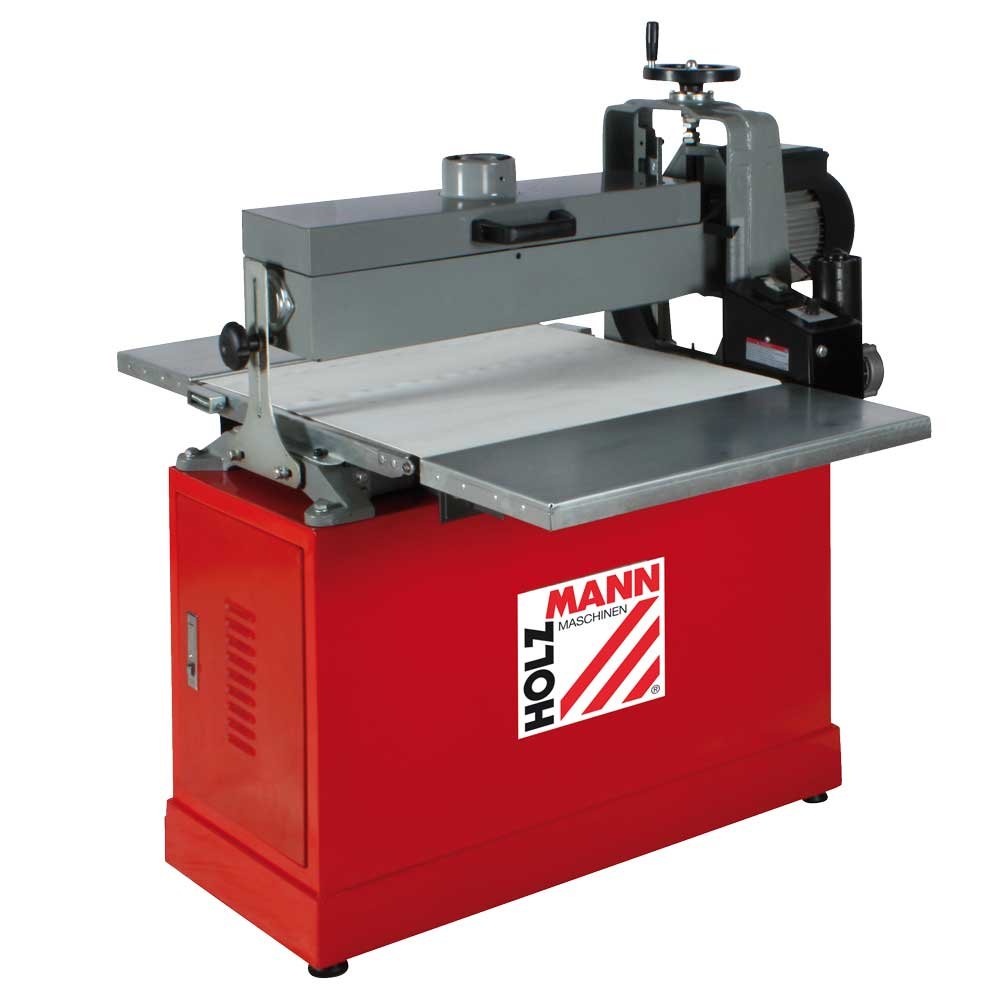

HOLZMANN ZS560U Mini Wide Belt Sander (560 mm)
ZS560U
The HOLZMANN ZS560U is a 230 V mini wide belt sander with a 560 mm sanding width, a 132 mm drum and a stepless 0-3 m/min feed, sized for wide glued-up tops, cabinet sides and door panels. Workpieces between 5 mm and 80 mm thick pass under the 118 kg cast iron sanding unit of the ZS560U.
Price moves with the ZS560U configuration, freight and customs clearance for a 168 kg gross crate into Georgia, and the extras added - abrasive belt sets, a dust extractor sized for 560 mm of working width, delivery and on-site commissioning.
ფასის მოთხოვნაWhat the HOLZMANN ZS560U calibrates
Width is the reason to specify the ZS560U: 560 mm of sanding width takes cabinet sides, table tops and wide door panels that will not fit a 400 mm machine. A 132 mm drum works that full width while the stepless feed moves the workpiece through at 0 to 3 m/min, replacing hand sanding on panels that come off the clamps with visible glue lines and joint mismatch.
Thickness range of 5 to 80 mm
Panel work rather than heavy joinery defines the ZS560U window. Workpieces between 5 mm and 80 mm thick pass under the drum, which covers veneered board, solid tops and standard door leaves but stops short of the thick blanks the narrower ZS400U accepts at 130 mm.
Motor, feed and abrasive handling
The ZS560U runs 2250 W in S6 duty and 1500 W in S1 duty from a 230 V single-phase supply, so a wide-panel calibrating sander can go into a shop with no three-phase connection at all. Because that same motor rating drives 160 mm more width than the 400 mm model, deep stock removal across a full 560 mm panel is best split into lighter passes at reduced feed. A spring system tensions the sanding carpet, and commercially available belts fit the drum.
Support across the wider table
Cast iron construction in the sanding unit and 118 kg of machine weight hold the drum steady across the extra width, while front and rear table extensions carry long panels in and out of the sanding zone.
Site, extraction and handling
Extraction, hearing protection and lifting belong in the same budget as the machine. The HOLZMANN ZS560U arrives at 1220 x 690 x 1100 mm and 168 kg gross, declares 96 dB(A) sound power and 87 dB(A) sound pressure, and throws fine dust across the full 560 mm width, so a dedicated extractor sized for the machine is a working requirement rather than an accessory.
Requesting a quote for the ZS560U
Pricing for the ZS560U depends on configuration, freight and customs into Georgia for a 168 kg gross crate, and the abrasive sets, extraction and on-site commissioning added to the order. Tell us the widest panel and the species worked most often, and the ZS560U will be quoted against that production.
ძირითადი მახასიათებლები
- 560 mm maximum sanding width - 160 mm more than the ZS400U - covering cabinet sides, wide tops and door panels in a single pass
- 132 mm sanding drum working the full 560 mm width, with spring-adjusted carpet tension holding the abrasive
- Stepless feed from 0 to 3 m/min set by potentiometer, so feed can be reduced when removing stock across the full width
- Workpiece capacity from 5 mm to 80 mm thickness, matched to panel and door-leaf work
- 2250 W S6 / 1500 W S1 motor on a 230 V single-phase supply, avoiding a three-phase installation
- Cast iron construction in the sanding unit with 118 kg net machine weight to hold the drum steady across the wider table
- Front and rear table extensions supporting long panels entering and leaving the 560 mm sanding zone
- Declared noise emission of 96 dB(A) sound power and 87 dB(A) sound pressure for workshop noise assessment
ტექნიკური მახასიათებლები
- Motor power (S6)
- 2250 W
- Motor power (S1)
- 1500 W
- Voltage
- 230 V
- Feed speed
- 0-3 m/min (stepless)
- Max. sanding width
- 560 mm
- Sanding drum diameter
- 132 mm
- Max. workpiece thickness
- 80 mm
- Min. workpiece thickness
- 5 mm
- Sound power level
- 96 dB(A)
- Sound pressure level
- 87 dB(A)
- Net weight
- 118 kg
- Gross weight
- 168 kg
- Packaging length
- 1100 mm
- Packaging width
- 690 mm
- Packaging height
- 1220 mm
- EAN code
- 9120039901282
უპირატესობები
- 560 mm sanding width takes cabinet sides and table tops in one pass, where a 400 mm machine forces a flip-and-repeat routine and a visible seam risk
- Runs on 230 V single-phase at 2250 W S6, so wide-panel calibrating enters a workshop that has no three-phase connection
- Commercially available sanding belts and spring carpet tensioning keep abrasive costs and re-ordering straightforward over the machine's life
გასათვალისწინებელი
- Workpiece thickness stops at 80 mm, well under the 130 mm the narrower ZS400U accepts, so thick door blanks and stair components fall outside the ZS560U
- The same 2250 W S6 motor drives 160 mm more width than the ZS400U, so aggressive stock removal across a full 560 mm panel needs lighter passes and a slower feed
- At 118 kg net and 168 kg gross the ZS560U needs mechanical handling to place, and a dust extractor sized for 560 mm of continuous fine dust is a separate purchase
