NETMAK
23 machines found
Machines found
-
NETMAK
Spindle Moulders (Shapers)Netmak FR 2000 Spindle Moulder
- Table Size
- 1000 x 750 mm
- Table Height
- 850 mm
- Spindle
- 30 mm
Price on request -
NETMAK
Profile Knife Grinding MachinesNETMAK NPM 200 Profile Knife Grinding Machine
- Spindle
- 2400-2800 rpm
Profile length is the deciding capacity on the NETMAK NPM 200: moulding knives up to 200 mm long and cutter heads up to 300 mm in diameter can be reground in-house. The NPM 200 turns a 250 mm wheel with a 40 mm bore at 2400-2800 rpm from a 2.2 kW, 380 V / 50 Hz motor, with side angles adjustable to ±20 degrees.
Price on request -
NETMAK

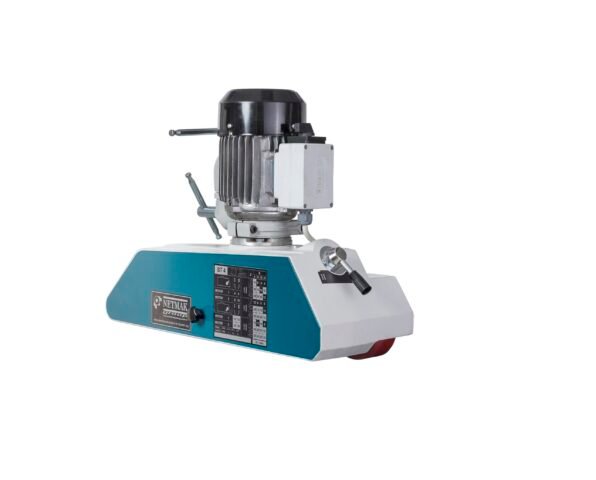

Power FeedersNETMAK ST-4 Four-Wheel Automatic Power Feeder
- Weight
- 80 kg
- Overall dimensions
- 600 x 1100 x 700 mm
Price on request -
NETMAK
Power FeedersNETMAK ST-1 Single-Wheel Automatic Power Feeder
- Weight
- 60 kg
- Overall dimensions
- 460 x 1100 x 700 mm
Price on request -
NETMAK
CNC Door Frame Assembly MachinesNETMAK NKM 240 CNC Door Frame Assembly Machine
- Weight
- 420 kg
A single door frame leaves the NETMAK NKM 240 CNC every 20 seconds and a double frame every 28, for a rated 150 frames per 8-hour shift. The NKM 240 CNC saws and mills frame stock 100 to 320 mm wide and up to 50 mm thick with a 3 kW milling spindle at 6000 rpm and a 2.2 kW saw at 4000 rpm.
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2000 SA Reinforced Carriage Spindle Moulder
- Table Size
- 1000 x 750 mm
- Table Height
- 850 mm
- Spindle
- 30 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2000 S Sliding Table Spindle Moulder
- Table Size
- 1000 x 750 mm
- Table Height
- 850 mm
- Spindle
- 30 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2000 I.T. Extension Table Spindle Moulder
- Table Size
- 2000 x 800 mm
- Table Height
- 850 mm
- Spindle
- 30 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2100 Spindle Moulder
- Table Size
- 1200 x 800 mm
- Table Height
- 850 mm
- Spindle
- 30-35 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2100 SA Reinforced Carriage Spindle Moulder
- Table Size
- 1200 x 800 mm
- Table Height
- 850 mm
- Spindle
- 30-35 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2100 S Sliding Table Spindle Moulder
- Table Size
- 1200 x 800 mm
- Table Height
- 850 mm
- Spindle
- 30-35 mm
Price on request -
NETMAK
Thicknessers (Thickness Planers)NETMAK KA 400 Thicknesser
- Table Size
- 420 x 790 mm
- Feed speed
- 7-14 m/min
- Overall dimensions
- 800 x 1000 x 1050 mm
Price on request -
NETMAK
Spindle Moulders (Shapers)NETMAK FR 2100 I.T. Extension Table Spindle Moulder
- Table Size
- 2200 x 840 mm
- Table Height
- 850 mm
- Spindle
- 30-35 mm
Price on request -
NETMAK
Thicknessers (Thickness Planers)NETMAK KA 600 Thicknesser (600 mm)
- Table Size
- 620 x 990 mm
- Spindle
- 4500 rpm
- Feed speed
- 7-14 m/min
Price on request -
NETMAK
Thicknessers (Thickness Planers)NETMAK KA 500 Thicknesser
- Table Size
- 520 x 890 mm
- Feed speed
- 7-14 m/min
- Overall dimensions
- 900 x 1100 x 1050 mm
Price on request -
NETMAK
Surface Planers (Jointers)NETMAK PL 400 Surface Planer (400 mm)
- Table Size
- 400 x 2600 mm
- Spindle
- 4500 rpm
- Overall dimensions
- 800 x 2600 x 1250 mm
Price on request -
NETMAK
Thicknessers (Thickness Planers)NETMAK KA 630 Thicknesser (630 mm)
- Table Size
- 640 x 990 mm
- Spindle
- 4500 rpm
- Feed speed
- 7-14 m/min
Price on request -
NETMAK
Overhead Routers (Vertical Spindle Routers)NETMAK FRS 900 Vertical Spindle Router (Sakuli Freze)
- Table Size
- 790 x 970 mm
- Spindle
- 80 mm
- Collet
- 12-14 mm
Price on request -
NETMAK
Surface Planers (Jointers)NETMAK PL 600 Surface Planer (600 mm)
- Table Size
- 600 x 2600 mm
- Spindle
- 4500 rpm
- Overall dimensions
- 1000 x 2650 x 1250 mm
Price on request -
NETMAK
Surface Planers (Jointers)NETMAK PL 500 Surface Planer (500 mm)
- Table Size
- 500 x 2600 mm
- Spindle
- 4500 rpm
- Overall dimensions
- 900 x 2650 x 1250 mm
Price on request -
NETMAK
Tilting Spindle MouldersNETMAK FR 2000Y Tilting Spindle Moulder
- Table Size
- 1050 x 800 mm
- Table Height
- 900 mm
- Spindle
- 140 mm - 150 mm
Price on request -
NETMAK
CNC RoutersNETMAK CNC 2411 CNC Router and Door Machining Centre
- Working area
- 2400 mm
- Spindle
- 12000-24000 rpm
- Overall dimensions
- 3200 x 1750 x 2400 mm
Price on request -
NETMAK
Overhead Routers (Vertical Spindle Routers)NETMAK FRS 1250 Vertical Spindle Router (Sakuli Freze)
- Table Size
- 960 x 1220 mm
- Spindle
- 80 mm
- Collet
- 12-14 mm
Price on request
