EHH110 — HOLZMANN EHH110 Electric Hand Planer, 110 mm / 1200 W 1 / 4

HOLZMANN

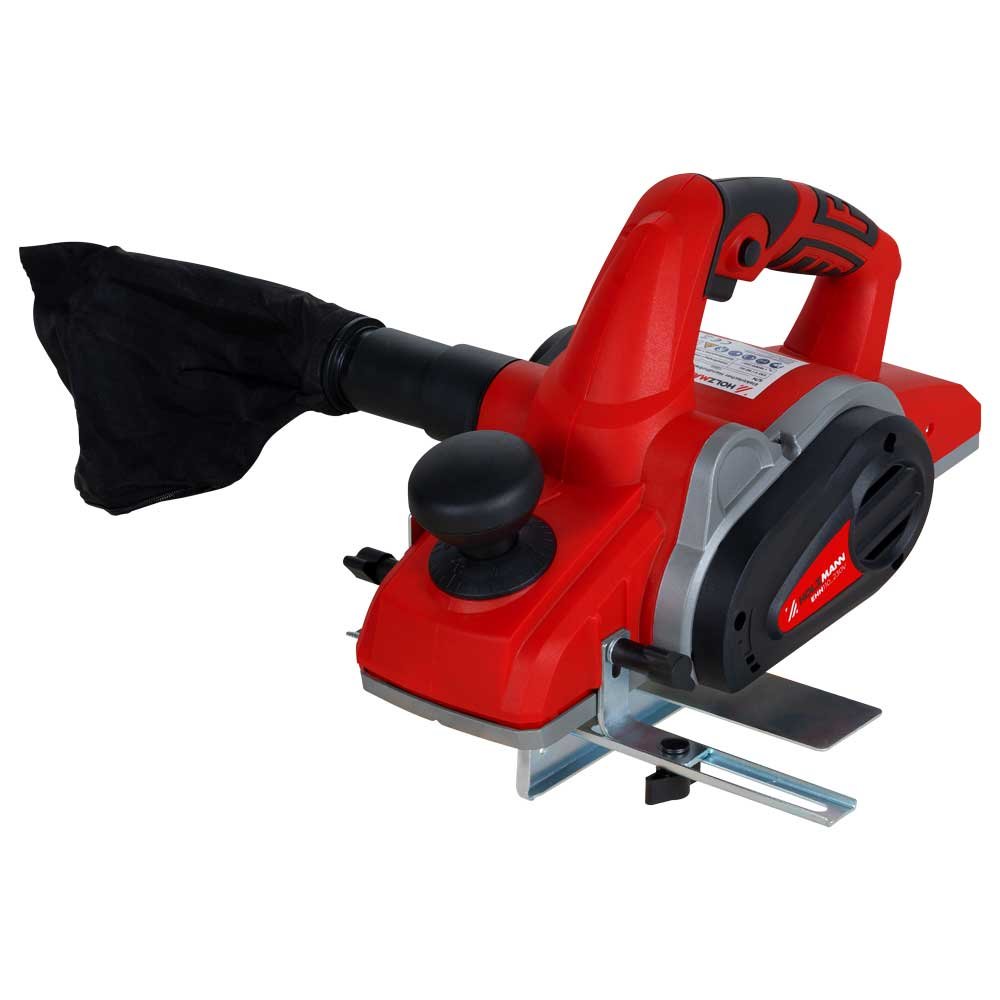

HOLZMANN EHH110 Electric Hand Planer, 110 mm / 1200 W

EHH110

Planing width is the number to check first, and the EHH110 takes 110 mm in a single pass with depth set 0-3 mm on a front hand wheel. A 1200 W class-II motor spins the two-knife shaft at 16000 min-1, the 214 x 100 mm outfeed table steadies the finish, and a 35 mm port with reducer and bag clears the chips. 4.4 kg net.

ფასი მოთხოვნით

Price moves with quantity, with how many spare sets of 110 x 5.7 x 1.2 mm knives are ordered with the tool, and with the freight and customs share of the consignment it ships in.

ფასის მოთხოვნა

What the HOLZMANN EHH110 does

The HOLZMANN EHH110 is a portable planer for dressing timber that is too long, too heavy or too awkward to carry to a stationary machine. The EHH110 removes up to 3 mm of material in a single pass across a 110 mm width, and the 16,000 min-1 shaft speed with two knives leaves a finish clean enough to go straight to sanding. A hand wheel on the front handle sets the cut anywhere between 0 and 3 mm, and a rebate depth stop lets the EHH110 work stepped rebates rather than only flat faces.

Who the EHH110 suits

The HOLZMANN EHH110 suits door manufacturers, site joiners and furniture workshops that fit and hang their own products. Trimming a door edge, easing a stuck window frame, tapering a stile or cleaning up glue squeeze-out on an assembled panel are all jobs a stationary planer cannot reach, and the EHH110 handles them at 4.4 kg in the hand. The 110 mm planing width is wide enough to dress most door edges and frame stock in one pass instead of two overlapping passes.

How the EHH110 differs from a stationary HOLZMANN planer

The EHH110 is a hand-held machine and the workpiece stays still while the machine moves; on a HOLZMANN surface planer or planer-thicknesser the opposite is true. That makes the EHH110 the right choice for fitting and finishing work on assembled or oversized parts, and the wrong choice for producing accurately dimensioned stock in quantity. Workshops usually own both: a stationary planer for preparation, and the EHH110 for everything already installed or too large to lift.

Delivery and extraction

Delivery of the HOLZMANN EHH110 includes a rip fence, a rebate depth stop, two planing knives measuring 110 x 5.7 x 1.2 mm, a dust bag, a reduction adapter from 35 mm to 32 mm, a frame and a planing shaft cover. The 35 mm port takes either the supplied bag for short jobs or a workshop extractor hose for continuous work. Infeed table dimensions are 104 x 100 mm and the outfeed table is 214 x 100 mm.

ძირითადი მახასიათებლები

  • 110 mm planing width in one pass - wider than the 82 mm class of hand planer most workshops own
  • Cut depth set steplessly 0 to 3 mm on the front hand wheel, read off while the machine is in the hand
  • 16000 min-1 shaft speed on a two-knife head, with 110 x 5.7 x 1.2 mm knives supplied
  • 1200 W S1 motor, 230 V / 50 Hz, appliance class II - no earth, no three-phase
  • Outfeed table 214 x 100 mm against a 104 x 100 mm infeed table, so the planed face is what the tool rides on
  • 35 mm dust port supplied with both a bag and a 35-32 mm reducer for a shop hose
  • Rip fence and rebate depth stop are part of the standard delivery, not extras
  • 4.4 kg net for overhead door-edge and site work; 6.6 kg gross
  • Declared 96 dB(A) sound power, 85 dB(A) sound pressure, 5.71 m/s2 at the handgrip

ტექნიკური მახასიათებლები

Motor power S1
1200 W
Voltage
230V / 50Hz
Appliance class
II
Max. thicknessing cutting depth
3 mm (110 mm)
Shaft speed
16000 min-1
Cutter knives amount
2
Dust collector port
ø 35 mm
Sound power level
96 dB(A)
Sound pressure level
85 dB(A)
Handgrip vibration
5.71 m/s²
Net weight
4.40 kg
Gross weight
6.60 kg
EAN code
9120058378164

უპირატესობები

  • 110 mm planing width and 3 mm maximum cut handle door edges and frame stock in one pass
  • 16,000 min-1 two-knife shaft leaves a finish that needs little sanding
  • Complete kit in the box: fence, rebate stop, spare-fit knives, bag and 35-32 mm reducer

გასათვალისწინებელი

  • Hand-fed only, so accuracy depends entirely on operator technique
  • Maximum 3 mm cut makes heavy stock removal slow compared with a stationary planer
  • Needs a separate extractor for clean continuous indoor work; the supplied bag fills quickly

ხშირად დასმული კითხვები

Is the HOLZMANN EHH110 available in 400V three-phase?
The HOLZMANN EHH110 is a 230V / 50Hz single-phase machine only and there is no 400V three-phase version of the EHH110. The 1200 W appliance class II motor plugs into any standard Georgian workshop or household socket, which is exactly what makes the EHH110 usable on site where no three-phase supply exists.
What does the HOLZMANN EHH110 not do?
The HOLZMANN EHH110 does not thickness timber to a set dimension and does not replace a stationary planer-thicknesser. The EHH110 cannot remove more than 3 mm in one pass, cannot plane wider than 110 mm in a single pass, and has no powered feed - the operator pushes the machine along the workpiece by hand.
How deep and how wide does the HOLZMANN EHH110 cut?
The HOLZMANN EHH110 planes a 110 mm width and removes up to 3 mm of depth per pass, set steplessly on the front hand wheel between 0 and 3 mm. Wider boards are dressed with the EHH110 in overlapping passes.
What is included with the HOLZMANN EHH110?
The HOLZMANN EHH110 is delivered with a rip fence, a rebate depth stop, two 110 x 5.7 x 1.2 mm planing knives, a dust bag, a ø35-32 mm dust connector reduction, a frame and a planing shaft cover.
Can the HOLZMANN EHH110 be connected to workshop extraction?
The HOLZMANN EHH110 has a ø 35 mm dust collector port and is supplied with both a dust bag and a 35-32 mm reducer, so the EHH110 connects either to its own bag or to a shop extractor hose. Continuous indoor planing is much cleaner with the EHH110 on an extractor than on the bag.
How loud is the HOLZMANN EHH110?
The HOLZMANN EHH110 is rated at 96 dB(A) sound power and 85 dB(A) sound pressure, with 5.71 m/s² vibration at the handgrip. Hearing protection is required whenever the EHH110 is running.
What drives the quoted price of a HOLZMANN EHH110?
The EHH110 is quoted on enquiry rather than sold at a fixed list price, and the figure is moved by order quantity, by the number of spare 110 x 5.7 x 1.2 mm knife sets taken with it, and by the freight and customs share of the consignment. Adding the EHH110 to a larger HOLZMANN order rather than shipping it alone is the single biggest saving available.
What is the lead time on an EHH110?
The EHH110 is built to order and its delivery date is confirmed in writing with the quotation. We publish no standing lead time for the EHH110 because it depends on HOLZMANN's production slot and on shipment consolidation.
Does the EHH110 need any installation?
No installation is involved with the EHH110. It is a 4.4 kg hand-held class-II tool that plugs into an ordinary 230 V / 50 Hz socket. The only setup decision is whether the 35 mm port of the EHH110 runs to the supplied dust bag or, for indoor production, to a workshop extractor through the 35-32 mm reducer.
What should be budgeted separately with an EHH110?
Budget spare planing knives - the EHH110 uses 110 x 5.7 x 1.2 mm knives and a nicked pair leaves a line down every board. For indoor use budget a workshop vacuum or extractor for the EHH110, because the supplied bag is intended for intermittent work rather than a full shift of planing.
