TAS89M — HOLZMANN TAS89M Mini Plunge Saw, 600 W / 89 mm 1 / 4

HOLZMANN

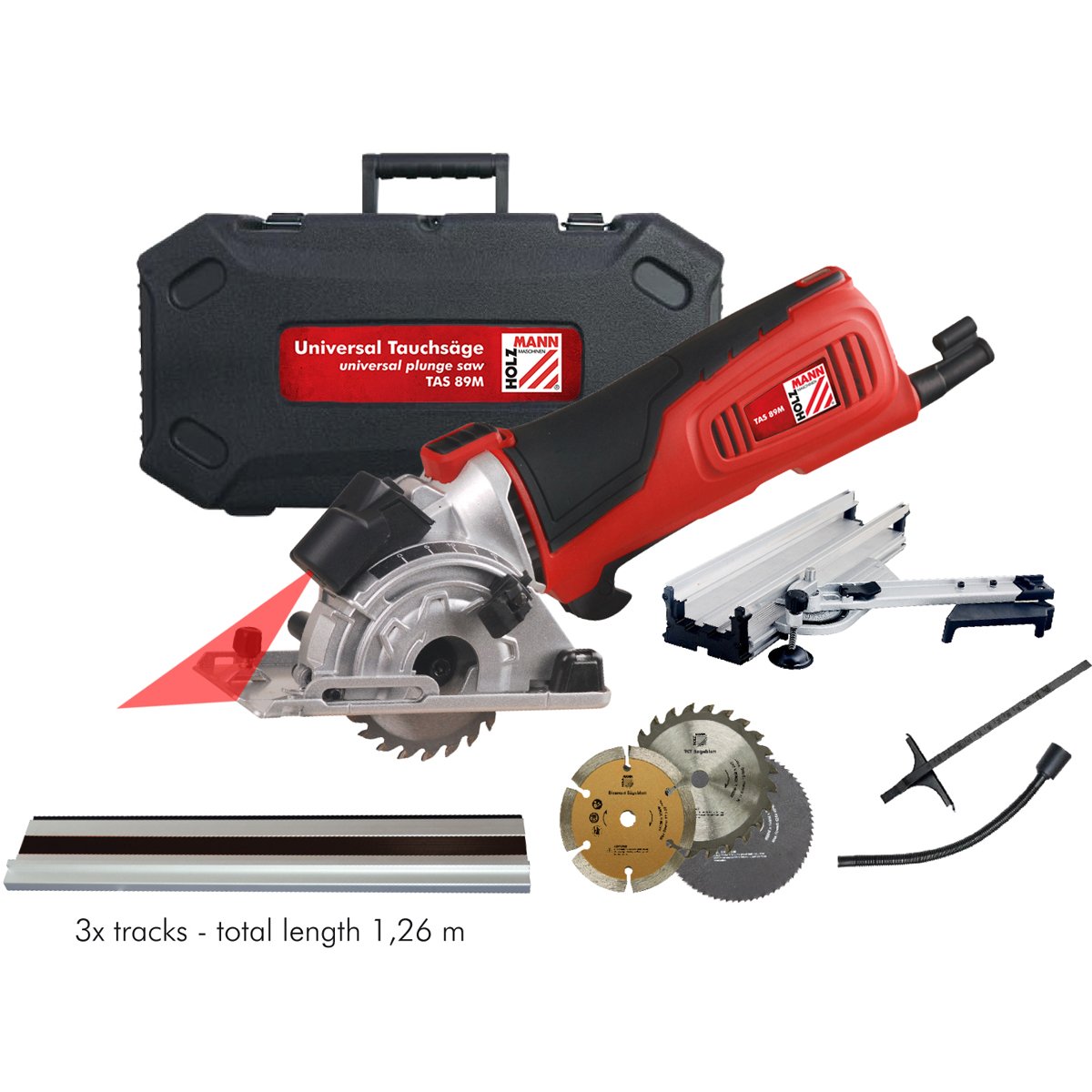

HOLZMANN TAS89M Mini Plunge Saw, 600 W / 89 mm

TAS89M

At 89 mm the HOLZMANN TAS89M blade is barely half the diameter of the TAS165's, and that is the point: a 600 W mini plunge saw cutting 28.5 mm deep at 90 degrees, aimed by a laser and set by a quick-release depth adjustment. The TAS89M takes a 10 mm bore blade and is rated for tile, laminate, plastic and aluminium.

ფასი მოთხოვნით

What moves the TAS89M price is the quantity ordered and, above all, the set of 89 mm / 10 mm bore blades specified - a saw bought for tile, aluminium and laminate needs a different blade for each material, and that blade set is often a large share of the order.

ფასის მოთხოვნა

What the HOLZMANN TAS89M does

The HOLZMANN TAS89M is a compact multi-material plunge saw. Rather than being a scaled-down wood saw, the TAS89M is built for the mixed cutting a fit-out job throws up: wood, laminate, ceramic, tiles, plastic and aluminium all fall within its stated range when the correct blade is fitted. The TAS89M cuts to 28.5 mm at 90 degrees on an 89 mm blade with a 10 mm bore, driven at 5500 min-1 by a 600 W motor. A laser guide projects the cut line ahead of the blade and cutting depth is set with a quick-release lever rather than a screw and scale.

Who the TAS89M suits

The HOLZMANN TAS89M suits joiners, kitchen and bathroom fitters and furniture installers who need one small saw in the van for trimming jobs in several materials. The trigger switch sits on the underside of the machine, which puts the hand directly behind the cut and gives better control on a small, one-handed tool. For shelf trimming, cutting laminate flooring to length, notching plastic trunking or shortening aluminium profile, the TAS89M does what a full-size circular saw is too large and too deep-cutting to do neatly.

How the TAS89M differs from the TAS165 and TAS165PRO

The TAS89M is the smallest saw in the HOLZMANN plunge range and the choice between it and the larger models is about depth and material. The TAS89M cuts 28.5 mm with a 600 W motor and an 89 mm blade; the TAS165 cuts 54 mm with 1200 W and the TAS165PRO cuts the same 54 mm with 1400 W and variable speed. If the work is worktops, structural timber and full-thickness panels, the TAS165 or TAS165PRO is the correct saw. If the work is thin material across mixed substrates including tile and aluminium, the TAS89M is the one.

Working with the TAS89M

The HOLZMANN TAS89M weighs 6.5 kg net and 6.7 kg gross. Blade selection is the critical variable on the TAS89M: the machine’s material range only holds if a blade rated for that material is mounted, and every replacement blade must match the 89 mm diameter and 10 mm bore.

ძირითადი მახასიათებლები

  • 89 mm saw blade on a 10 mm bore - the small-format saw of this range
  • Maximum cutting depth of 28.5 mm at 90 degrees
  • 600 W motor at 5500 min-1 on 230 V / 50 Hz
  • Laser guidance for placing the cut line on the workpiece
  • Cutting depth set by quick release rather than a threaded lock
  • Trigger switch on the underside of the machine, for grip directly behind the cut
  • Rated for wood, laminate, ceramic, tiles, plastic and aluminium with the matching blade
  • 6.5 kg net, 6.7 kg gross - a compact 205 x 245 mm section package

ტექნიკური მახასიათებლები

Motor power S1
600 W
Speed
5500 min-1
Voltage
230V / 50 Hz
Max. cutting depth 90°
28.5 mm
Saw blade
89 / 10 mm
Net weight
6.50 kg
Gross weight
6.70 kg
EAN code
9120058372179

უპირატესობები

  • One compact saw for wood, laminate, tile, plastic and aluminium with the right blade
  • Laser guidance and quick-release depth setting speed up short trimming jobs
  • 600 W and an underside trigger make the TAS89M controllable one-handed in tight spaces

გასათვალისწინებელი

  • 28.5 mm maximum depth rules out worktops and structural timber
  • Fixed 5500 min-1 speed with no adjustment for softer plastics or metal
  • Its material range depends entirely on buying the correct blade for each substrate

ხშირად დასმული კითხვები

Is the HOLZMANN TAS89M a 230V or a 400V machine?
The HOLZMANN TAS89M runs on 230V / 50 Hz single-phase power and no 400V three-phase version of the TAS89M exists. The 600 W motor of the TAS89M draws little current, so the saw works from any ordinary socket on site or in a workshop with no three-phase connection.
What does the HOLZMANN TAS89M not do?
The HOLZMANN TAS89M does not cut deeper than 28.5 mm, so the TAS89M cannot cut through a standard worktop or structural timber. HOLZMANN publishes a single speed of 5500 min-1 for the TAS89M with no speed range, and publishes no bevel capacity for it, so any angled work should be confirmed with us before ordering. The TAS89M also does not cut any of its listed materials without the correct blade for that material fitted first.
Which materials can the HOLZMANN TAS89M cut?
The HOLZMANN TAS89M is rated for wood, laminate, ceramic, tiles, plastic and aluminium among others. Each material on the TAS89M requires a blade designed for it - the same wood blade will not cut tile or aluminium safely.
Should I buy the HOLZMANN TAS89M or the TAS165?
Choose the HOLZMANN TAS89M for thin, mixed-material trimming up to 28.5 mm deep with a compact 600 W machine and a laser guide. Choose the TAS165 instead when the job needs 54 mm of depth at 90 degrees and a 1200 W motor on a 165 mm blade - the TAS89M is not a substitute for a full-size plunge saw.
How is cutting depth set on the HOLZMANN TAS89M?
Cutting depth on the HOLZMANN TAS89M is set with a quick-release adjustment rather than a threaded lock, so the depth can be changed rapidly between materials. Maximum depth on the TAS89M is 28.5 mm at 90 degrees.
What blade does the HOLZMANN TAS89M use?
The HOLZMANN TAS89M uses an 89 mm blade with a 10 mm bore. Any replacement blade for the TAS89M must match both figures, and the blade type must suit the material being cut.
What does a HOLZMANN TAS89M cost?
The HOLZMANN TAS89M is supplied by quotation rather than at a shelf price. The biggest driver on a TAS89M quotation is the blade set: the saw is rated for wood, laminate, ceramic, tiles, plastic and aluminium, and each material needs its own 89 mm / 10 mm bore blade. Quantity and delivery of a 6.7 kg gross package make up the rest. Tell us which materials you cut and we will quote the TAS89M with the right blades.
How long does a HOLZMANN TAS89M take to supply?
The HOLZMANN TAS89M is supplied to order, with the current lead time confirmed at quotation. Blades for the specific materials you intend to cut can have their own availability, so ask us to confirm lead time for the TAS89M and its blade set together rather than for the saw alone.
Is there any installation work for a HOLZMANN TAS89M?
No installation is required for the HOLZMANN TAS89M. It runs from a normal 230 V / 50 Hz socket with no siting, levelling or three-phase supply. Preparing a TAS89M for work means fitting the blade that matches the material, setting the depth by quick release within the 28.5 mm maximum, and confirming the laser line against a test cut.
What should be budgeted separately alongside a HOLZMANN TAS89M?
Budget for blades and for dust or slurry control alongside the HOLZMANN TAS89M. Every listed material - ceramic, tile, aluminium, plastic, laminate, wood - requires a blade designed for it, and blades on the TAS89M are consumables that must match both the 89 mm diameter and the 10 mm bore. Extraction or wet control for tile and aluminium cutting is also separate from the TAS89M price.
