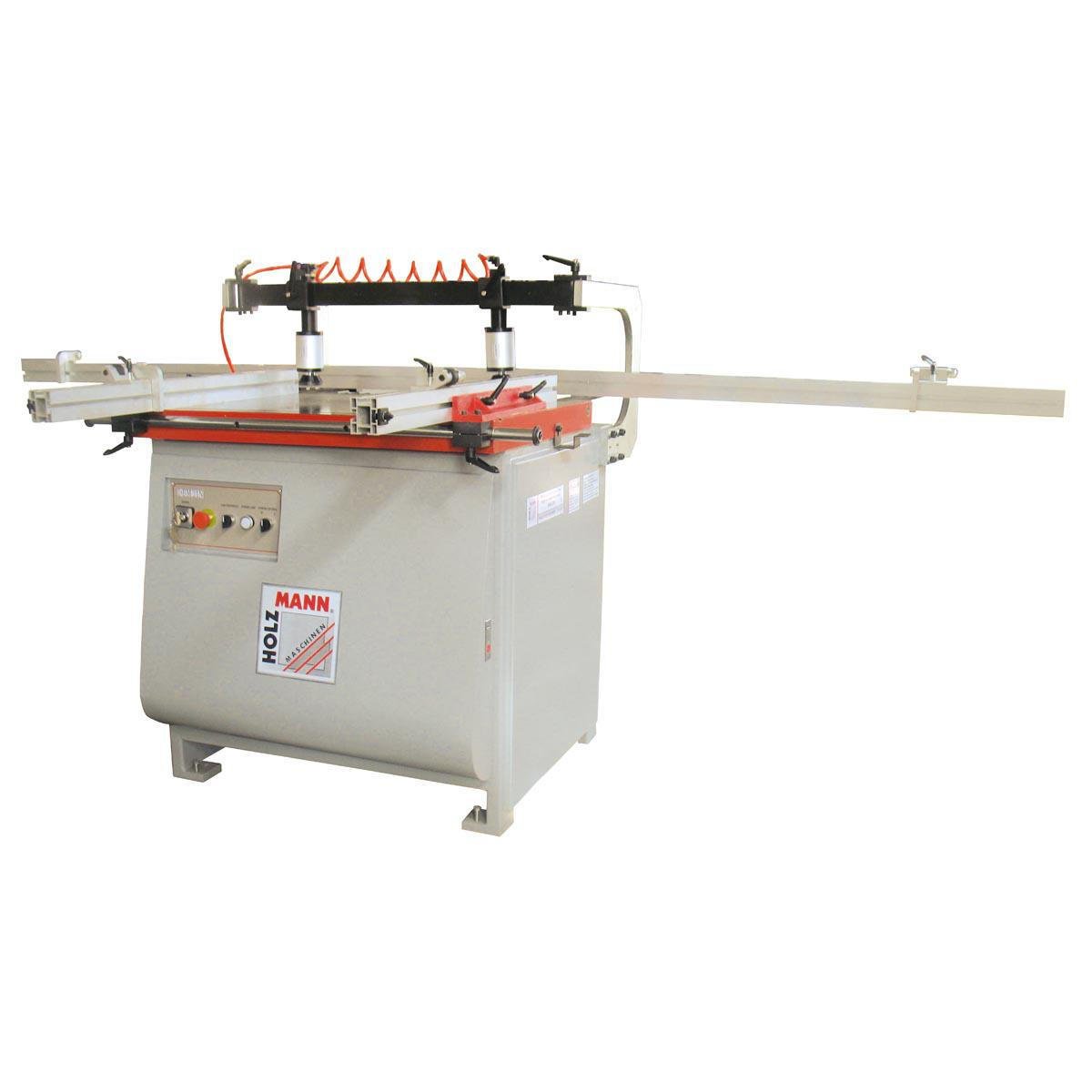

HOLZMANN DBM21N Dowel Boring Machine with Foot Control
DBM21N
The HOLZMANN DBM21N is a 21-spindle dowel boring machine with foot pedal control, drilling rows at the standard 32 mm system pitch across a 640 mm span to a depth of 50 mm. Running at 2840 min-1 on 400 V three-phase power with a pneumatically tilting boring unit at 0, 45 and 90 degrees, the DBM21N is built for cabinet carcase and frame production.
DBM21N pricing moves with freight for a 412 kg crate, customs and VAT into Georgia, the 21-piece drill bit set and spares specified, whether a compressor and air treatment are included, forklift delivery and positioning, three-phase connection, and commissioning and training days.
ფასის მოთხოვნაWhy a multi-spindle borer changes cabinet production
The HOLZMANN DBM21N exists to end hole-by-hole drilling. Where a single-spindle machine bores one hole per operation, the DBM21N drills up to 21 holes in one stroke, spaced at the 32 mm pitch that the entire European cabinet fittings system is built on. Across a 640 mm span from the first to the last spindle, the DBM21N covers a full row of shelf-support and fitting holes in a carcase side in a single cycle, and repeats it identically on every panel.
32 mm system compatibility
Spindle spacing on the DBM21N is fixed at 32 mm, which is what makes the machine directly useful rather than merely fast. Hinge plates, drawer runners, shelf supports and connecting fittings from every major hardware supplier are dimensioned on the 32 mm grid, so panels bored on the DBM21N accept standard hardware without adaptation. Maximum drilling depth on the DBM21N is 50 mm, ample for dowels, cam fittings and shelf pins.
Pneumatic tilt: three angles, one machine
The DBM21N is not limited to face boring. The boring unit on the DBM21N tilts pneumatically to 0, 45 and 90 degrees, which means the same machine drills the face of a panel, the edge of a panel, and mitred joints, so a carcase side and its matching edge holes are produced without moving to a second machine. Air supply for the DBM21N must be between 6 and 8 bar.
Foot pedal working
Cycle control on the DBM21N keeps both operator hands on the workpiece. A single foot pedal clamps the panel, drills, and releases, which is faster and considerably safer than hand-operated clamping, and it is what allows a production rhythm on the DBM21N rather than a series of separate setup steps. The table measures 870 x 550 mm and takes workpieces up to 80 mm thick.
What the DBM21N requires
The DBM21N is a serious installation. At 341.5 kg net and 412 kg crated the DBM21N needs a forklift, a firm level floor and a permanent position. It requires a 400 V three-phase supply for its 2100 W (S6) / 1500 W (S1) motor and, critically, a compressed air supply capable of 6 to 8 bar – a workshop without a compressor must budget for one before the DBM21N can run at all. Drill bits for all 21 spindles are a separate tooling cost.
ძირითადი მახასიათებლები
- 21 drilling spindles at the standard 32 mm system pitch
- 640 mm distance from the first to the last spindle for full-row boring in one stroke
- Boring unit tilts pneumatically to 0, 45 and 90 degrees for face, edge and mitre boring
- Foot pedal controls the full clamp - drill - release cycle, keeping both hands on the workpiece
- Drilling spindle speed 2840 min-1 with a maximum drilling depth of 50 mm
- Large 870 x 550 mm table taking workpieces up to 80 mm thick
- 2100 W (S6) / 1500 W (S1) motor on a 400 V three-phase supply
- Requires 6-8 bar (0.6-0.8 MPa) compressed air for clamping and tilt
ტექნიკური მახასიათებლები
- Motor power (S6)
- 2100 W
- Motor power (S1)
- 1500 W
- Voltage
- 400 V
- Number of drill spindles
- 21
- Drill spindle distance (pitch)
- 32 mm
- Distance first to last spindle
- 640 mm
- Maximum drilling depth
- 50 mm
- Drilling spindle speed
- 2840 min-1
- Table size
- 870 x 550 mm
- Maximum workpiece thickness
- 80 mm
- Required air pressure
- 6-8 bar (0.6-0.8 MPa)
- Boring unit tilt
- 0° / 45° / 90°, pneumatic
- Net weight
- 341.5 kg
- Gross weight
- 412 kg
- Packaging width
- 1050 mm
- Packaging length
- 1050 mm
- Packaging height
- 1100 mm
- EAN code
- 9120039909257
უპირატესობები
- 21 holes per stroke at 32 mm pitch transforms carcase production throughput
- Pneumatic 0-45-90 degree tilt covers face, edge and mitre boring on one machine
- Foot pedal clamp-drill-release keeps both hands free and speeds up the cycle
გასათვალისწინებელი
- Needs a compressed air supply of 6-8 bar - a compressor is a mandatory extra cost if you do not have one
- 341.5 kg net and 400 V three-phase only, so a forklift and an electrician are both required
- Fixed 32 mm spindle pitch means the DBM21N is a system-hole machine, not a general-purpose drill
