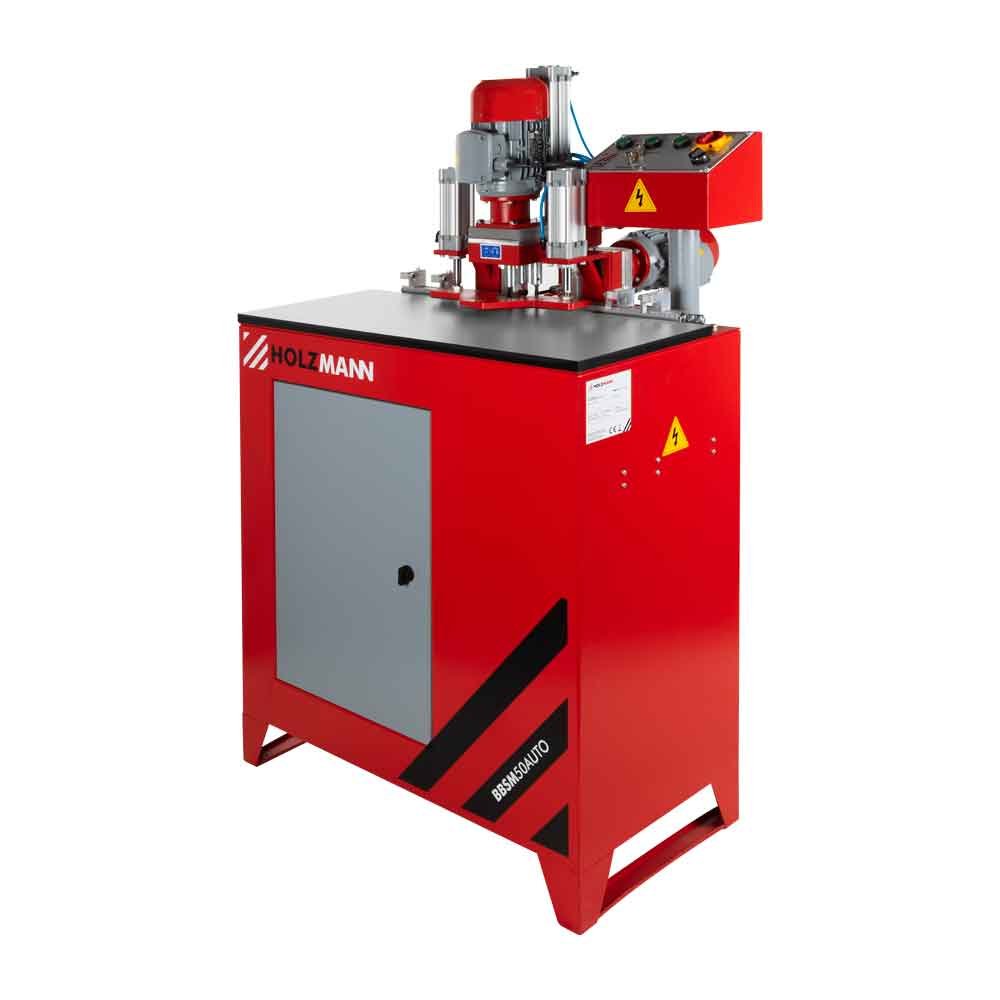

HOLZMANN BBSM50AUTO Automatic Dowel and Cam Boring Machine

BBSM50AUTO

The BBSM50AUTO bores a complete panel joint automatically: the lateral dowel holes plus the eccentric-cam hole in one workpiece, then the connector holes in the second, as two separate steps. Three motors - 550 W upper, 250 W lower, 550 W horizontal - drill to 60 mm in workpieces up to 50 mm thick, on 400 V with air at 0.6-0.8 MPa.

ფასი მოთხოვნით

Price is driven by the electrical and pneumatic preparation on your side, by the drilling pattern the machine is set up for, by whether a compressor of adequate capacity is included in the same project, and by freight, customs and rigging for a 146 kg gross crate.

ფასის მოთხოვნა

What the HOLZMANN BBSM50AUTO does

The HOLZMANN BBSM50AUTO drills the complete hole pattern for a knock-down panel joint. On the first workpiece the BBSM50AUTO produces the lateral bore holes and the bore hole for the eccentric (cam) connector; on the second workpiece it produces the holes for the connectors, in two separate work steps. Fit four dowels, two eccentric clamps with screws and a matching threaded insert, and the joint is complete. Three motors do the work: a 550 W upper motor, a 250 W lower motor and a 550 W horizontal motor, drilling up to 60 mm deep on the upper three holes.

Who the BBSM50AUTO suits

The BBSM50AUTO is aimed at a furniture workshop building flat-pack or site-assembled cabinets in repeat quantities, where every carcase needs the same dowel-and-cam pattern and hand marking is the bottleneck. Panels up to 50 mm thick are accepted on an 800 x 320 mm table, and the machine occupies a footprint of 800 x 800 mm at 1410 mm high with a net weight of 107.5 kg. Noise is rated at 85 dB(A), so hearing protection belongs at the machine.

BBSM50AUTO compared with a row drilling machine

The BBSM50AUTO is a dedicated joint machine, not a general row driller. A machine such as the HOLZMANN DBM21N carries 21 spindles on a 32 mm pitch for shelf-pin rows and line boring across an 870 x 550 mm table. The BBSM50AUTO instead drills one complete cabinet joint at a time, vertically and horizontally, which is faster and more accurate for cam-fitting assembly but is not a substitute for a 32 mm line boring machine.

Supply and delivery

The BBSM50AUTO requires a 400 V / 50 Hz three-phase supply and a compressed air supply of 0.6-0.8 MPa. Delivery is the machine with all drill bits and cutters, at 146 kg gross.

ძირითადი მახასიათებლები

  • Bores the dowel holes and the eccentric-cam hole for a knock-down panel joint, not a general hole pattern
  • Two-step cycle: lateral and eccentric holes in the first workpiece, connector holes in the second
  • Three separate motors - 550 W upper, 250 W lower, 550 W horizontal - so vertical and horizontal holes are drilled without re-fixturing
  • Maximum drilling depth 60 mm on the upper three holes
  • Handles workpieces up to 50 mm thick on an 800 x 320 mm table
  • Pneumatic cycle requiring a compressed air supply of 0.6-0.8 MPa, in addition to the 400 V / 50 Hz connection
  • 800 x 800 x 1410 mm footprint at 107.5 kg net, 146 kg gross
  • Delivered as the machine with all drill bits and cutters, so no separate tooling order is needed to start

ტექნიკური მახასიათებლები

Voltage
400 V / 50 Hz
Upper drilling motor
550 W
Lower drilling motor
250 W
Horizontal drilling motor
550 W
Max. drilling depth (upper three holes)
60 mm
Table size
800 x 320 mm
Total dimensions
800 x 800 x 1410 mm
Max. workpiece thickness
50 mm
Required compressed air
0.6-0.8 MPa
Sound pressure level
85 dB(A)
Net weight
107.50 kg
Gross weight
146 kg
EAN code
9120058379482

უპირატესობები

  • Drills a complete dowel-and-cam joint pattern automatically instead of by hand marking
  • All drill bits and cutters are included in delivery, so tooling is not an extra cost
  • Compact at 800 x 800 mm footprint and 107.5 kg for a machine of this function

გასათვალისწინებელი

  • Three-phase 400 V only, with no single-phase option
  • Also needs a 0.6-0.8 MPa compressed air supply, so a compressor is mandatory
  • Single-purpose: cannot do 32 mm line boring, hinge cups or mortises

ხშირად დასმული კითხვები

What power supply does the HOLZMANN BBSM50AUTO need?
The HOLZMANN BBSM50AUTO requires a 400 V / 50 Hz three-phase supply for its three motors of 550 W, 250 W and 550 W. The BBSM50AUTO is not available as a 230 V single-phase machine, so a workshop on single-phase power must have a three-phase connection installed first.
Does the BBSM50AUTO need compressed air?
Yes. The BBSM50AUTO requires a compressed air supply of 0.6-0.8 MPa in addition to the 400 V connection, because clamping and the automatic drilling cycle are pneumatic. A workshop compressor and an air line to the machine are part of the installation.
What joint does the BBSM50AUTO actually produce?
The BBSM50AUTO drills the lateral bore holes and the bore hole for the eccentric connector in one workpiece, and the connector holes in the second workpiece, in two separate work steps. The finished joint uses four dowels plus two eccentric clamps with screws and a threaded insert.
How thick a panel can the BBSM50AUTO take?
The BBSM50AUTO accepts workpieces up to 50 mm thick on its 800 x 320 mm table and drills to a maximum depth of 60 mm on the upper three holes.
What does the BBSM50AUTO not do?
The BBSM50AUTO is a dedicated joint boring machine. The BBSM50AUTO does not perform 32 mm line boring for shelf-pin rows, does not cut mortises, does not bore hinge cups, and does not handle panels thicker than 50 mm. Row drilling needs a multi-spindle machine such as the DBM21N instead.
What is included with the BBSM50AUTO?
The BBSM50AUTO is delivered as the machine with all drill bits and cutters, at 146 kg gross and 107.5 kg net, so no separate tooling order is needed to start production.
What drives the price of a HOLZMANN BBSM50AUTO?
The BBSM50AUTO is a capital machine quoted on enquiry. The price is moved by the three-phase 400 V connection and compressed-air supply your workshop needs to have in place, by whether a compressor able to hold 0.6-0.8 MPa goes into the same project, by the hole pattern the BBSM50AUTO is set up for, and by freight, customs and rigging for a 146 kg gross crate.
What is the lead time on a BBSM50AUTO?
The BBSM50AUTO is built to order and the delivery date is confirmed in writing with the quotation. We do not publish a standing lead time for the BBSM50AUTO; ask for the date as part of the offer, and it will be given with the price.
What does commissioning a BBSM50AUTO involve?
Commissioning a BBSM50AUTO covers siting it on a solid floor within its 800 x 800 x 1410 mm envelope, levelling, a qualified electrician making the 400 V / 50 Hz three-phase connection, running an air line able to deliver 0.6-0.8 MPa, and ducting chip extraction. Trial joints are then bored to prove the pattern before production.
What has to be budgeted separately with a BBSM50AUTO?
All drill bits and cutters come with the BBSM50AUTO, so tooling is covered at the start - but budget replacement bits as they wear. Budget the compressed-air side if your workshop has none: the BBSM50AUTO needs 0.6-0.8 MPa, which means a compressor, receiver, dryer and air line. Budget the three-phase connection and chip extraction as well.
