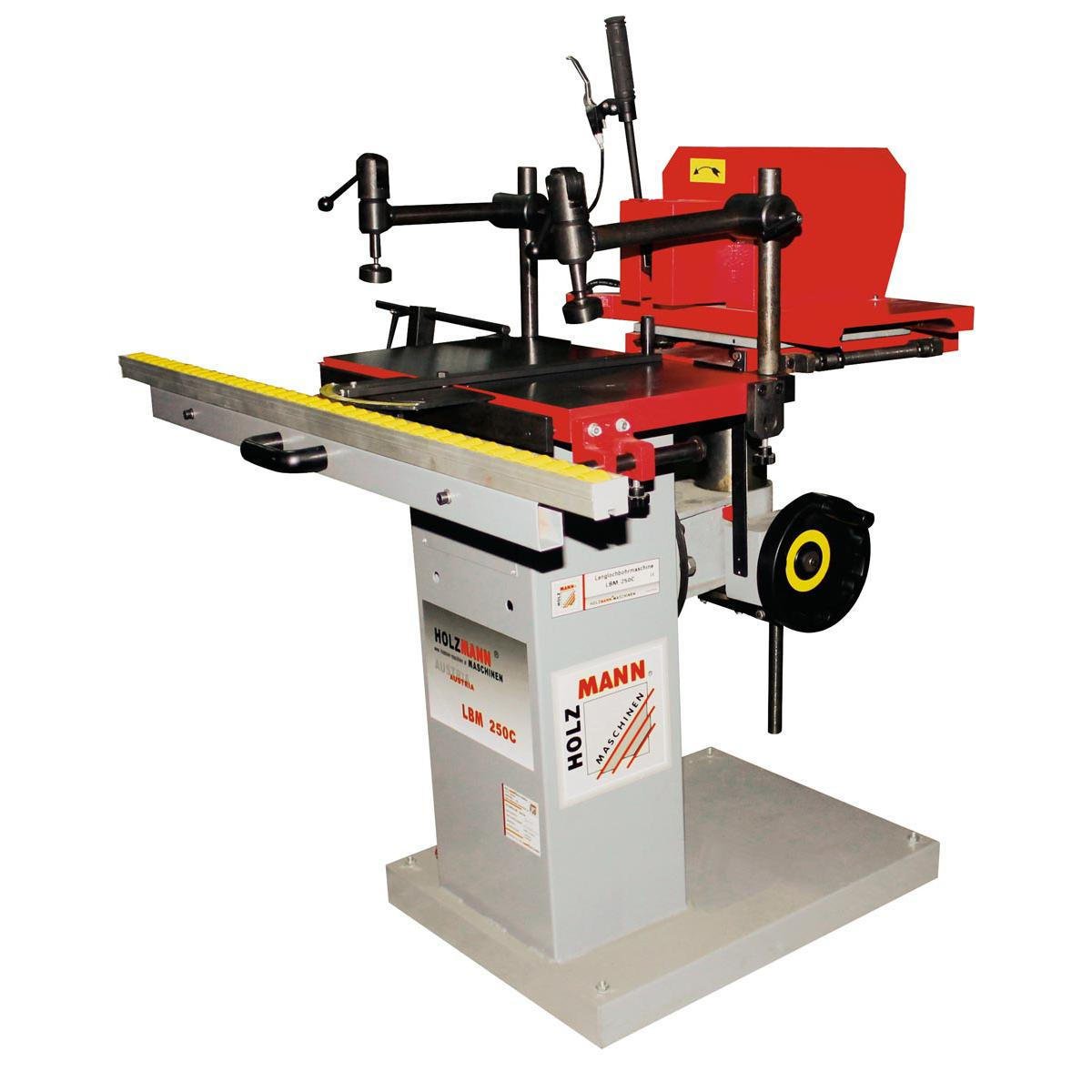

HOLZMANN LBM250C Slot Mortising Machine with Pattern Bar

LBM250C — HOLZMANN LBM250C Slot Mortising Machine with Pattern Bar

The HOLZMANN LBM250C is a grey cast iron slot mortising machine with a 3100 W (S6) head, 250 mm drilling width and an exceptional 215 mm drilling depth on a 600 x 320 mm table. The LBM250C runs on 400 V three-phase power, weighs 205 kg and pivots its drilling head left and right for angled mortises.

სამუშაო სიგანე
250 mm
ძრავის სიმძლავრე
3.1 kW
ძაბვა
400V
მაგიდის ზომა
600 x 320 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

LBM250C pricing moves with freight for a 240 kg crate, customs and VAT into Georgia, the mortise bit and chisel tooling package including long-series bits for 215 mm depth, delivery and forklift placement, three-phase connection, and any extended warranty.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

The LBM250C is the accuracy machine of the range

The HOLZMANN LBM250C is specified when the mortise has to be right, not just quick. The LBM250C is built on a solid non-twistable grey cast iron frame and weighs 205 kg net, which is more than twice the mass of the lighter LBM290 despite having the same 3100 W (S6) / 2200 W (S1) motor. That mass goes entirely into rigidity, and rigidity is what keeps a 215 mm deep mortise straight.

215 mm of depth

Depth is the LBM250C’s headline figure. Maximum drilling depth on the LBM250C is 215 mm, well beyond the 155 mm of the LBM290K and the 140 mm of the LBM290, which puts through-mortises in thick door stiles, heavy gate frames and structural timber within reach. Drilling width on the LBM250C is 250 mm, and the table stroke of 155 mm on a 600 x 320 mm table gives generous travel under the bit.

Angled and inclined work

The LBM250C is the model to choose for anything that is not square. The drilling head on the LBM250C pivots left and right, so inclined slotted holes and precision drills at an angle are straightforward rather than a jig exercise, and an integrated phase turn over device and mitre gauge extend that further. Chair frames, roof trusses, staircases and angled bracing are the work this feature exists for.

Setting and handling

Handling on the LBM250C stays light despite the machine’s mass. Height adjustment on the LBM250C runs through a hand wheel, comfortable one-hand operation is retained for the cutting stroke, and adjustable end stops work in both the transversal and longitudinal directions so repeat mortises are set once and reproduced. A pin drilling device provides four defined dowel positions at 16, 22, 25 and 32 mm. A mitre gauge and an extractable table are included.

What the LBM250C asks of the buyer

The LBM250C is 400 V three-phase only, with no single-phase version in the HOLZMANN catalogue, so a workshop without three-phase power must look at the LBM290_230V instead. At 205 kg net and 240 kg crated, the LBM250C needs a forklift or pallet truck for placement and a firm, level floor. Mortise bits, chisels and dowel drills are not included and form a separate tooling budget.

ძირითადი მახასიათებლები

  • Solid non-twistable grey cast iron frame, 205 kg net, for highly accurate work
  • Maximum drilling depth 215 mm - the deepest in the HOLZMANN LBM mortiser range
  • Maximum drilling width 250 mm with a 155 mm table stroke
  • Large 600 x 320 mm table with an extractable table section included
  • Drilling head pivots left and right for inclined slotted holes and angled precision drilling
  • 3100 W (S6) / 2200 W (S1) motor on a 400 V three-phase supply
  • Pin drilling device with four defined positions at 16, 22, 25 and 32 mm
  • Adjustable end stops for transversal and longitudinal operation, plus an integrated phase turn over device and mitre gauge

ტექნიკური მახასიათებლები

Motor power (S6)
3100 W
Motor power (S1)
2200 W
Voltage
400 V
Table stroke
155 mm
Table size
600 x 320 mm
Maximum drilling width
250 mm
Maximum drilling depth
215 mm
Pin point distances
16 / 22 / 25 / 32 mm
Net weight
205 kg
Gross weight
240 kg
Packaging width
740 mm
Packaging length
1000 mm
Packaging height
1260 mm
EAN code
9120039904139

უპირატესობები

  • 215 mm drilling depth handles through-mortises in thick door and gate stock
  • Grey cast iron construction at 205 kg gives the rigidity that deep mortises need
  • Pivoting head plus mitre gauge and phase turn over device make angled mortising routine

გასათვალისწინებელი

  • 400 V three-phase only - there is no single-phase LBM250C version
  • 205 kg net requires a forklift or pallet truck for placement and a firm level floor
  • Drilling width of 250 mm is narrower than the 290 mm of the LBM290 and LBM290K

ხშირად დასმული კითხვები

How much does the HOLZMANN LBM250C cost?
The HOLZMANN LBM250C is supplied on quotation, not at a published price. LBM250C pricing is driven by freight for a 240 kg crate measuring 740 x 1000 x 1260 mm, customs duty and VAT into Georgia, the mortise bit, chisel and dowel drill package specified, delivery and forklift placement on your floor, three-phase electrical connection, and any extended warranty. Send your typical mortise sizes and a written LBM250C quotation will be prepared.
What is the lead time for the HOLZMANN LBM250C?
The HOLZMANN LBM250C is ordered from the factory in Austria once the quotation is accepted, so the LBM250C lead time depends on the factory production slot and the freight schedule into Georgia. HOLZMANN currently lists the LBM250C as unavailable in its own catalogue, so the current LBM250C lead time must be confirmed at enquiry rather than assumed.
What installation and commissioning does the LBM250C need?
The HOLZMANN LBM250C needs siting, levelling and a three-phase connection. At 205 kg net the LBM250C must be moved with a forklift or pallet truck and set on a firm, level floor, because deep mortising accuracy depends on the cast frame sitting true. A qualified electrician must connect the LBM250C to a 400 V three-phase supply, and connecting the machine to workshop chip extraction is strongly recommended.
What tooling must be budgeted for alongside the LBM250C?
The LBM250C is supplied with a mitre gauge and extractable table but not with cutting tools. Budget separately for mortise bits in the diameters and lengths you need - long-series bits are required to exploit the 215 mm depth - hollow chisels and augers for square mortises, dowel drills matched to the 16, 22, 25 and 32 mm pin positions, and chip extraction hose for the LBM250C.
Can the HOLZMANN LBM250C run on single-phase power?
No - the HOLZMANN LBM250C is listed only as LBM250C_400V, a 400 V three-phase machine, with no single-phase variant. A Georgian workshop with single-phase supply only should consider the HOLZMANN LBM290_230V instead, accepting its lower 140 mm drilling depth, or arrange a three-phase supply before ordering the LBM250C.
How does the LBM250C compare with the LBM290?
The LBM250C and LBM290 share the same 3100 W (S6) motor but are built for different work. The LBM250C is the heavy cast iron machine at 205 kg with 215 mm drilling depth, a 600 x 320 mm table and a pivoting head for angled work, but only 250 mm drilling width. The LBM290 is the lighter 97 kg machine with 290 mm drilling width, 140 mm depth and a 500 x 210 mm table, and is offered in both 230 V and 400 V.
