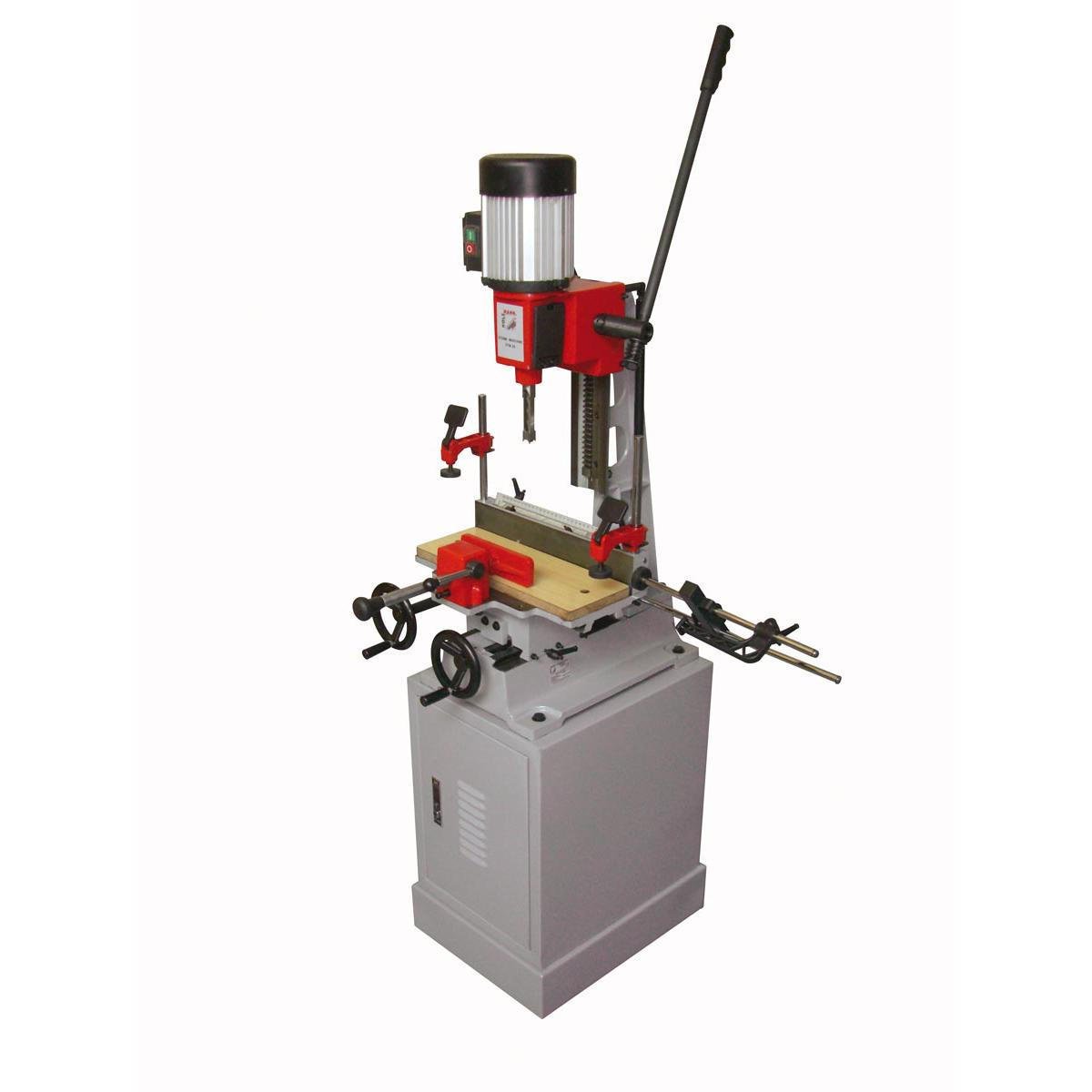

HOLZMANN STM26 Boring and Chisel Mortising Machine
STM26
The HOLZMANN STM26 is a cast iron boring and chisel mortising machine taking hollow chisels from 6 to 26 mm, cutting to 76 mm depth in workpieces up to 210 mm thick. Powered by a 1050 W (S6) motor at 1400 min-1 on a standard 230 V single-phase supply, the STM26 stands on a lockable tool cabinet and weighs 86 kg.
STM26 pricing moves with the hollow chisel and auger set specified, freight for a 105 kg crate plus customs and VAT into Georgia, delivery and positioning, any roller stands or workpiece supports added, and any extended warranty.
ფასის მოთხოვნაSquare mortises, cut square
The HOLZMANN STM26 cuts the joint that a slot mortiser cannot. A hollow chisel mortiser such as the STM26 produces a true square-ended mortise, which is what a traditional tenon joint in a door, window, gate or table frame actually requires, and the STM26 takes chisels from 6 mm right up to 26 mm so almost every furniture and joinery mortise size is covered by one machine.
Accuracy from the guides
The STM26 holds its line because the head runs on adjustable dovetail guides rather than round columns. Dovetail guidance on the STM26 is adjustable for wear, so a chisel entering a hard oak stile is held square instead of deflecting, and the machine is built on a bending-resistant cast iron setup that resists the considerable side load a chisel generates. Adjustable depth stops on the STM26 give high repeating accuracy across a batch of identical parts.
How the STM26 feels to use
Effort is where the STM26 differs from cheaper mortisers. One-hand operation on the STM26 is supported by a gas pressure cylinder that carries part of the plunge force, so an operator cutting a hundred mortises is not fighting the lever all day, and large hand wheels make table adjustment quick between setups. Two workpiece down-holders with quick adjustment keep the stock from lifting as the chisel withdraws, which is where mortise walls usually get damaged.
Capacity and shop footprint
The STM26 works within a compact envelope. Chisel dimensions on the STM26 run from 6 to 26 mm, maximum drilling depth is 76 mm, and maximum workpiece thickness is 210 mm on a 400 x 150 mm table, with an overall machine height of 1720 mm. The STM26 comes complete on a stand with a lockable tool cabinet and rubber feet, so chisels and augers live at the machine and the 86 kg unit stands steady without bolting down.
Choosing the STM26 over the STM26S
The two machines share a head and differ in support. The STM26 and the larger STM26S have identical 1050 W (S6) motors, 1400 min-1 spindles, 76 mm depth and 6-26 mm chisel range, but the STM26 has the smaller 400 x 150 mm table and stands 1720 mm high at 86 kg. Choose the STM26 where space is tight and workpieces are short; choose the STM26S where long stiles need the bigger table.
ძირითადი მახასიათებლები
- Hollow chisel capacity 6-26 mm covering nearly all furniture and joinery mortise sizes
- Maximum drilling depth 76 mm in workpieces up to 210 mm thick
- 1050 W (S6) / 750 W (S1) motor at 1400 min-1 on a standard 230 V single-phase supply
- Adjustable dovetail guides and a bending-resistant cast iron body keep the chisel square under side load
- Gas pressure cylinder assists the plunge for genuine one-hand operation
- Adjustable depth stops for high repeating accuracy across a batch
- Two workpiece down-holders with quick adjustment prevent lift on chisel withdrawal
- Supplied on a stand with lockable tool cabinet and rubber feet; 400 x 150 mm table
ტექნიკური მახასიათებლები
- Motor power (S6)
- 1050 W
- Motor power (S1)
- 750 W
- Voltage
- 230 V
- Drilling spindle speed
- 1400 min-1
- Chisel dimensions min/max
- 6-26 mm
- Maximum drilling depth
- 76 mm
- Maximum workpiece thickness
- 210 mm
- Table size
- 400 x 150 mm
- Maximum machine height
- 1720 mm
- Net weight
- 86 kg
- Gross weight
- 105 kg
- Packaging width
- 490 mm
- Packaging length
- 570 mm
- Packaging height
- 850 mm
- EAN code
- 9120039902999
უპირატესობები
- Runs on 230 V single-phase, so no supply upgrade is needed in a Georgian workshop
- Gas cylinder assistance makes long mortising sessions far less tiring than on a plain lever machine
- Complete on its stand with a lockable tool cabinet - no bench or extra storage to buy
გასათვალისწინებელი
- The 400 x 150 mm table is small; long stiles need roller support or the larger STM26S
- Hollow chisels and augers are consumables that need regular sharpening and are not included
- At 750 W continuous (S1) the STM26 is a batch machine, not a continuous production mortiser
