HOLZMANN

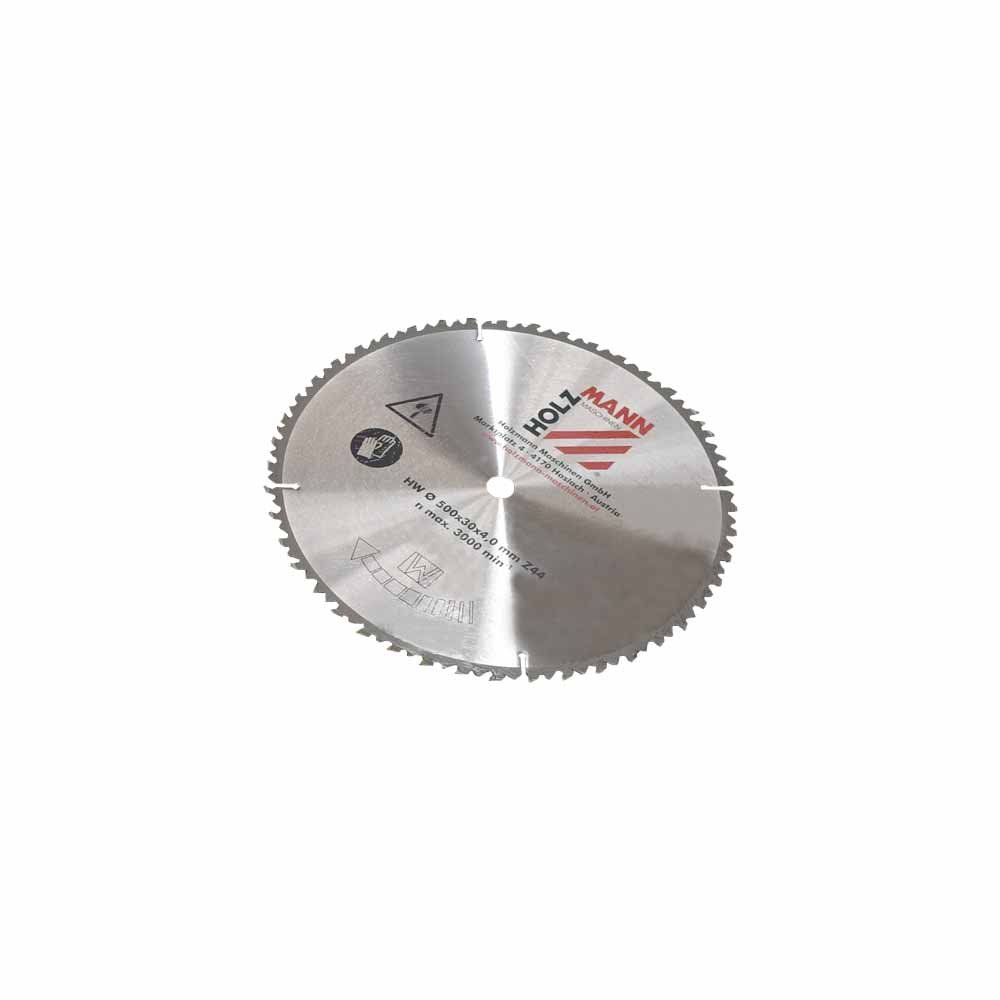

HOLZMANN KSB50030Z44 TCT Circular Saw Blade 500 x 4.0/3.0 x 30/25.4 mm, Z44
KSB50030Z44
At 500 mm the KSB50030Z44 is the large-format blade of HOLZMANN's KSB pair, against the 200 mm KSB20028Z18. It carries 44 tungsten-carbide-tipped teeth, cuts a 4.0 mm kerf on a 3.0 mm plate - well over the 2.8/1.6 mm of the small blade - and mounts on a 30 mm arbor, or 25.4 mm with a reducer. Supplied as a single blade.
Price is set by quantity and by whether resharpening service or a second blade for rotation is included, plus the freight and customs share of the consignment.
ფასის მოთხოვნაWhat the HOLZMANN KSB50030Z44 saw blade is
The KSB50030Z44 is a consumable, not a machine: a tungsten carbide tipped circular saw blade of 500 mm diameter with 44 teeth, designated 500 x 4.0/3.0 x 30/25.4 x Z44. Read left to right, that code gives the outside diameter of 500 mm, a cutting kerf of 4.0 mm on a 3.0 mm steel plate, a 30 mm bore that can be reduced to 25.4 mm, and a tooth count of 44. Those five numbers are the only ones that matter when a workshop checks whether the KSB50030Z44 fits the saw on the floor.
Who buys a 500 mm, 44 tooth blade
A 500 mm blade belongs on heavy carpenter and site table saws, not on small bench saws. With 44 teeth on a 500 mm circle, the KSB50030Z44 sits in the rip and general-purpose part of the range: relatively few teeth for the diameter, a large gullet between them, and a 4.0 mm kerf that clears chips out of deep cuts in solid timber. Georgian sawmills, roof-truss shops and door manufacturers ripping thick pine, beech or oak sections are the buyers for the KSB50030Z44.
How the KSB50030Z44 differs from the smaller KSB blades
The HOLZMANN KSB range runs from small-diameter blades upward, and the difference is depth of cut against finish. A 200 mm KSB blade with 18 teeth suits a compact table saw and light stock. The KSB50030Z44, at 500 mm and 44 teeth, is for machines with the arbor size, motor power and guard clearance to swing a half-metre blade. A workshop wanting a finer finish on panel material should choose a higher tooth count rather than the KSB50030Z44, whose 44 teeth are chosen for chip clearance in thick solid wood.
Fitting and delivery
The KSB50030Z44 is delivered as one blade under EAN 9120058378218. Before fitting the KSB50030Z44, confirm three things on the saw: that the machine accepts a 500 mm blade at full guard height, that the arbor is 30 mm or 25.4 mm, and that the saw’s no-load speed is at or below the maximum speed marked on the blade body. The KSB50030Z44 arrives without arbor reducer rings, flanges or a riving knife; those are part of the saw.
ძირითადი მახასიათებლები
- 500 mm diameter - built for heavy carpenter and site saws, where the KSB20028Z18 is a 200 mm blade
- 44 teeth on a 500 mm body: large gullets for chip clearance in deep solid-timber cuts
- 4.0 mm kerf on a 3.0 mm plate, giving 1.0 mm total side clearance
- 30 mm bore, reducible to 25.4 mm, so it fits both common arbor sizes
- Tungsten-carbide tipped, so a saw doctor can regrind it until the tips are spent
- Supplied as a single blade under EAN 9120058378218 - flanges and reducer rings belong to the saw
ტექნიკური მახასიათებლები
- Blade type
- TCT (tungsten carbide tipped) circular saw blade
- Blade diameter
- 500 mm
- Cutting kerf / plate thickness
- 4.0 / 3.0 mm
- Bore
- 30 mm / 25.4 mm
- Number of teeth
- 44 (Z44)
- Net weight
- 0.32 kg (as listed in the manufacturer feed)
- Gross weight
- 0.38 kg (as listed in the manufacturer feed)
- EAN code
- 9120058378218
უპირატესობები
- 500 mm diameter gives deep cutting capacity on heavy carpenter saws
- Carbide tips can be resharpened repeatedly, keeping the cost per metre of cut low
- Dual 30 mm / 25.4 mm bore fits both common arbor sizes without a special order
გასათვალისწინებელი
- 44 teeth is a rip-oriented count: chipping on melamine and veneered panels is expected
- 4.0 mm kerf wastes more material per cut than a thin-kerf blade
- Only fits saws designed for a 500 mm blade, which rules out most small workshop table saws
