TS250 — HOLZMANN TS250 Table Saw – 254 mm Blade, 80 mm Cutting Height 1 / 3

HOLZMANN

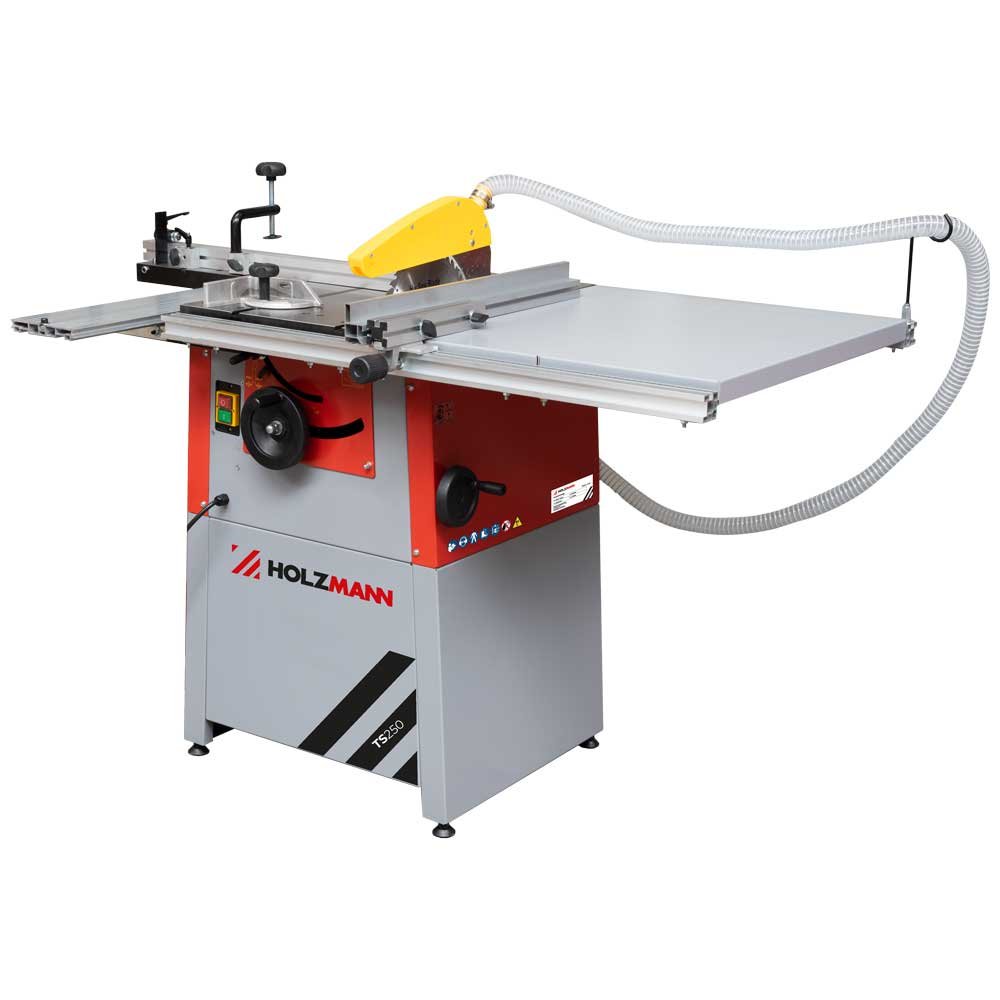

HOLZMANN TS250 Table Saw – 254 mm Blade, 80 mm Cutting Height

TS250

Eighty millimetres of cut at 90° and 65 mm at 45° from a 254 mm blade put the TS250 a clear step above the 60 mm TS200. It is also the only bench saw in this group offered on either supply, as TS250_230V or TS250_400V, with a 3100 W S6 motor, 710 mm rip capacity and 108 kg of cast iron.

ფასი მოთხოვნით

The TS250 price is driven by the voltage variant chosen, by freight and customs on a 116 kg gross machine into Georgia, by the 254 mm blades specified for the materials cut, by a chip extractor for the 100 mm and 25 mm ports, and by quantity if a workshop or training room orders several at once.

ფასის მოთხოვნა

Cast iron table saw for the small joinery

The HOLZMANN TS250 is a cast iron table saw with a 254 mm blade on a 30 mm bore, cutting 80 mm deep at 90 degrees and 65 mm at 45 degrees, with 710 mm of rip capacity at the parallel fence. The blade turns at 4000 rpm behind a 3100 W S6 motor rated 2200 W in continuous S1 duty, and blade height and angle on the TS250 are set with a hand wheel that runs smoothly and holds its setting under load.

Who the TS250 suits

The TS250 suits a small joinery, a site workshop or a furniture maker’s second saw: solid enough for daily ripping of pine, oak and board, light enough at 108 kg net for two people to reposition, and compact at 1450 x 1000 x 1000 mm overall. The 635 x 420 mm cast iron table of the TS250 is enlarged by a 580 mm extension table, which is what makes wider panel work practical on a machine of this size and gives the parallel fence its full 710 mm reach.

The TS250 against the TS200 and the TS400Z

The TS250 is the middle machine of the HOLZMANN cast iron table saw group. Compared with the TS200, the TS250 doubles the motor output – 3100 W S6 against 1500 W S6 – and lifts cutting height from 60 mm to 80 mm on a larger 254 mm blade, at 108 kg instead of 81 kg. Compared with the TS400Z, the TS250 is far lighter and simpler to install, but the TS400Z carries a 400 mm blade for 120 mm cutting height and a table that rotates through 90 degrees. The TS250 is the right choice wherever 80 mm of depth is enough and the work is ripping rather than angled carpentry cuts.

Power supply and extraction

The TS250 is supplied in two variants: TS250_230V for a single-phase 230 V / 50 Hz supply, and TS250_400V for a three-phase 400 V supply. Extraction on the TS250 uses a 100 mm main port with a 25 mm connection at the blade guard; a dust collector is not part of the delivery and must be ordered separately.

ძირითადი მახასიათებლები

  • 254 mm blade on a 30 mm bore at 4000 min-1, cutting 80 mm at 90° and 65 mm at 45°
  • Ordered as TS250_230V or TS250_400V - the only bench saw here with both a single-phase and a three-phase version
  • 3100 W S6 motor rated 2200 W in continuous S1 duty, exactly double the 1100 W S1 of the TS200
  • Cast iron table 635 x 420 mm with a 580 mm extension table bolted on
  • 710 mm maximum cutting width at the parallel fence
  • Extraction on a 100 mm main port with a 25 mm connection at the blade guard - chip-collector sizing, not vacuum sizing
  • 108 kg net / 116 kg gross, standing 1450 x 1000 x 1000 mm assembled
  • Hand-wheel height and angle adjustment working against the mass of a 108 kg cast iron chassis

ტექნიკური მახასიათებლები

Motor power S6
3100 W
Motor power S1
2200 W
Speed
4000 min-1
Voltage
230V / 50Hz (TS250_230V) / 400V (TS250_400V)
Table size
635 x 420 mm
Table extension
580 mm
Total dimensions
1450 x 1000 x 1000 mm
Max. cutting height at 90°
80 mm
Max. cutting height at 45°
65 mm
Max. cutting width at parallel fence
710 mm
Saw blade
254 mm / 30 mm bore
Dust collector port
100 mm / 25 mm
Net weight
108 kg
Gross weight
116 kg

უპირატესობები

  • Offered in both 230V single-phase and 400V three-phase variants, so it fits any Georgian workshop supply
  • Cast iron table plus 580 mm extension table gives 710 mm rip capacity on a compact machine
  • 3100 W S6 motor and 80 mm cutting height are a real step up from the entry-level TS200

გასათვალისწინებელი

  • No sliding carriage and no scoring unit, so the TS250 cannot match a panel saw on melamine edge quality
  • 710 mm rip capacity is not enough to split a full-width sheet in one pass
  • No dust collector included; the 100 mm and 25 mm ports both need a separately purchased extractor

ხშირად დასმული კითხვები

Is the HOLZMANN TS250 available for single-phase 230V power?
Yes. The HOLZMANN TS250 is offered in two variants: TS250_230V for a single-phase 230 V / 50 Hz supply and TS250_400V for a three-phase 400V supply. Both deliver the same 254 mm blade, 80 mm cutting height and 710 mm rip capacity. A workshop with only single-phase power should order the TS250_230V; where three-phase is installed, the 400V variant is preferred for sustained ripping.
How thick a board can the HOLZMANN TS250 cut?
The TS250 cuts to a maximum height of 80 mm with the blade vertical and 65 mm with the blade tilted to 45 degrees, using a 254 mm blade. That covers ordinary board, panel and timber up to 80 mm on the TS250; anything deeper needs a larger machine such as the HOLZMANN TS400Z with its 120 mm cutting height.
What does the TS250 not do?
The TS250 does not have a sliding table carriage, a scoring unit or a rotating table, so the TS250 will not deliver the chip-free melamine edges of a panel saw and will not make the angled carpentry cuts of the TS400Z. Its 710 mm figure is the maximum distance from blade to parallel fence, so a 1250 mm sheet can still be halved with the fence at 625 mm; what the TS250 cannot reach is a cut line lying more than 710 mm from both edges of a panel wider than 1420 mm, and it has no outrigger or carriage to hold a full sheet square while such a cut is made. A dust collector is not included with the TS250.
Why does the TS250 have a cast iron table?
The table of the TS250 is cast iron because mass and rigidity are what keep a rip cut straight: the cast iron top of the TS250 resists vibration from the 254 mm blade at 4000 rpm and does not flex when a heavy board is pushed across it. The 580 mm extension table adds support beyond the 635 x 420 mm cast iron top without adding the weight of more iron.
What extraction does the TS250 need?
The TS250 has a 100 mm main extraction port and a 25 mm port at the blade guard, and no dust collector is included. A mobile chip extractor sized for a 100 mm hose is the usual pairing for the TS250 in a small workshop, with the 25 mm connection taking the fine dust thrown upward off the blade.
Can one person move the HOLZMANN TS250?
The TS250 weighs 108 kg net and measures 1450 x 1000 x 1000 mm assembled, so it is a two-person lift rather than a portable saw. Within a workshop the TS250 can be repositioned by two people or on a pallet truck, but for genuinely portable work the 25 kg HOLZMANN TK255 is the machine designed to be carried.
How is the HOLZMANN TS250 priced?
The HOLZMANN TS250 is priced by quotation rather than carrying a listed retail figure. What moves the price is the variant ordered - TS250_230V or TS250_400V - freight and Georgian customs on 116 kg gross, the 254 mm blades chosen for the materials you cut, a chip extractor for the 100 mm and 25 mm ports, and quantity, since several TS250 units on one order ship more cheaply per machine than one. Send us the voltage and quantity and we will quote the TS250.
How quickly can a TS250 be delivered in Georgia?
The TS250 is built to order and the current lead time is confirmed at quotation. The 230 V and 400 V versions of the TS250 are separate order codes and may run to different schedules, so we confirm a date per variant on the quotation, covering freight and customs clearance into Georgia rather than a general estimate.
Does the TS250 need professional installation?
The TS250 does not need a machine installer in the way a format saw does, but it does need siting on a level floor with about 1450 x 1000 mm of space plus infeed and outfeed room, and it is a 108 kg two-person lift. The 400 V version of the TS250 should be wired by a qualified electrician, who also confirms blade rotation direction; the 230 V version plugs into a suitably rated single-phase circuit. Extraction is coupled to the 100 mm and 25 mm ports before the first cut.
What should be budgeted with a TS250 beyond the machine?
Beyond the TS250 itself, budget for 254 mm blades on a 30 mm bore - typically a general-purpose blade plus a finer-tooth blade for board - a mobile chip extractor sized for the 100 mm hose with the 25 mm guard connection teed in, spare push sticks, and roller stands if you rip long stock. None of these are listed in the TS250 delivery and all can go on the same quotation.
