HOLZMANN

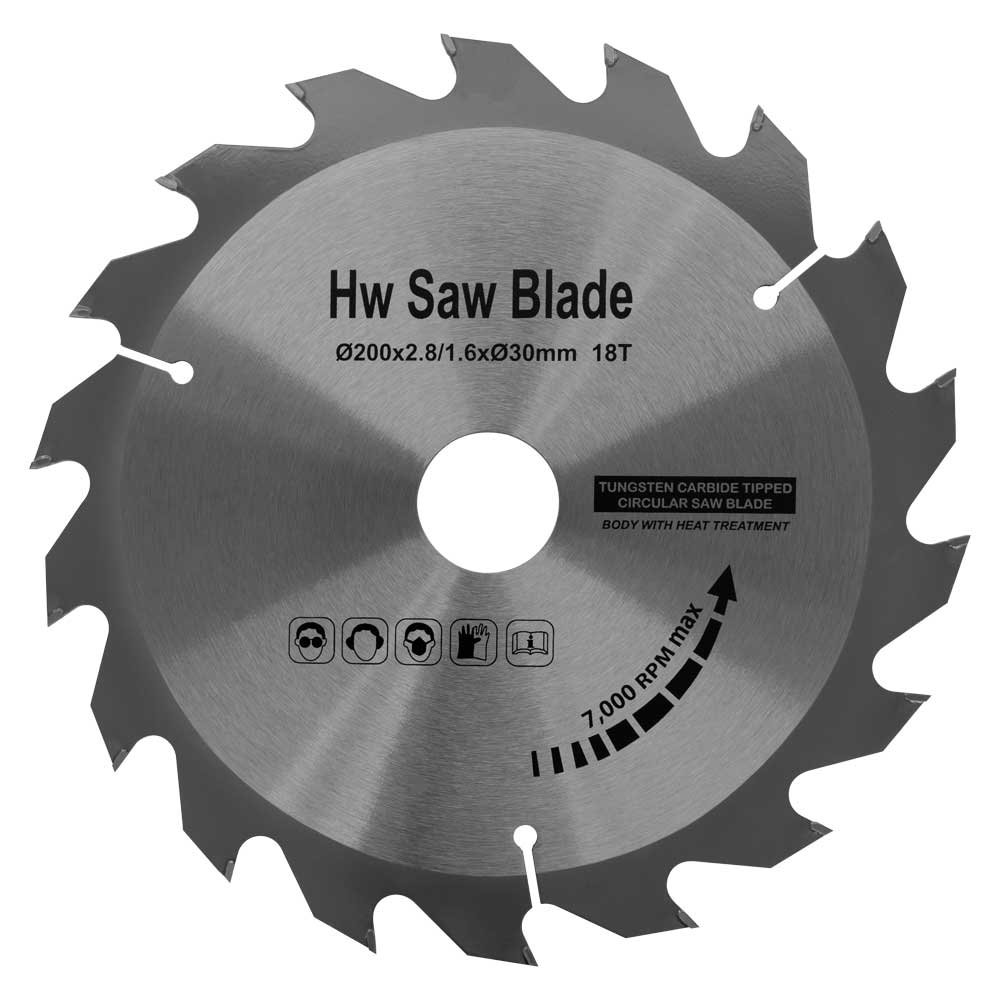

HOLZMANN KSB 200 x 2.8/1.6 x 30 Z18 TCT Circular Saw Blade
KSB20028Z18
The HOLZMANN KSB20028Z18 is a tungsten-carbide-tipped circular saw blade measuring 200 mm in diameter with a 2.8 mm kerf, a 1.6 mm plate, a 30 mm bore and 18 teeth. The KSB20028Z18 is a consumable item carrying a list price and is intended for ripping and general cross-cutting in solid timber on 200 mm class machines.
The price of a KSB20028Z18 is moved by order quantity, whether the blade is taken from local stock or ordered from the factory, and whether it is supplied as part of a machine order or as a standalone consumable.
ფასის მოთხოვნაWhat the KSB 200 x 2.8/1.6 x 30 Z18 blade is for
The KSB20028Z18 is a tungsten-carbide-tipped circular saw blade for 200 mm class machines, and the low tooth count is the clue to its job. With 18 carbide teeth on a 200 mm diameter, the KSB20028Z18 is aimed at ripping and general cross-cutting in solid timber rather than at splinter-free finishing of faced board, where a high-tooth-count blade belongs. Fewer, larger teeth clear chips faster, load the motor less on deep cuts and stay cooler in resinous stock.
Reading the blade specification
Every figure in the KSB20028Z18 designation matters when checking fit. The 200 refers to the cutting diameter in millimetres, 2.8 is the kerf the blade removes, 1.6 is the thickness of the steel plate behind it, 30 is the arbor bore, and Z18 is the tooth count. The 2.8 mm kerf against a 1.6 mm plate on the KSB20028Z18 gives the body clearance in the cut that keeps the blade from binding as timber closes behind it.
Fitting the KSB20028Z18
Confirm three things before ordering the KSB20028Z18: that the machine takes a 200 mm blade, that its arbor is 30 mm, and that the riving knife thickness suits a 2.8 mm kerf. A riving knife thicker than the kerf will not pass through the cut, and one much thinner leaves the workpiece free to pinch. Blade guard clearance and the maximum permitted blade speed of the host machine should also be checked against the machine manual.
Ordering and resharpening
The KSB20028Z18 is a consumable, and workshops running it daily normally hold a spare so production does not stop for sharpening. Carbide-tipped blades such as the KSB20028Z18 can be reground several times by a saw doctor before the tips are exhausted, which usually costs a fraction of replacement. The KSB20028Z18 weighs 0.35 kg net and ships flat.
ძირითადი მახასიათებლები
- 200 mm cutting diameter for 200 mm class circular saws
- 30 mm arbor bore
- 2.8 mm kerf against a 1.6 mm plate thickness for body clearance in the cut
- 18 tungsten-carbide-tipped teeth suited to ripping and general cross-cutting in solid timber
- Carbide tipping allows repeated regrinding by a saw doctor before replacement
- 0.35 kg net weight, supplied flat-packed
ტექნიკური მახასიათებლები
- Cutting diameter
- 200 mm
- Kerf (cutting width)
- 2.8 mm
- Plate thickness
- 1.6 mm
- Arbor bore
- 30 mm
- Tooth count
- 18 (Z18)
- Tooth material
- Tungsten carbide tipped (TCT)
- Gross weight
- 0.40 kg
- Net weight
- 0.35 kg
- Packaging width
- 0.365 m
- Packaging length
- 0.305 m
- Packaging height
- 0.013 m
- EAN code
- 9120058376092
უპირატესობები
- 18 large carbide teeth clear chips quickly and load the motor less than a fine blade on deep rips in solid timber
- Carbide tipping gives a long service life in abrasive material and can be reground several times before replacement
- At 0.35 kg and flat packed, the KSB20028Z18 is cheap to hold as a spare so a shop is never stopped by a dull blade
გასათვალისწინებელი
- 18 teeth will leave a coarser finish and can break out melamine, veneer and plywood faces — a high tooth count blade is the right choice for faced board
- The 30 mm bore is fixed, so machines with a different arbor need a different blade rather than a reducing ring in every case
- Holzmann does not publish a maximum permitted blade speed for the KSB20028Z18, so the host machine's manual must be checked before fitting
