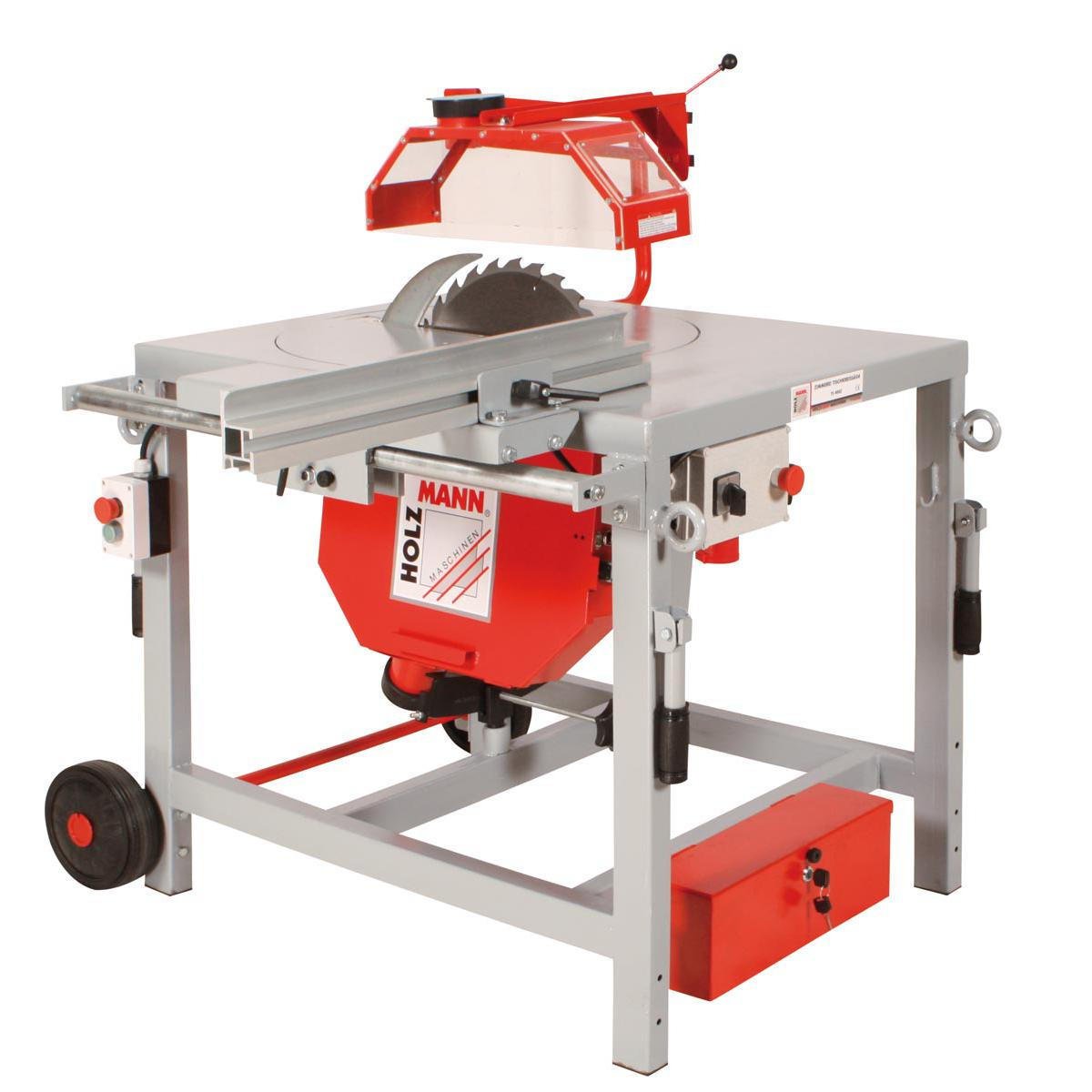

HOLZMANN TS400Z Table Saw – Rotating Table, 120 mm Cutting Height

TS400Z — HOLZMANN TS400Z Table Saw – Rotating Table, 120 mm Cutting Height 1 / 2

Rotating the table through 90° while the blade tilts 0-45° is what makes the TS400Z a carpenter's saw: straight, mitre, bevel and compound cuts come from one setup. A 400 mm blade at 2800 min-1 takes 120 mm at 90° and 90 mm at 45°, driven by a 4200 W S6 motor on 400 V, at 130 kg net.

ძრავის სიმძლავრე
4.2 kW
ძაბვა
400V
მაგიდის ზომა
715 x 945 mm
მაგიდის სიმაღლე
845 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The TS400Z price is driven by the rotating-table saw unit and 400 mm blade capacity, by the 400 V connection work on site, by freight and customs on 162.5 kg gross into Georgia, by the 400 mm blades and the optional infeed and outfeed roller stands, and by whether the TS400ZAL extension arm set and a dust collector for the two 100 mm ports go on the same order.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

Rotating-table saw for carpentry cuts

The HOLZMANN TS400Z is a 400 mm table saw whose table rotates through 90 degrees while the saw blade tilts to 45 degrees at the same time, so straight cuts, mitres, bevels and combined cuts are made without rebuilding the setup. The TS400Z cuts 120 mm deep at 90 degrees and 90 mm at 45 degrees, driven by a 4200 W S6 motor rated 2800 W in continuous duty, turning the 400 mm blade at 2800 rpm on a 400V three-phase supply.

What the TS400Z is built for

The TS400Z is built for a carpenter’s workshop working structural timber rather than sheet material. HOLZMANN names gutter and wedge plank cutting as well as groove and burr cutting among the jobs the TS400Z is suited to, and the rotating table is what makes those repeatable. The 715 x 945 mm table sits at 845 mm working height on a stable saw unit, the whole TS400Z measures 1350 x 1100 x 1180 mm and weighs 130 kg net, and a standard driving device is fitted for flexible operation.

The TS400Z against the TS250 and the TKS500S

The TS400Z is the only saw in this HOLZMANN group with a rotating table, which is exactly what separates it from the TS250: the TS250 is a fixed cast iron rip saw with 80 mm of depth and a 710 mm parallel fence, while the TS400Z trades panel-friendly rip capacity for 120 mm of depth and angular versatility. Against the TKS500S site saw, the TS400Z is the workshop machine – the TKS500S cuts deeper at 150 mm with a 500 mm blade but is built to be wheeled around a building site rather than set up permanently.

Extraction and options

The TS400Z carries two 100 mm extraction ports: the dust collector can be attached at the saw unit or at the saw blade guide, so chip removal follows the cut in either position. Infeed and outfeed roller stands are available as options for the TS400Z to handle long or heavy workpieces; they are not part of the standard delivery, and neither is a dust collector.

ძირითადი მახასიათებლები

  • Table rotates through 90° while the blade tilts 0-45°, so mitres, bevels and compound cuts come from a single setup
  • 400 mm blade at 2800 min-1 cutting 120 mm at 90° and 90 mm at 45° - 40 mm deeper than the TS250
  • 4200 W S6 motor (2800 W S1) on 400 V three-phase; no single-phase version of the TS400Z exists
  • 715 x 945 mm table at 845 mm working height on a stable saw unit
  • Two 100 mm ports so extraction can be taken from the saw unit or from the saw blade guide
  • Intended by HOLZMANN for gutter and wedge plank cutting as well as groove and burr cutting
  • 130 kg net / 162.5 kg gross in a 1350 x 1100 x 1180 mm footprint, with the standard driving device fitted
  • Extendable with the TS400ZAL extension arm set, which takes the working envelope out to 3600 x 1400 x 1180 mm

ტექნიკური მახასიათებლები

Motor power S6
4200 W
Motor power S1
2800 W
Voltage
400V
Table size
715 x 945 mm
Table height
845 mm
Total dimensions
1350 x 1100 x 1180 mm
Max. cutting height at 90°
120 mm
Max. cutting height at 45°
90 mm
Saw blade
400 mm
Saw blade speed
2800 min-1
Saw blade swivel
0°-45°
Dust collector port
2 x 100 mm
Net weight
130 kg
Gross weight
162.50 kg
EAN code
9120039902319

უპირატესობები

  • Table rotating to 90° with simultaneous 0-45° blade tilt covers straight, mitre and bevel cuts from one setup
  • 120 mm cutting height at 90° with a 400 mm blade, deeper than any other bench-style HOLZMANN table saw here
  • Two 100 mm extraction ports let the collector be attached at the saw unit or the blade guide

გასათვალისწინებელი

  • Three-phase 400V only - the TS400Z has no single-phase variant
  • No sliding carriage and no scoring unit, so the TS400Z is unsuitable for finished melamine panel cutting
  • Roller stands and dust collector are optional extras, not part of the standard delivery

ხშირად დასმული კითხვები

Can the HOLZMANN TS400Z run on 230V single-phase power?
No. The HOLZMANN TS400Z is a 400V three-phase machine, with a 4200 W S6 motor rated 2800 W in continuous S1 duty. There is no 230V variant of the TS400Z, so a three-phase supply must be available. Workshops on single-phase power should look at the HOLZMANN TS250, which is offered as TS250_230V, although it cuts 80 mm rather than 120 mm deep.
What does the rotating table on the TS400Z actually do?
The table of the TS400Z rotates up to 90 degrees while the saw blade tilts up to 45 degrees, and the two adjustments work together. That lets the TS400Z produce straight cuts, mitres, bevels and combined angle cuts from one setup instead of moving the workpiece against different fences, which is why the TS400Z is described as a carpenter's rather than a cabinetmaker's saw.
What does the TS400Z not do?
The TS400Z does not have a sliding table carriage or a scoring unit, so the TS400Z is not the machine for sizing melamine-faced panel to a finished, chip-free edge. No maximum rip width at a parallel fence is specified for the TS400Z, and it is not sold with roller stands or a dust collector - both are separate purchases.
How deep can the HOLZMANN TS400Z cut?
The TS400Z cuts to 120 mm at 90 degrees and 90 mm at 45 degrees with its 400 mm blade at 2800 rpm. That is 40 mm deeper than the HOLZMANN TS250 at 90 degrees, and it is what allows the TS400Z to pass through structural timber sections and thick planks in one cut.
Where should the dust extraction be connected on the TS400Z?
The TS400Z has two 100 mm ports, and the dust collector can be attached either at the saw unit or at the saw blade guide, depending on which cut is being made. A dust collector is not included with the TS400Z and must be ordered separately, sized for a 100 mm hose.
How are long workpieces supported on the TS400Z?
The TS400Z can be fitted with optional infeed and outfeed roller stands to make handling big workpieces easier, and these are the recommended accessories for a shop cutting long planks. The roller stands are not part of the standard delivery of the TS400Z. The machine itself is 1350 x 1100 x 1180 mm and 130 kg net, so it needs clear space at both ends of the cut.
What does the price of a HOLZMANN TS400Z depend on?
The price quoted for the HOLZMANN TS400Z depends on the rotating-table saw unit and its 400 mm blade capacity, on the 400 V three-phase connection work needed on site, on freight and Georgian customs for a 162.5 kg gross machine, on the 400 mm saw blades specified, and on the accessories added - infeed and outfeed roller stands are optional on the TS400Z, as is the TS400ZAL extension arm set and a dust collector for the two 100 mm ports. Tell us the timber sections you cut and we will quote the TS400Z with the right support accessories.
What is the delivery time for a TS400Z?
The TS400Z is built to order and the current lead time is confirmed at quotation. The TS400Z exists only in the 400 V version, so there is one order code to schedule, and the date confirmed on the quotation covers the build together with freight and customs clearance into Georgia.
What does commissioning a TS400Z require?
Commissioning the TS400Z requires a level floor carrying 130 kg over a 1350 x 1100 mm plan at 845 mm working height, plus run-out space at both ends far longer than the machine itself for the planks being cut. A qualified electrician makes the 400 V three-phase connection for the 4200 W S6 motor and checks blade rotation. The rotating table of the TS400Z is then squared to the blade at 0° and the tilt scale verified, and extraction is coupled to one of the two 100 mm ports.
Which accessories should be quoted alongside the TS400Z?
Alongside the TS400Z, the accessories worth quoting are 400 mm saw blades in the tooth counts your timber needs, the optional infeed and outfeed roller stands HOLZMANN lists for handling big workpieces, the TS400ZAL extension arm set if you rip long stock and can give up a 3600 x 1400 mm footprint, and a dust collector sized for a 100 mm hose. None of these are confirmed as included with the TS400Z, so put them on the same quotation.
