TS200 — HOLZMANN TS200 Table Saw – 200 mm Blade on a Cast Iron Table 1 / 4

HOLZMANN

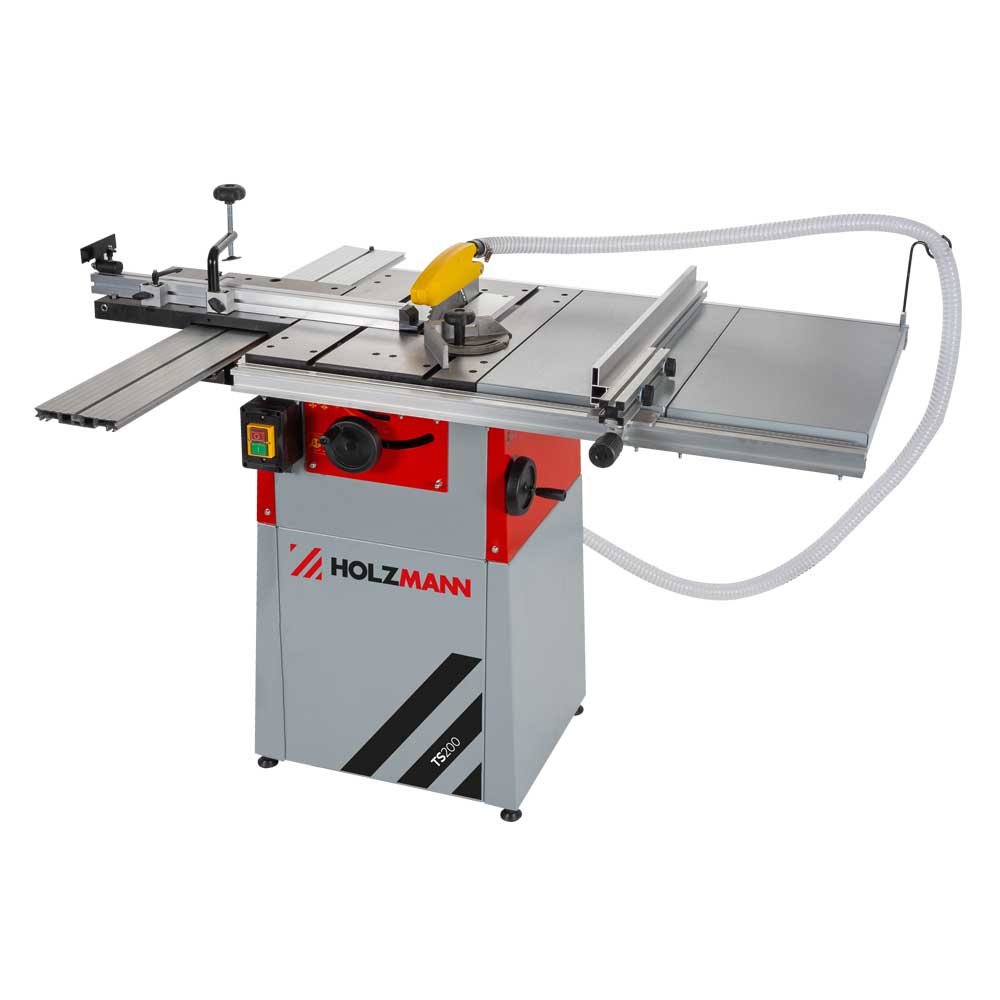

HOLZMANN TS200 Table Saw – 200 mm Blade on a Cast Iron Table

TS200

Plug the TS200 into an ordinary 230 V socket - its 1500 W S6 motor asks for no three-phase installation at all. The 200 mm blade turns at 4700 min-1 for 60 mm of cut at 90°, and the 600 mm extension takes rip capacity to 750 mm, wider than the heavier TS250, on an 81 kg cast iron table.

ფასი მოთხოვნით

The TS200 price is moved by freight and customs on a 91.5 kg gross machine into Georgia, by the 200 mm blades specified for the materials cut, by a workshop vacuum for the 25 mm and 50 mm ports, and above all by quantity - training workshops and joineries buying several TS200 units at once are quoted differently from a single machine.

ფასის მოთხოვნა

Entry-level cast iron table saw on 230V

The HOLZMANN TS200 is a 200 mm table saw with a cast iron table, cutting 60 mm deep at 90 degrees and 40 mm at 45 degrees from an ordinary 230V single-phase socket. A 1500 W S6 motor, rated 1100 W in continuous S1 duty, spins the 200 mm blade at 4700 rpm, and blade height and angle on the TS200 are set with a hand wheel. Rip capacity at the parallel fence is 750 mm – wider than the size of the main table suggests, because of the 600 mm extension table.

Who should buy the TS200

The TS200 is the entry point to the HOLZMANN table saw range and was named test winner in the table saw comparison at test-vergleiche.com. The TS200 suits a small workshop, a joiner starting out, or a furniture maker who wants a second saw for thinner stock and board: 81 kg net keeps the machine movable by two people, the 535 x (400+600) mm table with its extension gives genuine support to a panel, and the 870 mm working height matches a normal bench. Overall the TS200 occupies 1010 x 1580 x 940 mm.

The TS200 against the TS250

The TS200 and the TS250 look alike but are not the same class of machine. The TS200 runs a 200 mm blade with 60 mm of cutting height on a 1500 W S6 motor at 81 kg, while the TS250 runs a 254 mm blade with 80 mm of cutting height on a 3100 W S6 motor at 108 kg. Choose the TS200 where the work is board, trim and stock under 60 mm and the supply is single-phase; step up to the TS250 where thicker hardwood is ripped every day, or where a 400V variant is wanted.

Extraction and running the TS200

The TS200 has two extraction connections, one 25 mm and one 50 mm, which suit a workshop vacuum cleaner rather than a large bag collector – a sensible match for a 1500 W saw. No extraction unit is included with the TS200, and no dust collector is part of the delivery. Gross shipping weight of the TS200 is 91.50 kg.

ძირითადი მახასიათებლები

  • 1500 W S6 motor (1100 W S1) running from an ordinary 230 V single-phase socket - no three-phase installation and no 400 V version
  • 750 mm maximum rip at the parallel fence, 40 mm more than the larger and heavier TS250
  • 200 mm blade on a 30 mm bore at 4700 min-1, the fastest spindle of the TS bench saws
  • 60 mm cutting height at 90° and 40 mm at 45°
  • Cast iron table 535 x (400+600) mm with a 600 mm extension, at 870 mm working height
  • 81 kg net / 91.5 kg gross in a 1010 x 1580 x 940 mm footprint - liftable by two people
  • Extraction connections of 25 mm and 50 mm, sized for a workshop vacuum rather than a bag collector
  • Listed by HOLZMANN as test winner in the table saw comparison at test-vergleiche.com

ტექნიკური მახასიათებლები

Motor power S6
1500 W
Motor power S1
1100 W
Voltage
230V
Table size
535 x (400+600) mm
Table extension
600 mm
Table height
870 mm
Total dimensions
1010 x 1580 x 940 mm
Max. cutting height at 90°
60 mm
Max. cutting height at 45°
40 mm
Max. cutting width at parallel fence
750 mm
Saw blade
200 mm (30 mm bore)
Saw blade speed
4700 min-1
Net weight
81 kg
Gross weight
91.50 kg
EAN code
9120058371882

უპირატესობები

  • Runs on an ordinary 230V single-phase socket - no electrical installation needed
  • Cast iron table plus 600 mm extension gives 750 mm rip capacity on the smallest machine in the range
  • At 81 kg net the TS200 is stable enough for accurate cuts yet still movable by two people

გასათვალისწინებელი

  • 60 mm cutting height at 90° is the lowest of the HOLZMANN table saws covered here
  • Extraction ports are only 25 mm and 50 mm, suiting a vacuum cleaner rather than a workshop chip collector
  • No 400V variant, no scoring unit and no sliding carriage - the TS200 is not a panel-cutting machine

ხშირად დასმული კითხვები

Does the HOLZMANN TS200 need three-phase power?
No. The HOLZMANN TS200 runs from an ordinary 230V single-phase socket, with a 1500 W S6 motor rated 1100 W in continuous S1 duty, and it is supplied only in that TS200_230V version. That makes the TS200 the easiest HOLZMANN table saw to install in a Georgian workshop or home shop with no three-phase connection. Where 400V is available and heavier work is planned, the TS250 is offered in a 400V variant.
How thick a workpiece can the TS200 cut?
The TS200 cuts to 60 mm at 90 degrees and 40 mm at 45 degrees with its 200 mm blade. That covers board, panel, trim and timber up to 60 mm on the TS200. For deeper cuts the HOLZMANN TS250 reaches 80 mm and the TS400Z reaches 120 mm.
What does the TS200 not do?
The TS200 does not have a sliding carriage, a scoring unit or a rotating table, so the TS200 cannot deliver a chip-free melamine edge or make the compound carpentry cuts of a TS400Z. The TS200 also has no 400V variant, no dust collector in the box, and its 25 mm and 50 mm ports are too small for a large bag extractor.
How can the TS200 rip 750 mm on such a small table?
The rip capacity of 750 mm on the TS200 comes from the 600 mm extension table working alongside the 535 mm deep cast iron top, which together give the parallel fence its travel. The cast iron section carries the cut itself while the extension supports the offcut, so a wide board stays flat as it passes the blade of the TS200.
Is the TS200 heavy enough to be stable?
The TS200 weighs 81 kg net with a cast iron table, which is heavy for an entry-level saw and is the reason its cuts stay straight; a sheet-steel saw of the same power would move under a heavy board. At the same time, 81 kg means the TS200 can be repositioned by two people, unlike the 130 kg TS400Z.
What extraction should be used with the TS200?
The TS200 has one 25 mm and one 50 mm extraction connection, which are sized for a workshop vacuum cleaner rather than a bag-type chip collector. No extraction unit is included with the TS200, so a suitable vacuum should be ordered alongside it.
What does a HOLZMANN TS200 cost?
The HOLZMANN TS200 is quoted rather than sold at a published price, and the figure moves on freight and Georgian customs for a 91.5 kg gross machine, on the 200 mm blades chosen for the work, on a workshop vacuum to serve the 25 mm and 50 mm ports, and on quantity, since the TS200 is often bought several at a time for training rooms and small joineries. There is only one variant of the TS200, the 230 V version, so voltage does not change the price. Ask us for a quotation with the quantity you need.
How long is the wait for a TS200?
The TS200 is built to order and the current lead time is confirmed at quotation. Only the 230 V version of the TS200 exists, so there is a single order code to schedule, and the confirmed date on the quotation covers the build plus freight and customs clearance into Georgia.
Does the TS200 need any installation work?
The TS200 needs no installation trade at all. It runs from an ordinary 230 V single-phase socket on a properly rated circuit, so no electrician's connection and no three-phase work are required - which is the main practical reason a small Georgian workshop chooses the TS200. Allow about 1010 x 1580 mm of level floor with infeed and outfeed room, plan an 81 kg two-person lift, and attach a workshop vacuum to the 25 mm and 50 mm ports before cutting.
What has to be bought with a TS200?
With the TS200, budget for 200 mm blades on a 30 mm bore in the tooth counts your work needs, a workshop vacuum cleaner - the 25 mm and 50 mm ports on the TS200 will not couple to a bag-type chip collector - spare push sticks, and roller support if you rip stock longer than the 1580 mm footprint. HOLZMANN lists no blades or extraction in the TS200 delivery, so these belong on the same quotation.
