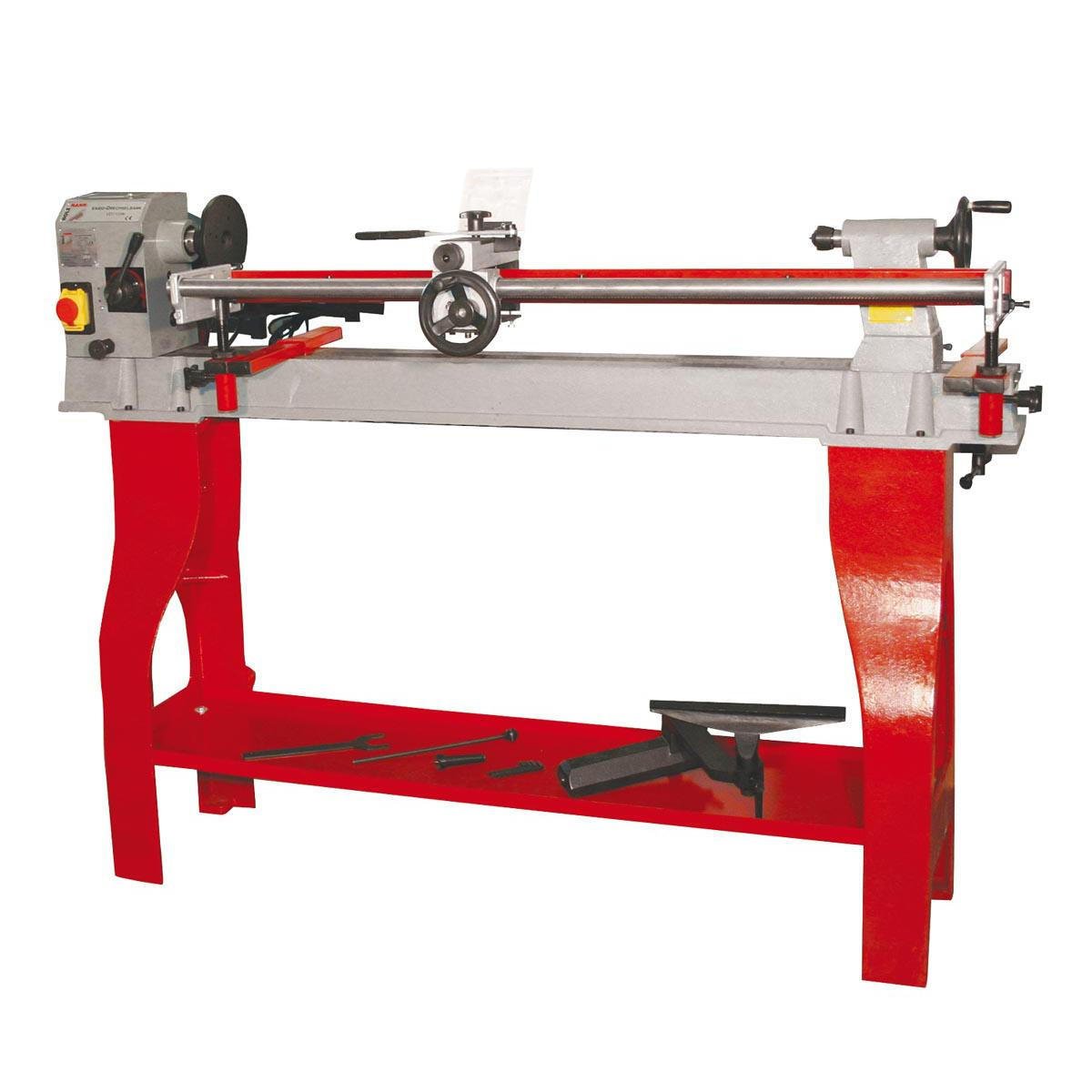

HOLZMANN VD1100N Wood Lathe (1100 mm, Cast Iron, Copying Option)

VD1100N — HOLZMANN VD1100N Wood Lathe (1100 mm, Cast Iron, Copying Option) 1 / 4

Only the HOLZMANN VD1100N stands on its own cast iron legs, setting a 900 mm working height under 119 kg of machine, and only the VD1100N reaches 1100 mm between centres - more than twice the D510F. Its headstock swings a full 90 degrees clear of the bed for diameters beyond the 185 mm centre height, and a copying device can be added.

ძრავის სიმძლავრე
1.1 kW
ძაბვა
230V
მაგიდის სიმაღლე
900 mm
შპინდელი
12 mm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The quoted price for the VD1100N moves with the voltage variant chosen (VD1100N_230V or VD1100N_400V), whether the optional copying device is ordered with the machine, the chuck and chisel package specified, and freight and customs clearance into Georgia for a 149 kg gross item.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

A cast iron wood lathe with a copying option

The HOLZMANN VD1100N is a floor-standing wood lathe with 1100 mm between centres and a 185 mm centre height, built from grey cast iron in the machine bed, stand, headstock and tailstock. Cast iron rather than folded sheet is what gives the VD1100N its damping: at 119 kg net the machine absorbs the vibration a long, slightly out-of-round blank produces. Spindle speed is variable between 500 and 2000 min-1, driven by a 1100 W (S6) / 750 W (S1) motor, and working height is set at 900 mm.

Copying from a master or a pattern

The VD1100N accepts copying device options that work either from a master workpiece or from a flat pattern, at a copying centre height of 80 mm. That makes the VD1100N a sensible middle path for a joinery that turns matched sets occasionally but not continuously: the machine is a general-purpose lathe first, with repeat-copy capability available when a batch of legs or balusters comes in.

Pivoting headstock for large diameters

The headstock of the VD1100N pivots through 90°, moving the workpiece clear of the bed so that bowls, platters and disc-shaped pieces larger than the 185 mm centre height can be turned off the end of the machine. Both headstock and tailstock have quick adjustment along the bed, the tailstock offers 60 mm of sleeve travel and takes MT2 centres, and the headstock spindle is M33 DIN800 with a 12 mm bore.

VD1100N against the HOLZMANN DBK copy lathes

The VD1100N is not a substitute for a dedicated copy lathe. The DBK1300 weighs 202 kg, turns 1300 mm between centres at 220 mm centre height and is built around a 1100 mm copying system for production runs. The VD1100N is lighter, shorter and cheaper to install, and suits a workshop where copying is one job among many rather than the main task.

Power supply and availability

The VD1100N is offered as VD1100N_230V for single-phase supply and VD1100N_400V for three-phase workshops. Both variants are currently listed as unavailable from the manufacturer, so delivery of the VD1100N should be confirmed before an order is placed. Gross shipping weight is 149 kg.

ძირითადი მახასიათებლები

  • 1100 mm between centres, more than double the 510 mm of the D510F and over twice the 460 mm of the D460FXL
  • 185 mm centre height, the tallest swing of the D-range lathes
  • Headstock pivots through 90 degrees so the work turns out over the floor, clear of the bed casting, for large bowls and platters
  • Copying device available as an option, working either from a master workpiece or from a flat pattern - no other lathe in this group offers copying
  • 80 mm copying centre height once the copying attachment is fitted
  • Grey cast iron machine bed, stand, headstock and tailstock at 119 kg net, standing at a 900 mm working height with no bench required
  • 1100 W (S6) / 750 W (S1) motor with variable spindle speed from 500 to 2000 min-1
  • M33 DIN800 headstock spindle with a 12 mm bore, MK2/MT2 tailstock taper, 60 mm sleeve travel, and quick adjustment of both headstock and tailstock along the bed
  • Offered as VD1100N_230V and VD1100N_400V under separate EANs

ტექნიკური მახასიათებლები

Motor power S6
1100 W
Motor power S1
750 W
Voltage
230 V (VD1100N_230V) / 400 V (VD1100N_400V)
Table height
900 mm
Spindle bore
12 mm
Head stock spindle
M33 DIN800
Tailstock taper
MK2/MT2
Lathe spindle speed
500-2000 min-1
Copying center height
80 mm
Tailstock sleeve travel
60 mm
Distance between centers
1100 mm
Center height
185 mm
Net weight
119 kg
Gross weight
149 kg
EAN code
9120039902920 (230 V) / 9120039900575 (400 V)

უპირატესობები

  • Grey cast iron bed, stand, headstock and tailstock give good vibration damping for a 119 kg machine
  • Headstock pivots 90° so bowls and platters larger than the 185 mm centre height can be turned
  • Available in both 230 V and 400 V versions, with variable 500-2000 min-1 speed

გასათვალისწინებელი

  • The copying device is an option, not standard equipment on the VD1100N
  • Maximum speed of 2000 min-1 is lower than benchtop lathes used for fine finishing work
  • Both VD1100N variants are currently listed as unavailable at the manufacturer, so lead time must be confirmed

ხშირად დასმული კითხვები

Is the HOLZMANN VD1100N available in 230 V or 400 V?
The HOLZMANN VD1100N is offered in two versions: VD1100N_230V for a single-phase workshop and VD1100N_400V for a three-phase supply, both carrying the same 1100 W (S6) / 750 W (S1) rating and each with its own EAN. A Georgian joinery on ordinary mains can therefore run the VD1100N without installing a three-phase connection. State the supply you have when you request a quote for the VD1100N, because the variant, the lead time and the delivered price are all confirmed together on the quotation.
What does the HOLZMANN VD1100N not do?
The HOLZMANN VD1100N does not come with a copying device as standard, and it does not mill, carve or sand. Copying on the VD1100N is an option that works from a master workpiece or pattern, work longer than 1100 mm between centres does not fit the bed, and the 750 W (S1) motor is not sized for continuous heavy production.
How does the pivoting headstock on the VD1100N work?
The headstock of the HOLZMANN VD1100N swings through 90°, which turns the workpiece away from the bed and out over the floor. That lets the VD1100N take bowls and platters with a diameter greater than twice the 185 mm centre height would otherwise allow, without the bed casting getting in the way of the tool rest.
How does the VD1100N compare with the HOLZMANN DBK1300?
The HOLZMANN VD1100N is a general-purpose cast iron lathe of 119 kg with an optional copying device, 1100 mm between centres and 185 mm centre height. The DBK1300 is a dedicated 202 kg copy lathe with 1300 mm between centres, 220 mm centre height and a built-in 1100 mm copying system, and is the better choice for continuous batch production.
What speeds does the VD1100N run at?
The HOLZMANN VD1100N runs at variable spindle speeds from 500 to 2000 min-1. That range covers general spindle turning and larger-diameter bowl work; the VD1100N does not reach the higher finishing speeds of small benchtop lathes such as the D460FXL, which runs up to 3800 min-1.
How much does the VD1100N weigh and how tall is it?
The HOLZMANN VD1100N weighs 119 kg net and 149 kg gross, and its working table height is 900 mm. Because the VD1100N includes its own cast iron stand, no separate bench is needed, but a solid, level floor is required for the machine to stand square.
What does the HOLZMANN VD1100N cost?
The HOLZMANN VD1100N is priced by quotation. Three things move the figure on a VD1100N quote: which voltage variant is taken, whether the optional copying device is ordered with the machine or left off, and the chuck, faceplate and chisel package specified alongside it. Freight and customs clearance into Georgia for a 149 kg gross machine complete the quotation.
How long does delivery of a HOLZMANN VD1100N take?
The HOLZMANN VD1100N is built to order, so the current lead time for a VD1100N is confirmed at quotation rather than quoted from a catalogue. Ask for the quotation with the voltage variant and the copying-device decision already made, since both affect how the VD1100N is built and therefore when it can ship.
What does installing a HOLZMANN VD1100N involve?
A HOLZMANN VD1100N is installed on its own cast iron stand, so no bench is required: what it needs is a solid level floor, the 119 kg machine set square and levelled until the bed does not rock, an electrical connection matching the variant ordered, and clear floor space on the pivot side so the headstock can be swung 90 degrees for bowl work. We can include siting and commissioning of the VD1100N in the same quotation as the machine.
What should be budgeted separately for a HOLZMANN VD1100N?
Budget alongside the HOLZMANN VD1100N for the copying device if repeat turning is the reason for buying it, since the copier is an option and not standard on the VD1100N. Add a scroll chuck and faceplates to suit the M33 DIN800 spindle, a chisel set for both spindle and bowl work, and a mobile extractor if sanding will be done on the machine.
