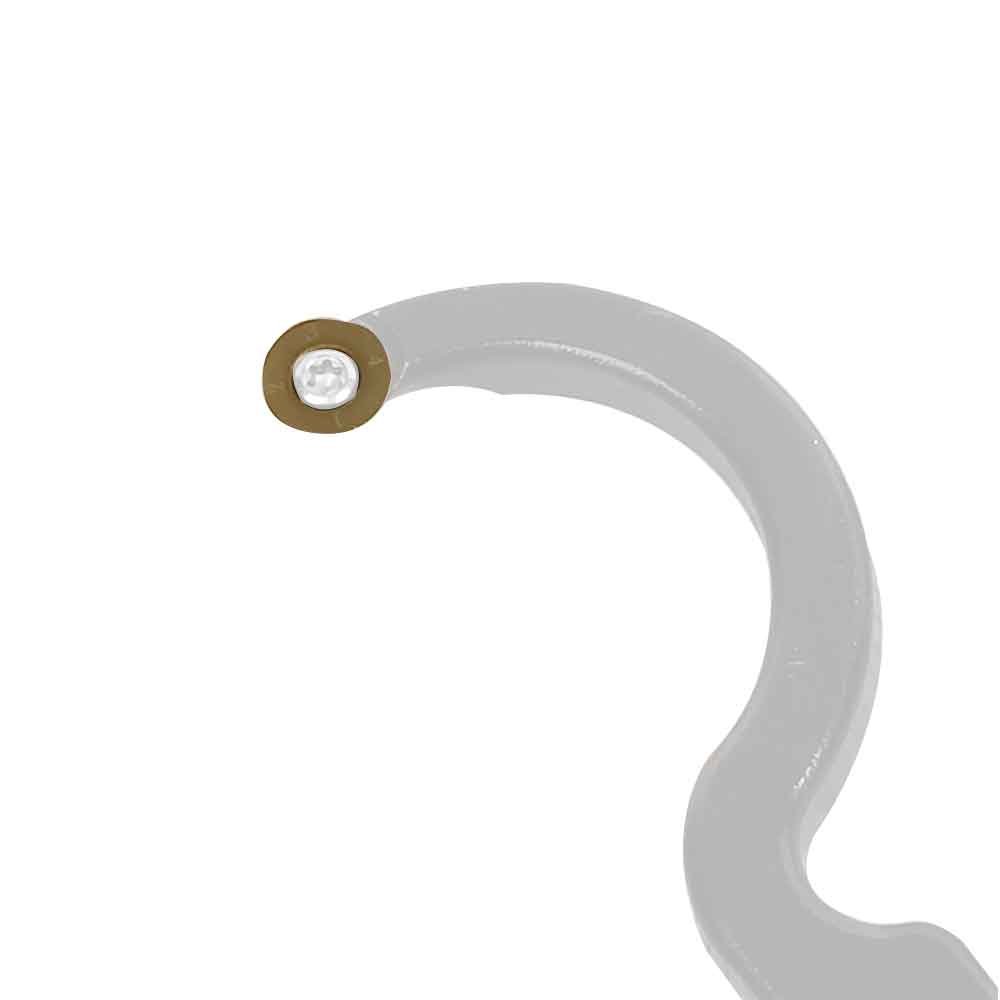

HOLZMANN 10015506 Carbide Round Turning Tip Ø 12 mm

10015506 — HOLZMANN 10015506 Carbide Round Turning Tip Ø 12 mm 1 / 3

Ø 12 mm is the number that decides the HOLZMANN 10015506: it sits between the Ø 6 mm 10015511 and the Ø 16 mm 10015509 as the middle round radius in the range, and HOLZMANN lists it titanium plated. At 0.02 kg net the 10015506 is a light cutter for coves, beads and bowl walls.

წონა
0.02 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the 10015506 moves with the quantity ordered, the titanium-plated grade against the uncoated geometries in the same range, the current HOLZMANN list price and exchange rate, whether the tips consolidate with a larger consignment, and the customs and tax treatment applied at landing.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN 10015506 carbide round tip is

The HOLZMANN 10015506 is a titanium-plated carbide round cutter of 12 mm diameter, supplied as a single replacement tip for carbide-insert wood turning tools. The 10015506 is a consumable, not a complete chisel: the tip is bolted onto the bar of an existing carbide turning tool and swapped when the edge dulls, which removes grinding and honing from the turning routine.

Where a 12 mm round cutter is used

A round cutter cuts on a continuous curved edge, so the 10015506 shears rather than scrapes across coves, beads, bowl walls and any surface where a corner would dig in. The 12 mm diameter is the middle of the three HOLZMANN round tips, which makes the 10015506 the general-purpose choice for spindle and bowl work in a small joinery or a turner’s shop.

Choosing between the HOLZMANN round tips

The HOLZMANN round range runs 6 mm (article 10015511), 12 mm (article 10015506) and 16 mm (article 10015509). The 6 mm tip reaches into small hollows and fine detail, the 16 mm cutter carries larger roughing cuts on bowls, and the 12 mm 10015506 covers the ground between them. Where a flat shoulder or a straight taper is wanted instead of a curve, the square tips 10015508 and 10015510 are the correct shape, and the 28 x 10 mm diamond tip 10015507 handles points and V-grooves.

Delivery and fitting

The 10015506 is delivered as one carbide tip weighing 0.02 kg net, 0.04 kg gross. No handle, bar or fixing screw is included. Because carbide tips are seated on a specific pocket and screw, check the seat shape and screw size on the turning tool before ordering, or ask the dealer to confirm the match against the tool already in the workshop.

ძირითადი მახასიათებლები

  • Ø 12 mm round carbide cutting edge - the middle of the three HOLZMANN round radii (6, 12 and 16 mm)
  • Titanium plated as HOLZMANN specifies it, aimed at friction and edge wear in resinous, abrasive timber
  • A 12 mm radius follows coves, beads and bowl walls without the corner-dig a square tip leaves
  • 0.02 kg net and 0.04 kg gross - the light end of the round range, against 0.05 kg for the Ø 16 mm 10015509
  • Packed 41 x 98 x 10 mm, the small-tip carton rather than the 58 x 138 x 10 mm box used for the 15 and 16 mm tips
  • Screw-on wear part: a blunt 10015506 is exchanged on the bar, not taken to a grinding wheel

ტექნიკური მახასიათებლები

Cutter shape
Round
Cutter diameter
Ø 12 mm
Coating
Titanium plated
Material
Carbide
Net weight
0.02 kg
Gross weight
0.04 kg
HOLZMANN article number
10015506

უპირატესობები

  • Titanium-plated carbide edge for longer life in abrasive timber
  • Ø 12 mm round profile is the versatile middle size for curves, coves and bowl walls
  • Swapped in minutes with a screwdriver - no grinding or honing required

გასათვალისწინებელი

  • Wear part only: no handle, tool bar or fixing screw is supplied
  • Fit is not universal - the pocket and screw of the existing tool must match
  • A round cutter cannot produce flat shoulders or sharp internal corners

ხშირად დასმული კითხვები

Does the HOLZMANN 10015506 carbide tip need 230 V or 400 V?
Neither. The HOLZMANN 10015506 is a passive carbide cutting tip with no motor and no electrical connection. The 10015506 works exactly the same whether the wood lathe it is used on is a 230 V single-phase machine or a 400 V three-phase machine - only the lathe needs a power supply.
What does the HOLZMANN 10015506 not include and not do?
The HOLZMANN 10015506 is the cutting tip alone. The 10015506 does not include a handle, a tool bar or a fixing screw, is not a complete turning chisel, and will not cut flat shoulders or sharp corners - a round cutter leaves a curved profile, so square or diamond tips are needed for those cuts.
When should the 12 mm round tip be chosen over the 6 mm or 16 mm?
The HOLZMANN 10015506 at Ø 12 mm is the general-purpose round cutter. Choose the Ø 6 mm 10015511 for tight coves, small hollows and fine detail, and the Ø 16 mm 10015509 for heavier roughing on large bowls. The 10015506 sits between them and covers most everyday spindle and bowl work.
Can the HOLZMANN 10015506 carbide tip be sharpened?
In normal workshop practice the HOLZMANN 10015506 is replaced rather than sharpened. Carbide cannot be reground on an ordinary bench grinder wheel, and the point of a carbide-insert system is that a worn 10015506 is unscrewed and exchanged for a fresh tip in a minute.
Will the HOLZMANN 10015506 fit any carbide turning tool?
Not automatically. The HOLZMANN 10015506 seats in a specific pocket and is held by a specific screw, and these differ between tool makes and models. Confirm the seat shape and screw size on the existing turning tool - or check with the dealer - before ordering the 10015506.
What does the titanium plating on the 10015506 do?
HOLZMANN supplies the 10015506 titanium plated. Titanium coatings are used on cutting tools to reduce friction at the edge and slow wear, which shows most in abrasive and resinous timbers where an uncoated edge dulls quickly. The plating does not change the Ø 12 mm geometry of the 10015506 or the profile it cuts - it is there to extend the working life of the tip between exchanges.
What determines the price of the HOLZMANN 10015506 carbide round tip?
The price of the HOLZMANN 10015506 Ø 12 mm round tip is driven by how many tips are ordered at once, by the titanium-plated grade (uncoated geometries in the same HOLZMANN range price differently), by the current HOLZMANN list price and the exchange rate on the day the order is placed, by whether the tips travel with a larger machine consignment or on their own, and by the customs and tax treatment at landing. Send us the quantity you actually need and we will price the 10015506 against it.
How quickly can a HOLZMANN 10015506 tip be supplied?
The HOLZMANN 10015506 is ordered against its HOLZMANN article number and the current lead time for the 10015506 is confirmed at the time we quote it. We do not publish a delivery window in advance, because it depends on the HOLZMANN order book and on whether the tips ship on their own or with a larger consignment. Ask for the current position when you request pricing.
Is there any installation or commissioning cost for the HOLZMANN 10015506?
No. The HOLZMANN 10015506 is a carbide tip that bolts into the pocket of an existing turning tool with its retaining screw, so there is nothing to site, level, wire or connect to extraction and no commissioning charge to budget. The only pre-order check is that the pocket shape and screw size of your carbide turning tool match the 10015506.
What should be budgeted alongside the HOLZMANN 10015506?
Budget beyond the HOLZMANN 10015506 for the items it does not include: the carbide tool bar and handle it mounts on, spare retaining screws, and the other tip geometries a turner normally keeps to hand - the Ø 6 mm 10015511 and Ø 16 mm 10015509 round cutters, the square tips 10015508 and 10015510, and the 28 x 10 mm diamond 10015507. Tips are consumables, so allow for repeat orders rather than a single purchase.
