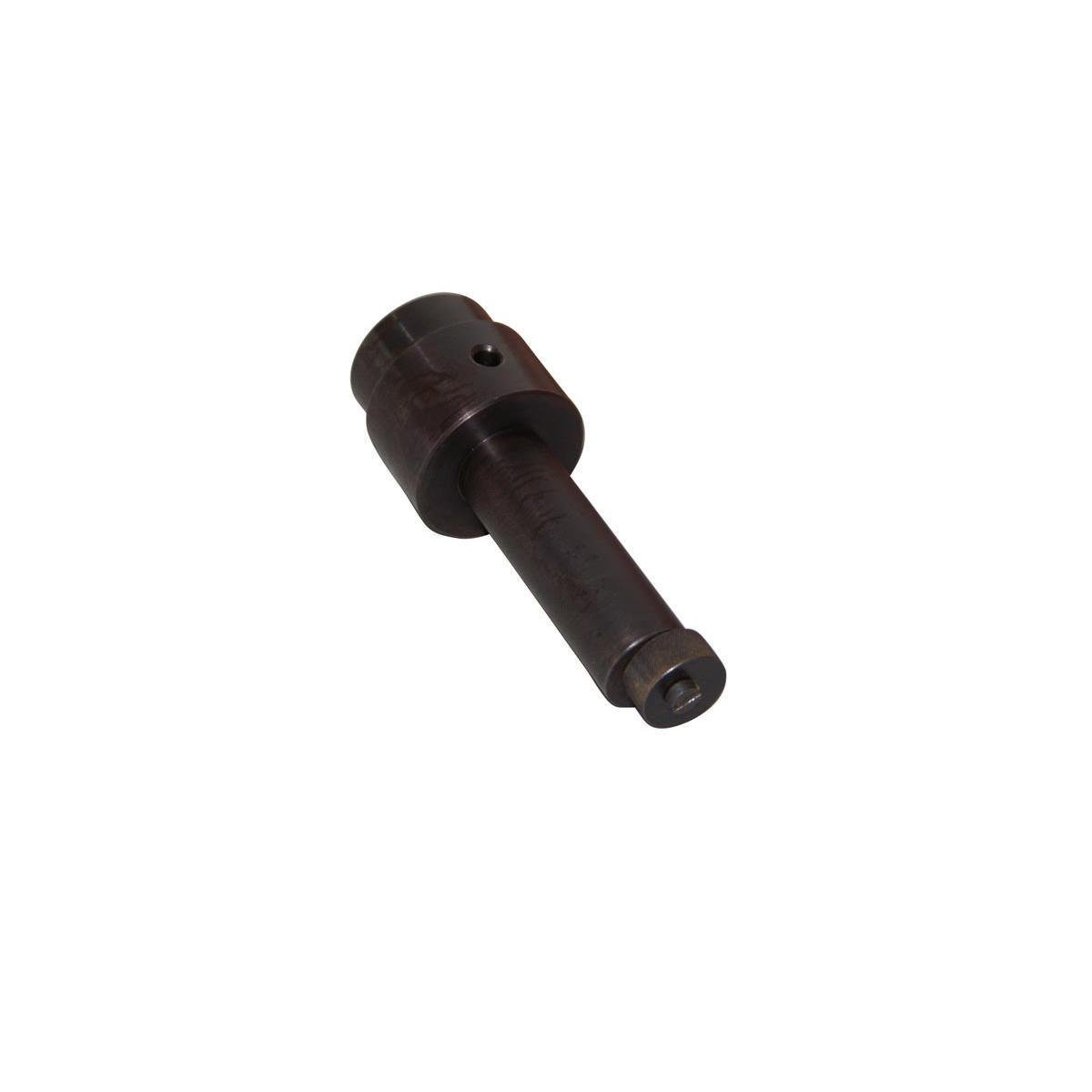

HOLZMANN ES25070 Eccentric Clamping System (ML 70 mm, Ø 25 mm)
1 / 2
ML 70 mm at Ø 25 mm is the smaller of the two eccentric clamping systems HOLZMANN publishes: 40 mm shorter and 5 mm thinner than the ES30110, at 1 kg net against 1.5 kg. The HOLZMANN ES25070 is used to fix heavy and unbalanced turning pieces on a wood lathe. EAN 9120039908335.
- წონა
- 1 kg
- ახალი
- შეკვეთით
What moves the price of the ES25070 is the ML 70 mm / Ø 25 mm size against the larger ES30110, the number of units taken, HOLZMANN's current list price and the exchange rate, whether the 1.10 kg gross item ships with a machine consignment or alone as a parcel, and the customs and tax treatment at landing.
ირაკლი
გაყიდვების მენეჯერი
- კონფიგურაცია თქვენს ძაბვასა და ზომებზე
- მიწოდება, მონტაჟი და გაშვება ადგილზე
- ქარხნული გარანტია და სათადარიგო ნაწილები
What the HOLZMANN ES25070 eccentric clamping system is
The HOLZMANN ES25070 is an eccentric clamping system for wood lathes, used to hold heavy and unbalanced turning pieces. HOLZMANN quotes the ES25070 as ML = 70 mm with a diameter of 25 mm, and the unit weighs 1 kg net. The ES25070 is a workholding accessory, not a cutting tool: it grips the blank so that off-centre and irregular work can be turned safely.
Why an eccentric clamp matters
An unbalanced blank fights the lathe. Natural-edge bowls, off-centre table legs, cracked or partly hollow stock and heavy green timber all pull against the spindle, and a workholding system that slips or flexes turns that into vibration, chatter marks and a genuine safety problem. The ES25070 exists to hold that kind of piece firmly, which is why it appears in furniture workshops and small turning shops that take on repair and one-off decorative work rather than clean, symmetrical production runs.
ES25070 or ES30110
HOLZMANN offers the eccentric clamping system in two sizes. The ES25070 is the smaller one at ML 70 mm, 25 mm diameter and 1 kg net; the ES30110 is longer and thicker at ML 110 mm, 30 mm diameter and 1.5 kg net. The ES25070 is the right choice for lighter and shorter unbalanced pieces and for smaller lathes, while workshops routinely mounting large, heavy blanks should look at the ES30110 instead.
Delivery
The ES25070 is supplied as the clamping system alone, 1 kg net and 1.10 kg gross, under EAN 9120039908335. No lathe, faceplate or turning tool is included. Spindle threads and tailstock fittings vary between lathes, so confirm the mounting on the existing machine with the dealer before ordering the ES25070.
ძირითადი მახასიათებლები
- ML 70 mm at Ø 25 mm - the compact eccentric clamping system in the HOLZMANN range
- 1 kg net and 1.10 kg gross, two thirds the mass of the 1.5 kg ES30110
- HOLZMANN states the purpose plainly: used to fix heavy and unbalanced turning pieces
- Ships in a 100 x 100 x 85 mm carton, 35 mm shorter than the ES30110 pack
- Sized for shorter off-centre blanks and for lathes where the longer ES30110 has no clearance
- Carries EAN 9120039908335
ტექნიკური მახასიათებლები
- Type
- Eccentric clamping system for wood lathes
- ML
- 70 mm
- Diameter
- 25 mm
- Application
- Fixing heavy and unbalanced turning pieces
- Net weight
- 1 kg
- Gross weight
- 1.10 kg
- EAN code
- 9120039908335
უპირატესობები
- Purpose-made for heavy and unbalanced blanks that ordinary workholding cannot grip safely
- Compact at ML 70 mm and 1 kg net - suits smaller lathes and shorter pieces
- Carries a HOLZMANN EAN (9120039908335) for clean stock and catalogue handling
გასათვალისწინებელი
- HOLZMANN publishes no thread or mounting data, so lathe compatibility must be checked first
- Smaller than the ES30110 - large, long or very heavy blanks are better served by that unit
- Workholding only: no lathe, faceplate or turning tools are included
