HOLZMANN 10015507 Carbide Diamond Turning Tip 28 x 10 mm
1 / 3
Only one HOLZMANN turning tip comes to a point, and the 10015507 is it: a 28 x 10 mm diamond, longer and narrower than any round or square cutter in the range. Titanium coated and 0.04 kg net, the 10015507 is the tip picked up for V-grooves, decorative lines, undercuts and sharp corners.
- წონა
- 0.04 kg
- ახალი
- შეკვეთით
What moves the price of the 10015507 is order quantity, the Ti-coated grade, the current HOLZMANN list and exchange rate, consolidation with other freight, and the customs and tax treatment at landing.
ირაკლი
გაყიდვების მენეჯერი
- კონფიგურაცია თქვენს ძაბვასა და ზომებზე
- მიწოდება, მონტაჟი და გაშვება ადგილზე
- ქარხნული გარანტია და სათადარიგო ნაწილები
What the HOLZMANN 10015507 carbide diamond tip is

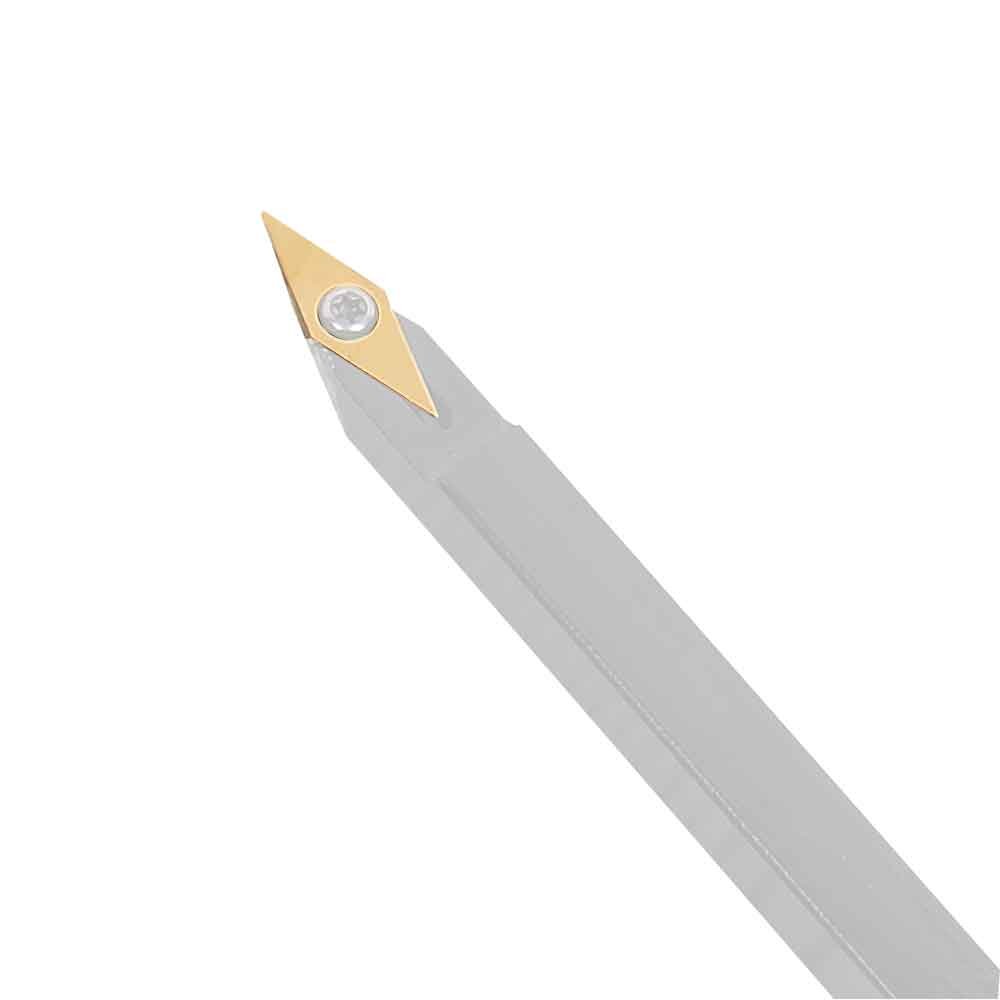

The HOLZMANN 10015507 is a Ti-coated carbide diamond turning tip measuring 28 x 10 mm, supplied as a single replacement cutter for carbide-insert wood turning tools. The diamond shape sets the 10015507 apart from the round and square tips in the same HOLZMANN range: it presents a point and two long angled edges rather than a curve or a flat.
Where a diamond tip is used
The point is the reason to buy the 10015507. A diamond cutter reaches into sharp internal corners, cuts V-grooves and decorative lines, defines the shoulder between a bead and a fillet, and undercuts where a round or square edge cannot follow the profile. Turners producing chair legs, balusters, finials and detailed mouldings use the 10015507 for the definition pass after the shape has been roughed out with a round or square cutter.
Compared with the other HOLZMANN carbide tips
The 10015507 is a detailing tip, not a roughing tip. Stock removal belongs to the 15 x 15 mm square 10015508 or the 16 mm round 10015509, curved surfaces to the round tips 10015506 and 10015511, and flat shoulders to the square tips. The 28 x 10 mm diamond geometry of the 10015507 is longer and narrower than any of them, which is what lets the point work in tight detail while the Ti coating slows wear.
Delivery
The 10015507 is delivered as one carbide tip weighing 0.04 kg net and 0.06 kg gross. Handle, tool bar and fixing screw are not included. Because the pocket and screw differ between turning tools, confirm the seat on the existing tool before ordering the 10015507.
ძირითადი მახასიათებლები
- Diamond geometry, 28 x 10 mm - the only pointed carbide turning tip in the HOLZMANN range
- 28 mm of length against a 16 mm maximum on the round tips: reach for undercuts and definition passes
- Titanium coated, so the coating sits on the fine point - the part of a diamond tip that dulls first
- Point plus two long angled edges cut V-grooves, decorative lines and crisp bead-to-fillet shoulders
- 0.04 kg net and 0.06 kg gross, between the 0.02 kg small tips and the 0.05 kg 15 x 15 mm 10015508
- Ships in the 58 x 138 x 10 mm carton HOLZMANN uses for its longer turning tips
ტექნიკური მახასიათებლები
- Cutter shape
- Diamond
- Cutter size
- 28 x 10 mm
- Coating
- Ti-coated
- Material
- Carbide
- Net weight
- 0.04 kg
- Gross weight
- 0.06 kg
- HOLZMANN article number
- 10015507
უპირატესობები
- Only pointed cutter in the HOLZMANN carbide range - reaches corners round and square tips cannot
- Titanium coating slows wear on the fine point where it matters most
- 28 x 10 mm body gives a long reach for undercuts and definition cuts
გასათვალისწინებელი
- Not a roughing tip - stock removal needs the 10015508 or 10015509
- A fine point is more vulnerable to chipping than a round or square edge
- Tip only: no handle, tool bar or screw included, and the seat must match the existing tool
