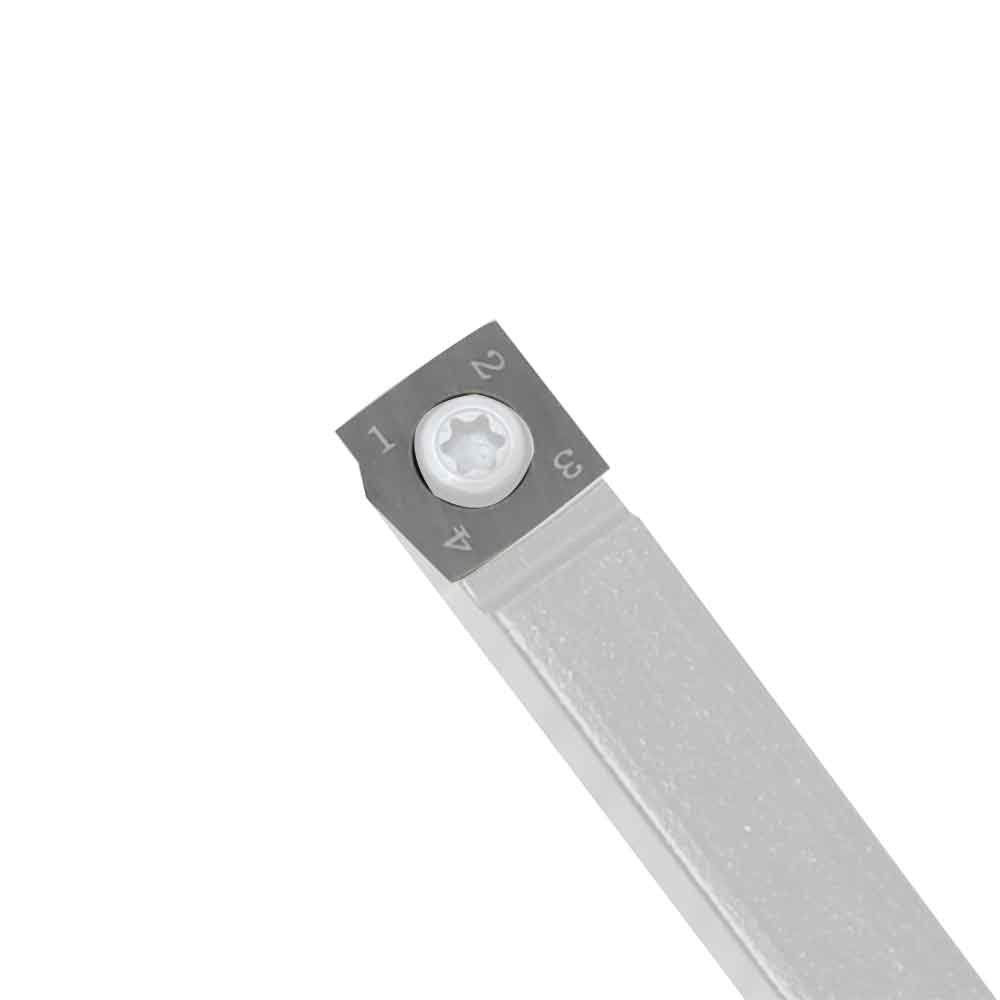

HOLZMANN 10015510 Carbide Square Turning Tip 11.3 x 11.1 mm

10015510 — HOLZMANN 10015510 Carbide Square Turning Tip 11.3 x 11.1 mm 1 / 3

The HOLZMANN 10015510 is the small square: 11.3 x 11.1 mm and 0.02 kg net, packed 41 x 98 x 10 mm rather than the 58 x 138 x 10 mm carton the 15 x 15 mm 10015508 travels in. Less edge in the cut means less pull, which is what suits the 10015510 to light bars, small lathes and thin spindles.

წონა
0.02 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the 10015510 is set by the quantity ordered, by the size and grade relative to the larger 15 x 15 mm square tip, by HOLZMANN's current list price and the exchange rate, by freight consolidation, and by the customs and tax treatment at landing.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN 10015510 carbide square tip is

The HOLZMANN 10015510 is a carbide square turning tip measuring 11.3 x 11.1 mm, sold as a single replacement cutter for carbide-insert wood turning tools. The 10015510 is the smaller of the two HOLZMANN square tips and is bolted to the bar of an existing tool, so a worn edge is swapped instead of being reground.

Where an 11.3 x 11.1 mm square tip is used

The 10015510 gives a straight cutting edge for flat work: bringing a blank down to a cylinder, cutting clean shoulders, straight tapers and flat bottoms in boxes and trays. The smaller footprint means lower cutting resistance than the 15 x 15 mm 10015508, which makes the 10015510 the sensible tip for lighter turning tools, thinner spindle sections and turners working on a small lathe where a big square cutter would grab.

Choosing between the HOLZMANN square tips

The choice is size, not shape. The 10015510 at 11.3 x 11.1 mm handles small and medium spindle work; the Ti-coated 15 x 15 mm 10015508 carries a longer edge for larger blanks and heavier passes. HOLZMANN does not state a titanium coating for the 10015510. For curves, coves and bowl interiors the round tips 10015511, 10015506 and 10015509 are the correct choice, and the diamond tip 10015507 handles points and V-grooves.

Delivery

The 10015510 arrives as one carbide tip, 0.02 kg net and 0.04 kg gross, with no handle, tool bar or fixing screw. Carbide seats differ between tool makes, so check the pocket shape and screw size on the turning tool before ordering.

ძირითადი მახასიათებლები

  • Square carbide tip, 11.3 x 11.1 mm - the compact square size in the HOLZMANN turning range
  • 0.02 kg net and 0.04 kg gross, the same light class as the Ø 12 mm round tip 10015506
  • About a quarter less edge length per side than the 15 x 15 mm 10015508, so it pulls less on light bars
  • Straight edge for clean cylinders, square shoulders, straight tapers and flat box bottoms
  • Packed 41 x 98 x 10 mm - the small-tip carton, not the 58 x 138 x 10 mm box of the larger geometries
  • Article 10015510 is the square counterpart to the Ø 6 mm 10015511 for small-scale work

ტექნიკური მახასიათებლები

Cutter shape
Square
Cutter size
11.3 x 11.1 mm
Material
Carbide
Net weight
0.02 kg
Gross weight
0.04 kg
HOLZMANN article number
10015510

უპირატესობები

  • Compact 11.3 x 11.1 mm square edge is controllable on light tools and small lathes
  • Straight edge cuts clean cylinders, shoulders and flat bottoms
  • Replaced with a screwdriver - no grinding, honing or jig setup

გასათვალისწინებელი

  • No titanium coating specified, unlike the larger 15 x 15 mm 10015508
  • Small edge is not the tool for heavy roughing of large blanks
  • Tip only - no handle, tool bar or fixing screw, and the seat must match the existing tool

ხშირად დასმული კითხვები

Does the HOLZMANN 10015510 carbide tip need 230 V or 400 V?
Neither. The HOLZMANN 10015510 is a passive carbide cutting tip with no motor and no electrical connection. The 10015510 behaves the same on a 230 V single-phase lathe as on a 400 V three-phase lathe, because only the lathe is powered.
What does the HOLZMANN 10015510 not do?
The HOLZMANN 10015510 is a small square cutter. The 10015510 will not follow curved profiles such as coves and bowl walls, will not reach into sharp internal corners, and is not intended for heavy roughing of large blanks - that is the 15 x 15 mm 10015508's job. It is supplied as the tip alone.
Should a workshop buy the 11.3 x 11.1 mm or the 15 x 15 mm square tip?
Choose the HOLZMANN 10015510 for lighter turning tools, small lathes and thinner spindle sections, where the smaller cutter is easier to control. Choose the Ti-coated 15 x 15 mm 10015508 for larger blanks, longer straight tapers and heavier passes.
Is the HOLZMANN 10015510 titanium coated?
HOLZMANN's catalogue line for the 10015510 describes it as a carbide square tip of 11.3 x 11.1 mm and carries no coating designation, so we make no claim about the finish of the 10015510 in either direction - an omitted line is not a statement that the coating is absent. If a coated square tip is specifically required, ask us to confirm the finish of the 10015510 with HOLZMANN before the order is placed, or specify the 15 x 15 mm 10015508, which HOLZMANN does list as Ti-coated.
Will the HOLZMANN 10015510 fit any carbide turning tool?
Not automatically. The HOLZMANN 10015510 seats in a specific pocket and is held by a specific screw, and these vary between tool brands. Confirm the seat shape and screw size on the existing turning tool, or check with the dealer, before ordering the 10015510.
What determines the price of the HOLZMANN 10015510 square tip?
The price of the HOLZMANN 10015510 11.3 x 11.1 mm square carbide tip is driven by the quantity ordered, by the size and grade relative to the larger 15 x 15 mm 10015508, by HOLZMANN's current list price and the exchange rate at the date of order, by whether the tips consolidate with a larger shipment, and by the customs and tax treatment at landing. Send the quantity you need and we will price the 10015510 against it.
How quickly can the HOLZMANN 10015510 be supplied?
The HOLZMANN 10015510 is ordered in against its HOLZMANN article number and the current lead time for the 10015510 is confirmed at quotation. We publish no delivery window in advance, as it follows HOLZMANN's order book and the way the consignment is combined. Ask for the current position with your enquiry.
Is there an installation or commissioning cost for the HOLZMANN 10015510?
No. The HOLZMANN 10015510 is a cutter inserts that bolts into the square pocket of an existing turning tool, so nothing is sited, levelled, wired or connected to extraction and no commissioning is charged. The only pre-order check on the 10015510 is that the tool's pocket accepts the 11.3 x 11.1 mm size.
What else should a small workshop budget with the HOLZMANN 10015510?
Alongside the HOLZMANN 10015510 budget for the square-pocket bar and handle, spare retaining screws, and the shapes the square tip cannot cut: the Ø 6 mm 10015511 for tight coves and small hollows, the Ø 12 mm 10015506 for general curves, and the 28 x 10 mm diamond 10015507 for V-grooves and sharp corners. As a consumable, the 10015510 should be budgeted as a recurring line, not a one-off.
