10015508 — HOLZMANN 10015508 Carbide Square Turning Tip 15 x 15 mm 1 / 3

HOLZMANN

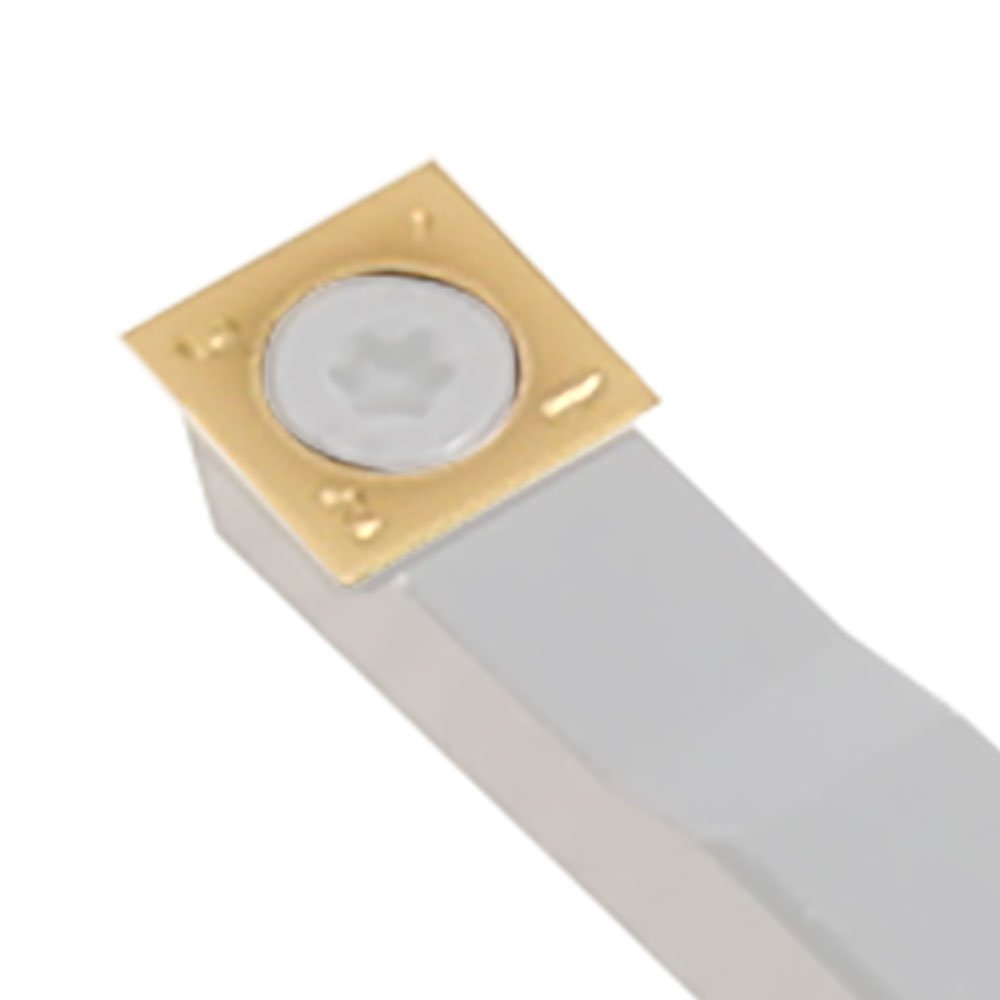

HOLZMANN 10015508 Carbide Square Turning Tip 15 x 15 mm

10015508

Fifteen millimetres of straight edge per side is what separates the HOLZMANN 10015508 from the 11.3 x 11.1 mm 10015510 - about a third more edge, and 0.05 kg of titanium-coated carbide against 0.02 kg. The 10015508 is the square tip for bringing larger blanks down to a cylinder.

ფასი მოთხოვნით

Price on the 10015508 is driven by order quantity, by the Ti-coated 15 x 15 mm size relative to the smaller square tip, by HOLZMANN's current list price and the exchange rate, by freight consolidation, and by the customs and tax treatment at landing.

ფასის მოთხოვნა

What the HOLZMANN 10015508 carbide square tip is

The HOLZMANN 10015508 is a Ti-coated carbide square turning tip measuring 15 x 15 mm, supplied as a single replacement cutter for carbide-insert wood turning tools. The 10015508 is the larger of the two HOLZMANN square tips and is fixed to the bar of an existing tool, so the edge is replaced rather than sharpened.

Where a 15 x 15 mm square tip is used

A square cutter presents a straight edge and two working corners, which is what flat work needs. The 10015508 is used for roughing a blank down to a cylinder, cutting straight tapers, squaring shoulders and flattening the bottom of a bowl or box, all cuts where a round tip would leave a curve behind. The 15 x 15 mm size gives a long straight edge and a large carbide body, so the 10015508 is the square tip for heavier, faster stock removal.

Choosing between the HOLZMANN square tips

HOLZMANN offers two square carbide tips: the Ti-coated 15 x 15 mm 10015508 and the smaller 11.3 x 11.1 mm 10015510. The 10015508 suits larger blanks and longer straight cuts, while the 10015510 works on lighter tools and smaller spindle sections. Curved surfaces call for the round tips 10015511, 10015506 or 10015509 instead, and the 28 x 10 mm diamond tip 10015507 covers sharp corners and V-grooves.

Delivery

The 10015508 is delivered as one carbide tip weighing 0.05 kg net and 0.08 kg gross, without handle, bar or fixing screw. Seat geometry and screw size vary between turning tools, so confirm the match with the tool already in the workshop before ordering.

ძირითადი მახასიათებლები

  • Square carbide tip, 15 x 15 mm - four 15 mm straight edges, against 11.3 x 11.1 mm on the 10015510
  • Titanium coated, as HOLZMANN specifies for this square size
  • 0.05 kg net and 0.08 kg gross - the heaviest square tip in the range, level with the Ø 16 mm 10015509
  • The longer edge takes more per pass on cylinders, long straight tapers and squared shoulders
  • Straight edge and working corners for flat-bottomed recesses a round cutter would leave radiused
  • Packed 58 x 138 x 10 mm, the larger of HOLZMANN's two turning-tip carton sizes

ტექნიკური მახასიათებლები

Cutter shape
Square
Cutter size
15 x 15 mm
Coating
Ti-coated
Material
Carbide
Net weight
0.05 kg
Gross weight
0.08 kg
HOLZMANN article number
10015508

უპირატესობები

  • Long 15 mm straight edge for fast, clean cylinders, tapers and shoulders
  • Titanium coating slows edge wear in abrasive and resinous timber
  • Largest square carbide tip in the HOLZMANN range - the heavy-duty option of the two

გასათვალისწინებელი

  • Square geometry cannot follow coves, beads or bowl interiors
  • Larger cutter loads the tool more - light tools and small lathes suit the 10015510 better
  • Tip only: no handle, tool bar or fixing screw, and fit is not universal

ხშირად დასმული კითხვები

Does the HOLZMANN 10015508 carbide tip need 230 V or 400 V?
Neither. The HOLZMANN 10015508 is a carbide cutting tip with no motor and no electrical connection. The 10015508 is unaffected by whether the lathe it is used on runs on 230 V single-phase or 400 V three-phase power - only the lathe needs a supply.
What does the HOLZMANN 10015508 not do?
The HOLZMANN 10015508 is a square cutter, so it does not follow curves cleanly: coves, beads and bowl interiors need the round tips, and sharp internal corners need the diamond tip. The 10015508 is also the cutting tip alone - no handle, tool bar or fixing screw is included.
When is the 15 x 15 mm square tip better than the 11.3 x 11.1 mm?
The HOLZMANN 10015508 carries a longer straight edge and more carbide, so it suits larger blanks, longer straight tapers and heavier passes. The smaller 10015510 at 11.3 x 11.1 mm is the better match for lighter tools, thinner spindle sections and small lathes.
Can the HOLZMANN 10015508 be used for roughing?
Yes - a square tip is the usual choice for bringing a blank down to a cylinder, and at 15 x 15 mm the HOLZMANN 10015508 is the larger and more capable of the two HOLZMANN square cutters for that job. For roughing curved bowl blanks the Ø 16 mm round cutter 10015509 is the alternative.
Will the HOLZMANN 10015508 fit an existing carbide turning tool?
Only if the seat matches. The HOLZMANN 10015508 sits in a specific pocket and is retained by a specific screw, and these differ between tool makes. Check the pocket shape and screw size on the workshop's turning tool, or ask the dealer, before ordering the 10015508.
What drives the cost of the HOLZMANN 10015508 square turning tip?
The cost of the HOLZMANN 10015508 15 x 15 mm Ti-coated square tip depends on the quantity ordered, on the size and coated grade (the smaller 11.3 x 11.1 mm 10015510 prices differently), on HOLZMANN's current list price and the exchange rate at order date, on whether the tips are consolidated with other freight, and on the customs and tax treatment at landing. Tell us the quantity and we will price the 10015508 against it.
What is the lead time on the HOLZMANN 10015508?
The HOLZMANN 10015508 is ordered against its HOLZMANN article number and the current lead time is confirmed at the time of quotation. We do not publish a delivery window for the 10015508 ahead of the order, since it follows HOLZMANN's order book and how the shipment is combined. Request the current position with your pricing enquiry.
Is any installation or commissioning charged on the HOLZMANN 10015508?
No. The HOLZMANN 10015508 is a replacement cutter inserts, fitted by unscrewing the worn tip and bolting the new 15 x 15 mm tip into the same pocket. Nothing is sited, levelled, wired or connected to extraction, and there is no commissioning fee associated with the 10015508.
What tooling should be budgeted alongside the HOLZMANN 10015508?
Budget beyond the HOLZMANN 10015508 for the square-pocket tool bar and handle it seats in, spare retaining screws, and the geometries it cannot cut: the round tips 10015511, 10015506 and 10015509 for coves, beads and bowl walls, and the 28 x 10 mm diamond 10015507 for V-grooves and sharp internal corners. Carbide tips are consumables, so plan on repeat orders of the 10015508 rather than one.
