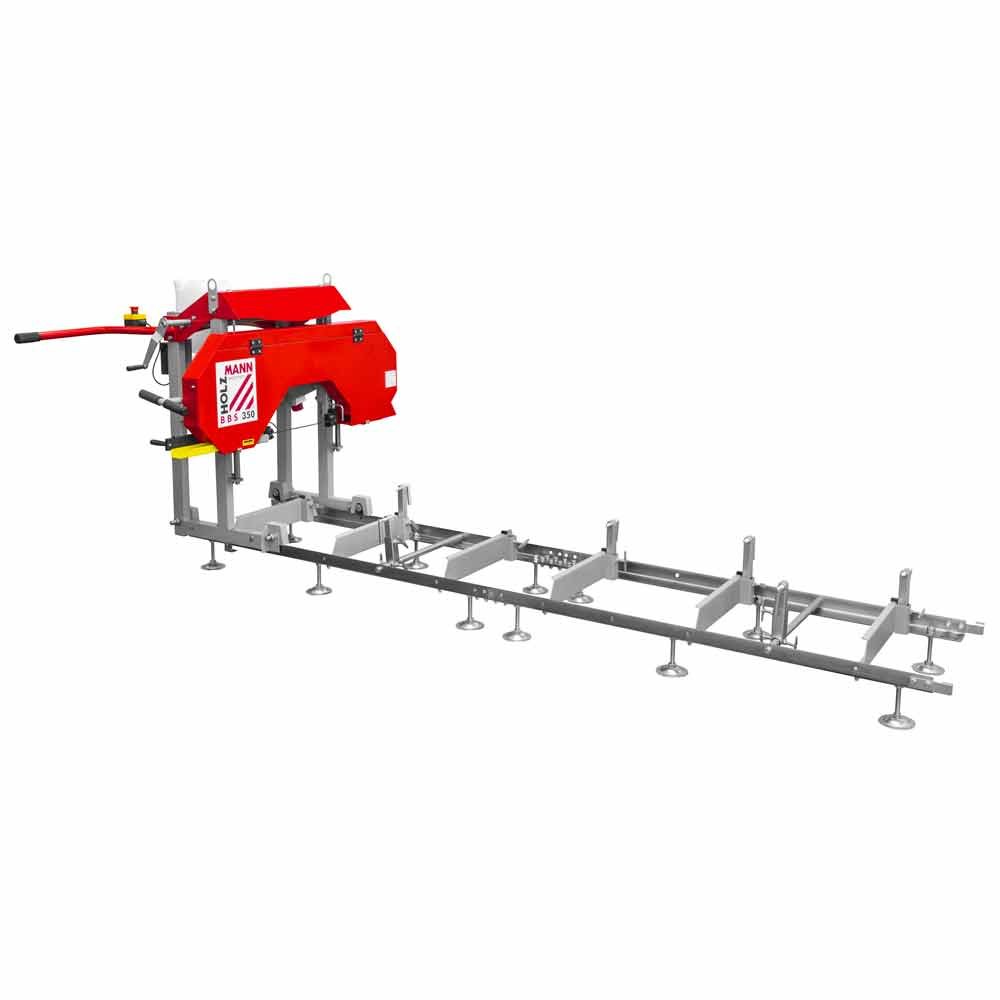

HOLZMANN BBS350 Head Band Saw – 360 mm Log Capacity, 230V or 400V

BBS350 — HOLZMANN BBS350 Head Band Saw – 360 mm Log Capacity, 230V or 400V 1 / 4

Single-phase power is what separates the BBS350 from every other mill here: it is offered as BBS350_230V as well as BBS350_400V. Its 2200 W motor pulls a 2750 x 19 x 0.9 mm band at 840 m/min over Ø350 mm flywheels, milling logs to Ø360 mm across a 2.4 m standard cut on 1.5 m track sections.

ძრავის სიმძლავრე
2.2 kW
ძაბვა
400V
გაბარიტები
3100 x 1450 x 1220 mm
წონა
170 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The BBS350 price is driven by the voltage version chosen (400 V three-phase or 230 V single-phase), the number of 1.5 m track extension sections beyond the 2.4 m standard cut, the quantity of spare 2750 x 19 x 0.9 mm bands ordered with it, and transport with offloading of a 210 kg gross crate.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN BBS350 does

The HOLZMANN BBS350 turns round logs into boards, beams and cants on site, and it is the smallest and most accessible mill in the HOLZMANN head band saw range. The BBS350 accepts logs up to 360 mm in diameter, opens 350 mm between the blade guides and cuts 2.4 m long in its standard configuration. Because the track is built from 1.5 m sections, the cutting length of the BBS350 depends on how many extension sections are fitted.

Cutting and accuracy

The BBS350 runs a 2750 x 19 x 0.9 mm band at 840 m/min, with a kerf of 1.5-2.2 mm. A thin kerf matters on a small mill: less of every log is turned into sawdust, which is the main economic argument for a band mill over a circular sawmill. One band handles all timber types on the BBS350, so there is no blade change between softwood and hardwood, dry or green stock. Cutting thickness is set by manual height adjustment of the saw head, and the frame is a solid, twist-free construction that keeps the band tracking straight through the cut.

Power supply and site use

The BBS350 is the only head band saw in this range offered in both 400V three-phase and 230V single-phase versions, from a modest 2.2 kW motor. For a small Georgian sawyer or a village workshop with no three-phase board, the 230V BBS350 removes the main obstacle to owning a log mill. At 170 kg net it is also the lightest powered mill here, and its 3100 x 1450 x 1220 mm footprint fits a yard or open shed.

How the BBS350 compares in the HOLZMANN range

The BBS350 is a small-log machine. The HOLZMANN BBS550SMART takes logs up to 550 mm with a 5.5 kW motor, and the BBS810SMART reaches 810 mm; both are heavier, three-phase-only machines with 2 m track sections. Choose the BBS350 for orchard timber, fence posts, small construction stock and hobby milling; step up to the BBS550SMART when logs regularly exceed 360 mm.

Maintenance and who the BBS350 suits

Maintenance requirements on the BBS350 are low, which suits owners who mill seasonally rather than daily. The BBS350 suits small sawmills, farms and joineries in Georgia that buy logs locally and want to saw their own boards instead of paying for milled timber.

ძირითადი მახასიათებლები

  • Ø360 mm maximum log diameter with a 350 mm opening between the blade guides - the entry capacity of the HOLZMANN head band saw range
  • 2200 W S1 motor, ordered either as BBS350_400V (400 V / 3 / 50 Hz) or as the single-phase BBS350_230V
  • 2750 x 19 x 0.9 mm saw band, the narrowest and thinnest in this range, driven at 840 m/min
  • Compact Ø350 mm flywheels, where the 550, 810 and 920 mm machines run Ø475 mm wheels
  • Track built from 1.5 m sections, giving a 2.4 m standard cutting length
  • 1.5-2.2 mm kerf from a 19 mm band keeps sawdust loss low on small-diameter logs
  • Manual height (thickness) adjustment and hand feed of the saw head
  • 170 kg net / 210 kg gross on a 3100 x 1450 x 1220 mm footprint - the lightest powered mill in the range

ტექნიკური მახასიათებლები

Motor power S1
2200 W
Voltage
400 V / 3 / 50 Hz
Total dimensions
3100 x 1450 x 1220 mm
Saw band
2750 x 19 x 0.9 mm
Saw band speed
840 m/min
Flywheel diameter
350 mm
Max. log diameter
360 mm
Max. opening between blade guides
350 mm
Track section
1.5 m
Kerf thickness
1.5-2.2 mm
Net weight
170 kg
Gross weight
210 kg
EAN code (400V version)
9120058376924
EAN code (230V version)
9120058378492

უპირატესობები

  • The only HOLZMANN head band saw in this class offered in a 230V single-phase version
  • Lightest powered mill in the range at 170 kg, easy to site in a yard or open shed
  • Thin 1.5-2.2 mm kerf and a single band type for all timber keep running costs low

გასათვალისწინებელი

  • Manual height adjustment and manual feed; no powered feed or log handling
  • Limited to 360 mm log diameter and 350 mm guide opening
  • 2.2 kW motor means slower cutting in large hardwood than the 5.5 kW BBS550SMART

ხშირად დასმული კითხვები

Is the HOLZMANN BBS350 available for 230V single-phase power?
Yes. The HOLZMANN BBS350 is listed as BBS350_400V for a 400 V / 3 / 50 Hz three-phase supply and as BBS350_230V for single-phase, each with its own EAN. That makes the BBS350 the entry point of the HOLZMANN head band saw range for workshops and farms without three-phase power; the larger BBS550SMART and BBS810SMART are catalogued only in 400 V three-phase versions, with the petrol-engined BBS550SMART-G and BBS810SMART-G as the off-grid alternatives.
How long a log can the BBS350 cut?
In its standard configuration the HOLZMANN BBS350 cuts up to 2.4 m. The track of the BBS350 is made of 1.5 m sections, so the cutting length depends on how many extension sections are added.
What does the BBS350 not do?
The HOLZMANN BBS350 does not feed itself: height (thickness) adjustment and feeding of the saw head are manual, and there is no electric or hydraulic log handling. The BBS350 also does not plane, edge or cut logs over 360 mm in diameter.
Does the BBS350 need a different blade for hardwood?
No. All types of timber can be cut with the same band on the HOLZMANN BBS350, whether soft, hard, dry or green. The BBS350 takes 2750 x 19 x 0.9 mm bands and cuts a kerf of 1.5-2.2 mm.
How much timber is lost per cut on the BBS350?
The HOLZMANN BBS350 cuts a kerf of 1.5-2.2 mm, far less than a circular sawmill, so more of each log becomes usable board. This is the main yield advantage of the BBS350 for a small sawyer.
Can one person operate and move the BBS350?
The HOLZMANN BBS350 weighs 170 kg net and measures 3100 x 1450 x 1220 mm, so it can be assembled and relocated within a yard by two people, but logs up to 360 mm still need to be rolled and clamped by hand.
What determines the price of a HOLZMANN BBS350?
The quoted price of the HOLZMANN BBS350 moves with four things: the voltage version (BBS350_400V three-phase or BBS350_230V single-phase), how many 1.5 m track extension sections are added above the 2.4 m standard cutting length, the number of spare 2750 x 19 x 0.9 mm saw bands and sharpening equipment ordered with it, and delivery with offloading of the 210 kg gross crate at your yard. Send us your intended log length and supply type and we quote that exact BBS350 configuration.
How soon can a BBS350 be delivered?
The HOLZMANN BBS350 is built to order, and the current lead time for the BBS350 is confirmed at quotation together with the transport arrangement to your site. We do not publish a standing delivery period, because it depends on the configuration ordered and on the consignment the machine travels in.
What is involved in installing and commissioning a BBS350?
Installing the HOLZMANN BBS350 means levelling and aligning its 1.5 m track sections on firm ground over roughly 3100 x 1450 x 1220 mm, having the 400 V or 230 V supply connected by a qualified electrician, then tensioning the band, tracking it on the Ø350 mm flywheels, setting the blade guides and cutting a trial log. Commissioning support and operator familiarisation on the BBS350 are agreed as part of the quotation.
What should be budgeted alongside the BBS350 itself?
Alongside the HOLZMANN BBS350 budget for a rotation of spare 2750 x 19 x 0.9 mm saw bands rather than a single band, band sharpening and setting equipment or a sharpening service, extra 1.5 m track sections if you cut beyond 2.4 m, cant hooks and log-handling tools, and operator PPE. We price these with the BBS350 so the working total is known before you commit.
