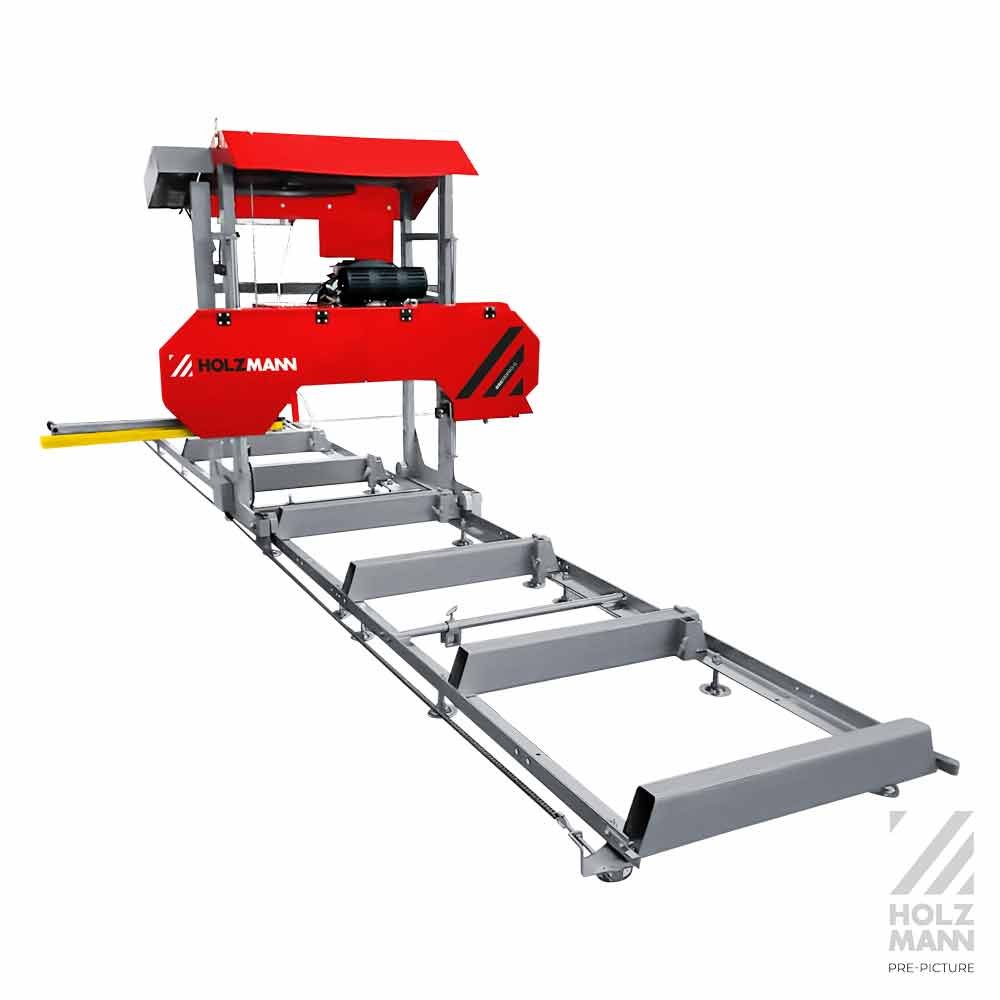

HOLZMANN BBS920PRO-G Petrol Head Band Saw – 920 mm Logs, Powered Feed

BBS920PRO-G — HOLZMANN BBS920PRO-G Petrol Head Band Saw – 920 mm Logs, Powered Feed

At 16800 W, the RATO R740D engine of 739 ccm is the strongest drive in this range and frees the BBS920PRO-G from any mains connection, electric height adjustment and electric saw-unit feed included. It mills Ø920 mm logs at 1080 m/min, carries a roughly 2 l coolant tank and weighs 542 kg net.

ძრავის სიმძლავრე
16.8 kW
წონა
542 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

What moves the BBS920PRO-G price is the optional BBS92O_RB track extension beyond the 5.2 m basic cut, the number of 4136 x 34 x 1.1 mm bands and the sharpening equipment specified, log-handling gear for Ø920 mm logs, and transport with crane or heavy forklift offloading of a 621 kg gross crate to the sawing site.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN BBS920PRO-G does

The HOLZMANN BBS920PRO-G is the top of the HOLZMANN log mill range and the only model here that removes manual work from the cut. Soft, hard, dry or frozen wood up to Ø920 mm in diameter is handled with a 780 mm opening between the blade guides, and the basic version already cuts 5.2 m long, so full construction beams come off in one pass. The BBS920PRO-G is aimed at sawyers who want precision and output from large logs rather than occasional milling.

Electric height adjustment and powered feed

Two features separate the BBS920PRO-G from every SMART model. Height and thickness adjustment on the BBS920PRO-G is electric, not a hand crank, and the saw unit is fed along the track electrically instead of being pushed by the operator. Together these make long cuts more consistent and far less tiring, which shows in board thickness accuracy over a 5.2 m log. A coolant tank of roughly 2 litres holds water or soapy water to keep the band clean in resinous timber.

Petrol power without a mains connection

The BBS920PRO-G runs a RATO R740D petrol engine of 739 ccm rated at 16.8 kW on ROZ95 / RON95 fuel, so the machine can work where no power supply is available. The band is 4136 x 34 x 1.1 mm running at 1080 m/min on Ø475 mm flywheels, and the kerf remains a thin 1.5-2.2 mm despite the machine’s size. All timber types are cut with the same band, and maintenance requirements are low.

How the BBS920PRO-G compares in the HOLZMANN range

Against the petrol BBS810SMART-G, the BBS920PRO-G adds 110 mm of log diameter, 60 mm more guide opening, a much larger engine, electric height adjustment and electric feed, at the cost of 542 kg net weight instead of 370 kg. Against the electric BBS920PRO, the BBS920PRO-G swaps a mains connection for a petrol tank. Track extension for the BBS920PRO-G is optionally available as BBS92O_RB.

Delivery and who the BBS920PRO-G suits

The BBS920PRO-G is delivered with one saw band, plus operating fluids to be filled by the owner, and its 2 l coolant tank takes water or soapy water. The BBS920PRO-G suits commercial sawmills, timber merchants and beam producers in Georgia working large-diameter logs away from the grid.

ძირითადი მახასიათებლები

  • 16800 W RATO R740D petrol engine, 739 ccm, ROZ95 / RON95 - the strongest drive in this range
  • Electric height (thickness) adjustment and electric saw-unit feed powered by the machine itself, with no mains connection
  • Ø920 mm log capacity through a 780 mm blade-guide opening
  • Coolant tank of approximately 2 l for water or soapy water, listed for this version
  • 4136 x 34 x 1.1 mm band running at 1080 m/min
  • Basic version cuts 5.2 m; a track extension is optionally available under the published code BBS92O_RB
  • 542 kg net / 621 kg gross, 22 kg above the electric BBS920PRO
  • Sound power 98 dB(A) and sound pressure 89 dB(A)
  • 1 x saw band included; operating fluids filled by the owner

ტექნიკური მახასიათებლები

Motor power S1
16800 W
Engine type
RATO R740D
Displacement
739 ccm
Fuel type
ROZ95 / RON95
Saw band
4136 x 34 x 1.1 mm
Saw band speed
1080 m/min
Flywheel diameter
Ø 475 mm
Max. log diameter
Ø 920 mm
Max. opening between blade guides
780 mm
Track section
2 m
Kerf thickness
1.5 - 2.2 mm
Sound power level
98 dB(A)
Sound pressure level
89 dB(A)
Net weight
542 kg
Gross weight
621 kg
EAN code
9120132141158

უპირატესობები

  • Electric height adjustment and electric saw unit feed remove the hardest manual work and improve thickness accuracy
  • Ø920 mm log capacity with a 5.2 m basic cutting length, the largest in this HOLZMANN range
  • 16.8 kW RATO R740D petrol engine allows full production milling with no mains connection

გასათვალისწინებელი

  • 542 kg net weight makes the BBS920PRO-G a serious transport and setup job
  • Petrol operation brings fuel cost, exhaust and engine servicing, unlike the electric BBS920PRO
  • Log loading, turning and clamping remain manual; no hydraulic handling is fitted

ხშირად დასმული კითხვები

Does the HOLZMANN BBS920PRO-G need 230V or 400V power?
No. The HOLZMANN BBS920PRO-G is driven by a 16.8 kW RATO R740D petrol engine and works where no power supply is available. The electric height adjustment and electric feed of the BBS920PRO-G are supplied by the machine itself, so no mains connection is required; sawmills with a 400V three-phase supply can choose the electric HOLZMANN BBS920PRO version instead.
What makes the BBS920PRO-G different from the BBS810SMART-G?
The HOLZMANN BBS920PRO-G takes logs up to Ø920 mm instead of Ø810 mm, opens 780 mm between the guides instead of 720 mm, and replaces manual work with electric height adjustment and electric saw unit feed. The BBS920PRO-G is also much heavier, at 542 kg net against 370 kg for the BBS810SMART-G.
How long can the BBS920PRO-G cut?
The basic version of the HOLZMANN BBS920PRO-G cuts 5.2 m, the same standard cutting length as the electric BBS920PRO and the longest offered in this range. Track sections for the BBS920PRO-G are 2 m long, and a track extension is optionally available under the code published by HOLZMANN as BBS92O_RB.
What does the BBS920PRO-G not do?
The HOLZMANN BBS920PRO-G does not load, turn or clamp logs hydraulically, and it does not edge, plane or dry the boards it cuts. The BBS920PRO-G is a milling machine only: log handling and further processing need separate equipment.
What is the coolant tank on the BBS920PRO-G for?
The HOLZMANN BBS920PRO-G has a coolant tank of about 2 litres that is filled with water or soapy water. The fluid keeps the band clean and cool when the BBS920PRO-G cuts resinous or green timber.
What is included with the HOLZMANN BBS920PRO-G?
The HOLZMANN BBS920PRO-G is delivered with one saw band; operating fluids, including fuel to ROZ95 / RON95 specification and the coolant for the 2 l tank, are filled by the owner.
What does a BBS920PRO-G quotation depend on?
The HOLZMANN BBS920PRO-G is a quotation item, and the figure depends on whether the optional BBS92O_RB track extension is added beyond the 5.2 m basic cut, the number of 4136 x 34 x 1.1 mm saw bands and the sharpening equipment specified, log-handling gear for Ø920 mm logs, and transport with crane or heavy forklift offloading of a 621 kg gross crate. The BBS920PRO-G needs no electrical installation, which the 400 V BBS920PRO does.
How long before a BBS920PRO-G reaches site?
The HOLZMANN BBS920PRO-G is built to order, and the lead time for the BBS920PRO-G is confirmed at quotation together with the transport method. A 621 kg gross crate needs mechanical offloading, so we agree the unloading arrangement at the same time as the delivery date.
What is needed to commission a BBS920PRO-G in a field or forest yard?
Commissioning the HOLZMANN BBS920PRO-G calls for firm, level, load-bearing ground along the whole track, aligned 2 m sections, a safe store for ROZ95 / RON95 fuel and engine oil, water or soapy water for the roughly 2 l coolant tank, and running-in of the RATO R740D engine. There is no electrical work: the BBS920PRO-G powers its own height adjustment and saw-unit feed.
What consumables and spares belong in the BBS920PRO-G budget?
For the HOLZMANN BBS920PRO-G, budget fuel and engine oil plus air and oil filters for the RATO R740D, coolant for the 2 l tank, and a rotation of 4136 x 34 x 1.1 mm saw bands with sharpening and setting - only one band is included. Log-handling equipment sized for Ø920 mm logs and PPE complete the BBS920PRO-G budget, and we quote each line separately.
