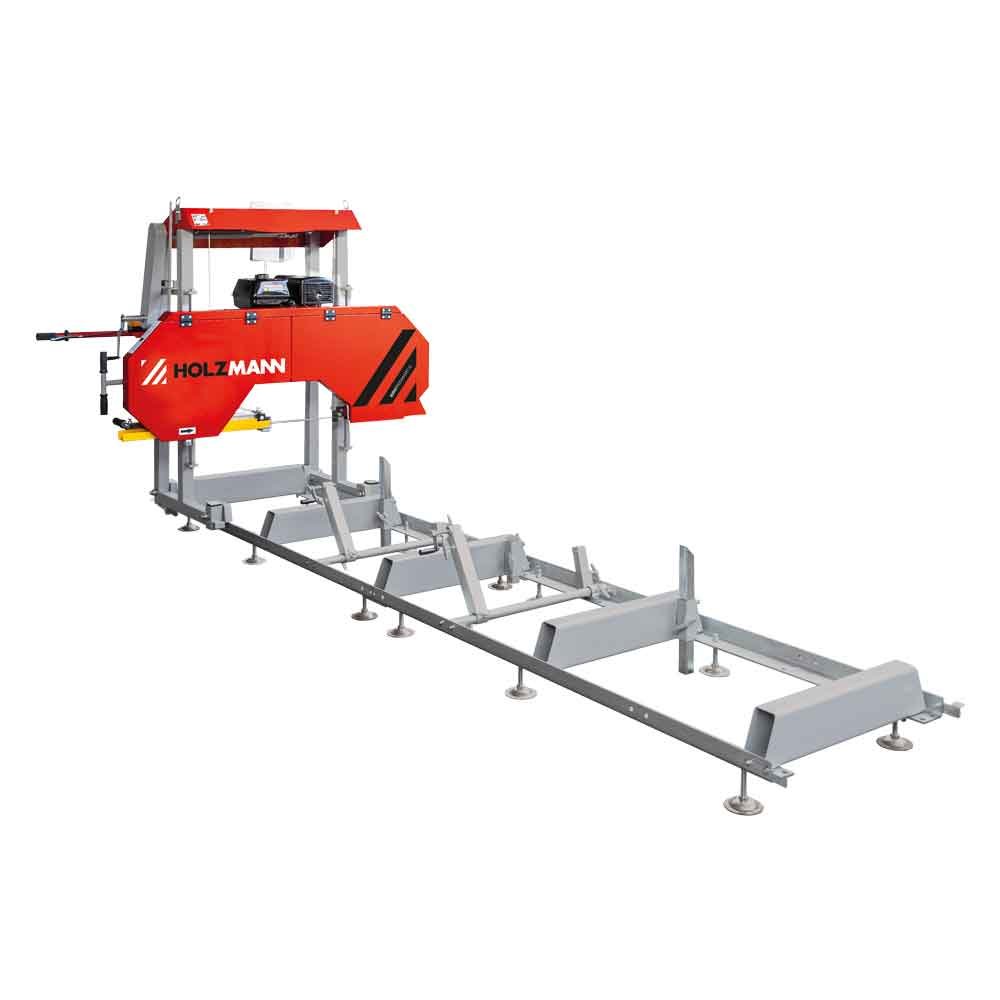

HOLZMANN BBS810SMART-G Petrol Head Band Saw – 810 mm Log Capacity

BBS810SMART-G — HOLZMANN BBS810SMART-G Petrol Head Band Saw – 810 mm Log Capacity

Fuel, not cable: the BBS810SMART-G carries a 9000 W Loncin G420F engine with a 6.5 l ROZ 95 (EN228) tank, so Ø810 mm logs can be milled where no supply exists. Its band runs at 1200 m/min, 120 m/min faster than the electric BBS810SMART, through a 720 mm guide opening, and 1050 mm is the shortest workpiece it holds.

ძრავის სიმძლავრე
9 kW
გაბარიტები
4260 x 1950 x 1900 mm
წონა
370 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The BBS810SMART-G price is driven by the number of 2 m track sections specified, the spare 4015 x 34 x 1.1 mm bands and sharpening equipment taken with it, log-handling gear, and transport with mechanical offloading of a 418 kg gross crate at what is usually a remote sawing site.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN BBS810SMART-G does

The HOLZMANN BBS810SMART-G mills large logs where there is no electricity. Designed for cutting soft, hard, dry, raw or frozen timber and wooden prisms, the BBS810SMART-G takes logs up to Ø810 mm and opens 720 mm between the blade guides, which is enough for wide slabs and heavy structural beams. The minimum workpiece length is 1050 mm, and the shortest usable log on the BBS810SMART-G is therefore just over one metre.

Petrol drive and independence from the grid

The defining feature of the BBS810SMART-G is its Loncin G420F petrol engine, rated 9 kW, with a 6.5 litre tank running on ROZ 95 (EN228) fuel. That makes the BBS810SMART-G a machine for forest landings, mountain villages and building sites in Georgia where a 400V connection does not exist or would cost more than the mill. The petrol engine also drives the band faster than the electric sibling, at 1200 m/min against 1080 m/min on the BBS810SMART.

Cutting, track and yield

The BBS810SMART-G runs a 4015 x 34 x 1.1 mm band on Ø475 mm flywheels with a kerf of 1.5-2.2 mm, and all timber types are cut with the same band. Track sections are 2 m each, so the cutting length of the BBS810SMART-G depends on how many sections are fitted. Height (thickness) adjustment is manual, the frame is a solid twist-free construction, and maintenance requirements are low. Sound power level is 98 dB(A).

How the BBS810SMART-G compares in the HOLZMANN range

Choose the BBS810SMART-G over the electric BBS810SMART only for the power supply question: both take Ø810 mm logs and use the same band, but the BBS810SMART-G carries its own engine and 6.5 l of fuel, while the BBS810SMART needs a 400V three-phase connection. Against the smaller BBS550SMART-G, also petrol driven, the BBS810SMART-G adds 260 mm of log diameter and a stronger engine. The BBS920PRO-G sits above it with electric height adjustment and powered feed.

Delivery and who the BBS810SMART-G suits

The BBS810SMART-G is delivered with one saw band, weighs 370 kg net and measures 4260 x 1950 x 1900 mm assembled. The BBS810SMART-G suits contract sawyers, forestry operations and rural sawmills that move to the timber instead of hauling logs to a fixed mill.

ძირითადი მახასიათებლები

  • 9000 W Loncin G420F petrol engine with a 6.5 l ROZ 95 (EN228) tank - the Ø810 mm mill for sites with no supply
  • Band speed of 1200 m/min, against 1080 m/min on the electric BBS810SMART
  • Ø810 mm maximum log diameter, 720 mm guide opening, 4015 x 34 x 1.1 mm band
  • 1050 mm minimum workpiece length is published for this version
  • 370 kg net / 418 kg gross, 2 kg over the electric BBS810SMART
  • 4260 x 1950 x 1900 mm overall dimensions
  • Rated by HOLZMANN for soft, hard, dry, raw and frozen timber and for wooden prisms
  • 2 m track sections; cutting length depends on how many expanding sections are fitted
  • 1 x saw band supplied; hand-cranked height (thickness) adjustment; 98 / 89 dB(A)

ტექნიკური მახასიათებლები

Motor power S1
9000 W
Engine type
Loncin G420F
Fuel type
ROZ 95 (EN228)
Fuel capacity
6.5 l
Total dimensions
4260 x 1950 x 1900 mm
Min. workpiece length
1050 mm
Saw band
4015 x 34 x 1.1 mm
Saw band speed
1200 m/min
Flywheel diameter
Ø 475 mm
Max. log diameter
Ø 810 mm
Max. opening between blade guides
720 mm
Track section
2 m
Kerf thickness
1.5 - 2.2 mm
Sound power level
98 dB(A)
Sound pressure level
89 dB(A)
Net weight
370 kg
Gross weight
418 kg
EAN code
9120058379277

უპირატესობები

  • Runs anywhere on petrol, with a 9 kW Loncin G420F engine and 6.5 l tank, no electrical installation needed
  • Ø810 mm log capacity and 720 mm guide opening cover slabs and heavy beams
  • 1200 m/min band speed, faster than the electric BBS810SMART at 1080 m/min

გასათვალისწინებელი

  • Manual height adjustment and manual feed; no electric or hydraulic assistance
  • Petrol operation means fuel cost, exhaust and engine servicing that an electric mill avoids
  • 370 kg net and 4260 x 1950 x 1900 mm assembled, so relocation requires transport and setup time

ხშირად დასმული კითხვები

Does the HOLZMANN BBS810SMART-G need a 230V or 400V electricity supply?
No. The HOLZMANN BBS810SMART-G is driven by a 9 kW Loncin G420F petrol engine with a 6.5 litre tank and runs with no connection to the mains at all. Buyers who do have a 400V three-phase supply and prefer electric operation should choose the HOLZMANN BBS810SMART instead, which is the same 810 mm machine with a 7.5 kW electric motor.
What size logs does the BBS810SMART-G handle?
The HOLZMANN BBS810SMART-G takes logs up to Ø810 mm in diameter and opens 720 mm between the blade guides. The minimum workpiece length for the BBS810SMART-G is 1050 mm.
What does the BBS810SMART-G not do?
The HOLZMANN BBS810SMART-G does not adjust cutting height electrically and has no powered feed or hydraulic log handling; height setting and feeding are manual. The BBS810SMART-G also does not edge, plane or dry the boards it produces. For electric height adjustment and electric saw unit feed, the HOLZMANN BBS920PRO-G is the model in this range.
Can the BBS810SMART-G cut frozen wood?
Yes. The HOLZMANN BBS810SMART-G is designed for soft, hard, dry, raw and frozen timber as well as wooden prisms, and all of these are cut with the same 4015 x 34 x 1.1 mm band.
How long can the BBS810SMART-G cut?
The cutting length of the HOLZMANN BBS810SMART-G depends on the number of expanding track sections fitted; each section of the BBS810SMART-G track measures 2 m.
What is supplied with the HOLZMANN BBS810SMART-G?
The HOLZMANN BBS810SMART-G is delivered with one saw band. Fuel to ROZ 95 (EN228) specification, engine oil and spare bands are supplied by the operator.
How is a HOLZMANN BBS810SMART-G priced?
The HOLZMANN BBS810SMART-G is supplied on quotation rather than at a fixed catalogue figure, and the price follows the number of 2 m track sections you specify, the spare 4015 x 34 x 1.1 mm bands and sharpening equipment included, log-handling gear, and transport with mechanical offloading of a 418 kg gross crate. Unlike the electric BBS810SMART, the BBS810SMART-G carries no electrical installation cost, because its 9 kW Loncin G420F engine needs no mains connection.
How quickly can the BBS810SMART-G be supplied?
The HOLZMANN BBS810SMART-G is built to order and its current lead time is confirmed at quotation. We also quote delivery of the BBS810SMART-G directly to the forest yard or landing where it will work, since that is usually where a petrol-driven mill is set up.
What has to be prepared before the BBS810SMART-G is commissioned?
For the HOLZMANN BBS810SMART-G, prepare level, load-bearing ground for about 4260 x 1950 x 1900 mm plus room to roll Ø810 mm logs alongside, a safe fuel store for ROZ 95 (EN228) petrol, and clear exhaust ventilation. Commissioning the BBS810SMART-G then covers track levelling and alignment, band tensioning and tracking, guide setting, engine run-in and a trial cut.
What running costs should be planned for the BBS810SMART-G?
Running the HOLZMANN BBS810SMART-G means petrol for the 6.5 l tank, engine oil and filters for the Loncin G420F, and a rotation of 4015 x 34 x 1.1 mm saw bands with sharpening and setting - only one band is supplied with the machine. Log-handling tools and PPE complete the picture, and we quote all of these with the BBS810SMART-G rather than leaving them to be discovered later.
