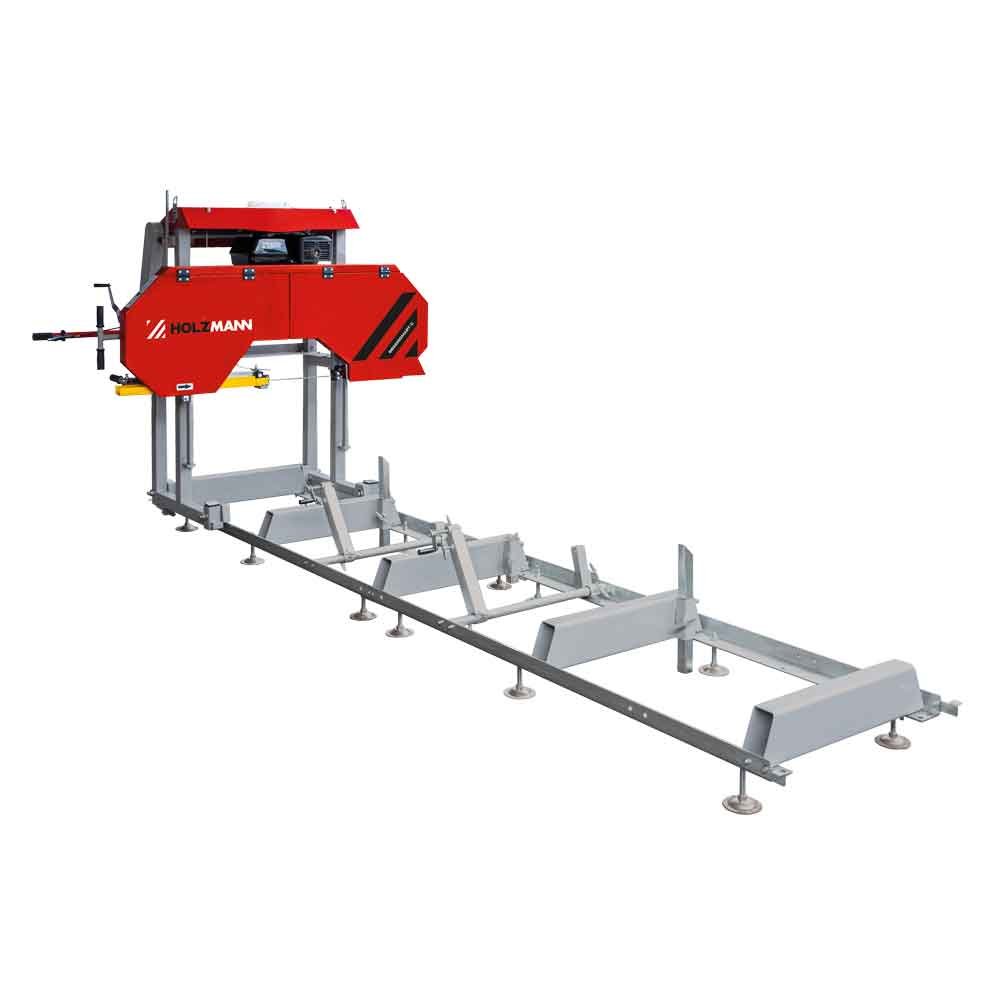

HOLZMANN BBS550SMART-G Petrol Head Band Saw – 550 mm Log Capacity

BBS550SMART-G — HOLZMANN BBS550SMART-G Petrol Head Band Saw – 550 mm Log Capacity 1 / 3

An 8200 W Loncin G390F engine of 389 ccm, fed from a 6.5 l tank of ROZ 95 (EN228), is what makes the BBS550SMART-G the 550 mm mill for sites with no electricity at all. Band speed rises to 1200 m/min against 1080 m/min on the electric BBS550SMART, and it weighs 355 kg net over 4260 x 1780 x 1700 mm.

ძრავის სიმძლავრე
8.2 kW
გაბარიტები
4260 x 1780 x 1700 mm
წონა
355 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The BBS550SMART-G price is moved by the number of 2 m track sections specified, the spare 3658 x 32 x 1.1 mm bands and sharpening kit taken with it, log-handling equipment, and the transport and offloading of a 407 kg gross crate to what is often a remote site - no electrical installation cost applies to this version.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the HOLZMANN BBS550SMART-G does

The HOLZMANN BBS550SMART-G brings mid-size log milling to places with no electricity. Equipped with a powerful petrol engine for non-electric operation, the BBS550SMART-G can be set up in a forest clearing, a mountain village or a building site and still cut logs up to Ø550 mm into boards and beams, with 530 mm of opening between the blade guides and a minimum workpiece length of 1050 mm.

The petrol engine and what it changes

The BBS550SMART-G carries a Loncin G390F engine of 389 ccm rated at 8.2 kW, running on ROZ 95 (EN228) fuel from a 6.5 litre tank. Compared with the electric BBS550SMART, which uses a 5.5 kW motor on 400V, the petrol version of the BBS550SMART-G drives the band faster at 1200 m/min instead of 1080 m/min, and it adds about 20 kg to the machine. What it costs is fuel, exhaust and engine maintenance; what it buys is complete independence from the installation location.

Band, kerf and track

The BBS550SMART-G uses a 3658 x 32 x 1.1 mm band on Ø475 mm flywheels with a kerf of 1.5-2.2 mm, so very little of each log is turned into sawdust. All timber types are cut with the same band, and the twist-free frame keeps long cuts parallel. Height and thickness adjustment on the BBS550SMART-G is manual, and the track is built from 2 m sections, so cutting length depends on how many expanding sections are fitted.

How the BBS550SMART-G compares in the HOLZMANN range

The BBS550SMART-G is the smaller of the two petrol SMART mills. The HOLZMANN BBS810SMART-G takes logs up to Ø810 mm with a 9 kW engine and is correspondingly larger and heavier, while the BBS920PRO-G adds electric height adjustment and electric saw unit feed. If the yard has three-phase power, the electric BBS550SMART is the cheaper machine to run.

Delivery and who the BBS550SMART-G suits

The BBS550SMART-G is delivered with one saw band, weighs 355 kg net and measures 4260 x 1780 x 1700 mm assembled, at 98 dB(A) sound power level with low maintenance requirements. The BBS550SMART-G suits mobile sawyers, farms and forestry contractors in Georgia who mill where the timber falls.

ძირითადი მახასიათებლები

  • 8200 W Loncin G390F petrol engine, 389 ccm, ROZ 95 (EN228) fuel, 6.5 l tank - runs with no mains connection
  • 1200 m/min band speed, 120 m/min above the electric BBS550SMART
  • Ø550 mm logs through a 530 mm blade-guide opening
  • 3658 x 32 x 1.1 mm saw band on Ø475 mm flywheels
  • 355 kg net / 407 kg gross, 4260 x 1780 x 1700 mm assembled
  • Track in 2 m sections; cutting length follows the number of expanding sections fitted
  • 1050 mm shortest workpiece the machine will hold
  • Measured at 98 dB(A) sound power and 89 dB(A) sound pressure
  • Delivered with 1 x saw band; height (thickness) set by hand

ტექნიკური მახასიათებლები

Motor power S1
8200 W
Engine type
Loncin G390F
Displacement
389 ccm
Fuel type
ROZ 95 (EN228)
Fuel capacity
6.5 l
Total dimensions
4260 x 1780 x 1700 mm
Min. workpiece length
1050 mm
Saw band
3658 x 32 x 1.1 mm
Saw band speed
1200 m/min
Flywheel diameter
Ø 475 mm
Max. log diameter
Ø 550 mm
Max. opening between blade guides
530 mm
Track section
2 m
Kerf thickness
1.5 - 2.2 mm
Sound power level
98 dB(A)
Sound pressure level
89 dB(A)
Net weight
355 kg
Gross weight
407 kg
EAN code
9120058378270

უპირატესობები

  • Complete independence from mains power thanks to the 8.2 kW Loncin G390F petrol engine
  • Highest band speed in its size class at 1200 m/min, against 1080 m/min on the electric BBS550SMART
  • Thin 1.5-2.2 mm kerf and one band for all timber types keep yield high and setup simple

გასათვალისწინებელი

  • Petrol running costs, exhaust fumes and engine maintenance that an electric mill avoids
  • Manual height adjustment and manual feed only
  • 355 kg net and over 4 m long assembled, so relocation means dismantling the track

ხშირად დასმული კითხვები

Does the HOLZMANN BBS550SMART-G need a 230V or 400V connection?
No. The HOLZMANN BBS550SMART-G is powered by an 8.2 kW Loncin G390F petrol engine with a 6.5 litre tank and operates with no connection to the mains, which is the whole point of this version. Buyers with a 400V three-phase supply who want lower running costs should order the electric HOLZMANN BBS550SMART instead, which has the same 550 mm log capacity.
What is the difference between the BBS550SMART-G and the BBS550SMART?
The HOLZMANN BBS550SMART-G runs on petrol at a band speed of 1200 m/min and weighs 355 kg net, while the electric BBS550SMART uses a 5.5 kW 400V motor at 1080 m/min and weighs 335 kg. Both machines take Ø550 mm logs and the same 3658 x 32 x 1.1 mm band.
What does the BBS550SMART-G not do?
The HOLZMANN BBS550SMART-G does not adjust cutting height electrically, does not feed the saw head under power and has no hydraulic log handling; the operator does all of that manually. The BBS550SMART-G also cannot take logs larger than Ø550 mm, which requires the BBS810SMART-G.
What fuel does the HOLZMANN BBS550SMART-G use?
The HOLZMANN BBS550SMART-G runs on ROZ 95 (EN228) petrol and holds 6.5 litres in its tank. Fuel and engine oil for the BBS550SMART-G are not supplied with the machine.
How long can the BBS550SMART-G cut?
The cutting length of the HOLZMANN BBS550SMART-G depends on the number of expanding track sections fitted, each measuring 2 m. The minimum workpiece length for the BBS550SMART-G is 1050 mm.
Is the BBS550SMART-G easy to move between sites?
The HOLZMANN BBS550SMART-G is independent of mains power, but at 355 kg net and 4260 x 1780 x 1700 mm assembled it is moved by dismantling the track and transporting the sections, not by pushing it across a yard.
What makes one BBS550SMART-G quotation differ from another?
The engine and sawing geometry of the HOLZMANN BBS550SMART-G are fixed, so the quotation varies with the number of 2 m track sections you specify, the spare 3658 x 32 x 1.1 mm bands and sharpening equipment included, log-handling tools, and delivery and offloading at the sawing site. The BBS550SMART-G needs no electrical installation, which is one cost line a 400 V machine such as the BBS550SMART carries and this one does not.
When can a BBS550SMART-G be on site?
The HOLZMANN BBS550SMART-G is built to order and the current lead time is confirmed at quotation. Delivery of the BBS550SMART-G is quoted to the address where it will work, because the machine is normally set up where the logs are rather than in a workshop.
Does the BBS550SMART-G need commissioning if there is no electrical connection?
Yes. Even without a power supply the HOLZMANN BBS550SMART-G has to be levelled over its 4260 x 1780 x 1700 mm area, its 2 m track sections aligned, the band tensioned and tracked, the guides set and the Loncin G390F engine run in according to the manual. Commissioning and the operator hand-over for the BBS550SMART-G are agreed in the quotation.
What consumables should be budgeted for the BBS550SMART-G?
Budget for ROZ 95 (EN228) petrol for the 6.5 l tank and engine oil, a rotation of spare 3658 x 32 x 1.1 mm saw bands with sharpening and setting, air and oil filters for the Loncin G390F, cant hooks and clamps, and PPE. None of these is included with the BBS550SMART-G, which is delivered with one saw band, and we quote them as separate lines.
