DHM330 — HOLZMANN DHM330 Portable Benchtop Thicknesser, 330 mm Planing Width 1 / 3

HOLZMANN

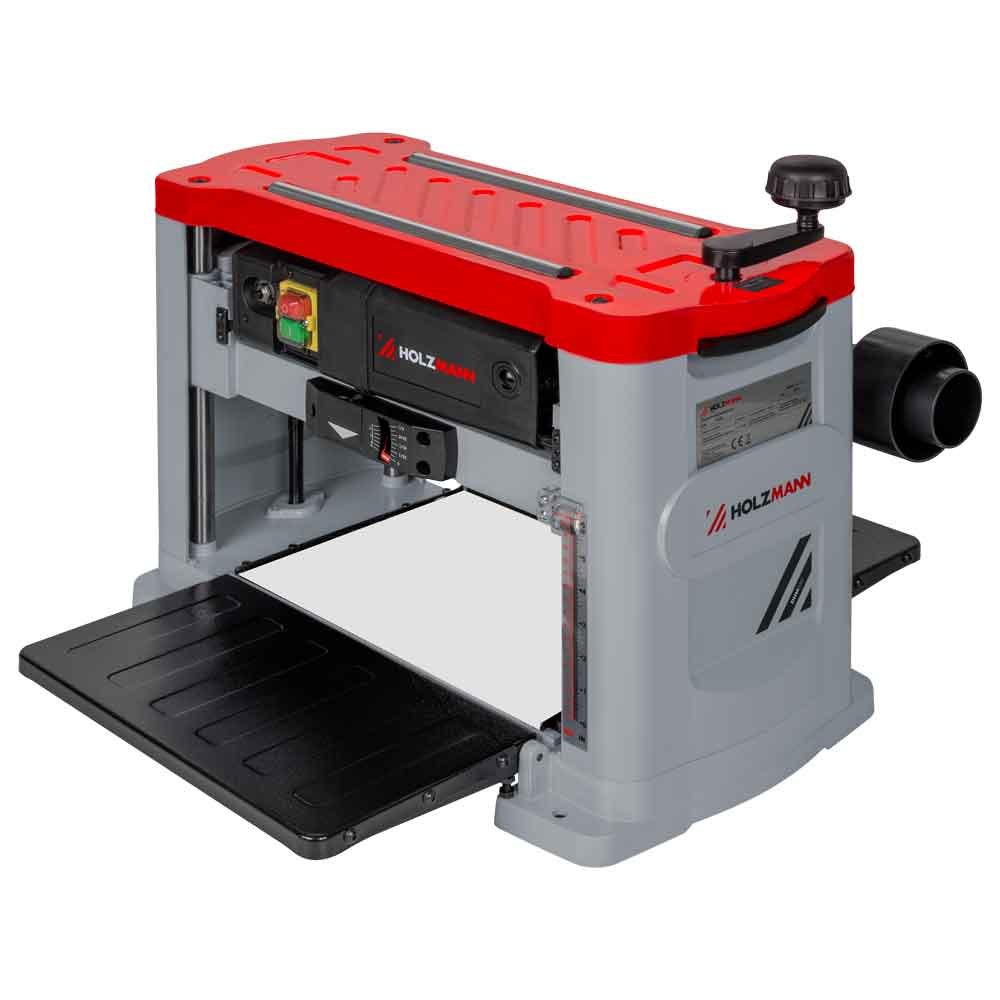

HOLZMANN DHM330 Portable Benchtop Thicknesser, 330 mm Planing Width

DHM330

Depth of cut is what the straight-knife DHM330 offers over its PRO sibling: 2.8 mm per pass on stock under 152 mm wide, where the spiral-head DHM330PROSMW2 stops at 2.4 mm. A sheet-steel bed, a 1500 W motor turning a two-knife shaft at 8500 min-1 and 31 kg net keep the DHM330 the one to carry to site.

ფასი მოთხოვნით

The quoted price of the DHM330 depends on the order quantity, the number of spare 333 x 12 x 1.5 mm reversible blades taken with the machine, whether extraction and hose adapters for the 65.5 / 101.5 mm port are quoted alongside it, delivery to your address, and the freight and import charges applying to the consignment at the time of order.

ფასის მოთხოვნა

What the HOLZMANN DHM330 does

The DHM330 brings boards and beams to a uniform thickness and does nothing else – which is exactly why it is a useful second machine. The DHM330 accepts stock up to 330 mm wide and 152 mm thick on a 330 x 235 mm sheet-steel table with entry and exit extensions, and a 1500 W motor drives a 50 x 330 mm shaft with two knives at 8500 min-1. The powered feed runs at 6 m/min and the minimum workpiece is 152 mm long and 5 mm thick.

A machine that travels to the job

At 31 kg net and 630 x 580 x 485 mm overall, the DHM330 is light enough for two people to lift into a van. Fixation holes in the base allow the DHM330 to be bolted down to a workbench or a temporary work table, which is what makes it practical on a building site or in a client’s house for fitting door linings and skirting. A stationary planer-thicknesser like the HOB260MINI cannot follow the work in that way.

Cutting depth depends on width

The DHM330 sets its cutting depth by hand crank against a scale for the clearance height, with a separate cutting-depth measurement so the operator knows how much material is being taken off before the pass starts. Maximum cut is 2.8 mm on stock narrower than 152 mm and 0.8 mm on stock wider than 152 mm – a full-width 330 mm board therefore comes down in 0.8 mm steps, which is worth allowing for when planning a batch. Extraction connects through the 65.5 / 101.5 mm dust collector port; the DHM330 has no on-board collection.

How the DHM330 differs from the DHM330PROSMW2

The DHM330PROSMW2 is the PRO version of the same 330 mm platform: spiral cutterhead instead of two straight knives, a granite thicknessing table instead of sheet steel, and a setting for the desired finished workpiece thickness. The DHM330 is the straightforward, lighter and cheaper machine, and it takes a slightly deeper 2.8 mm cut on narrow stock against the PRO model’s 2.4 mm.

Included in delivery

The DHM330 is supplied with the planer blade already assembled – a reversible blade measuring 333 x 12 x 1.5 mm.

ძირითადი მახასიათებლები

  • 2.8 mm maximum cut per pass on stock under 152 mm wide - 0.4 mm deeper than the DHM330PROSMW2
  • Two straight reversible blades, 333 x 12 x 1.5 mm, supplied already fitted
  • Sheet-steel thicknessing table with entry and exit planer tables
  • 31 kg net in a 630 x 580 x 485 mm body - the smaller and lighter of the two 330 mm benchtops
  • 1500 W motor driving a 50 x 330 mm two-knife shaft at 8500 min-1
  • Thicknessing height to 152 mm on a hand crank, read against the clearance-height scale
  • Cutting-depth gauge for setting the chip taken off each workpiece
  • Minimum workpiece 152 mm long and 5 mm thick; powered feed 6 m/min

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230 V / 50 Hz
Feed speed
6 m/min
Total dimensions
630 x 580 x 485 mm
Min. workpiece length
152 mm
Min. workpiece thickness
5 mm
Max. workpiece thickness
152 mm
Thicknessing table size
330 x 235 mm
Thicknessing cutting depth
0.8 | 2.8 mm
Thicknessing height
152 mm
Cutter shaft
50 x 330 mm diameter
Cutter shaft speed
8500 min-1
Number of cutter knives
2
Dust collector port
65.5 / 101.5 mm
Planer blade supplied
333 x 12 x 1.5 mm, reversible
Sound power level
96.8 dB(A)
Sound pressure level
83.8 dB(A)
Net weight
31 kg
Gross weight
33 kg
EAN code
9120132141073

უპირატესობები

  • 31 kg and bolt-down fixation holes make the DHM330 genuinely portable to site
  • 330 mm planing width and 152 mm thicknessing height from a benchtop machine
  • Runs on a standard single-phase 230 V socket with a 1500 W motor

გასათვალისწინებელი

  • Thicknesser only - the DHM330 cannot flatten the first face of a twisted board
  • Just 0.8 mm cutting depth on stock wider than 152 mm, so wide boards need many passes
  • Two straight knives and no integrated extraction; a separate collector on the 65.5 / 101.5 mm port is required

ხშირად დასმული კითხვები

Does the DHM330 need three-phase power?
No. The DHM330 is supplied only as DHM330_230V (EAN 9120132141073) with a 1500 W motor on a single-phase 230 V / 50 Hz supply, so the DHM330 plugs into an ordinary socket. There is no 400 V version of the DHM330; buyers who need a three-phase machine should look at the combined planer-thicknessers such as the HOB305ABS, which is offered in both 230 V and 400 V.
What does the DHM330 not do?
The DHM330 is a thicknesser only. The DHM330 does not surface-plane, so it cannot flatten a twisted or cupped board - it makes the second face parallel to the first. A face must first be trued on a surface planer or a combined machine such as the HOB260MINI. The DHM330 also does not saw or mould, and has no integrated dust collection.
How deep a cut can the DHM330 take?
The DHM330 removes up to 2.8 mm per pass on workpieces narrower than 152 mm, and up to 0.8 mm per pass on workpieces wider than 152 mm. A full-width 330 mm board is therefore reduced in 0.8 mm increments on the DHM330, which is normal for a benchtop machine of this class.
Can the DHM330 be taken to a building site?
Yes. The DHM330 weighs 31 kg net, measures 630 x 580 x 485 mm and has fixation holes in the base for bolting to a workbench or work table, which is what makes it suitable for site work and for fitting jobs away from the workshop.
What is the smallest piece the DHM330 can plane?
The DHM330 requires a workpiece at least 152 mm long and at least 5 mm thick. Anything shorter than 152 mm should not be fed through the DHM330, as it cannot be held by both the infeed and outfeed rollers at once.
Should I buy the DHM330 or the DHM330PROSMW2?
The DHM330 has two straight reversible blades over a sheet-steel table, takes a 2.8 mm cut on stock under 152 mm wide and weighs 31 kg in a 630 x 580 x 485 mm body. The DHM330PROSMW2 has a spiral cutterhead with two grooves, a granite thicknessing table and a setting for the target workpiece thickness, but a 2.4 mm maximum cut, 34 kg and a longer 710 x 600 x 475 mm body. Choose the DHM330PROSMW2 when surface quality on oak, beech and reversing grain is the priority, and the DHM330 when the deeper cut on narrow stock and the lighter, smaller body matter more. Both are quoted rather than sold at a list price; ask us to quote them together so the comparison includes blades, inserts and extraction.
How is the HOLZMANN DHM330 priced?
The DHM330 is supplied by quotation rather than at a shelf price, and the figure moves with the number of machines ordered, the spare 333 x 12 x 1.5 mm reversible blades taken with it, whether extraction and hose adapters for its 65.5 / 101.5 mm port are quoted alongside, delivery to your address, and the freight and import charges applying when the order is placed. Tell us how many DHM330 units and how many spare blade sets you want and we will quote against that.
What is the lead time on a DHM330?
The DHM330 is built to order, so its lead time is confirmed on the quotation and not stated as a standing figure - it follows the HOLZMANN production slot and the transport route at the time of ordering. Ask for the DHM330 lead time in writing together with the price so that delivery date and figure are quoted against the same day.
Does a DHM330 need any installation work?
Installation of a DHM330 is light but not zero: the 31 kg machine should be set on a bench or site table that will not shift, levelled, and bolted down through the fixation holes in its base so the 6 m/min powered feed cannot walk it. It runs from an ordinary single-phase 230 V / 50 Hz socket - there is no three-phase version of the DHM330 - and an extraction hose must be fitted to the 65.5 / 101.5 mm port, because the machine has no on-board chip collection.
What should be budgeted alongside the DHM330 itself?
Budget separately from the DHM330 machine price for spare reversible blades in 333 x 12 x 1.5 mm, a chip extractor or high-flow vacuum with a hose or adapter that fits the 65.5 / 101.5 mm port, a solid bench or stand and the fixings to bolt the machine down, infeed and outfeed roller support for long boards, and hearing protection for the 83.8 dB(A) sound pressure level. Remember also that the DHM330 does not surface-plane, so a jointer or a combined machine may be needed to true the first face before the DHM330 makes the second parallel.
