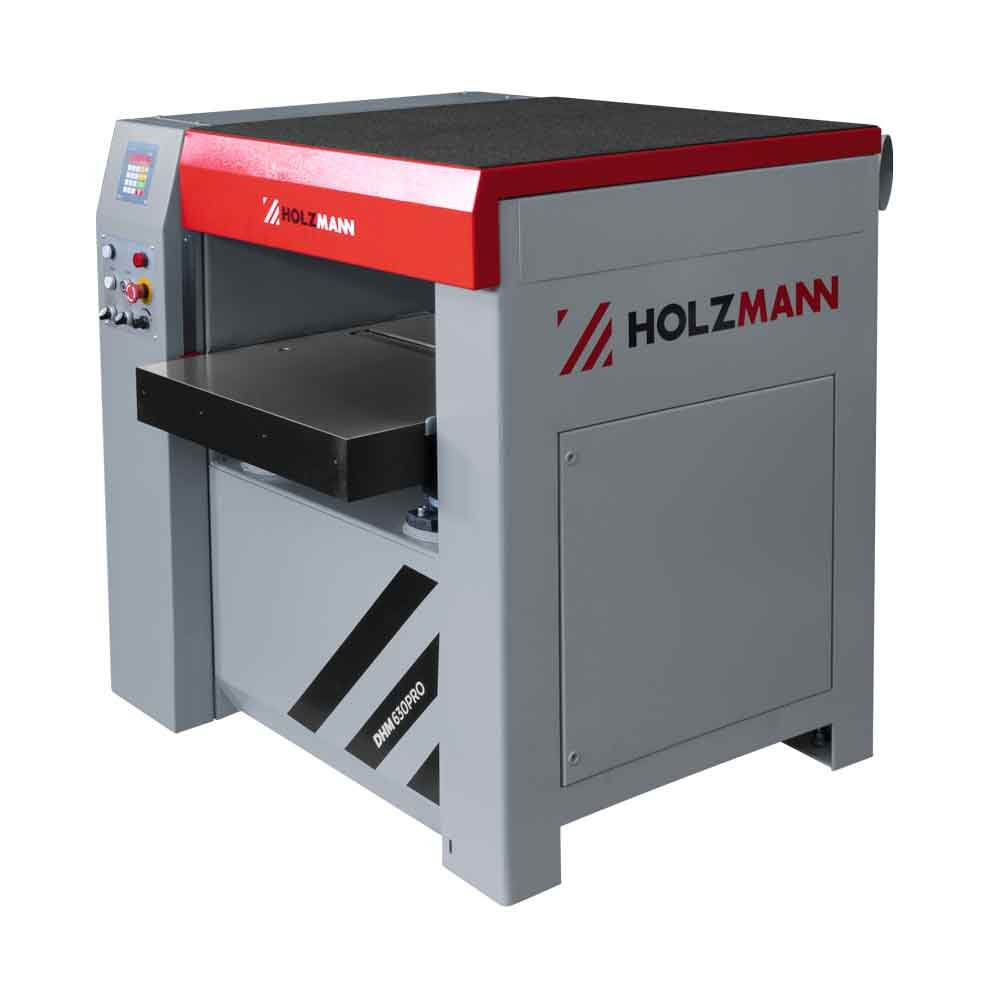

HOLZMANN DHM630PRO Thicknesser – 630 mm Planing Width, 7 kW
DHM630PRO
Four straight strip knives in a Ø 117 mm cutterhead give the DHM630PRO its cut, set with the adjustment gauge supplied and turning at 5500 min-1. The machine thicknesses stock 630 mm wide and 300 mm thick, takes up to 8 mm in one pass, and runs a 7000 W S1 motor with a separate 550 W feed at 4-16 m/min.
Price of the DHM630PRO is driven by the cutterhead version chosen against the spiral-head DHM630PROSMW4, spare knife sets, the extractor and Ø150 mm ducting specified, freight and customs on a 720 kg crate from Austria, and whether forklift unloading, positioning and electrical commissioning are included.
ფასის მოთხოვნა630 mm wide, 300 mm thick, 656 kg of machine
The HOLZMANN DHM630PRO is a production thicknesser, not a bench machine: 630 mm planing width, 300 mm maximum thicknessing height and 656 kg net on a 1050 x 630 mm table. Those numbers put the DHM630PRO into glulam, stair-string and wide-panel work, where a 400 mm class machine forces a second pass and a glue line. The DHM630PRO takes an 8 mm cut in a single pass, which is what separates it from lighter thicknessers that top out at 3-5 mm.
Three motors, so the feed does not fight the cut
Drive on the DHM630PRO is split rather than shared. The 7000 W S1 main motor runs the 117 mm cutterhead with four planer knives at 5500 rpm; a separate 550 W feed motor holds feed speed constant from 4 to 16 m/min regardless of load; and a 250 W lifting motor raises and lowers the thicknessing table electrically. Electrics on the DHM630PRO are rated IP54, which matters in a dusty shop. The machine arrives with four 630 x 30 x 3 mm strip knives mounted plus an adjustment gauge.
Siting a 720 kg crated machine
Plan the delivery of the DHM630PRO before ordering it. Gross shipping weight is 720 kg in a 1220 x 1150 x 1300 mm crate, so unloading needs a forklift and the floor needs to carry the load without flexing. The DHM630PRO requires a 400V/3/50Hz supply and a Ø150 mm extraction connection with enough airflow for a four-knife head at full width. Minimum workpiece length is 280 mm; shorter pieces must be run on a sled or planed as part of a longer blank.
Straight knives or spiral
The DHM630PRO uses conventional strip knives, which are inexpensive to replace and quick to set with the supplied gauge. Shops planing figured hardwood or running long shifts should price the DHM630PROSMW4 spiral-head version against the DHM630PRO, since carbide inserts change the finish, the noise at the cut and the consumable cost profile.
ძირითადი მახასიათებლები
- Four strip planing knives fitted from new, supplied with a knife adjustment gauge
- Ø 117 mm cutter shaft carrying 4 knives at 5500 min-1
- Straight-knife cut over the full 630 mm width, 300 mm thicknessing height on a 1050 x 630 mm table
- 8 mm maximum cut in a single pass; 280 mm minimum workpiece length
- 7000 W S1 main motor on 400 V / 3 / 50 Hz with IP54-rated electrics
- Separate 550 W feed motor for constant feed, variable from 4 to 16 m/min
- 250 W lifting motor raising and lowering the thicknessing table
- 656 kg net, 1060 x 1220 x 1150 mm overall, Ø 150 mm extraction port
ტექნიკური მახასიათებლები
- Max. planing width
- 630 mm
- Thicknessing height
- 300 mm
- Table size
- 1050 x 630 mm
- Cutting depth
- 8 mm
- Min. workpiece length
- 280 mm
- Cutter shaft diameter
- 117 mm
- Cutter shaft speed
- 5500 min-1
- Number of cutter knives
- 4
- Motor power S1
- 7000 W
- Feed motor
- 550 W
- Lifting motor (table height adjustment)
- 250 W
- Voltage
- 400 V / 3 / 50 Hz
- Feed speed
- 4 - 16 m/min
- Appliance class
- IP54
- Dust collector port
- 150 mm
- Sound power level
- 100 dB(A)
- Sound pressure level
- 90 dB(A)
- Total dimensions
- 1060 x 1220 x 1150 mm
- Net weight
- 656 kg
- Gross weight
- 720 kg
- Packaging (L x W x H)
- 1220 x 1150 x 1300 mm
- EAN code (DHM630PRO_400V)
- 9120058379727
უპირატესობები
- 630 mm width with an 8 mm cut depth means wide panels are finished in fewer passes and without a mid-panel glue line
- Separate 550 W feed motor with 4-16 m/min variable speed lets feed rate be matched to timber species instead of being fixed
- Electric 250 W table lift removes the winding time that a handwheel machine costs on every thickness change
გასათვალისწინებელი
- At 656 kg net and 720 kg gross the DHM630PRO needs a forklift, a strong floor and a planned delivery route - it is not a machine that can be shuffled later
- 400V three-phase only, with a 7000 W main motor that requires an adequately rated supply and protection
- Straight strip knives at 630 mm are expensive to replace after a nail strike compared with an insert-type spiral head
