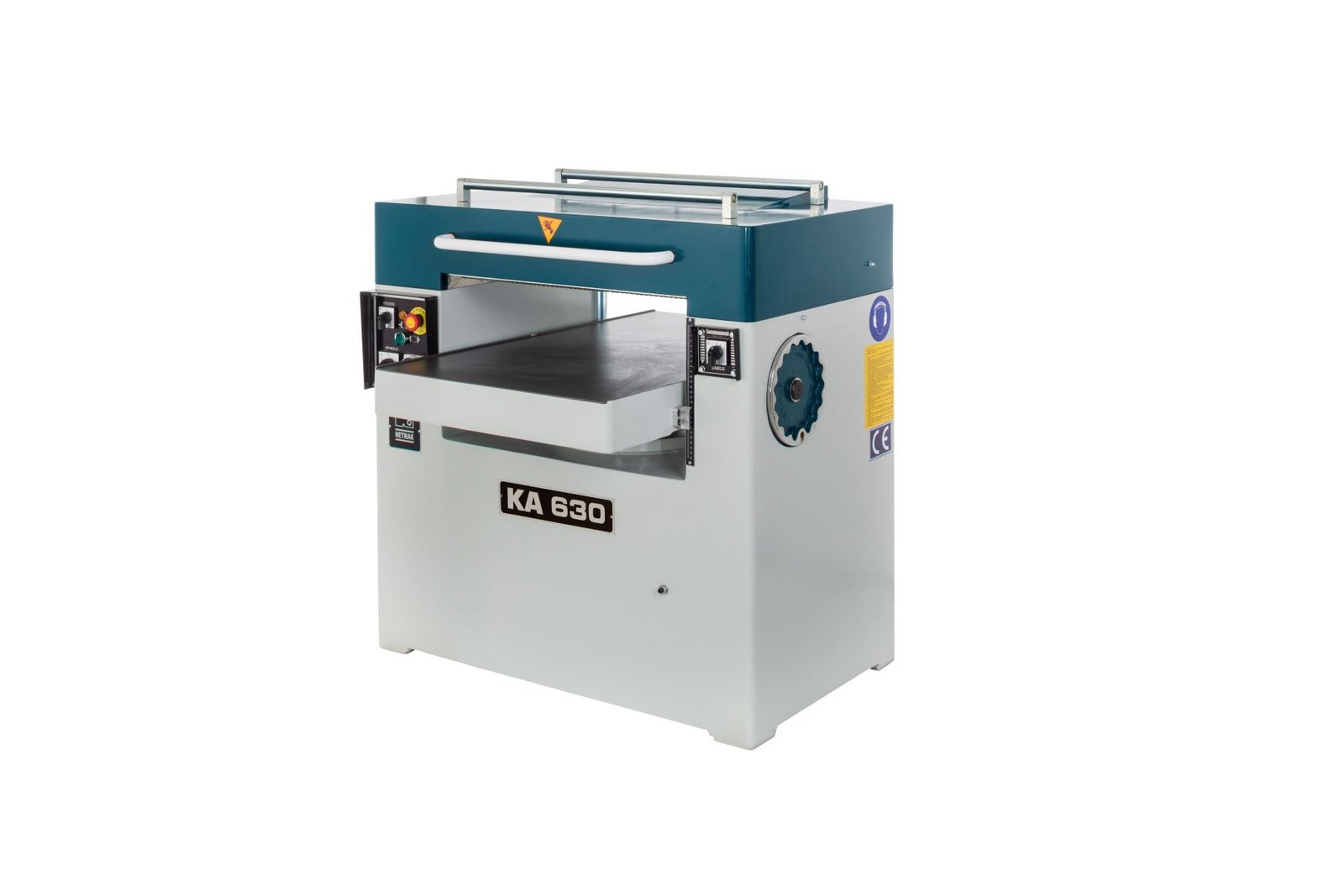

KA 630 Kalinlik Makinasi — NETMAK KA 630 Thicknesser (630 mm)

NETMAK

NETMAK KA 630 Thicknesser (630 mm)

KA 630 Kalinlik Makinasi

The NETMAK KA 630 planes 630 mm wide, thirty millimetres more than the KA 600 and the widest capacity in the NETMAK thicknesser range. Every other figure matches the KA 600: 250 mm maximum thickness, 8 mm per pass, a 120 mm four-knife block at 4500 rpm, a 7.5 kW motor, motorised table lift and 860 kg.

ფასი მოთხოვნით

KA 630 pricing turns on cutterblock choice (four-knife or the optional helical block), whether the digital height indicator is specified, and delivery, offloading and installation of an 860 kg machine on a 1000 x 1200 mm base.

ფასის მოთხოვნა

What the KA 630 thicknesser does

The NETMAK KA 630 planes solid timber and glued panels to a fixed, repeatable thickness across the widest capacity in the NETMAK KA range: 630 mm. A 120 mm cutterblock with four knives turns at 4500 rpm above a 640 x 990 mm table, and polyurethane feed rollers draw the work through at 7 or 14 m/min depending on whether the priority is finish or throughput. Components up to 250 mm high pass under the block, and the KA 630 removes as much as 8 mm in a single pass, which is what makes wide, heavy hardwood sections practical rather than tedious.

Who the KA 630 suits

The KA 630 belongs in shops where wide glued panels are routine: solid-wood table tops, wardrobe doors, staircase treads and shopfitting components that arrive from the clamps slightly out of thickness. A workshop that regularly edge-glues four or five 150 mm boards is already past 600 mm, and the extra 30 mm on the KA 630 is the difference between running the panel and re-cutting it. The 860 kg monoblock steel body absorbs the vibration that appears when a wide panel meets the knives across its full width.

KA 630 against the KA 600

The KA 630 and the KA 600 are mechanically the same machine at two widths. Height capacity (250 mm), depth of cut (8 mm), block diameter (120 mm), knife count (4), spindle speed (4500 rpm), feed range (7-14 m/min) and motor package (10 HP / 7.5 kW cutter, 0.8-1.22 HP feed, 0.37 HP table) are identical. The KA 630 differs in its 640 x 990 mm table, its 1000 x 1200 x 1050 mm footprint and its 860 kg weight, all marginally larger than the KA 600. Buy the KA 630 when panels above 600 mm appear even occasionally; the cost of the wider machine is far below the cost of splitting and re-gluing a panel.

What is included with the KA 630

Standard equipment on the KA 630 covers the monoblock steel frame, a cover protection circuit that cuts power when the guard is lifted, an electromechanical brake, four fitted knives, polyurethane feed rollers and motorised automatic table height adjustment. A digital height indicator and a helical cutterblock remain factory options on the KA 630. Extraction ducting, spare knives and the electrical connection are supplied separately.

ძირითადი მახასიათებლები

  • 630 mm maximum planing width, 30 mm more than the KA 600 and the widest in the NETMAK KA range
  • 640 x 990 mm machined table with 250 mm maximum workpiece height
  • 10 HP / 7.5 kW cutter motor on a 120 mm four-knife block at 4500 rpm, the same drive as the KA 600
  • 8 mm maximum depth of cut in a single pass
  • Two-speed feed of 7 or 14 m/min via polyurethane rollers
  • Motorised table height adjustment with 0.37 HP table motor, standard equipment
  • 860 kg monoblock steel construction, 1000 x 1200 x 1050 mm overall - 100 mm deeper than the KA 600
  • Optional helical cutterblock and digital height indicator

ტექნიკური მახასიათებლები

Product code
KA 630 OTM
Table size
640 x 990 mm
Max. working width
630 mm
Max. working height
250 mm
Max. depth of cut
8 mm
Number of knives
4
Cutterblock diameter
120 mm
Spindle speed
4500 rpm
Feed speed
7-14 m/min
Cutter motor power
10 HP / 7.5 kW
Feed motor power
0.8-1.22 HP
Table motor power
0.37 HP
Overall dimensions
1000 x 1200 x 1050 mm
Net weight
860 kg
Standard equipment
Monoblock steel body, cover protection circuit, electromechanical brake, polyurethane feed rollers, motorised automatic table height adjustment
Options
Digital height indicator, helical cutterblock

უპირატესობები

  • 630 mm width accepts wide glued panels that a 600 mm machine has to reject
  • Identical drivetrain to the KA 600, so spare knives and service knowledge carry over
  • 860 kg monoblock frame keeps wide, full-width cuts free of chatter

გასათვალისწინებელი

  • Only 30 mm wider than the KA 600 for a larger footprint and a higher price
  • Straight-knife block as standard; helical block is an order-time option, not a retrofit
  • Requires separate chip extraction and an industrial power supply to be installed first

ხშირად დასმული კითხვები

How much wider is the KA 630 than the KA 600?
The KA 630 planes 630 mm wide against 600 mm on the KA 600, a 30 mm gain, and its table is 640 x 990 mm rather than 620 x 990 mm. Every other specification of the KA 630 matches the KA 600, including the 250 mm height capacity, 8 mm cut and 10 HP / 7.5 kW motor.
What electrical supply does the KA 630 require?
The KA 630 runs a 10 HP / 7.5 kW cutter motor plus 0.8-1.22 HP feed and 0.37 HP table motors. NETMAK does not publish the supply voltage or phase for the KA 630, so agree these with the dealer before installation; machines of this rating are normally delivered for industrial three-phase power.
Can the KA 630 thickness a full glued table top?
The KA 630 will take a glued panel up to 630 mm wide and 250 mm thick in passes of up to 8 mm. Panels wider than 630 mm cannot pass through the KA 630 and must be split, thicknessed and re-glued, or finished on a wide-belt sander.
Does the KA 630 replace a surface planer?
No. The KA 630 is a thicknesser only and copies the flatness of the face resting on the table, so the KA 630 cannot remove twist or cup. Pair the KA 630 with a NETMAK PL 500 or PL 600 surface planer to flatten the reference face first.
What tooling does the KA 630 need?
The KA 630 uses four straight planing knives on its 120 mm cutterblock, and a spare set plus a knife-setting gauge should be ordered with the machine. Shops machining figured or reversing-grain hardwood should specify the optional helical cutterblock for the KA 630 at the time of order, as it is not a simple retrofit.
What is the installed footprint and weight of the KA 630?
The KA 630 measures 1000 x 1200 x 1050 mm and weighs 860 kg, so the KA 630 needs a level concrete floor and clear infeed and outfeed space matched to the longest workpiece. Allow for a forklift or pallet truck route when planning delivery.
How much does the NETMAK KA 630 cost?
The NETMAK KA 630 thicknesser is supplied on quotation, not at a published price. A KA 630 quotation depends on the cutterblock specified (standard 120 mm four-knife or the optional helical block), whether the digital height indicator is added, and on delivery, offloading and installation of an 860 kg machine in Georgia. Because the KA 630 differs from the KA 600 only in width, ask for both to be quoted together if 600 mm might be enough.
What is the lead time on a NETMAK KA 630?
The NETMAK KA 630 is manufactured to order, so the KA 630 lead time is confirmed at quotation rather than fixed in advance. A standard-specification KA 630 usually ships soonest; adding the helical cutterblock schedules it as a build. Availability of the KA 630 and of the narrower KA 600 is worth checking together, since the two are otherwise the same machine.
What is needed to install and commission a KA 630?
To install a KA 630 you need a level, load-bearing floor for 860 kg on a 1000 x 1200 mm footprint, run-out clearance at infeed and outfeed, machine levelling, a three-phase supply connected by a qualified electrician, and extraction ducted to a chip collector sized for a 630 mm wide cut. NETMAK does not publish supply voltage, phase or extraction port sizes for the KA 630, so these are confirmed at quotation, and delivery and commissioning can be included in that quotation.
What tooling and consumables should be budgeted with a KA 630?
With a KA 630, budget separately for spare knives for the 120 mm four-knife cutterblock or replacement inserts if the helical block is chosen, knife-setting equipment, and a chip extractor with ducting, which is not supplied with the machine. Polyurethane feed rollers, brake components and table-lift parts are the routine wear items on a KA 630 and are worth ordering as a first spares kit.
