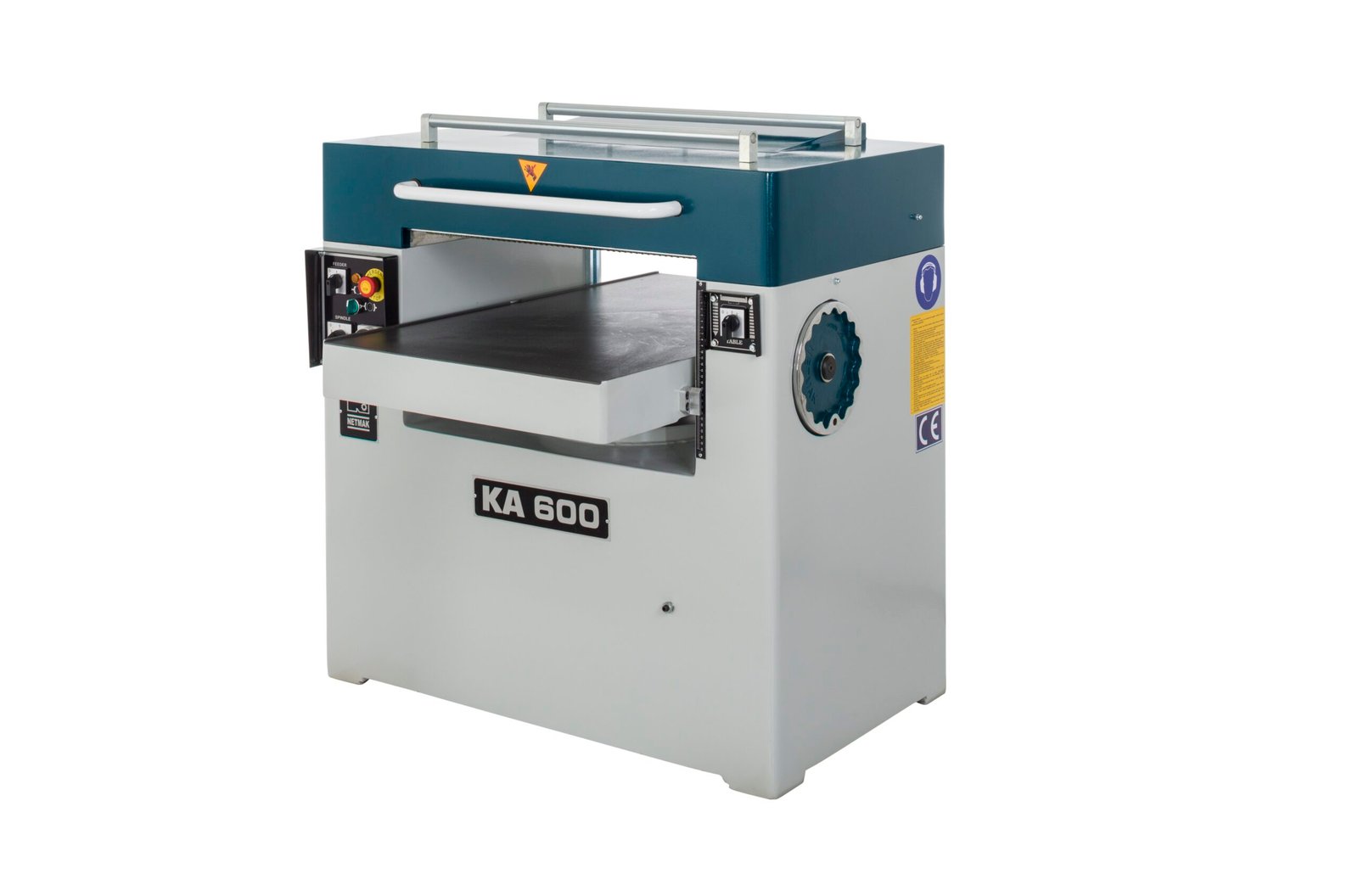

NETMAK KA 600 Thicknesser (600 mm)

KA 600 Kalinlik Makinasi — NETMAK KA 600 Thicknesser (600 mm)

Motorised table height adjustment is standard equipment on the NETMAK KA 600, where the narrower KA 400 and KA 500 list it as an option. The KA 600 thicknesses timber up to 600 mm wide and 250 mm thick, removing 8 mm per pass with a 120 mm four-knife block at 4500 rpm on a 7.5 kW motor, at 850 kg.

სამუშაო სიგანე
600 mm
ძრავის სიმძლავრე
7.5 kW
მაგიდის ზომა
620 x 990 mm
შპინდელი
4500 rpm
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The KA 600 price is driven mainly by cutterblock choice (standard four-knife or the optional helical block), whether the digital height indicator is added, and by delivery, offloading and installation of an 850 kg machine.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the KA 600 thicknesser does

The NETMAK KA 600 reduces sawn or face-planed timber to a repeatable finished thickness across a 600 mm width. Stock passes over a 620 x 990 mm table under a 120 mm cutterblock carrying four knives at 4500 rpm, while polyurethane feed rollers pull it through at a selectable 7 to 14 m/min. Maximum component height is 250 mm and the KA 600 will lift 8 mm of material in one pass, so a rough oak or beech blank for a door stile, table leg or stair string reaches its finished section in two or three passes instead of a dozen light cuts.

Who the KA 600 suits

The KA 600 is sized for joinery shops and door manufacturers that thickness solid timber every working day, not occasionally. The 10 HP / 7.5 kW cutter motor and 850 kg of monoblock steel keep the cut stable when a wide, knotty board is fed at full depth, which is exactly where lighter hobby-class thicknessers stall or chatter. Motorised table height adjustment carries real weight in a production shop as well: an operator changing setting twenty times a shift is pressing a button rather than counting handwheel turns.

KA 600 against the KA 630 and the smaller models

Choosing between the KA 600 and the KA 630 comes down to width alone. Both machines share the 250 mm height capacity, 8 mm depth of cut, 4500 rpm four-knife block and 10 HP / 7.5 kW motor; the KA 630 adds 30 mm of planing width, a 640 x 990 mm table and 10 kg. A workshop whose widest glued panel stays under 600 mm saves 100 mm of floor depth with the KA 600, whose overall footprint is 1000 x 1100 x 1050 mm. Against the narrower KA 400 and KA 500 in the same NETMAK thicknesser range, the KA 600 is the model that takes full-width door rail and worktop blanks without ripping them first.

What is included with the KA 600

A standard KA 600 arrives with the monoblock steel frame, a cover protection circuit that isolates the machine when the guard is opened, an electromechanical brake to stop the block quickly, four knives on the 120 mm cutterblock, polyurethane feed rollers and the powered table drive (0.37 HP table motor, 0.8-1.22 HP feed motor). A digital height indicator and a helical cutterblock are factory options, both worth specifying for figured hardwood or quieter running. Dust extraction, knife-setting gauges and the electrical supply installation are not part of the package.

ძირითადი მახასიათებლები

  • Motorised automatic table height adjustment fitted as standard, driven by a 0.37 HP table motor
  • 600 mm maximum planing width over a 620 x 990 mm machined table
  • 250 mm maximum workpiece height, enough for laminated door blanks
  • 10 HP / 7.5 kW cutter motor driving a 120 mm four-knife block at 4500 rpm
  • Up to 8 mm of stock removed in a single pass
  • Selectable feed speed of 7-14 m/min through polyurethane feed rollers
  • Electromechanical brake and cover protection circuit fitted as standard
  • 850 kg monoblock steel body on a 1000 x 1100 x 1050 mm footprint; helical block and digital indicator optional

ტექნიკური მახასიათებლები

Product code
KA 600 OTM
Table size
620 x 990 mm
Max. working width
600 mm
Max. working height
250 mm
Max. depth of cut
8 mm
Number of knives
4
Cutterblock diameter
120 mm
Spindle speed
4500 rpm
Feed speed
7-14 m/min
Cutter motor power
10 HP / 7.5 kW
Feed motor power
0.8-1.22 HP
Table motor power
0.37 HP
Overall dimensions
1000 x 1100 x 1050 mm
Net weight
850 kg
Standard equipment
Monoblock steel body, cover protection circuit, electromechanical brake, polyurethane feed rollers, motorised automatic table height adjustment
Options
Digital height indicator, helical cutterblock

უპირატესობები

  • Motorised table height adjustment removes the slowest step in repeat thicknessing
  • 10 HP / 7.5 kW motor and 850 kg mass hold the cut steady at the full 8 mm depth
  • Electromechanical brake and cover protection circuit are standard, not extras

გასათვალისწინებელი

  • Straight four-knife block is standard; the quieter helical block is a paid option
  • Motor package of this rating needs an industrial three-phase supply, so no single-phase workshop use
  • Chip extraction, knife-setting gauges and infeed/outfeed roller stands are all bought separately

ხშირად დასმული კითხვები

What power supply does the NETMAK KA 600 need?
The NETMAK KA 600 carries three motors: a 10 HP / 7.5 kW cutter motor, a 0.8-1.22 HP feed motor and a 0.37 HP table motor. Machines in this power class are supplied for industrial three-phase power, so confirm the exact voltage and phase for your KA 600 with the dealer before the electrician runs the cable.
What is the largest piece the KA 600 can thickness?
The KA 600 accepts stock up to 600 mm wide and 250 mm thick, and removes a maximum of 8 mm per pass. Length is limited only by the space in front of and behind the machine, since the KA 600 table itself measures 620 x 990 mm.
Can the KA 600 flatten a twisted or cupped board?
No, the KA 600 is a thicknesser and references the face that is already flat, so a twisted or cupped board comes out of the KA 600 with the same twist in it, only thinner. Face-joint the board first on a surface planer such as the NETMAK PL 400, PL 500 or PL 600, then thickness the second face on the KA 600.
Does the KA 600 come with a helical cutterblock?
The KA 600 is supplied as standard with a straight 120 mm cutterblock carrying four knives. A helical (spiral) cutterblock is a factory option on the KA 600 and must be ordered with the machine, together with the optional digital height indicator if precise numeric setting is wanted.
How much workshop space does the KA 600 need?
The KA 600 occupies 1000 x 1100 x 1050 mm and weighs 850 kg, so allow a solid floor plus clear run-in and run-out space at least as long as the longest board to be planed. Access on both sides of the KA 600 is needed for knife changes and roller cleaning.
Does the KA 600 need a separate dust extractor?
Yes, the KA 600 must be connected to a separate chip extraction system, which is not included with the machine. A four-knife block removing up to 8 mm at 7-14 m/min produces chip volume that the KA 600 cannot clear on its own, and buried chips will mark the workpiece.
How much does the NETMAK KA 600 cost?
The NETMAK KA 600 thicknesser is quoted rather than listed at a fixed price. A KA 600 quotation is shaped by the cutterblock chosen (standard 120 mm four-knife or the optional helical block), whether the digital height indicator is added, and by delivery, offloading and installation of an 850 kg machine in Georgia. Motorised table height adjustment is already standard on the KA 600, so it is not a cost extra. Send your widest planing requirement for a KA 600 quotation.
How soon can a NETMAK KA 600 be delivered?
The NETMAK KA 600 is built to order, so the lead time for a KA 600 is confirmed at quotation rather than promised in advance. A standard four-knife KA 600 is normally the fastest configuration; specifying the helical cutterblock adds build time. Ask for the current KA 600 build slot and shipping schedule when you request the quotation.
What does installing a KA 600 require?
Installing a KA 600 requires a level, load-bearing floor for 850 kg on a 1000 x 1100 mm footprint, run-out space for the longest boards at both ends, levelling, a three-phase electrical connection made by a qualified electrician for the 7.5 kW cutter motor, and extraction ducted to a collector sized for a 600 mm wide cut. NETMAK does not publish the KA 600's supply voltage, phase or port sizes, so these are agreed at quotation, and delivery plus commissioning can be quoted with the machine.
What should be budgeted for tooling and consumables on a KA 600?
Budget beyond the KA 600 machine price for spare knives for the 120 mm four-knife block, or replacement carbide inserts if the optional helical cutterblock is specified, plus knife-setting equipment. A chip extractor and ducting are not included with the KA 600 and must be allowed for, and polyurethane feed rollers, brake parts and table-lift components are the normal wear items to hold as spares.
