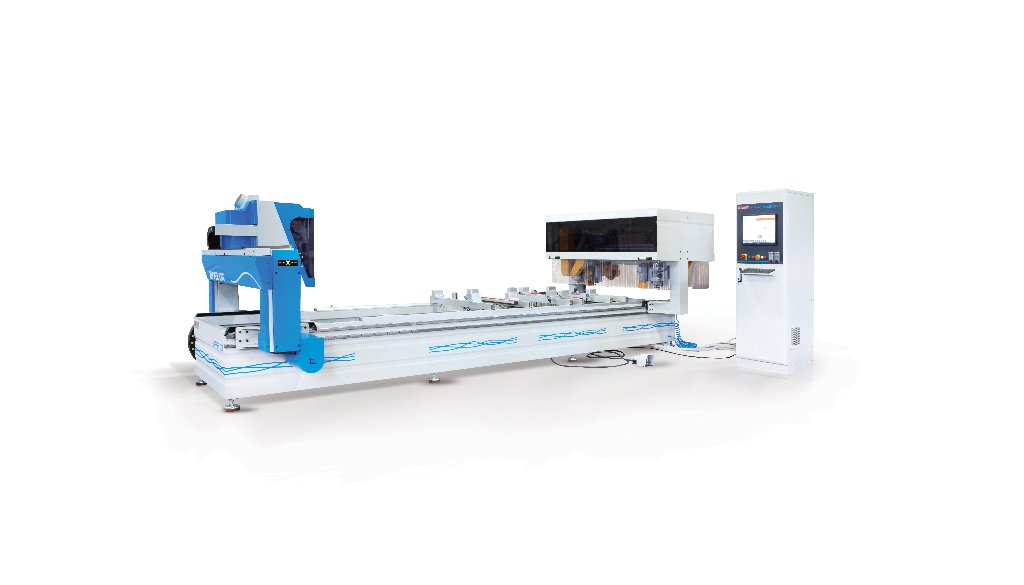

MZK CNC Ripper Double Door Sizing and CNC Machining Line

MZK CNC RIPPER DOUBLE

Where the NC Ripper Double PLC Control stops at PLC sizing, the MZK CNC Ripper Double adds three-axis servo CNC routing of hinge, lock handle and faceplate seats after cutting leaves to 2200 x 1000 x 60 mm. Rated 38 kW at 400 V / 50 Hz and 80 A, 5700 mm long, 2300 kg.

ფასი მოთხოვნით

The price of the MZK CNC Ripper Double is moved by the CNC cutter package for the hinge and lock hardware in use, the twin extraction connections that must be served, and transport, rigging, the 80 A electrical works and commissioning at the Georgian site.

ფასის მოთხოვნა

What the MZK CNC Ripper Double does

The MZK CNC Ripper Double combines door sizing and CNC hardware routing in one pass so a rough leaf leaves the machine ready to hang. Two bridges work either independently or in integrated mode, and three CNC axes handle hinge seats, lock handle pockets, the faceplate (aynalık) recess and surface work. Cutting capacity on the MZK CNC Ripper Double is 2200 mm deep by 1000 mm wide by 60 mm high, and dimensions are entered at the control unit rather than set with mechanical stops, so any value inside that envelope can be called up.

Sizing group and CNC group

The MZK CNC Ripper Double separates its two functions across dedicated drives. Sizing uses Ø250 x Ø30 x 3.2 mm longitudinal and cross-cut saws with a Ø125 x Ø20 x 3.2 mm scoring saw, driven by two 5.5 kW cross-cutting motors and a 4 kW longitudinal motor. The CNC group runs a 5.5 kW main spindle for lock handle work, a 4 kW spindle for the faceplate and lock handle, and a 1.1 kW hinge spindle, positioned by two 1.3 kW X-axis servos, a 1.6 kW Y-axis servo and a 750 W Z-axis servo. An automatic slide lubrication system keeps the guideways fed without a manual round.

Who the MZK CNC Ripper Double suits

The MZK CNC Ripper Double suits established door factories, not general joineries. The machine’s stated working area is 68 m², overall dimensions are 5700 x 2100 x 2300 mm and installed power is 38 kW at 80 A nominal current, so a dedicated bay and a properly rated three-phase board are prerequisites. Extraction must be ducted to two separate connections, Ø150 mm for the CNC group and Ø200 mm for the sizing group.

How it differs from the PLC model

Against the MZK NC Ripper Double PLC Control, the CNC version replaces PLC dimension setting with true three-axis servo contouring, raising installed power from 30.41 kW to 38 kW and lengthening the machine from 5200 mm to 5700 mm. The trade is flexibility for simplicity: the CNC model can produce shaped and non-standard hardware cut-outs the PLC model cannot, but it demands a programmer rather than a machine setter.

ძირითადი მახასიათებლები

  • Twin-bridge system with bridges working independently or in integrated mode
  • Three-axis CNC operation for hinge, lock handle, faceplate and surface machining
  • Cutting capacity of 2200 mm depth x 1000 mm width x 60 mm height
  • Two 5.5 kW cross-cutting motors and a 4 kW longitudinal cutting motor
  • 5.5 kW CNC main spindle, 4 kW faceplate spindle and 1.1 kW hinge spindle
  • Servo axes of 2 x 1.3 kW (X), 1.6 kW (Y) and 750 W (Z) with automatic slide lubrication
  • Separate Ø150 mm CNC and Ø200 mm sizing dust extraction connections
  • 38 kW total electrical power at 400 V / 50 Hz, 80 A nominal current, 2300 kg

ტექნიკური მახასიათებლები

Cutting Width
1000 mm
Cutting Depth
2200 mm
Cutting Height
60 mm
Maximum Door Processing Capacity
2200 mm length x 1000 mm width
Longitudinal Cutting Saw Dimensions
Ø250 x Ø30 x 3.2 mm
Cross Cutting Saw Dimensions
Ø250 x Ø30 x 3.2 mm
Scoring Saw Dimensions
Ø125 x Ø20 x 3.2 mm
Milling Cutter Dimensions
Ø70 x Ø20 x 50 mm / Z4
Lock Handle Cutter (CNC)
Ø16 x 155 mm
Lock Handle & Rosette Cutter (CNC)
Ø16 x 145 mm
Hinge Cutter (CNC)
Ø12 x 80 mm
Bridge X-Axis Movement (CNC) Servo Motor x2
1.3 kW
Bridge Y-Axis Movement (CNC) Servo Motor
1.6 kW
Bridge Z-Axis Movement (CNC) Servo Motor
750 W
CNC Main Spindle Motor (Lock Handle)
5.5 kW
CNC Spindle Motor (Rosette, Lock Handle)
4 kW
CNC Spindle Motor (Hinge)
1.1 kW
Longitudinal Cutting X-Axis Drive Motor
0.75 kW
Cross Cutting Motors x2
5.5 kW
Cross Cut Positioning Motor
0.25 kW
Longitudinal Cutting Motor
4 kW
Longitudinal Cut Movement Motor
0.37 kW
Milling Motor
5 kW
CNC Dust Extraction Pipe Diameter
Ø150 mm
Cutting Dust Extraction Pipe Diameter
Ø200 mm
Machine Working Area
68 m²
Air Pressure
6 – 8 Bar
Mains Voltage
400 V – 50 Hz
Nominal Current
80 A
Total Electrical Power
38 kW
Lubrication
Automatic slide lubrication system
Machine Dimensions
5700 x 2100 x 2300 mm
Machine Weight
2300 kg

უპირატესობები

  • Sizing and three-axis CNC hardware routing complete on one machine, so the leaf is handled once
  • Separate 5.5 kW, 4 kW and 1.1 kW CNC spindles avoid tool changes between lock, faceplate and hinge work
  • Automatic slide lubrication removes a daily maintenance task on the guideways

გასათვალისწინებელი

  • 68 m² working area and 5700 x 2100 mm dimensions demand a dedicated bay, not a shared shop floor
  • 38 kW at 80 A three-phase plus 6-8 bar air is a heavy services requirement
  • Needs an operator able to program CNC positions, not just set a machine

ხშირად დასმული კითხვები

What power supply does the MZK CNC Ripper Double need?
The MZK CNC Ripper Double runs on a 400 V, 50 Hz three-phase supply with a nominal current of 80 A and a total electrical power of 38 kW. The supply cable and protection for the MZK CNC Ripper Double must be sized for 80 A before installation, and compressed air at 6-8 bar is also required.
What is the maximum door size for the MZK CNC Ripper Double?
The MZK CNC Ripper Double processes doors up to 2200 mm in length, 1000 mm in width and 60 mm in cutting height. Leaves thicker than 60 mm or larger than 2200 x 1000 mm exceed the published capacity of the MZK CNC Ripper Double.
What tooling does the MZK CNC Ripper Double use?
The MZK CNC Ripper Double uses Ø250 x Ø30 x 3.2 mm longitudinal and cross-cut saws, a Ø125 x Ø20 x 3.2 mm scoring saw, a Ø70 x Ø20 x 50 mm Z4 milling cutter, Ø16 x 155 mm and Ø16 x 145 mm CNC lock handle cutters and a Ø12 x 80 mm CNC hinge cutter. Replacement tooling for the MZK CNC Ripper Double must match these dimensions.
What extraction does the MZK CNC Ripper Double require?
The MZK CNC Ripper Double has two separate dust extraction connections: Ø150 mm on the CNC group and Ø200 mm on the sizing group. The extraction plant itself is not supplied with the MZK CNC Ripper Double and must be specified to serve both connections.
How much floor space does the MZK CNC Ripper Double need?
The MZK CNC Ripper Double measures 5700 x 2100 x 2300 mm with a stated machine working area of 68 m² and a weight of 2300 kg. Plan a dedicated bay for the MZK CNC Ripper Double with clear infeed and outfeed access for full-height door leaves.
How is the MZK CNC Ripper Double delivered and commissioned in Georgia?
Transport, rigging, commissioning and operator training for the MZK CNC Ripper Double are quoted per order through the Georgian dealer. Because the MZK CNC Ripper Double weighs 2300 kg and needs an 80 A three-phase connection, confirm floor loading, access route and electrical works before the delivery date is fixed.
How much does the MZK CNC Ripper Double cost?
The MZK CNC Ripper Double is supplied on quotation and carries no list price. What sets the figure for the MZK CNC Ripper Double is the CNC cutter package specified for your hinge and lock hardware, the extraction plant sized for the Ø150 mm and Ø200 mm connections, the 80 A three-phase electrical works, and transport, rigging and commissioning in Georgia.
Is the MZK CNC Ripper Double still available, and how long does delivery take?
Mizrak currently lists the MZK CNC Ripper Double as inactive in its catalogue, which usually indicates a built-to-order or superseded model rather than a withdrawn one. Availability of the MZK CNC Ripper Double and the current lead time are confirmed in writing at quotation before any order is placed.
What site preparation does the MZK CNC Ripper Double need before commissioning?
Before the MZK CNC Ripper Double is commissioned, prepare a floor and access route for 2300 kg, a bay for the 5700 x 2100 x 2300 mm frame, a 400 V 50 Hz three-phase supply with cable and protection rated for 80 A and 38 kW, compressed air at 6-8 bar, and extraction ducting to both the Ø150 mm CNC and Ø200 mm sizing connections. Commissioning of the MZK CNC Ripper Double is quoted separately.
Which tooling and consumables should be budgeted with the MZK CNC Ripper Double?
Budget separately for the MZK CNC Ripper Double's Ø250 x Ø30 x 3.2 mm longitudinal and cross-cut saws, Ø125 x Ø20 x 3.2 mm scoring saw, Ø70 x Ø20 x 50 mm Z4 milling cutter, and the CNC cutters: Ø16 x 155 mm and Ø16 x 145 mm lock handle and rosette cutters and the Ø12 x 80 mm hinge cutter, plus lubricant for the automatic slide system.
