MZK NC Ripper Double PLC Control Door Sizing Machine

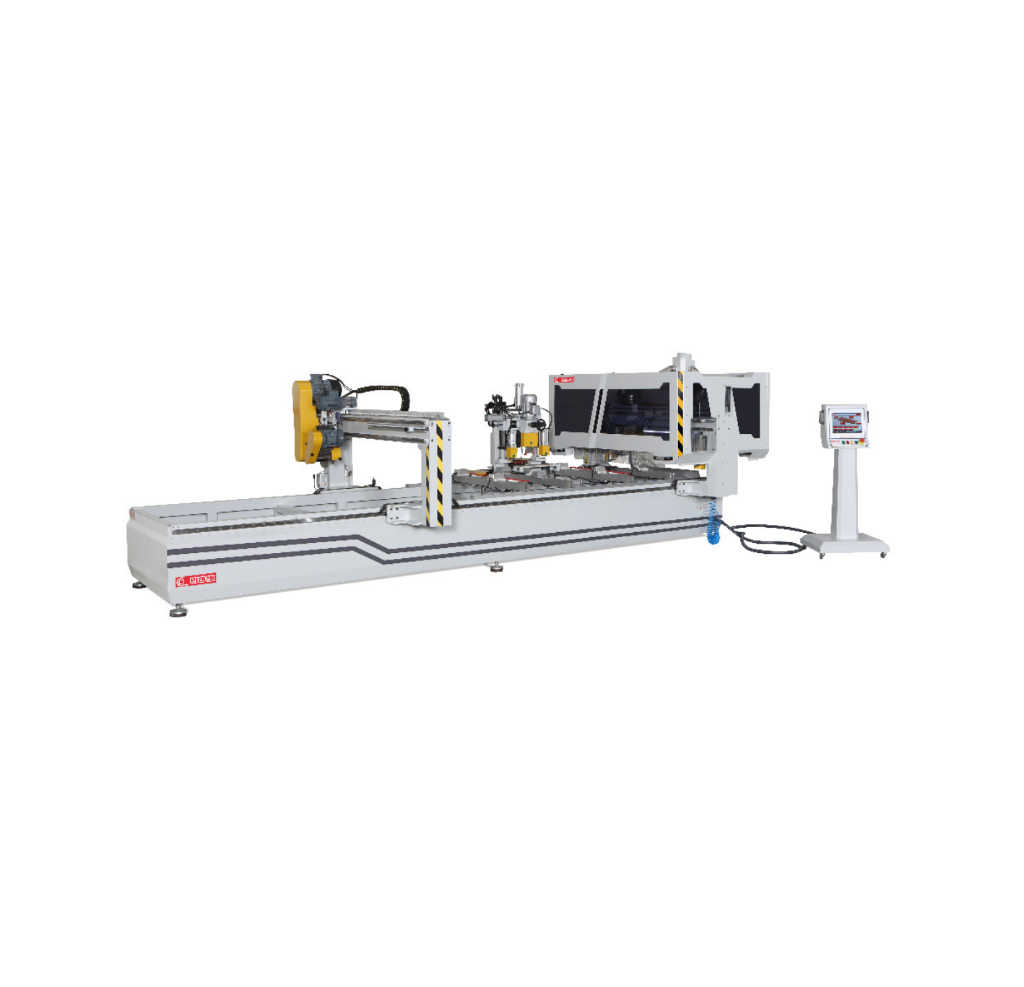

MZK NC RIPPER DOUBLE PLC CONTROL — MZK NC Ripper Double PLC Control Door Sizing Machine 1 / 4

Two bridges rather than one: the MZK NC Ripper Double PLC Control sizes a door leaf up to 2200 x 1000 mm and opens the lock handle pocket in 1 minute 15 seconds, under PLC touchscreen control rather than CNC. Total electrical power 30.41 kW, 5200 mm long, 2450 kg.

ჰაერის წნევა
6 - 8 Bar
ჭრის სიგრძე
Ø25 x 150 Teeth
წონა
2450 kg
  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The price of the MZK NC Ripper Double PLC Control is moved by the lock and faceplate tooling specified, the extraction capacity needed for two bridges, and transport, rigging and commissioning of a 2450 kg machine at the Georgian site.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK NC Ripper Double PLC Control does

The MZK NC Ripper Double PLC Control turns a rough door blank into a finished, hardware-ready leaf in one pass of 1 minute 15 seconds. Two independent bridges carry separate cutting and milling groups, so the length cut, the width cut, the lamp (glazing) groove and the lock handle pocket each have their own motor instead of one head swapping tools. Length and width are set on an encoder-controlled linear rail and entered through a touchscreen panel governed by a PLC, so a run of identical leaves repeats without re-measuring between doors. Maximum sizing capacity on the MZK NC Ripper Double PLC Control is 2200 mm long by 1000 mm wide.

Who this machine suits

The MZK NC Ripper Double PLC Control is built for door manufacturers running series production rather than one-off joinery. The machine occupies 5200 mm x 2100 mm of floor and stands 2200 mm high, weighs 2450 kg, and needs a three-phase 380-400 V supply able to carry 30.41 kW plus a compressed air line at 6-8 bar. A workshop that cannot commit that floor area, power and air is better served by a smaller sizing saw.

How it differs from the rest of the Ripper range

Against the MZK NC Ripper KS, the Double PLC Control adds the second bridge and the lock group, so the lock seat, handle pocket and faceplate recess are cut on the same machine rather than moved to a separate lock mortiser. Against the MZK CNC Ripper Double, this model uses PLC dimension control instead of full three-axis CNC contouring, which lowers the electrical load from 38 kW to 30.41 kW and keeps operation closer to a conventional sizing saw.

Motors and tooling supplied

The MZK NC Ripper Double PLC Control is specified with a 4 kW / 3445 rpm length-cutting motor, a 5.5 kW / 3000 rpm X-axis motor, 1.5 kW / 12000 rpm milling motors, a 2.2 kW / 1500 rpm faceplate and lock motor, a 1.1 kW / 3000 rpm lock group motor, a 0.75 kW motor on each bridge, a 0.75 kW eccentric motor and a 0.37 kW sanding motor. Tooling sizes are fixed: a Ø300 x Ø30 x 3.2 mm length blade, a Ø250 x 30 x 3.2 mm blade, a Ø125 x 20 x 3.2 mm milling cutter and dedicated lock, faceplate and handle cutters.

ძირითადი მახასიათებლები

  • Twin-bridge layout completes door sizing and lock handle pocketing in 1 minute 15 seconds
  • Maximum sizing capacity of 2200 mm length x 1000 mm width
  • Encoder-controlled linear rail sets both length and width dimensions
  • 4 kW / 3445 rpm length-cutting motor and 5.5 kW / 3000 rpm X-axis motor
  • 1.5 kW milling motors running at 12000 rpm for lock pockets and lamp holes
  • 2.2 kW / 1500 rpm faceplate and lock motor with a separate 1.1 kW / 3000 rpm lock group motor
  • Ø300 x Ø30 x 3.2 mm length sizing blade plus a Ø125 x 20 x 3.2 mm milling cutter
  • 30.41 kW total electrical power, 5200 x 2100 x 2200 mm footprint, 2450 kg

ტექნიკური მახასიათებლები

Nominal Current
380-400V AC, 50-60Hz
Noise Level
LWA: 111.1 dB(A)
Air Pressure
6 - 8 Bar
Maximum Sizing Dimensions
2200 mm x 1000 mm
Sizing and Lock Handle Pocket Cycle Time
1 minute 15 seconds
Length Sizing Saw Blade Diameter
Ø300 x Ø30 x 3.2 mm
Diameter
Ø250 x 30 x 3.2 mm
End Cutting Motor Blade
Ø70 x 50 x 20 Teeth (Z4)
Milling Cutter Diameter
Ø125 x 20 x 3.2 mm
Mirror (Faceplate) Cutter Blade
Ø19 x 135 Teeth (Z2)
Lock Handle Cutter Blade
Ø23.5 x 55 Teeth (Z4)
Length Cutting Motor Blade
Ø25 x 150 Teeth (Z4)
Length Cutting Motor Power
4 kW, 3445 RPM
Start and End Cutting Motors
5.5 kW
X-Axis Motor
5.5 kW, 3000 RPM
Sanding Motor
0.37 kW, 3000 RPM
Milling Motors
1.5 kW, 12000 RPM
Bridge Motor
0.75 kW, 3000 RPM
2nd Bridge Motor
0.75 kW, 3000 RPM
Mirror and Lock Motor
2.2 kW, 1500 RPM
Eccentric Motor
0.75 kW, 1500 RPM
Lock Group Motor
1.1 kW, 3000 RPM
Total Electrical Power
30.41 kW
Control System
PLC with touchscreen control panel
Machine Width
2100 mm
Machine Length
5200 mm
Machine Height
2200 mm
Machine Weight
2450 kg

უპირატესობები

  • Sizing plus lock handle pocketing in a single 1 minute 15 second cycle removes a whole second operation
  • Separate dedicated motors for sizing and milling avoid tool changes between operations
  • Encoder-controlled linear rail plus touchscreen PLC gives repeatable dimensions across a batch

გასათვალისწინებელი

  • Needs a 5200 x 2100 mm bay plus infeed and outfeed clearance, which rules out small workshops
  • Three-phase 380-400 V only, with a 30.41 kW total load and a mandatory 6-8 bar air supply
  • Dust extraction is not included and must be specified and paid for separately

ხშირად დასმული კითხვები

What power supply does the MZK NC Ripper Double PLC Control need?
The MZK NC Ripper Double PLC Control runs on a three-phase 380-400 V AC, 50-60 Hz supply and has a total electrical power of 30.41 kW, so the workshop needs a three-phase board and cabling sized for that load. The MZK NC Ripper Double PLC Control cannot be run from a single-phase domestic supply.
What is the largest door the MZK NC Ripper Double PLC Control can size?
The MZK NC Ripper Double PLC Control sizes doors up to a maximum of 2200 mm in length and 1000 mm in width. Leaves larger than 2200 x 1000 mm fall outside the stated capacity of the MZK NC Ripper Double PLC Control and need a larger sizing machine.
Does the MZK NC Ripper Double PLC Control need compressed air?
Yes, the MZK NC Ripper Double PLC Control requires a compressed air supply at 6 to 8 bar in addition to the electrical connection. A workshop compressor and dryer sized to hold 6-8 bar continuously must be in place before the MZK NC Ripper Double PLC Control is commissioned.
What tooling does the MZK NC Ripper Double PLC Control use?
The MZK NC Ripper Double PLC Control uses a Ø300 x Ø30 x 3.2 mm length sizing blade, a Ø250 x 30 x 3.2 mm blade, a Ø70 x 50 mm 20-tooth end cutting blade, a Ø125 x 20 x 3.2 mm milling cutter, a Ø19 x 135 mm faceplate cutter, a Ø23.5 x 55 mm lock handle cutter and a Ø25 x 150 mm length cutting blade. Replacement tooling for the MZK NC Ripper Double PLC Control must match these diameters and bores.
How much floor space does the MZK NC Ripper Double PLC Control require?
The MZK NC Ripper Double PLC Control measures 5200 mm long, 2100 mm wide and 2200 mm high and weighs 2450 kg, so it needs a bay of at least that size plus clear infeed and outfeed room for a 2200 mm leaf. The 2450 kg mass of the MZK NC Ripper Double PLC Control also requires a solid concrete floor.
Does the MZK NC Ripper Double PLC Control include dust extraction?
The MZK NC Ripper Double PLC Control is a sawing and milling machine and requires a separate dust extraction system; extraction is not part of the machine. Plan an extraction unit sized for the sawing and milling groups of the MZK NC Ripper Double PLC Control as a separate purchase.
How much does the MZK NC Ripper Double PLC Control cost?
The MZK NC Ripper Double PLC Control is quoted per order rather than sold at a list price. The cost of the MZK NC Ripper Double PLC Control depends on the lock, faceplate and milling tooling specified, the extraction plant sized for both bridges, and transport, rigging and commissioning in Georgia. Send your door and lock specifications for a written quotation.
Is the MZK NC Ripper Double PLC Control available from stock?
No, the MZK NC Ripper Double PLC Control is built to order at the Mizrak factory, so the delivery date for the MZK NC Ripper Double PLC Control is confirmed at quotation. Request the current build slot along with sea or road transport time into Georgia.
What is involved in commissioning the MZK NC Ripper Double PLC Control?
Commissioning the MZK NC Ripper Double PLC Control covers positioning and levelling a 5200 x 2100 x 2200 mm, 2450 kg machine on a solid concrete floor, connecting a 380-400 V three-phase supply rated for 30.41 kW, feeding compressed air at 6-8 bar, connecting extraction to both bridges and proving the 1 minute 15 second sizing and lock pocket cycle. This work is quoted separately from the MZK NC Ripper Double PLC Control itself.
What consumables should be budgeted with the MZK NC Ripper Double PLC Control?
Budget separately for the consumable tooling of the MZK NC Ripper Double PLC Control: the Ø300 x Ø30 x 3.2 mm length sizing blade, Ø250 x 30 x 3.2 mm blade, Ø70 x 50 mm Z4 end cutting blade, Ø125 x 20 x 3.2 mm milling cutter, Ø19 x 135 Z2 faceplate cutter, Ø23.5 x 55 Z4 lock handle cutter and Ø25 x 150 Z4 length cutting blade, plus sanding consumables and sharpening.
